M12 Connector Manufacturer

M12 Connectors for Industrial Signal, Data and Power Systems

Choose M12 circular connectors and cable assemblies for sensors, robotics, factory networks and equipment power connections. KMYD supports coding selection, mounting configurations, molded cables and OEM wiring requirements.

Request M12 QuoteContact us by WhatsApp or submit the inquiry form for a fast factory response.
M12 industrial connector for robotics and automation
Why Choose Us

Selection support for the complete M12 connection

Coding Review

Confirm the coding and pin arrangement required by the equipment and communication system.

Mounting Options

Discuss cable, panel, PCB, straight, right-angle and field-assembly configurations.

Custom Cable Integration

Match cable type, shielding, length, pinout, overmolding, branches and opposite ends.

Drawing & Sample Approval

Verify the interface and assembly before volume production to reduce project risk.

Customer Pain Points + Solutions

Avoid coding, network and installation mismatches

The connector fits physically but uses the wrong coding

Confirm coding, key position, pinout and protocol requirements before selecting the part.

Data performance is limited by the assembly

Review the connector, cable construction, shielding and termination as one transmission system.

Panel installation leaves insufficient clearance

Check panel thickness, mounting direction, rear space and cable bend radius before production.

Outdoor or washdown conditions cause failure

Select the model and assembly method according to the required protection and actual exposure conditions.



Products Categories

Related Catalog

More》

Related Application

Advantage Features

More》

Hot Keyword

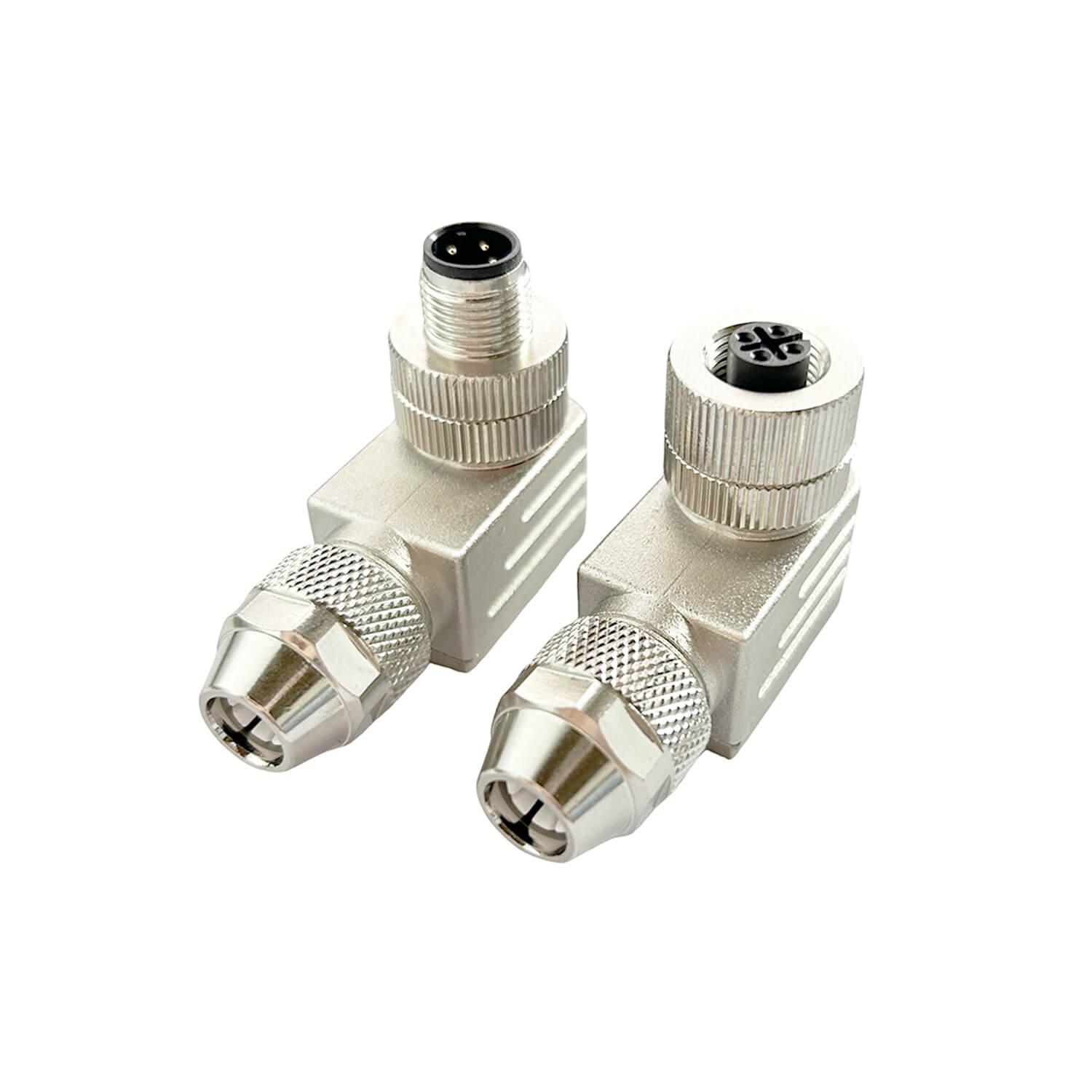

M12 Series Connectors

M12 Series Connectors

M12 Series connectors for industrial automation and fieldbus systems.
  • Total 1 pages 12 data

Coding Guide

Match M12 coding to the equipment standard

Common codingTypical useSelection note
A-codedSensors and actuatorsConfirm pin count and equipment pinout.
D-codedIndustrial EthernetConfirm protocol, cable and shielding.
X-codedHigher-speed EthernetConfirm the complete channel requirement.
L-codedIndustrial powerConfirm current, voltage and conductor size.

Coding applications and performance depend on the specific connector, cable and equipment standard. Verify the final drawing and technical data.

Applications

M12 connections across industrial automation

M12 connectors in robotics systems

Robotics

Signal, network and power connections for robotic equipment.

M12 connector application in AGV and AMR

AGV / AMR

Compact connections for mobile automation systems.

M12 connectors in factory automation

Factory Automation

Connections for sensors, controls and industrial networks.

M12 connector for demanding industrial environments

Demanding Environments

Model-specific sealed assemblies for dust and moisture exposure.

Configurations

Build the connection around the equipment

Molded Cable

Factory-assembled cable with defined connector, length and pinout.

Panel Mount

Front or rear installation options according to the selected model.

PCB Connector

Straight or angled board connection options where available.

Custom Harness

Branches, labels, shielding and mixed connector ends for OEM projects.

FAQ

M12 connector buying questions

How do I choose the correct M12 coding?

Start with the equipment interface, protocol or power requirement, then confirm coding, pin count, pinout, cable and applicable technical standard.

Are different M12 codings interchangeable?

No. Coding is designed to prevent incorrect mating. The connector coding and key position must match the equipment.

Can KMYD supply custom M12 Ethernet or power cables?

Custom assemblies can be evaluated from the required coding, protocol or electrical data, cable construction, shielding, length, pinout and opposite end.

Does every M12 connector have the same waterproof rating?

No. Protection varies by product and depends on correct mating, seals, cable fit and installation. Confirm the rating and test conditions for the selected model.

M12 Connector Inquiry

Need help selecting M12 coding or cable construction?

Share the equipment interface, protocol, electrical data and installation environment for factory evaluation.

Request a Quote
