M8 Connectors for Industrial Robot Sensor Connections

SF Series Aviation Connectors Specifications and Performance Data

M8 Connectors in Industrial Robot Sensors: Application Overview

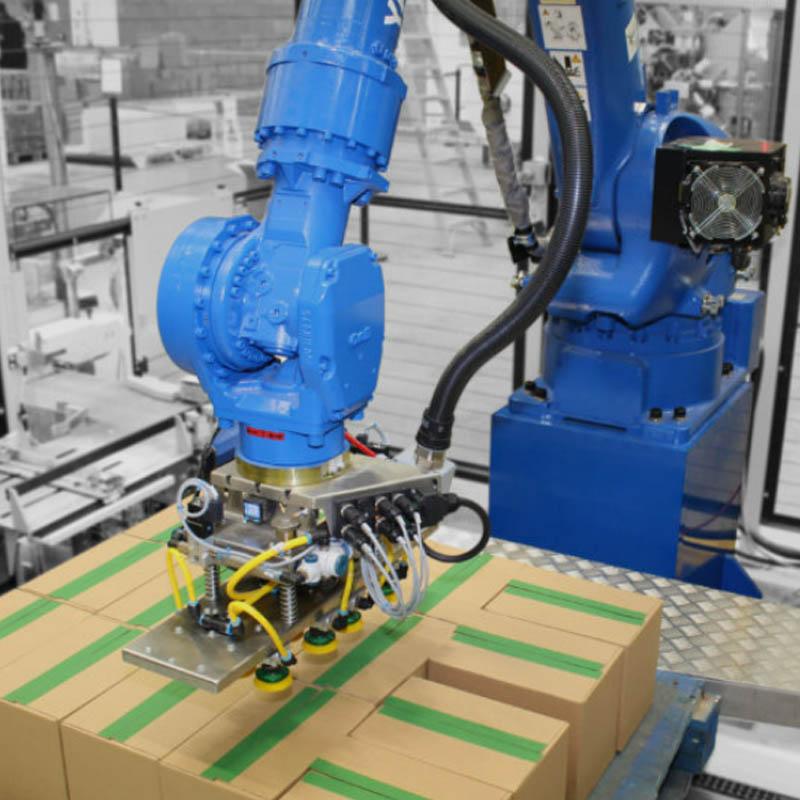

In industrial robots, reliable sensor connections are critical for ensuring precise motion control, accurate positioning, and safe operation. M8 connectors are widely used to connect proximity sensors, encoders, torque sensors, and other feedback devices to robotic controllers, providing stable signal transmission for real-time monitoring and control.

Environmental and Mechanical Demands in Robotic Applications

Industrial robots operate in demanding environments with vibration, dust, temperature fluctuations, and mechanical stress. M8 connectors, with compact designs, robust housings, and secure threaded locking mechanisms, maintain stable connections under these conditions. Their small form factor allows integration into tight spaces on robotic arms and sensor modules without affecting movement or performance.

Installation and Maintenance Benefits

Additionally, M8 connectors simplify installation and maintenance. When sensors require replacement or recalibration, these connectors allow quick and secure reconnection, minimizing downtime. By providing dependable connectivity, M8 connectors help enhance precision, operational reliability, and overall efficiency in modern industrial robotic systems.

Related Resources for Robot Sensor Connectivity

For engineers evaluating connector options for robotic sensor systems, the following resources provide additional technical context:

• GX12 Connectors for Robotic Arm Joint Sensors – A compact circular option for joint-level feedback.
• MS5015 Military Standard Connectors for Industrial Robot Arms – A higher-current alternative for power and control lines.

Selection Considerations for M8 Connectors

When specifying M8 connectors for robot sensor applications, verify the following parameters against your system requirements:

• Pin count and coding: Confirm the number of contacts (e.g., 3, 4, or 5-pin) and the keying variant to match the sensor and controller interface.
• Electrical ratings: Check rated current and voltage against the sensor's signal or power requirements.
• Environmental protection: Verify the IP rating (e.g., IP67) for the specific mating condition and whether the connector is rated for washdown or dust exposure.
• Cable and mounting style: Determine whether a straight or angled, field-wireable or pre-wired connector fits the robotic arm's routing and space constraints.

Next Step: Confirm Your Connector Specification

To ensure the M8 connector matches your robot's sensor interface, prepare the following details before contacting our engineering team: sensor type and manufacturer, pin count and coding, cable diameter and length, required IP rating, and operating temperature range. Use the inquiry form or WhatsApp to share these specifications for a verified recommendation.
