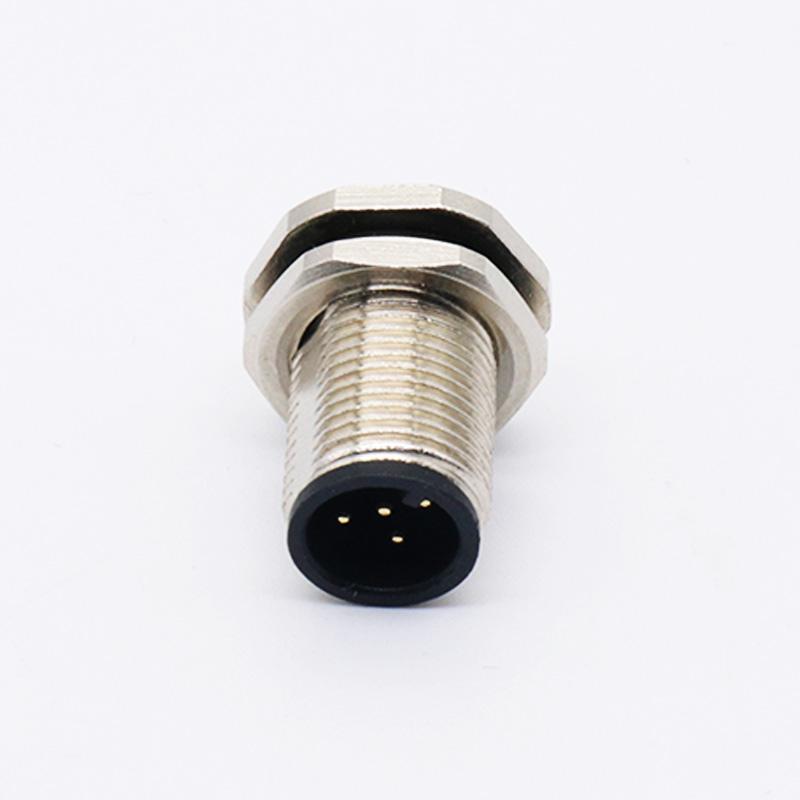

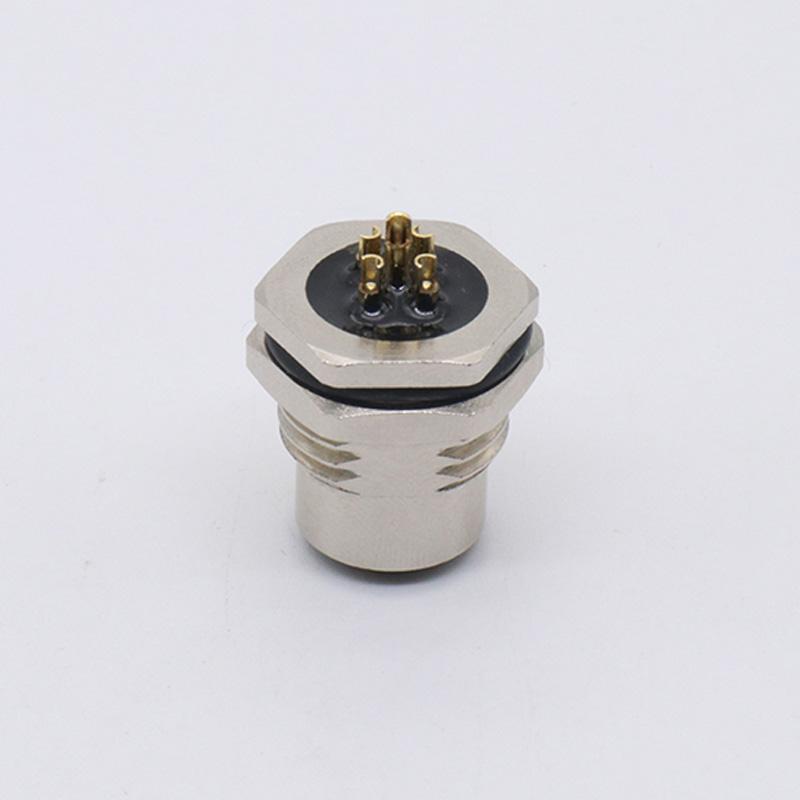

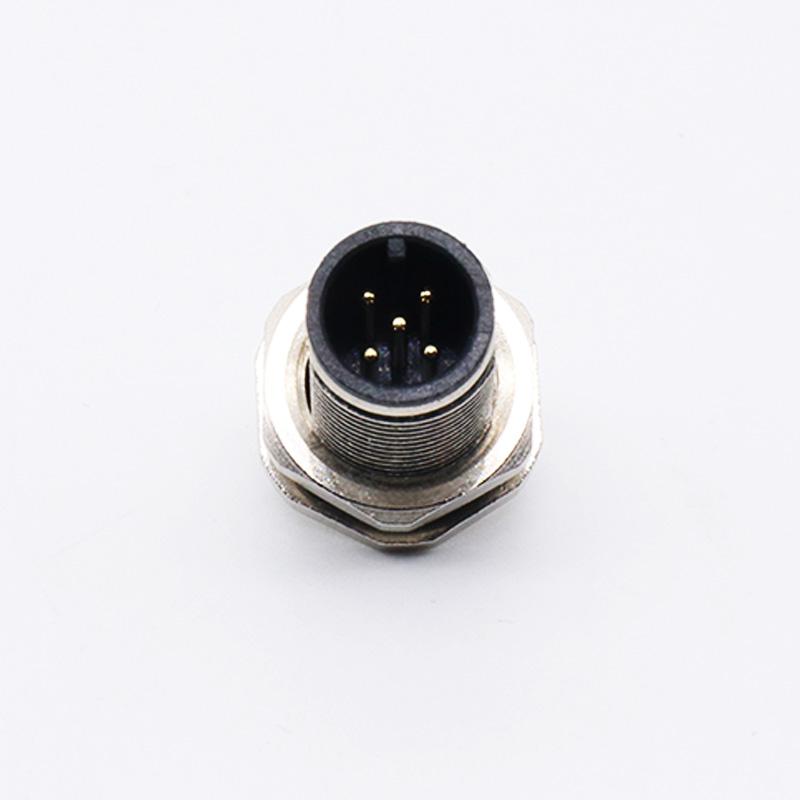

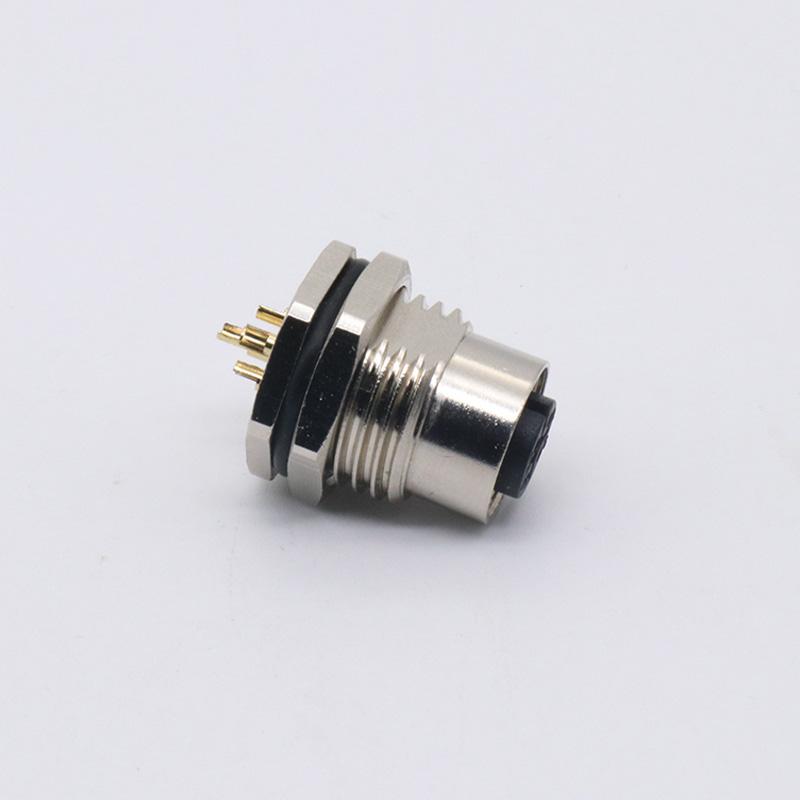

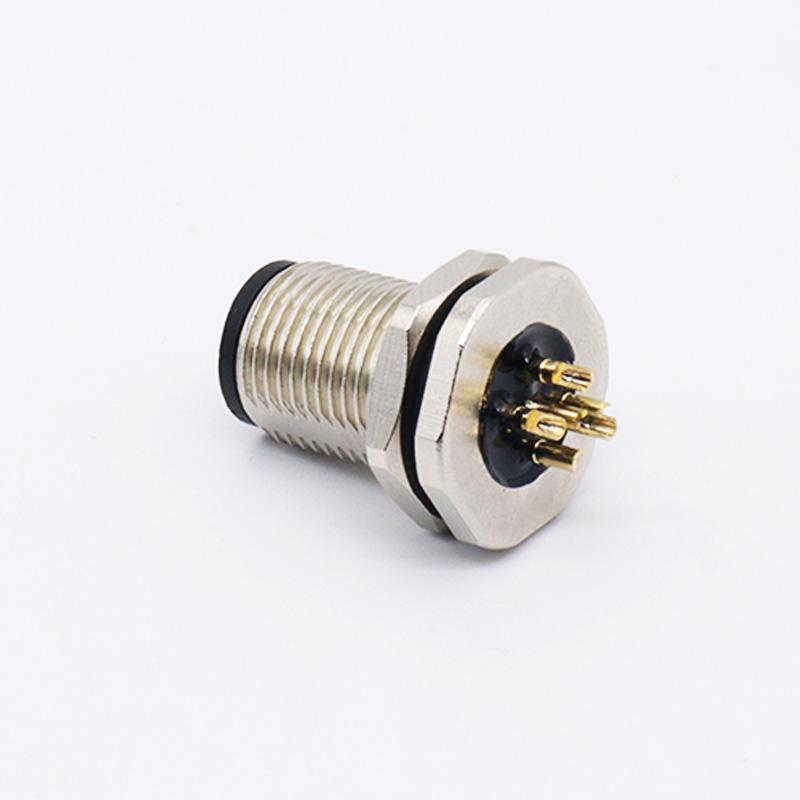

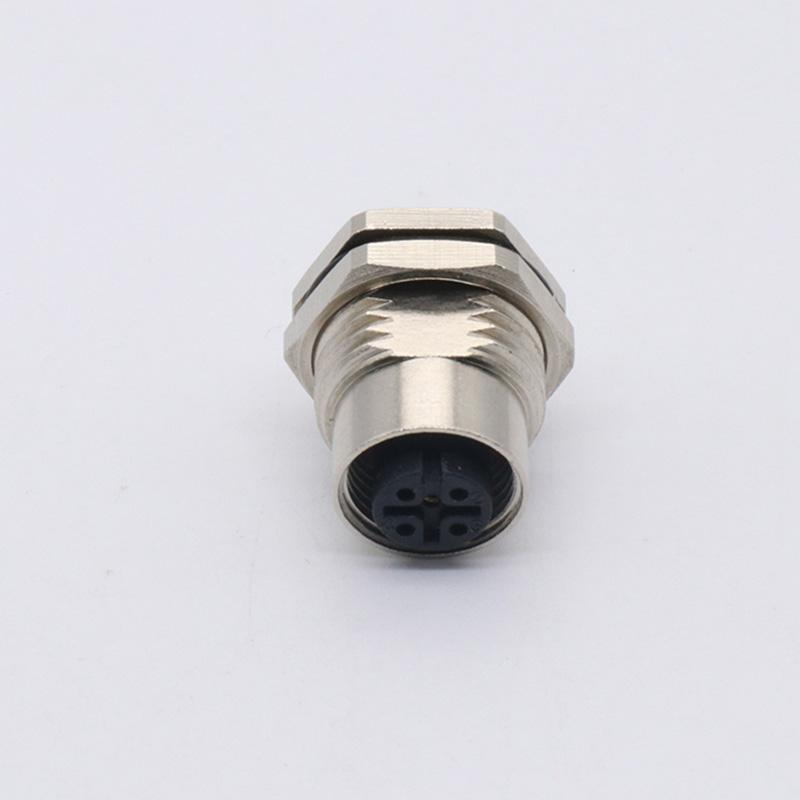

M12 Front Lock Panel Connector
< >

M12 Front Lock Waterproof Panel Connector 5 Pin IP68

>Number Of CoresNumber Of Cores 2-17 Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

M12 Front Lock Waterproof Panel Connector - 5 Pin IP68 Industrial Interface

The M12 Front Lock Waterproof Panel Connector (5 Pin, IP68) is designed for industrial systems that require secure front-mounted panel installation, high water and dust resistance, and reliable signal/power transmission. Its front-lock mechanism ensures the connector remains firmly in place under vibration, impact, and heavy industrial operation, making it ideal for control panels, automation equipment, and outdoor machinery.

Connector

Unlike standard M12 connectors, the front-lock design simplifies installation while providing enhanced mechanical retention and IP68 waterproof protection, ensuring long-term stability in challenging environments.

Secure Front Lock for Panel Applications
In industrial panels, connectors are often exposed to frequent handling and environmental stress. This front-lock M12 connector offers:
Reliable mechanical retention directly from the front side
Easy installation and replacement without disassembling the panel
Stable electrical connection under vibration or high-traffic environments

Compact design suitable for dense panel layouts

Connector

The connector is perfect for applications where panel integrity and long-term connection stability are critical.

5 Pin Configuration for Industrial Use
The 5-pin layout allows for:
Power supply transmission
Control signal distribution
Mixed signal and low-power connections
This makes it a versatile solution for industrial automation, robotics, sensors, and smart equipment.

Key Product Features
Front Lock Mechanism
Secures the connector firmly in the panel, reducing accidental disconnection risk.
IP68 Waterproof Protection
Fully sealed housing ensures operation in wet, dusty, or harsh environments.
Industrial-Grade Durability
Robust housing withstands vibration, mechanical stress, and repeated use.
Precision Contacts
High-quality contacts guarantee reliable signal and power transmission.
Compact Panel Integration
Optimized for space-saving panel layouts without compromising performance.

Factory Manufacturing Strength

Our factory has over 15 years of experience in industrial and waterproof connector production.

Connector

Capabilities include:
Mold and tooling development
CNC precision machining
Injection molding for insulating components
Assembly and panel integration

Comprehensive electrical and environmental testing

Connector

This vertical manufacturing process ensures consistent product quality, reliable delivery, and OEM/ODM flexibility, providing clients with a trustworthy industrial solution.

Quality Assurance
Each M12 front-lock connector undergoes strict inspection:
Waterproof sealing and IP68 verification
Electrical continuity and contact resistance testing
Mechanical vibration and impact testing
Plugging and mating cycle durability

Dimensional and structural accuracy checks

Connector

All products comply with ISO9001, CE, and RoHS standards for global industrial use.

Connector


Customization Options
We offer OEM/ODM services to meet diverse industrial needs:
Panel layout adaptations
Housing material modifications
Cable and wire integration
Shielded or anti-interference options
Application-specific connector solutions
Our engineering team supports the project from prototype design to mass production.

Application Areas
Industrial automation control panels
Robotic systems and motion controllers
Sensors and actuator interfaces
Smart manufacturing devices
Outdoor industrial machinery
Data acquisition and monitoring equipment

Reliable, Durable, and Waterproof Connectivity
The M12 Front Lock Waterproof Panel Connector (5 Pin, IP68) provides secure panel mounting, industrial durability, and full environmental protection, ensuring dependable operation in modern industrial and automation systems.

Contact Us
We provide samples, technical support, and customized production services.
Contact us today for factory-direct M12 front-lock connector solutions and competitive quotations.

 Item

 Parameters

 Number of Cores

 2-17Pin

 Gender

 Male/Female

 Housing Material

 PA66/Nickel Plated Brass

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃~+85℃

 Rated Current (A)

 1A

 Rated Voltage (AC.V)

 125V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder


Related Products

More》

Related Resource


M12 Connector
Related Catalog
Learn More
M12 Circular Connectors
PDF
Download Resources
Get More Downloads >
Related Materials
Connector Metal Shells

Connector Metal Shells...

Connector Metal Shells: Include zinc alloy die-cast Shells and copper Shells, featuring high strength, corrosion resista...

MORE→
1
Connector Waterproof Rings

Connector Waterproof Rings...

Connector Waterproof Rings Used with waterproof plugs and cables. Featuring a double-sealing structure to block...

MORE→
2
Copper Alloy Pins for Circular Connectors

Copper Alloy Pins for Circular Connectors...

Connector Terminals for Industrial and Waterproof Connectors Our connector terminals include crimp-type and sold...

MORE→
3
Connector Copper Braided Straps

Connector Copper Braided Straps...

Connector Copper Braided Straps Used for connector grounding or flexible conductivity applications, such as mo...

MORE→
4
Related Videos
Explore What M12 Front Lock Waterproof Panel Connector 5 Pin IP68 Can Do For You！
You'll receive the cup manufacturing guidance and expertise you'd expect.

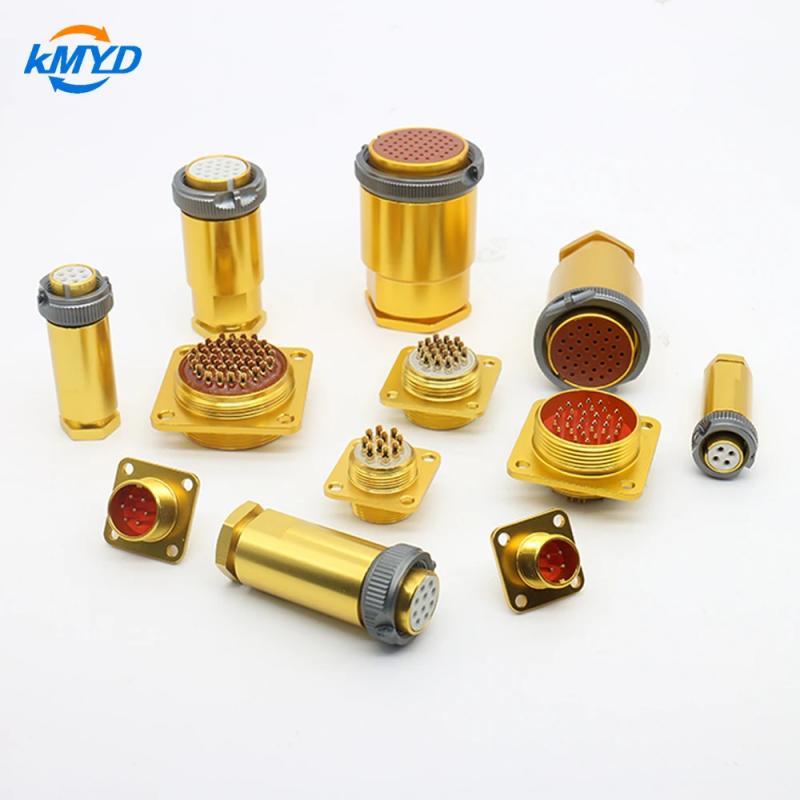

PC Series Russian Standard Circular Connector for Industrial Equipment
