M12 A Code Connectors
< >

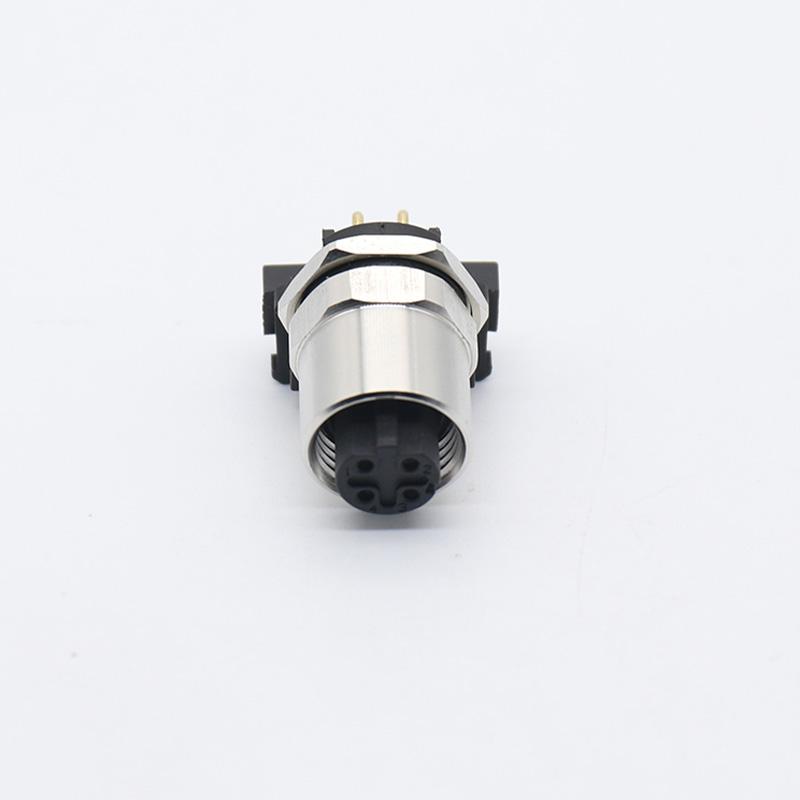

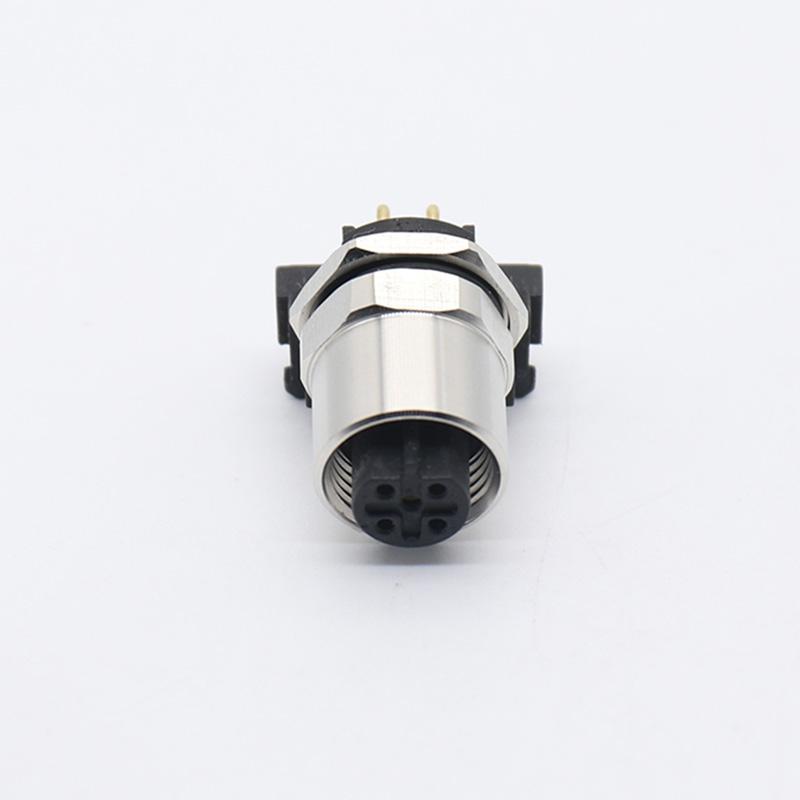

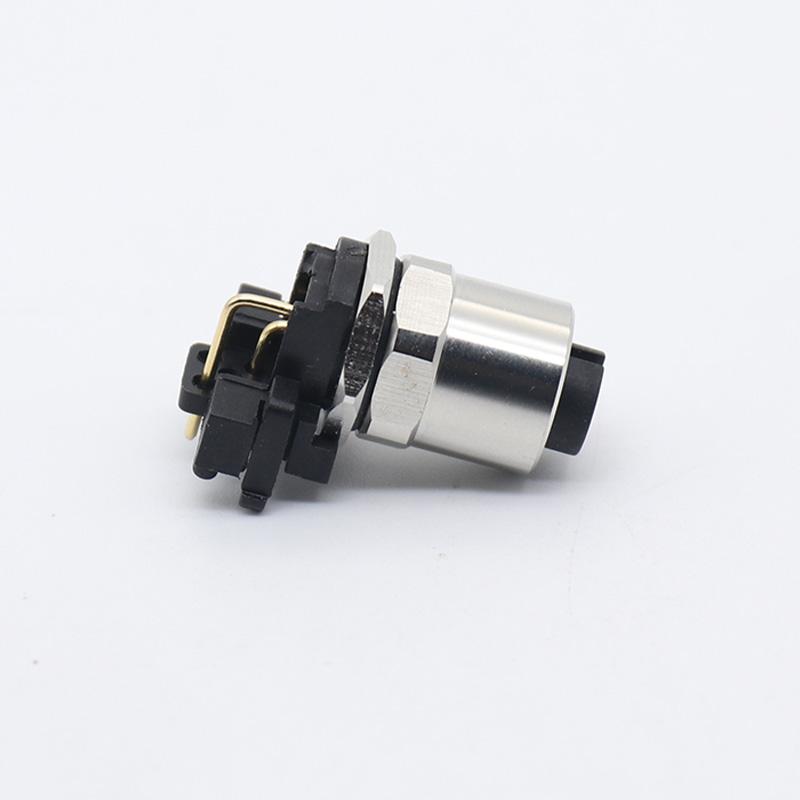

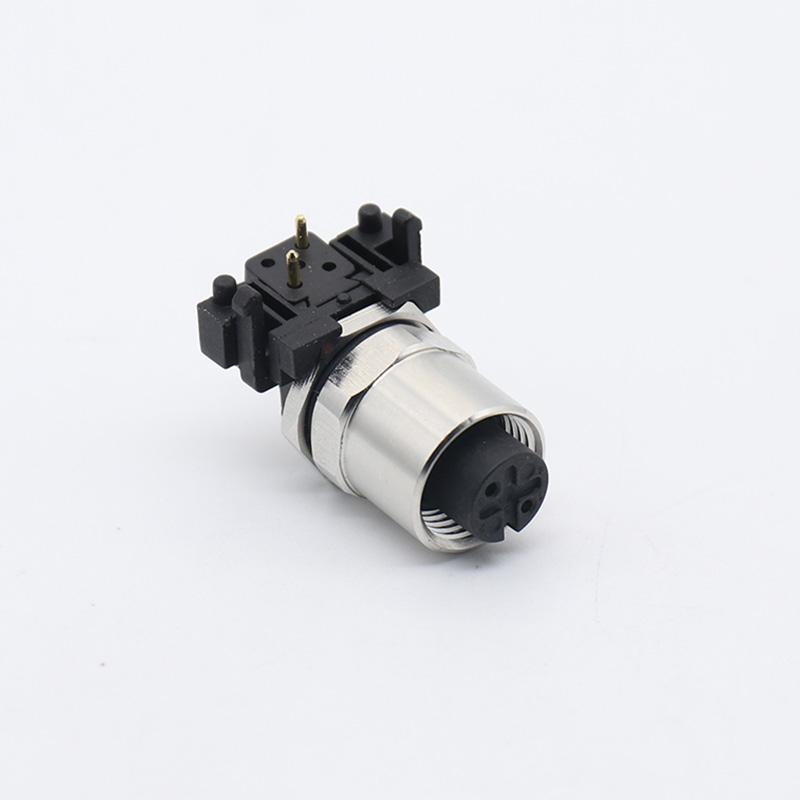

M12 Right Angle PCB Panel Mount Connector 4 5 8 Pin

>Number Of CoresNumber Of Cores 2-17 Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

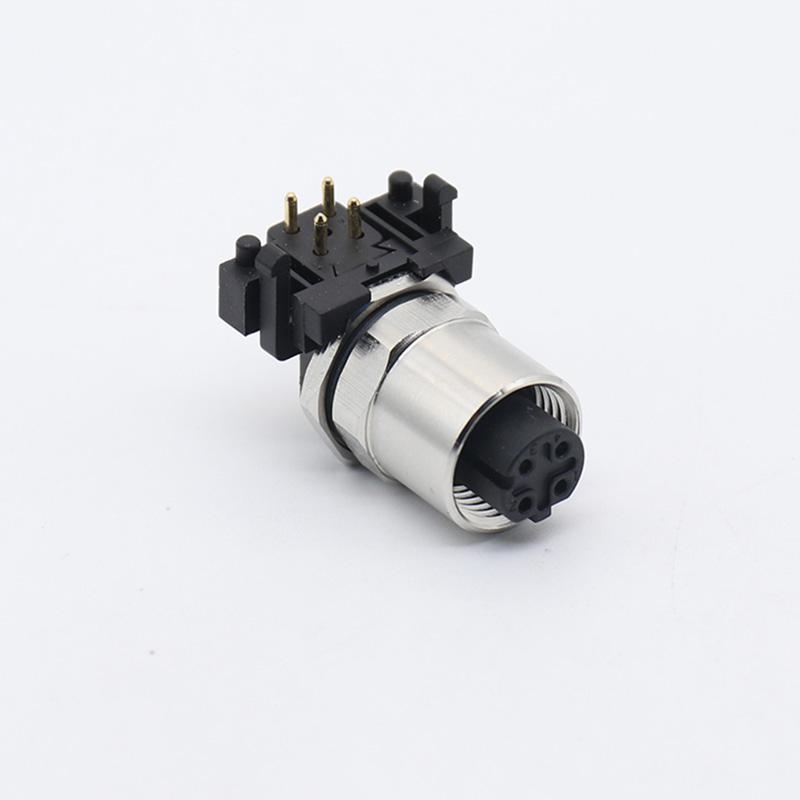

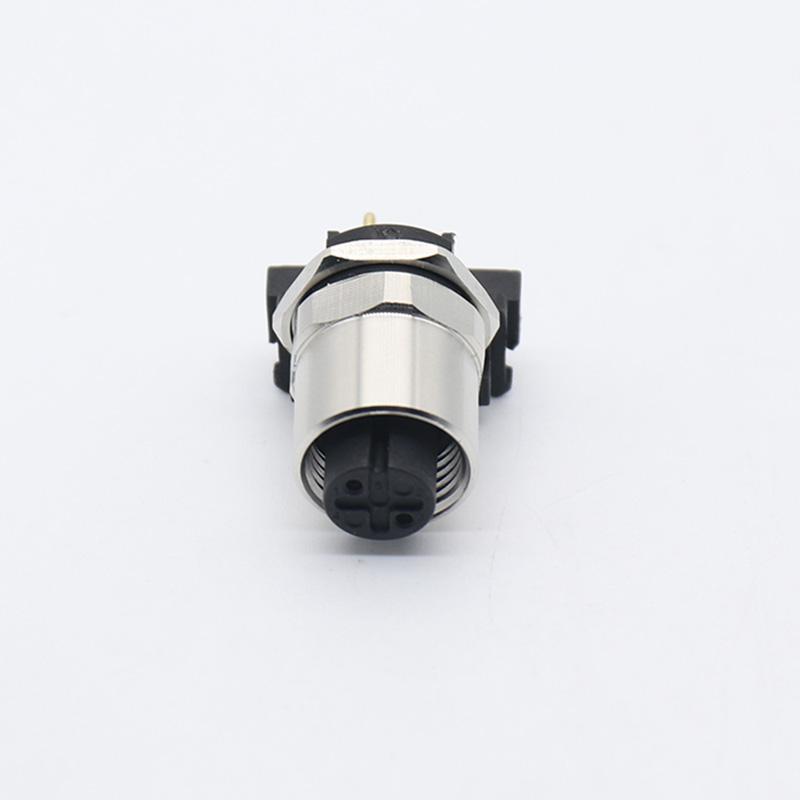

M12 Right Angle PCB Panel Mount Connector – 4, 5, 8 Pin Industrial Interface
The M12 Right Angle PCB Panel Mount Connector is engineered for industrial and automation systems that require secure PCB-level mounting, compact design, and flexible pin configurations. Available in 4, 5, and 8 pins, this connector series is ideal for devices where space-saving installation, reliable electrical performance, and durable industrial-grade protection are essential.
Connector
Unlike standard straight PCB connectors, the right-angle design allows for horizontal cable routing, optimizing internal board space and improving system wiring organization.

Optimized for Compact PCB Layouts
In modern industrial and automation equipment, dense PCB designs demand connectors that occupy minimal vertical space. This right-angle M12 connector addresses these challenges by:
Reducing vertical profile on PCB boards
Allowing parallel cable routing to the PCB surface
Improving airflow and internal component arrangement
Maintaining stable electrical connections under mechanical stress
It is particularly suited for control modules, sensor interfaces, and compact automation devices.

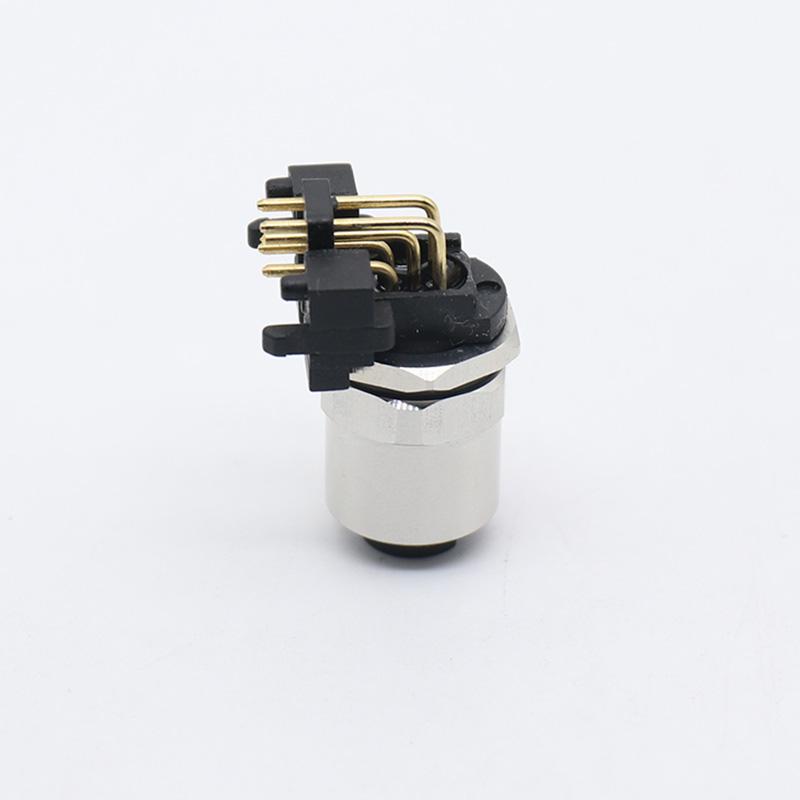

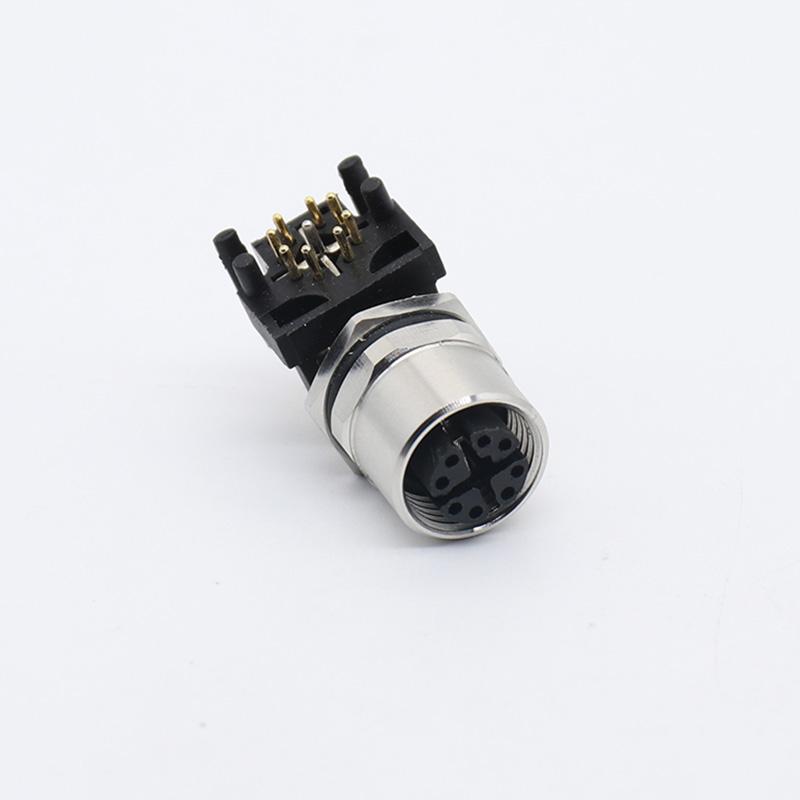

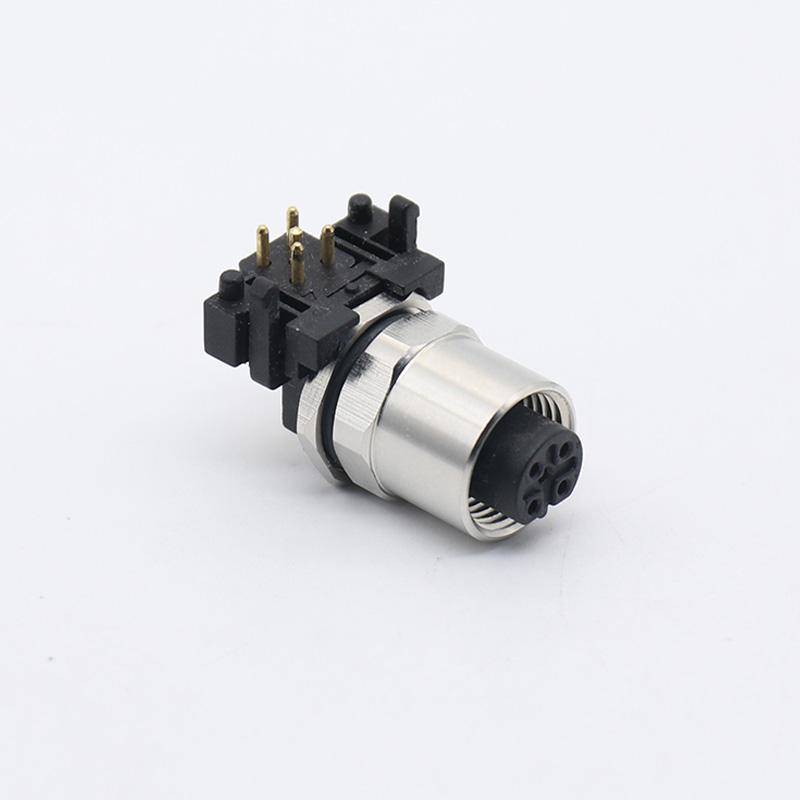

Versatile Pin Options: 4, 5, and 8 Pins
The varying pin counts enable flexible system design:
4 Pins: Basic power or signal lines
5 Pins: Combined power and low-level signals

8 Pins: Multi-signal or mixed power/signal applications

Connector

This versatility helps engineers standardize on a single connector series across different equipment types, reducing part numbers and simplifying maintenance.

Key Product Features
Right Angle PCB Design
Optimized for space-saving installation and horizontal cable routing.

Panel Mount Integration
Provides secure PCB-to-panel connection for stable mechanical retention.

Industrial-Grade Durability
Robust metal or reinforced plastic housing resists vibration, mechanical impact, and industrial environmental stress.

Precision Contact System
Ensures reliable signal and power transmission over long-term operation.

Wide Compatibility
Suitable for sensors, automation modules, control boards, and industrial equipment.

Manufacturing Strength for Reliable Quality
Our factory has over 15 years of experience in industrial connector production, integrating:
Connector
Mold and tooling development
CNC precision machining
Injection molding for insulating and structural components
Connector assembly and PCB integration
Rigorous functional and quality testing
Connector
This vertical production ensures consistent quality, fast delivery, and OEM/ODM flexibility, making it a trusted choice for industrial clients worldwide.

Quality Control Measures
Each connector is tested to ensure performance and reliability:
Electrical continuity and conductivity testing
Plugging and mating cycle durability
Mechanical vibration and impact resistance
Dimensional and structural inspection
Optional waterproof and dustproof sealing verification
Connector
All products comply with ISO9001, CE, and RoHS standards, meeting global industrial requirements.
Connector
Customization Options
We support tailored solutions for different applications:
Custom pin configurations (4, 5, 8 pins)
PCB and panel layout adjustments
Housing and material modifications
Cable integration for mixed signal/power systems
OEM branding and packaging
Our engineering team assists from prototype design to mass production, ensuring your exact requirements are met.

Application Areas
Industrial automation control boards
Sensor and actuator interfaces
Compact PLC and monitoring modules
Robotics and motion control electronics
Smart manufacturing devices
Data acquisition and measurement systems
Compact, Reliable, and Industrial-Ready
The M12 Right Angle PCB Panel Mount Connector (4, 5, 8 Pin) combines space-efficient design, industrial durability, and flexible pin options, providing a reliable solution for modern automation and industrial electronics.

Contact Us
We provide samples, technical support, and OEM/ODM customization services.
Contact us today for factory-direct M12 connector solutions and competitive quotations.

 Item

 Parameters

 Number of Cores

 2-17Pin

 Gender

 Male/Female

 Housing Material

 PA66/Nickel Plated Brass

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃~+85℃

 Rated Current (A)

 1A

 Rated Voltage (AC.V)

 125V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
