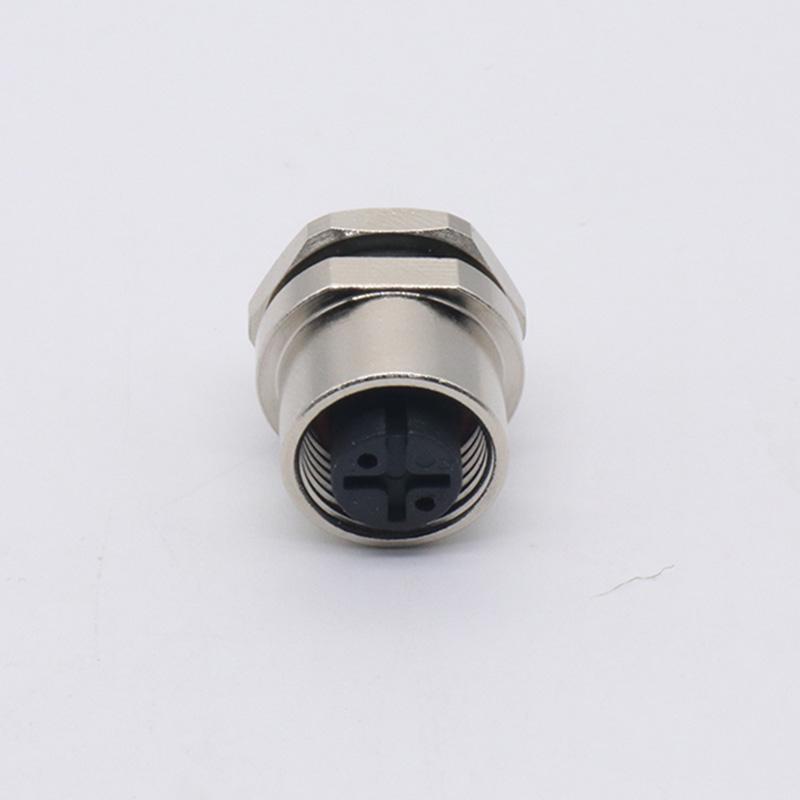

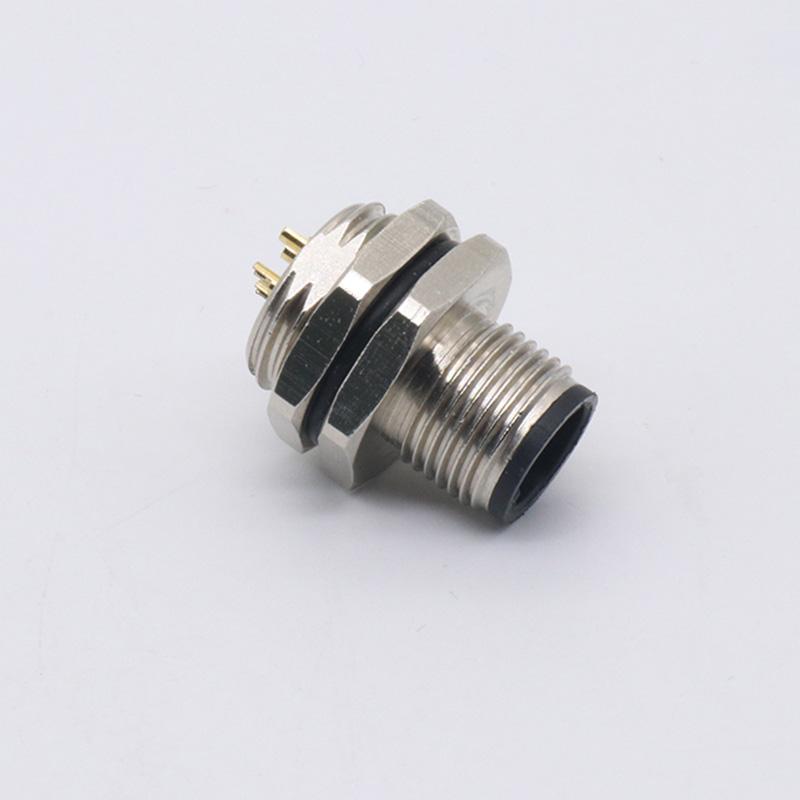

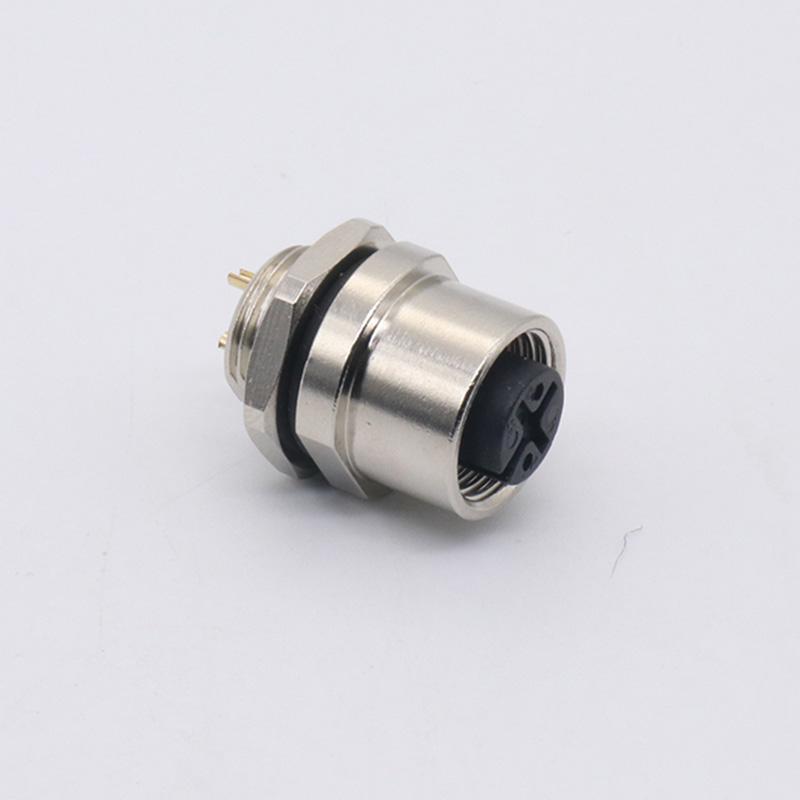

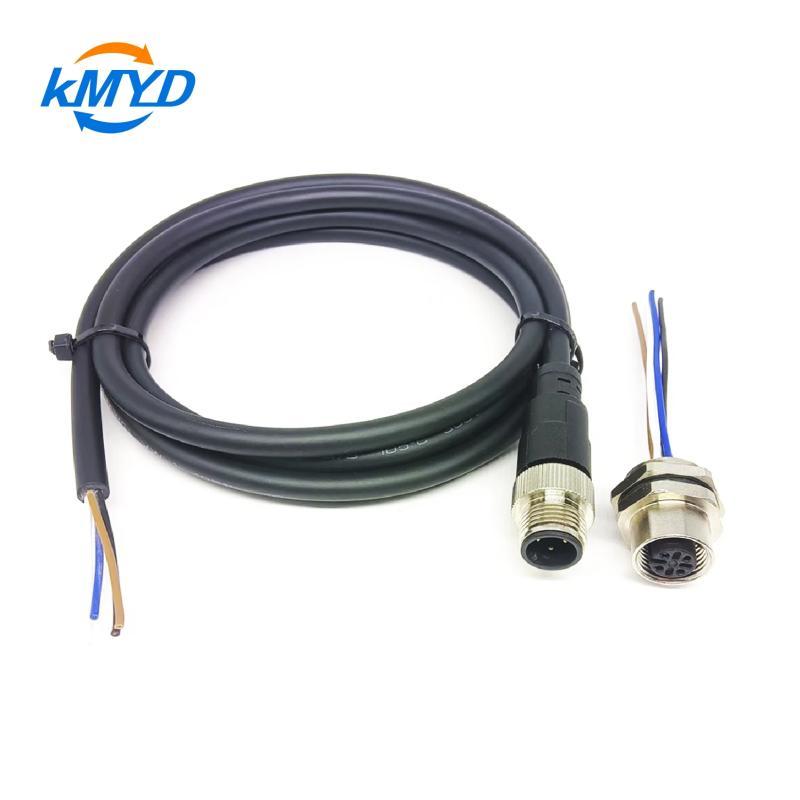

M12 Rear Lock Panel Mount Connector
< >

M12 2-17 Pin Rear Lock Panel Mount Connector

>Number Of CoresNumber Of Cores 2-17 Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

M12 2 - 17 Pin Rear Lock Panel Mount Connector – Robust Industrial Interface
The M12 2 - 17 Pin Rear Lock Panel Mount Connector is engineered for industrial and automation applications requiring secure panel-mounted connections with flexible pin configurations. Its rear-lock design ensures the connector remains firmly in place under vibration, motion, or repeated operation, making it ideal for control cabinets, automation panels, and machine interfaces.
Connector
Unlike standard M12 connectors, the rear-lock feature adds mechanical stability while maintaining easy installation and reliable signal transmission in demanding industrial environments.

Secure Panel Connection for Industrial Systems

Industrial panels often house multiple connectors in compact spaces. Loose or unstable connectors can lead to signal loss or downtime. This rear-lock connector is designed to:
Provide firm mechanical retention within panel cutouts
Support 2 - 17 pins for simple or complex electrical configurations
Enable clean and organized wiring layouts
Maintain reliable operation under vibration or high-traffic panel environments
Connector
Its compact M12 circular interface makes it suitable for dense panel assemblies, reducing installation space without sacrificing reliability.

Rear-Lock Design Advantages
The rear-lock mechanism ensures:
Connectors remain securely fastened during machine operation
Reduced risk of accidental disconnection
Stable electrical contact even in high-vibration applications
Easy installation and replacement without compromising panel integrity

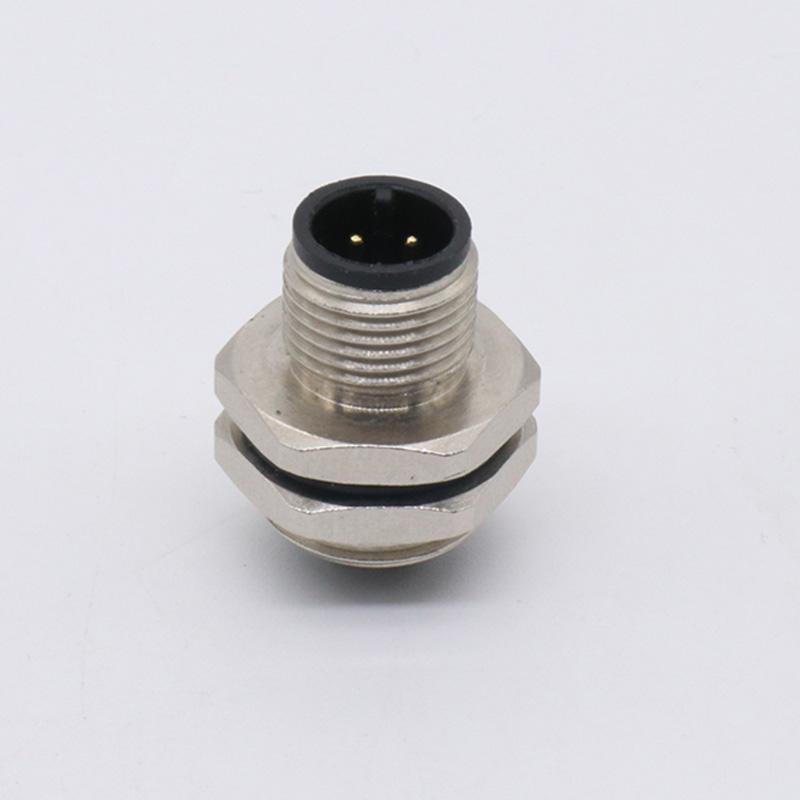

M12 Connector
This makes it ideal for control cabinets, automation panels, and monitoring systems where stability is critical.

Key Product Features
Flexible Pin Options (2 - 17 Pins)
Accommodates everything from simple power connections to complex signal networks.

M12 Circular Form Factor
Compact size fits panel assemblies while maintaining mechanical robustness.

Rear-Lock Securing Mechanism
Provides high mechanical retention, preventing accidental disconnections.

Industrial-Grade Durability
Precision contacts and reinforced housing ensure reliable performance under vibration, dust, and industrial conditions.

Reliable Electrical Performance
Stable conductivity for power, signal, or mixed connections in industrial systems.

Factory Manufacturing Strength

We are a professional connector manufacturer with over 15 years of experience in M12 and industrial panel connectors.

Connector

Our fully integrated production capabilities include:

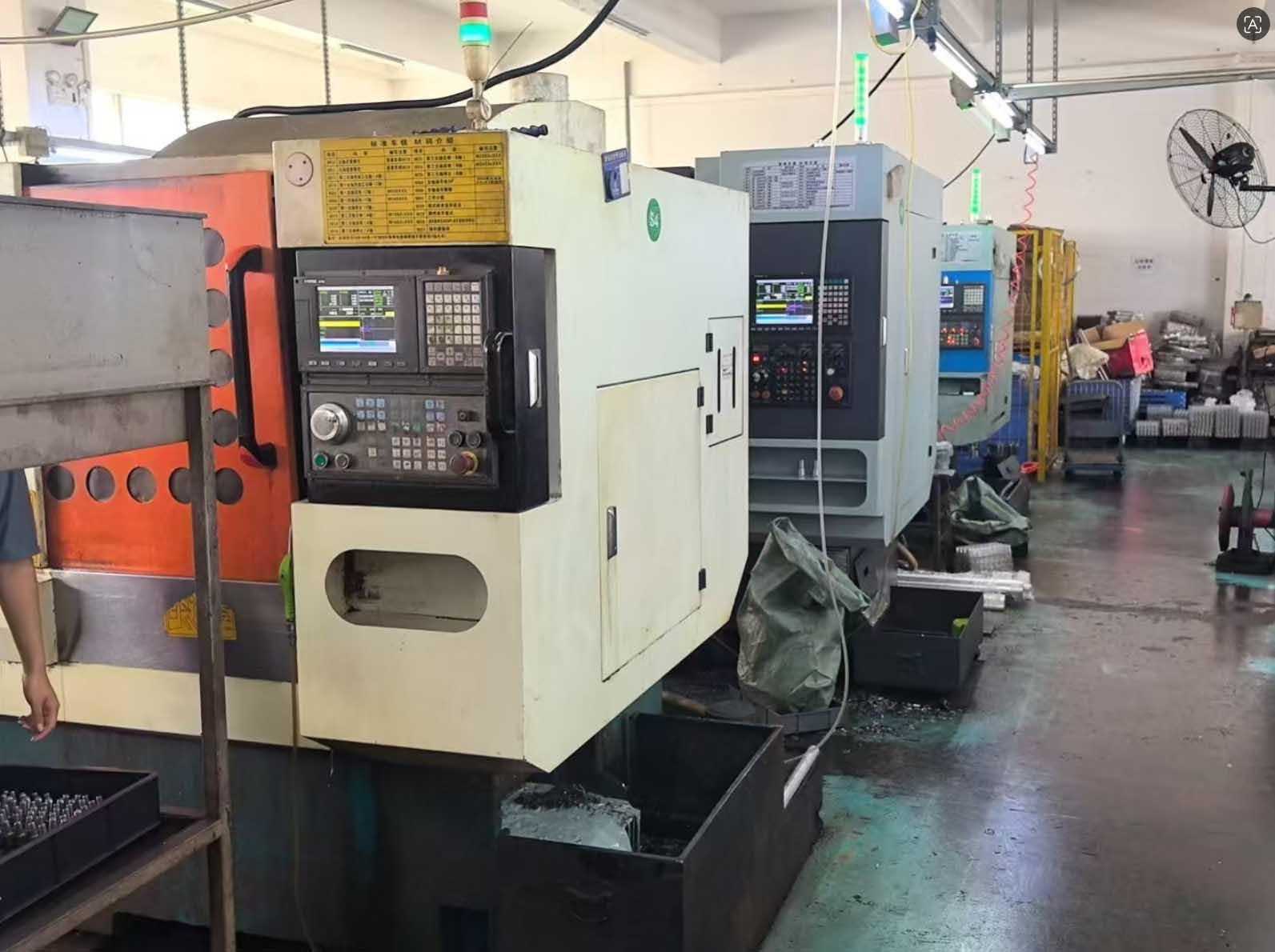

Mold and tooling development
CNC precision machining
Injection molding for insulating and structural components
Connector assembly and panel integration

Cable processing and functional testing

Connector

This complete in-house system ensures stable product quality, consistent production, and fast delivery, with flexibility for OEM/ODM customization.

Comprehensive Quality Control
Each rear-lock panel mount connector undergoes strict testing:
Electrical continuity and conductivity verification
Mechanical vibration and retention testing
Plugging and mating cycle durability assessment
Dimensional and structural inspection

Optional environmental sealing verification

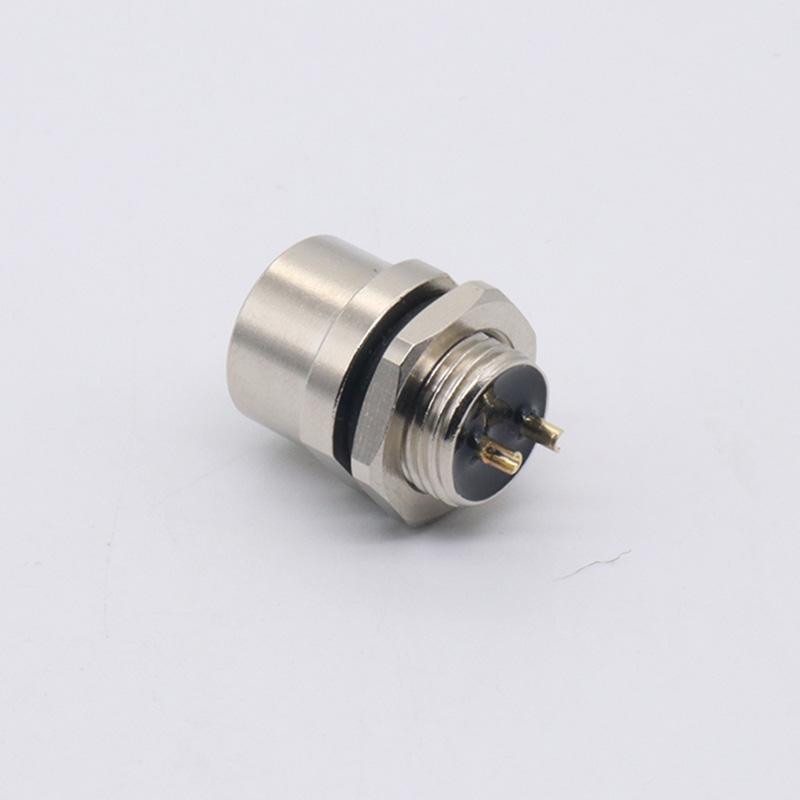

Circular Connector

All products comply with ISO9001, CE, and RoHS standards, meeting global industrial requirements.
Connector
Customization Support
We provide tailored solutions for industrial panel applications:
Custom pin configurations (2 - 17 pins)
Cable integration options
Shielded or anti-interference connections
Housing and material adaptations
Panel-specific design adjustments
Our engineering team supports projects from prototype to mass production.

Application Areas
Industrial automation panels
Control cabinet wiring
Robotics and motion systems
PLC and sensor networks
Smart manufacturing equipment
Data acquisition and monitoring systems
Reliable Panel Connectivity for Industrial Systems
The M12 2 - 17 Pin Rear Lock Panel Mount Connector combines secure mounting, flexible pin options, and durable industrial design, providing a reliable interface for modern industrial and automation applications.

Contact Us
We offer samples, technical support, and customized production services.
Contact us today for factory-direct industrial connector solutions and competitive quotations.

 Item

 Parameters

 Number of Cores

 2-17Pin

 Gender

 Male/Female

 Housing Material

 PA66/Nickel Plated Brass

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃~+85℃

 Rated Current (A)

 1A

 Rated Voltage (AC.V)

 125V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
