M12 Connector
< >

M12 Assembly Right-Angle Metal Connector for Automated Packaging Equipment

>Number Of CoresNumber Of Cores 2-17Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

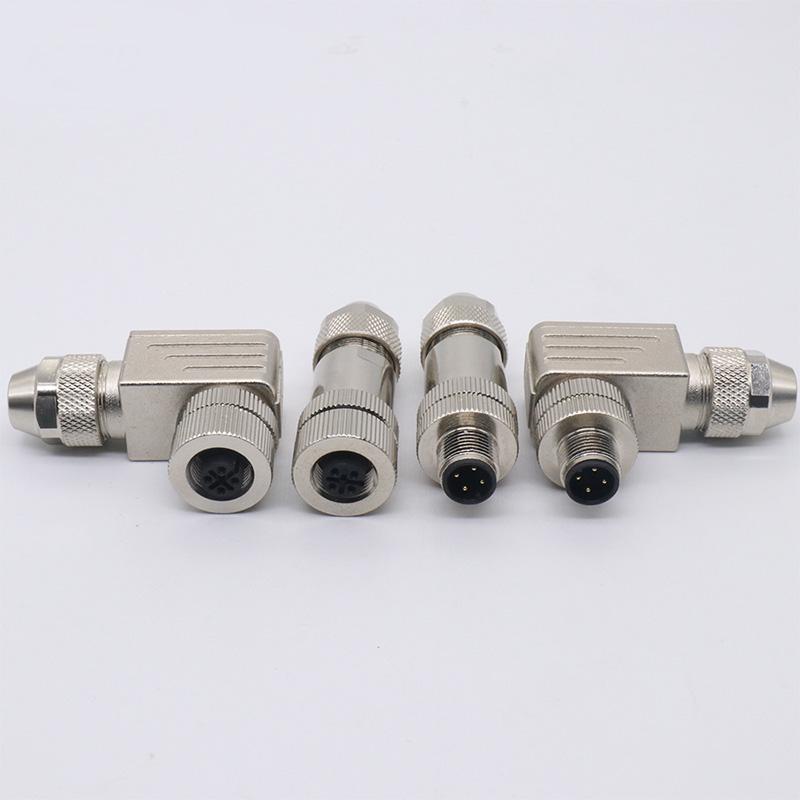

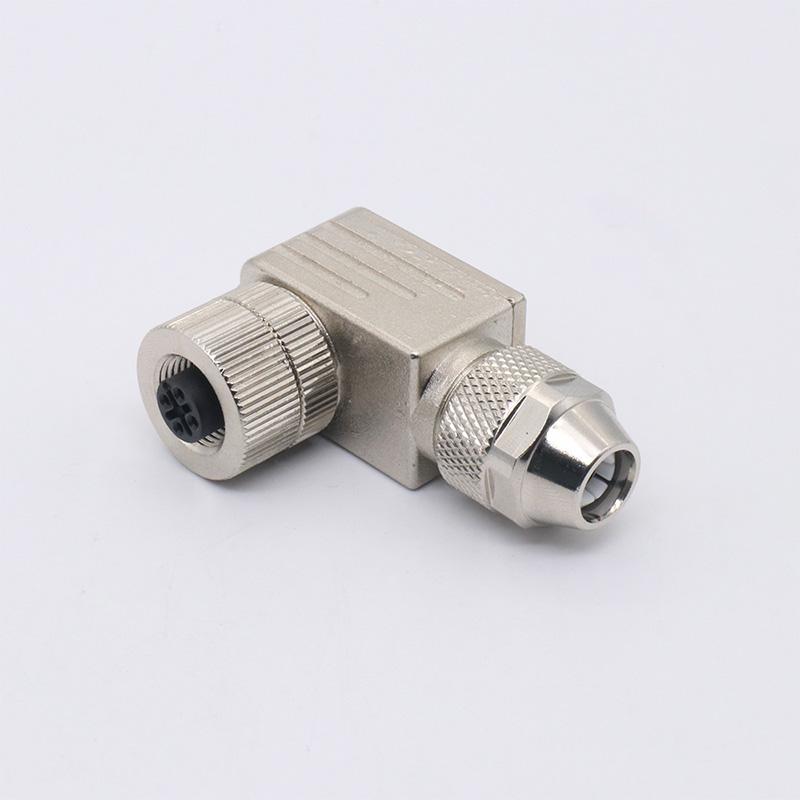

M12 Assembly Right-Angle Metal Connector - Engineered for Automated Packaging Equipment
The M12 Assembly Right-Angle Metal Connector is specifically designed for automated packaging systems, where reliable connectivity, compact design, and long-term durability are crucial. Its right-angle, assembly-type structure allows for precise cable routing in space-constrained machinery, while the full metal housing ensures industrial-grade strength and protection in demanding production environments.
Connector
Unlike standard connectors, this M12 model is optimized for high-vibration, high-speed machinery, making it an ideal choice for continuous operation in packaging lines.

Optimized for High-Speed Automated Machinery
Automated packaging equipment requires connectors that can withstand repetitive motion, vibration, and frequent plugging cycles. This connector provides:
Stable signal and power transmission under vibration
Secure connection even in high-speed machinery
Compact installation for tight machine layouts
Easy field assembly and maintenance

The right-angle design helps route cables along machine structures, reducing wear and minimizing the risk of cable interference.

Industrial-Grade Metal Housing
The metal shell provides mechanical strength and resistance to impact, dust, and industrial contaminants, ensuring long-term reliability in factory environments. Its robust construction protects internal contacts and maintains electrical performance even under heavy-duty operation.

Key benefits include:
Enhanced mechanical durability
Protection against accidental impact and debris
High-temperature resistance

Longevity under repetitive industrial cycles

Connector

Assembly-Type Design for Flexible Installation
Unlike pre-molded connectors, the assembly structure allows:
On-site cable termination
Adjustable cable lengths for specific machinery layouts
Quick replacement or maintenance without machine disassembly
Efficient customization for special production lines
This flexibility is particularly useful in automated packaging environments where machine configurations vary frequently.

Key Features
Right-Angle Configuration: Optimized for confined spaces and better cable management
IP67/Industrial Sealing: Protects against dust, water splashes, and contaminants
5 - 8 Pin Configurations Available: Supports power, signal, or mixed transmission
Metal Industrial Housing: Ensures durability in demanding factory conditions

Precision Contacts: Stable conductivity for reliable communication and power transfer

Connector

Factory Strength for Reliable Production
We are a professional connector manufacturer with over 15 years of experience in industrial waterproof and assembly connectors.
Connector
Our factory capabilities include:
Mold design and precision tooling
CNC metal housing processing
Injection molding for insulating parts
Connector assembly and cable integration
Full testing and quality verification
Connector
This vertical manufacturing process ensures consistent quality, efficient production, and reliable delivery, even for large-scale industrial projects.

Comprehensive Quality Control
Every M12 metal connector undergoes strict inspection to ensure durability and performance:
Waterproof and dustproof sealing test
Electrical continuity and conductivity testing
Plugging cycle durability testing
Mechanical impact and vibration resistance testing

Dimensional accuracy and structural inspection

Connector

All products comply with ISO9001, CE, and RoHS standards.
Connector
Customization Capabilities
We provide flexible OEM/ODM solutions for automated equipment applications:
Cable length and wire gauge customization
Pin configuration adjustments
Shielded and anti-interference options
Housing material and structural modifications
Application-specific connector solutions
Our engineering team supports projects from prototype design to full-scale production.

Application Areas
Automated packaging lines
High-speed filling and sealing machines
Conveyor systems
Robotic assembly equipment
Industrial automation controllers

Sensor and actuator networks


Durable and Flexible Connectivity for Packaging Automation
The M12 assembly right-angle metal connector is designed to deliver industrial-grade reliability, space-efficient installation, and flexible assembly for high-performance automated packaging systems.

Contact Us
We provide samples, technical support, and custom production services.
Contact us today for factory-direct solutions and competitive quotations.

 Item

 Parameters

 Number of Cores

 2-17Pin

 Gender

 Male/Female

 Housing Material

 PA66/Nickel Plated Brass

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃~+85℃

 Rated Current (A)

 1A

 Rated Voltage (AC.V)

 125V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
