YOUR POSITION：HOME > Connectors > M Series Connectors > M12 Series Connectors >
Circular Connector
< >

IP67 M12 Circular Connector 2 - 17 Pins Customized Wire

>Number Of CoresNumber Of Cores 2-17Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

The IP67 M12 circular connector (2–17 pins) with customized wire is designed for industrial systems that require flexible signal and power integration in compact environments. It supports a wide range of pin configurations, making it suitable for both simple sensor connections and complex multi-signal transmission setups.

Unlike standard fixed-wire connectors, this version is built around project-based customization, allowing engineers to define wiring structure, cable specification, and installation length according to real application requirements.

M12 Wire Circular Connector Is Built for Flexible System Integration
Industrial equipment today often requires mixed signal architecture within limited space. The M12 circular connector series addresses this need by offering multiple pin options (2 to 17 pins) within a standardized housing format.
This allows:
Integration of multiple signals in a single connection point
Reduced wiring complexity in control systems
Consistent signal performance across distributed devices
Compact installation in space-constrained equipment

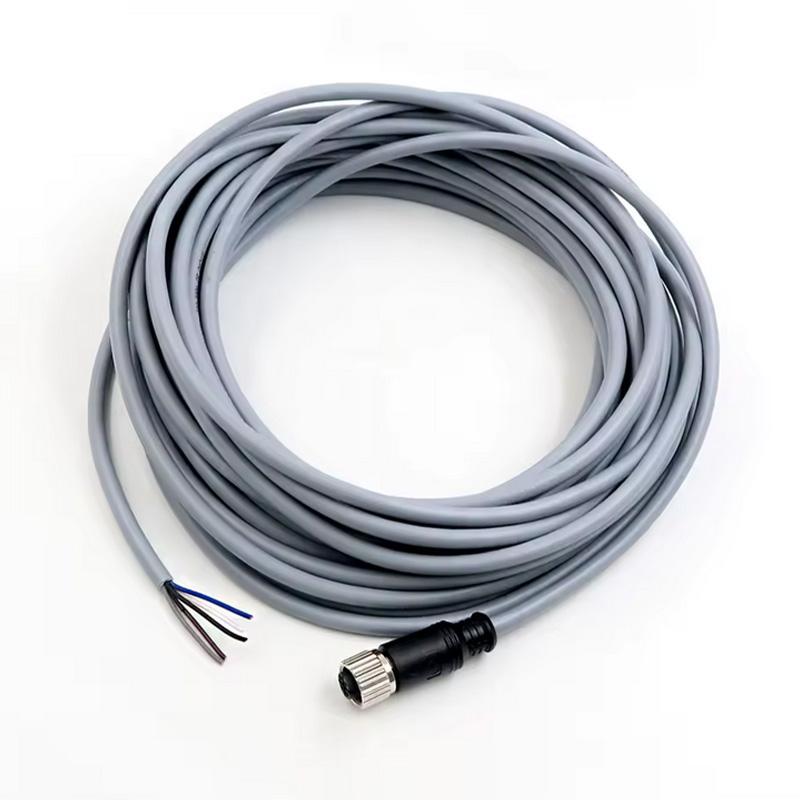

M12 Circular Connector


M12 Wire Circular Connector's Performance in Industrial Environments

The connector is engineered to maintain stable electrical performance under continuous industrial operation. Its threaded locking structure and IP67 sealing design help ensure reliable operation in environments exposed to moisture, vibration, and dust.

Key functional characteristics include:
Stable signal and low-power transmission
Secure threaded mating system
Resistance to vibration and mechanical stress
Reliable operation in automation environments

Long-term durability in field installations

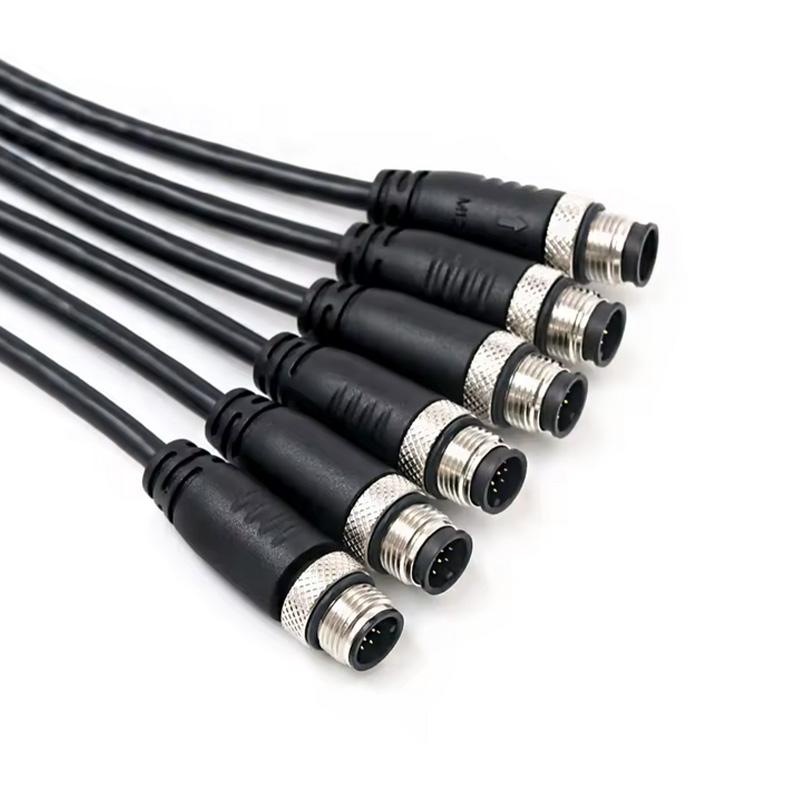

Connector


Fully Customizable Wiring Configuration
To support different engineering requirements, the M12 connector with customized wire can be tailored in multiple ways:
Pin configuration from 2 to 17 pins
Custom cable length based on system layout
Selection of conductor size for signal or power use
Shielded cable options for EMI-sensitive environments
PVC / PUR / silicone cable materials available
OEM wiring layout and labeling support
This flexibility makes it suitable for both standard equipment and complex automation systems.

Typical Application Scenarios for M12 Circular Connector
The IP67 M12 circular connector is widely used in industrial and electronic systems such as:
Industrial automation and control systems
Sensor and actuator networks
Robotics and machinery equipment
Data acquisition systems
Production line integration

Outdoor monitoring and instrumentation

Connectors


Manufacturing & Quality Control Capability

With manufacturing experience since 2007, we specialize in circular connectors and customized cable assemblies. Our production system integrates mold engineering, precision machining, injection molding, assembly, and electrical testing.

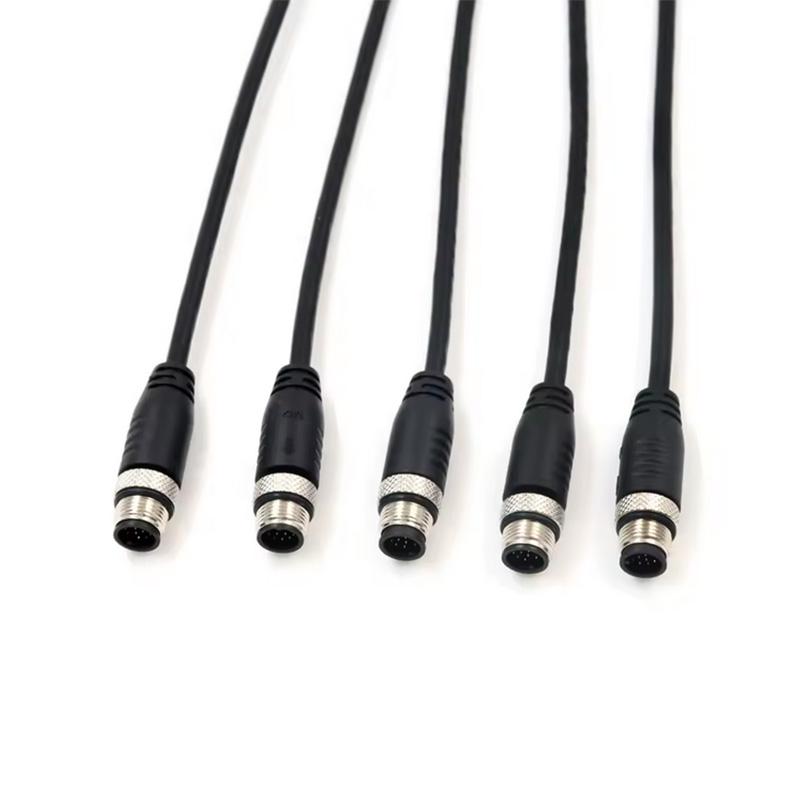

M12 A-code Connector


Each M12 connector undergoes strict inspection for waterproof performance, electrical continuity, mechanical durability, and dimensional accuracy to ensure consistent quality across production batches.

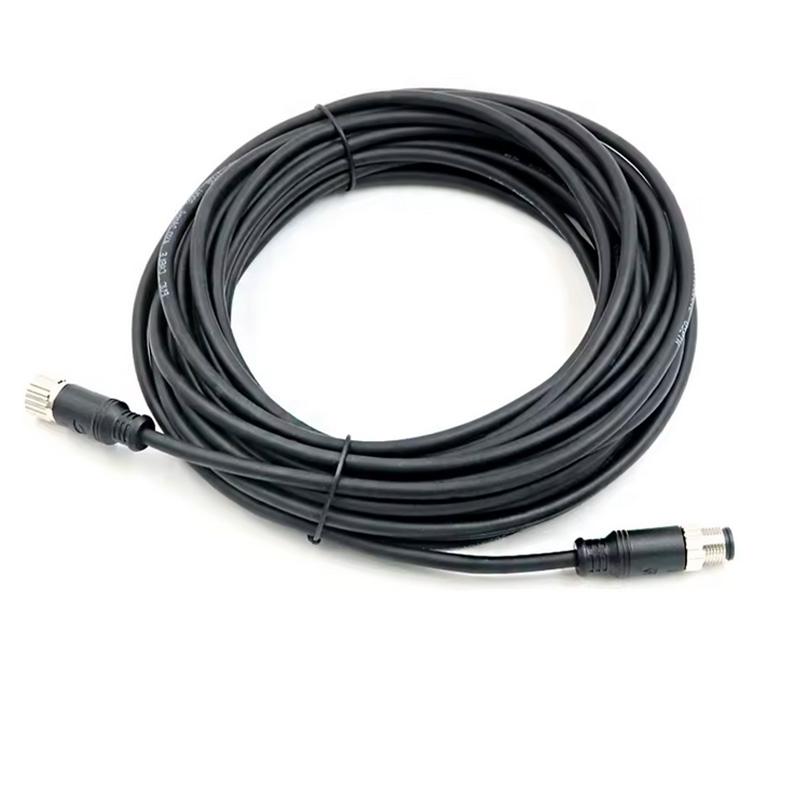

M12 Connector


All products comply with ISO9001, CE, RoHS, and UL standards, supporting global industrial applications.

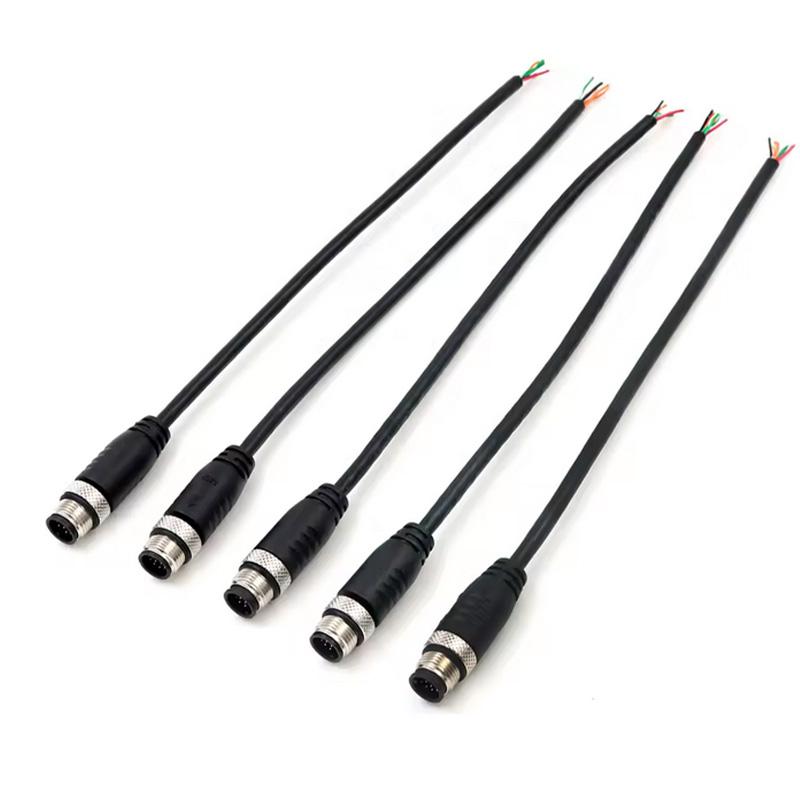

Connector



Engineering-Oriented Connectivity Support
The M12 circular connector series is developed not only as a component, but as part of a reliable industrial connection system. Through flexible customization and stable manufacturing capability, we help customers simplify wiring architecture and improve system integration efficiency in real-world applications.

Item

Parameters

Number of Cores

2-17Pin

Gender

Male/Female

Housing Material

PA66/Nickel Plated Brass

Cores Material

Brass Plated with Silver/Gold

Insulator Material

Phenolics

Locking System

Screw Locking

Temperature Range

-40℃~+85℃

Rated Current (A)

1A

Rated Voltage (AC.V)

125V

Test Voltage (AV.C)1Min

1000V

Insulation Resistance (㏁)

1500㏁

Contact Resistance (㏁)

≤10㏁

Termination

Solder
