M12 Assembly Connectors
< >

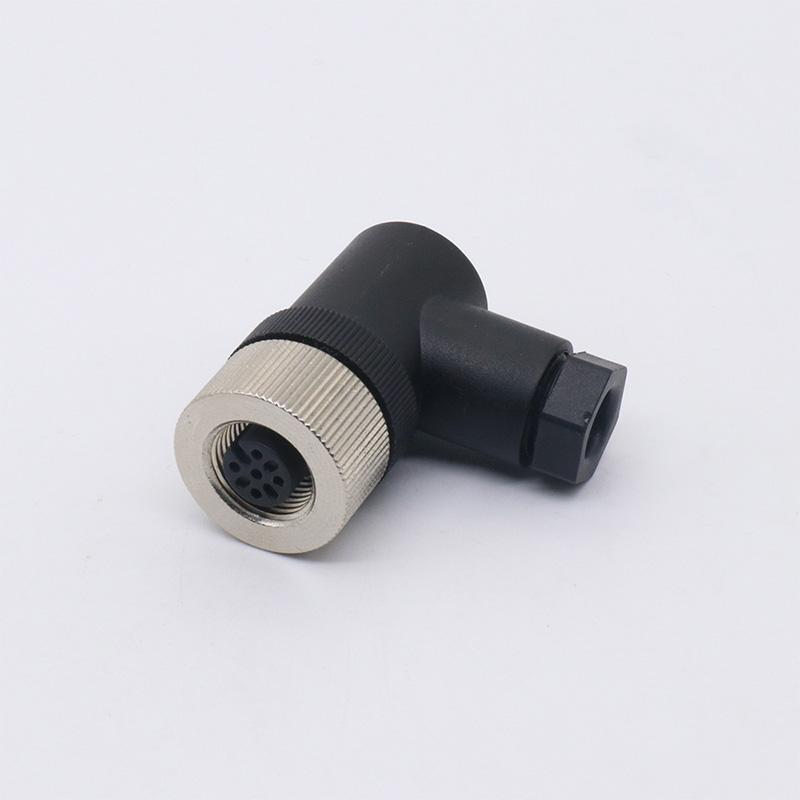

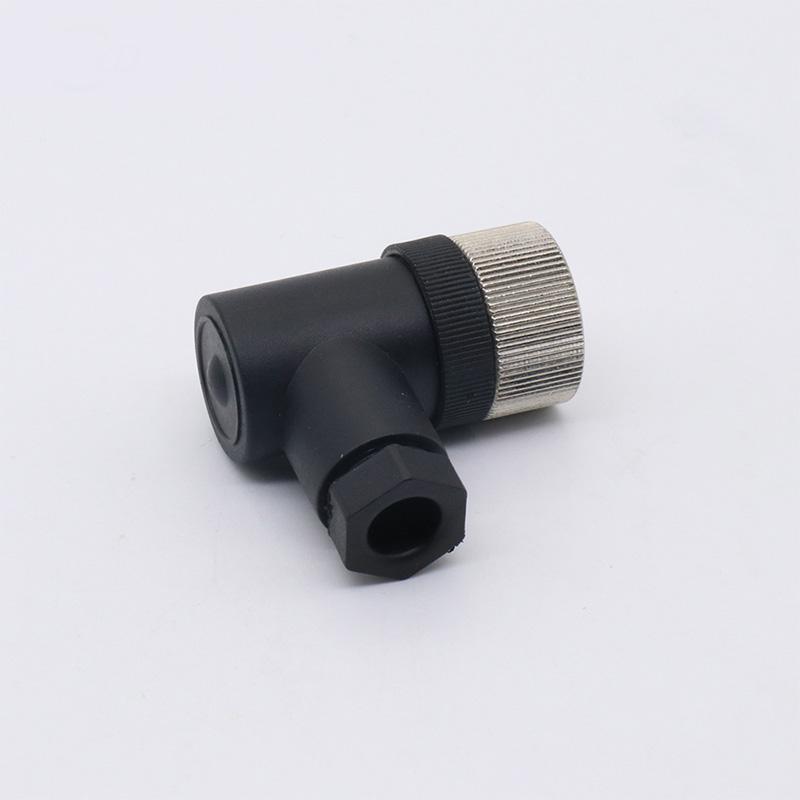

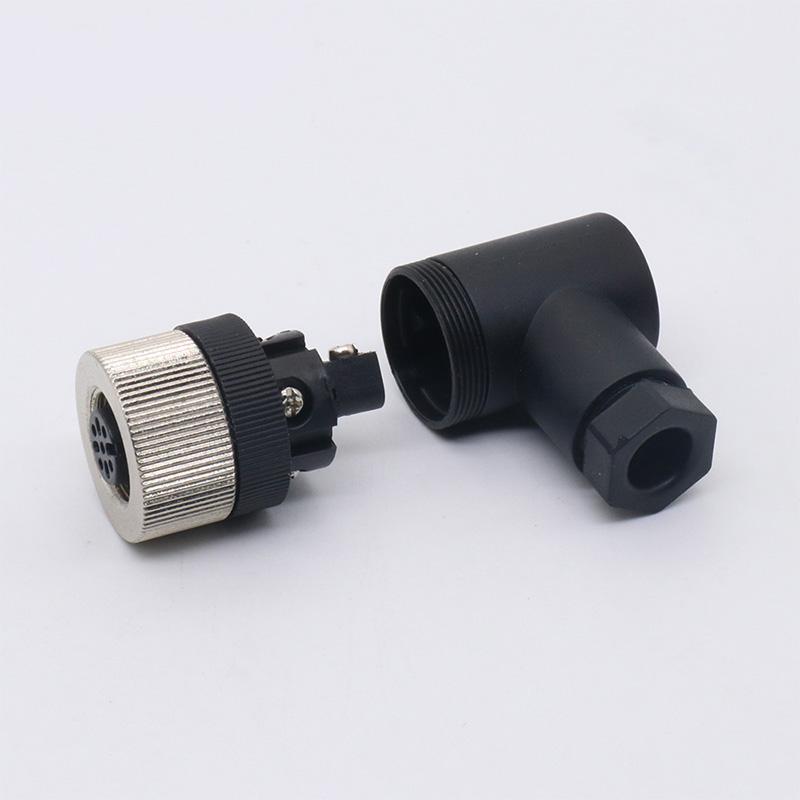

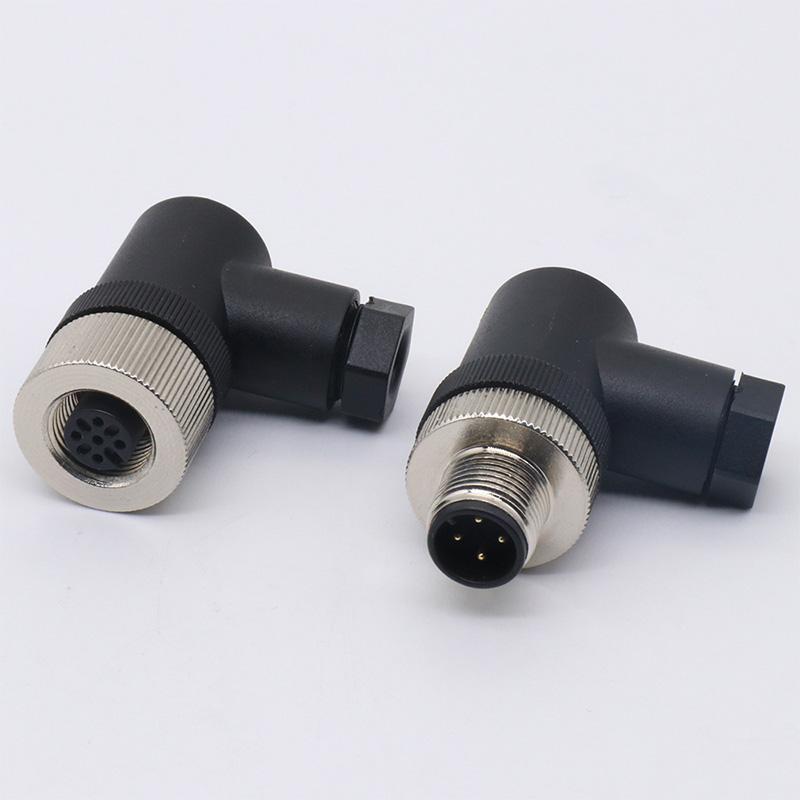

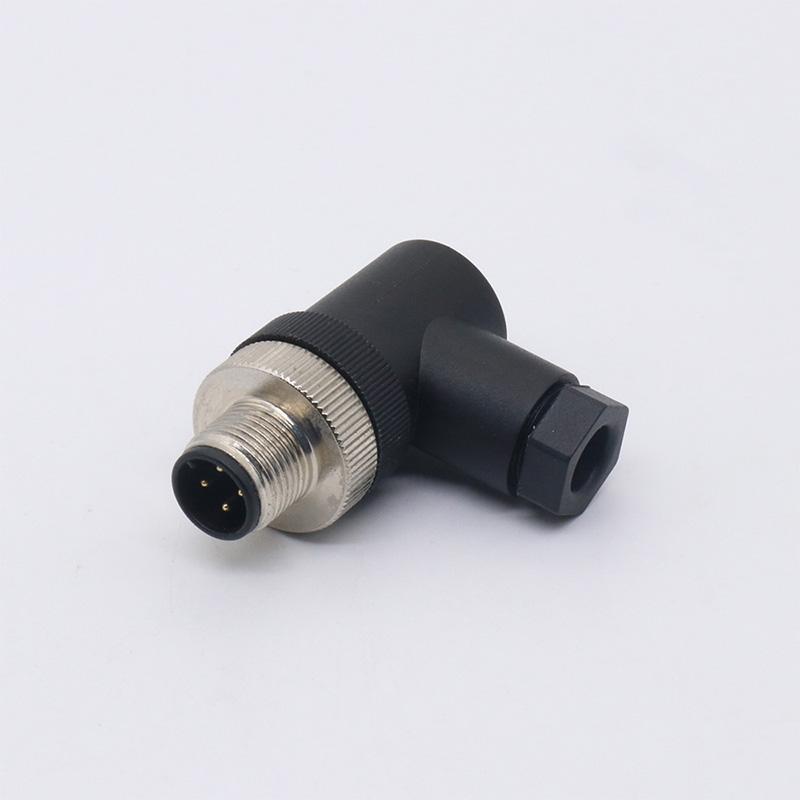

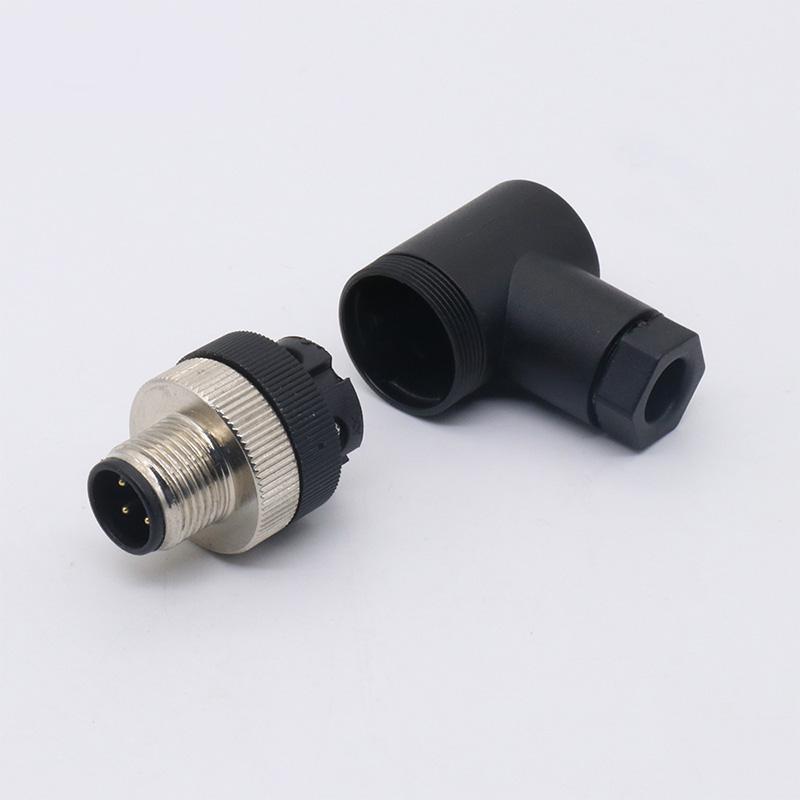

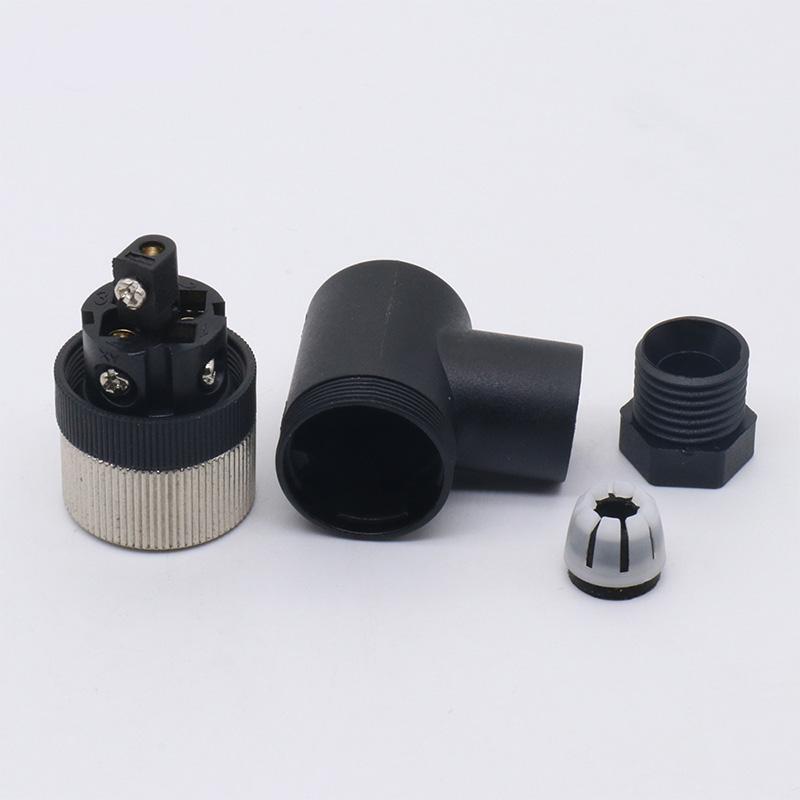

High Stability M12 Waterproof Right Angle Assembly Connector

>Number Of CoresNumber Of Cores 2-17Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

High Stability M12 Waterproof Right Angle Assembly Connector - Designed for Continuous Industrial Operation

The M12 Waterproof Right Angle Assembly Connector is engineered for industrial systems that demand high connection stability, compact cable routing, and dependable long-term performance. Its right-angle structure is specially designed for equipment with limited installation space, while the assembly-type configuration provides greater flexibility for on-site cable wiring and maintenance.

Connector

Unlike ordinary connectors focused only on basic connectivity, this model is developed around one core requirement: maintaining stable operation in continuously running industrial environments.

Stable Connection Starts with Structural Design
In industrial automation systems, unstable connections can lead to communication interruption, signal loss, or equipment downtime. To improve operational reliability, this connector adopts a reinforced mechanical structure combined with precision internal contacts.
The result is:
More secure cable connection
Better vibration resistance
Reduced contact instability
Improved long-term durability under repeated use
This makes it suitable for systems operating under constant movement, vibration, or continuous machine cycles.

Right Angle Structure for Smarter Equipment Layout

Compared with straight connectors, the right-angle design allows cables to route closer to the equipment surface, helping engineers optimize internal space and reduce unnecessary cable bending.

Connector

This structure helps:
Save installation space
Improve cable management
Reduce cable stress during operation
Create cleaner and safer equipment layouts
It is especially practical in compact control cabinets, robotic systems, and automated production equipment.

Key Product Features
High Stability Contact System
Precision-engineered contacts ensure stable signal and power transmission even during long-term industrial operation.
Waterproof Industrial Protection
Sealed structure helps protect against water, dust, oil mist, and other industrial environmental factors.
Assembly-Type Flexible Wiring
Supports field assembly and customized cable integration, improving installation flexibility.
Right Angle Compact Configuration
Optimized for narrow spaces and complex equipment layouts.
Durable Industrial-Grade Housing
Designed to withstand vibration, plugging cycles, and demanding industrial environments.

Strong Manufacturing Capability Creates Product Reliability

We are a professional connector manufacturer with over 15 years of experience in industrial waterproof connectors and cable assembly solutions.

Connector

Our factory integrates the complete production process, including:
Mold and tooling development
CNC precision machining
Metal housing processing
Injection molding
Connector assembly and cable integration
Connector
This in-house manufacturing system allows us to maintain:
Stable production quality
Fast delivery capability
Strict process control
Flexible OEM/ODM support
Connector
Comprehensive Quality Control
Every connector undergoes strict inspection procedures before shipment:
Waterproof sealing verification
Electrical conductivity testing
Plugging and mating cycle testing
Mechanical vibration resistance testing
Structural and dimensional inspection
Connector
All products are manufactured under ISO9001 quality management standards and comply with CE and RoHS international requirements.
Connector
Customization Support
We support customized industrial connection solutions, including:
Cable length and wire specification customization
Pin configuration optimization
Shielded cable and anti-interference solutions
Connector structure adjustment
Branding and packaging customization
Our engineering team supports projects from prototype design to mass production.

Application Areas
Industrial automation equipment
Robotics and motion systems
Smart manufacturing devices
PLC and control systems
Sensor and actuator networks
Communication and monitoring equipment

Reliable Connectivity for Demanding Systems
The high stability M12 waterproof right angle assembly connector is built to help industrial equipment maintain stable and efficient operation in complex working environments.

Contact Us
We provide samples, technical consultation, and customized production services.
Contact us today for professional connector solutions and competitive quotations.

 Item

 Parameters

 Number of Cores

 2-17Pin

 Gender

 Male/Female

 Housing Material

 PA66/Nickel Plated Brass

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃~+85℃

 Rated Current (A)

 1A

 Rated Voltage (AC.V)

 125V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
