M12 Connector
< >

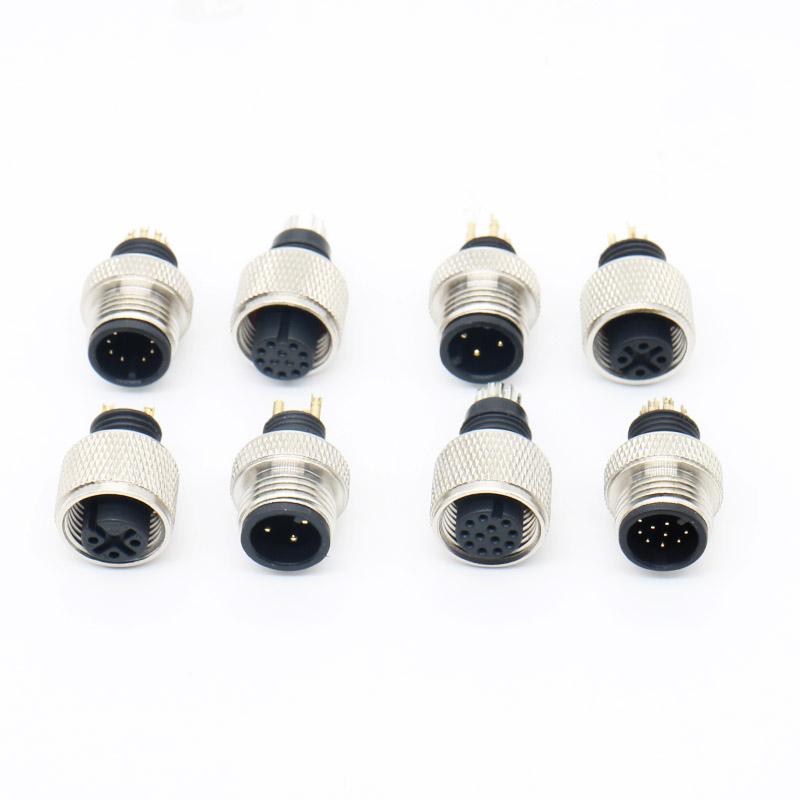

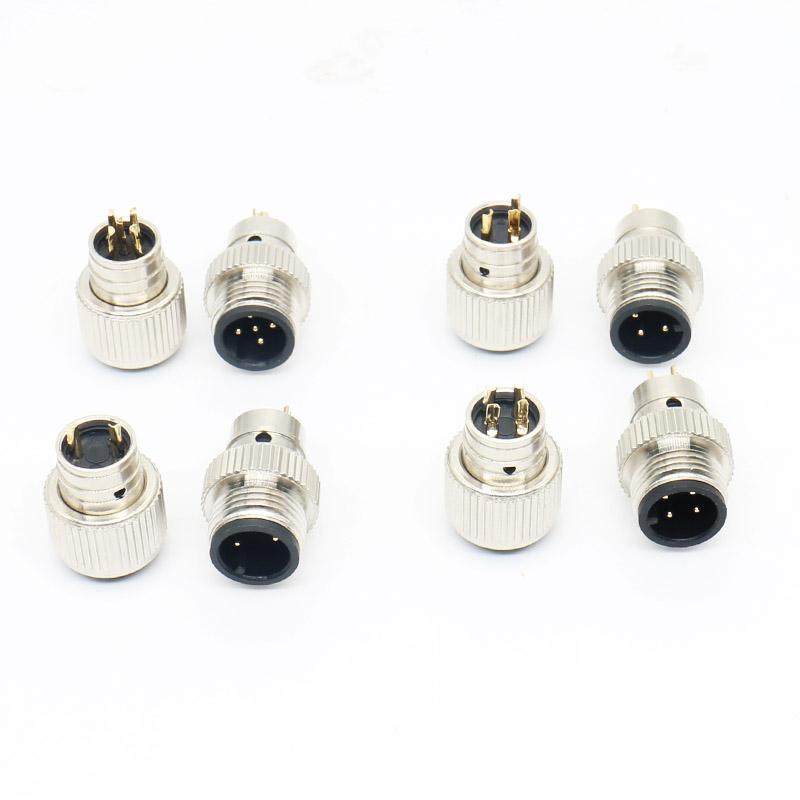

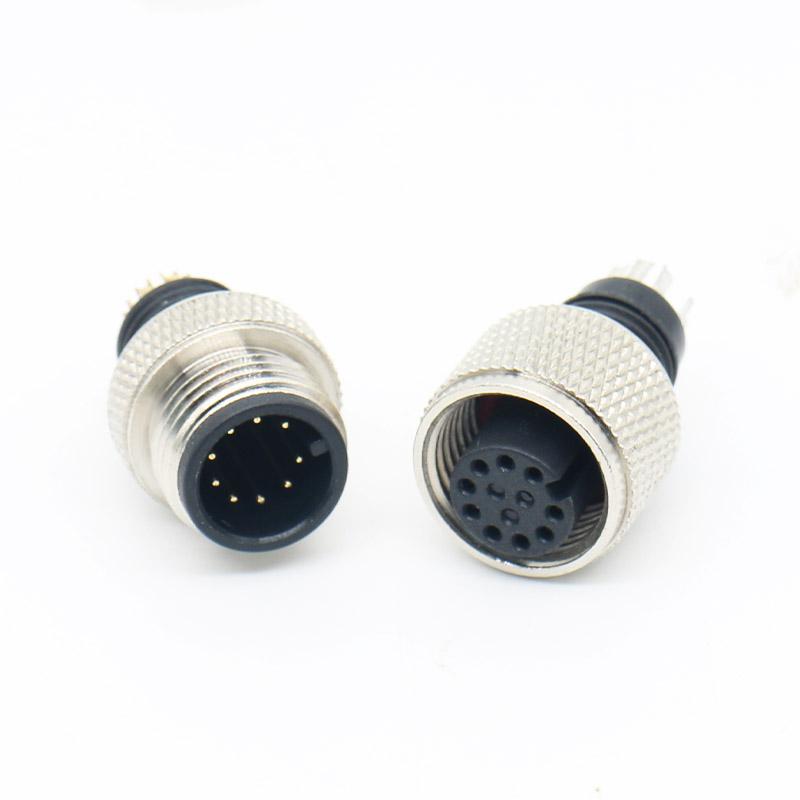

M12 A-Code 2-17 Pin Circular Connector

MOQMOQ >200
>Number Of CoresNumber Of Cores 2-17 Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

M12 A-Code 2 - 17 Pin Circular Connector – Flexible Industrial Connectivity Solution
The M12 A-Code 2 - 17 Pin Circular Connector is engineered for industrial and automation applications that require flexible pin configurations, robust connectivity, and compact circular interface. From simple 2-pin power transmission to complex 17-pin signal networks, this connector series provides a versatile solution for a wide range of industrial devices, ensuring reliable operation in demanding environments.

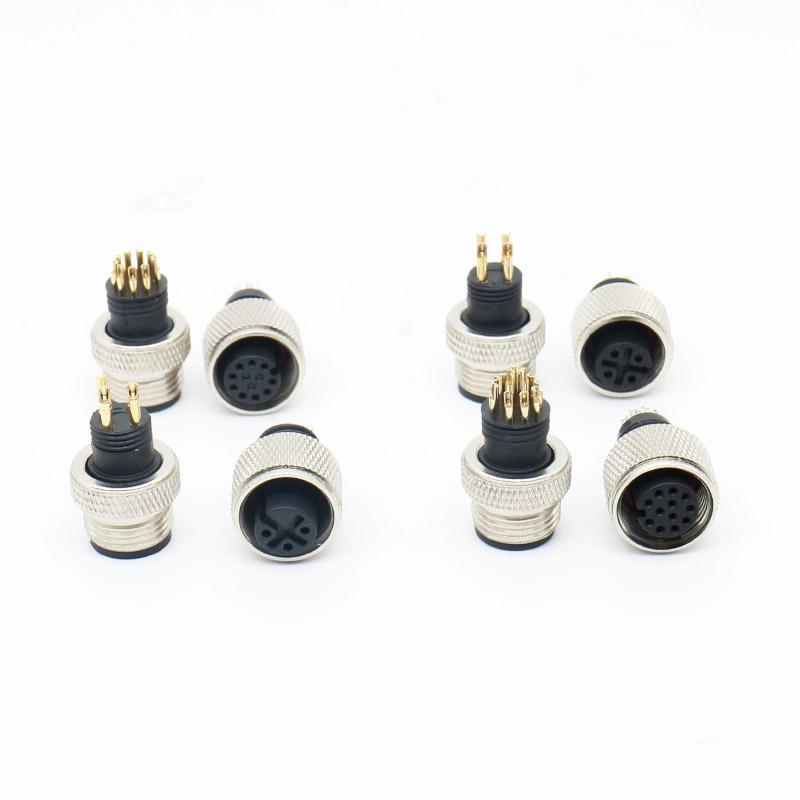

Connector
Unlike standard M12 connectors that often cater to a single purpose, this series is designed to adapt across multiple applications, making it ideal for automation, robotics, sensors, and industrial control systems.

Designed for Compact and Versatile Industrial Systems
Modern industrial systems demand compact yet multi-functional connectors that can handle both power and signal transmission. The M12 A-Code series addresses these needs by offering:
Flexible pin configurations from 2 to 17 pins
Stable circular interface suitable for compact machinery
Efficient signal and power transmission within a single connector
Reliable operation under vibration, dust, and moisture exposure

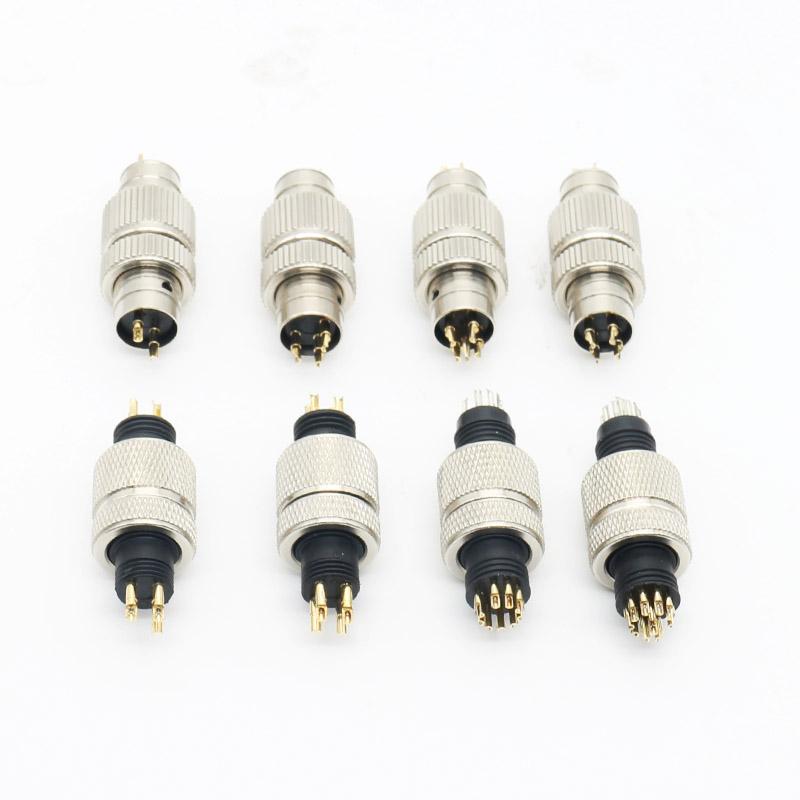

M12 Connector
This flexibility allows engineers to standardize connections across diverse industrial equipment while reducing design complexity.

Key Product Advantages
Wide Pin Range (2 - 17 Pins)
Accommodates simple to complex electrical configurations for power, signal, or mixed applications.

Compact Circular M12 Form Factor
Optimized for limited installation spaces without compromising performance or durability.

High Stability and Durability
Precision-engineered contacts ensure stable conductivity, reducing signal loss or intermittent connection risks.

Robust Industrial Housing
Durable metal or reinforced plastic shell protects against vibration, impact, and environmental factors.

Field-Proven A-Code Standard
Ensures compatibility with widely used industrial devices, sensors, and automation equipment.

Manufacturing Strength and Quality Assurance

We are a professional connector manufacturer with over 15 years of experience in industrial and waterproof connectors.

Connector

Our in-house factory capabilities include:
Mold and tooling design
CNC precision machining
Injection molding for insulating and structural components
Connector assembly and cable integration

Comprehensive testing for electrical and mechanical performance

Connector

This fully integrated production ensures consistent product quality, reliable delivery, and flexible customization.

Strict Quality Control

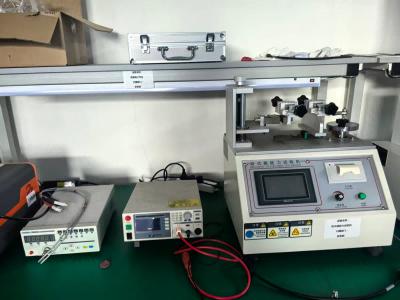

Each M12 A-Code connector undergoes rigorous inspection:
Electrical continuity and conductivity testing
Mechanical durability and plugging cycle testing
Vibration and impact resistance assessment
Dimensional accuracy inspection

Optional waterproof and sealing verification for harsh environments

Connector

All products comply with ISO9001, CE, and RoHS standards, ensuring international quality reliability.
Connector
Customization Options
We provide OEM/ODM services tailored for industrial applications:
Custom pin configurations within the 2 - 17 pin range
Cable integration and wire gauge customization
Shielded or anti-interference options
Housing and structural adaptations
Project-specific connector solutions
Our engineering team supports the design process from prototype to full-scale production.

Application Areas
Industrial automation systems
Robotics and motion control
Sensor networks and actuators
PLC and control cabinets
Smart manufacturing equipment
Communication and data acquisition devices
Flexible, Compact, and Reliable Industrial Connectivity
The M12 A-Code 2 - 17 Pin Circular Connector is designed to provide versatile, reliable, and space-efficient connectivity for modern industrial and automation applications.

Contact Us
We provide samples, technical consultation, and customized production services.
Contact us today for professional connector solutions and competitive quotations.

 Item

 Parameters

 Number of Cores

 2-17Pin

 Gender

 Male/Female

 Housing Material

 PA66/Nickel Plated Brass

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃~+85℃

 Rated Current (A)

 1A

 Rated Voltage (AC.V)

 125V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
