Communication Radar Solution

KMYD’s communication radar connectors meet radar systems’ stringent requirements, focusing on high-frequency signal integrity, ultra-strong EMI/RFI resistance, and stable operation under long-term work and start-stop impact. Core advantages include low signal loss, vibration resistance, and harsh environment adaptability. Our product lineup covers M series (M8/M12/M16/M23), SP/SD/LD/FD series (SP13/SD15/LD20/FD25), Russian GOST Connectors (PC/OHS/Y2M/2PM, PK10-2/PK16-4/RT24), American military Connectors (J599, D38999), and RF series (BNC/SMA/N-type), applicable to ground fixed, vehicle-borne/airborne, and high-frequency communication radars.

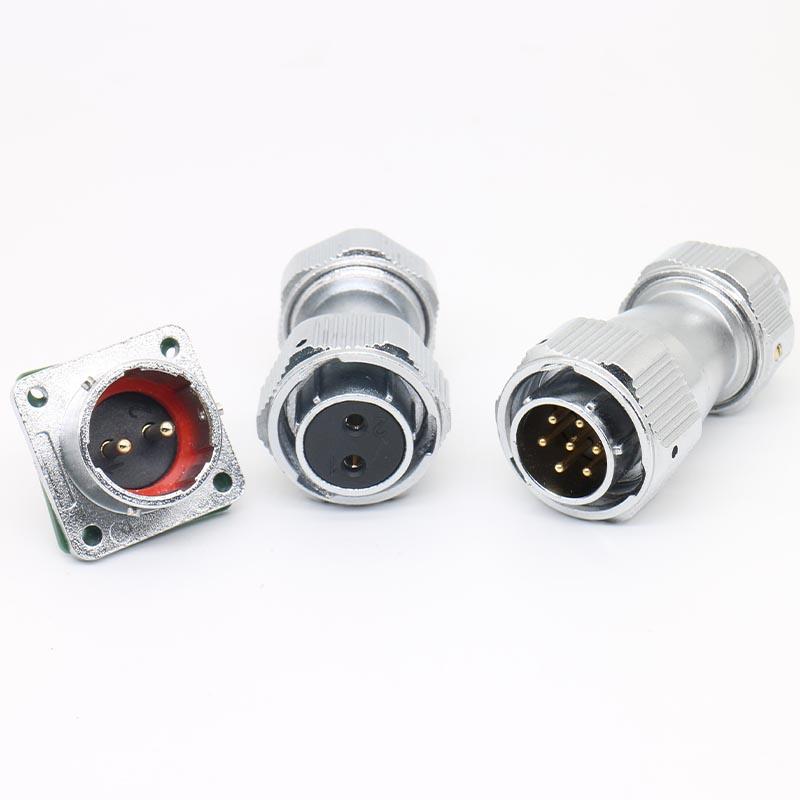

Aviation Circular Connector

1. Scenario-Specific Connector Matching

Ground Fixed Radar: RF series connectors (BNC/SMA/N-type) ensure low-loss high-frequency transmission; BNC fits base station mid-high frequency needs, SMA/N-type connectors for long-distance low-distortion transmission. SP13/SD15 connectors isolate interference for control signals. Russian GOST Connectors adapt to outdoor wiring with excellent weather resistance.

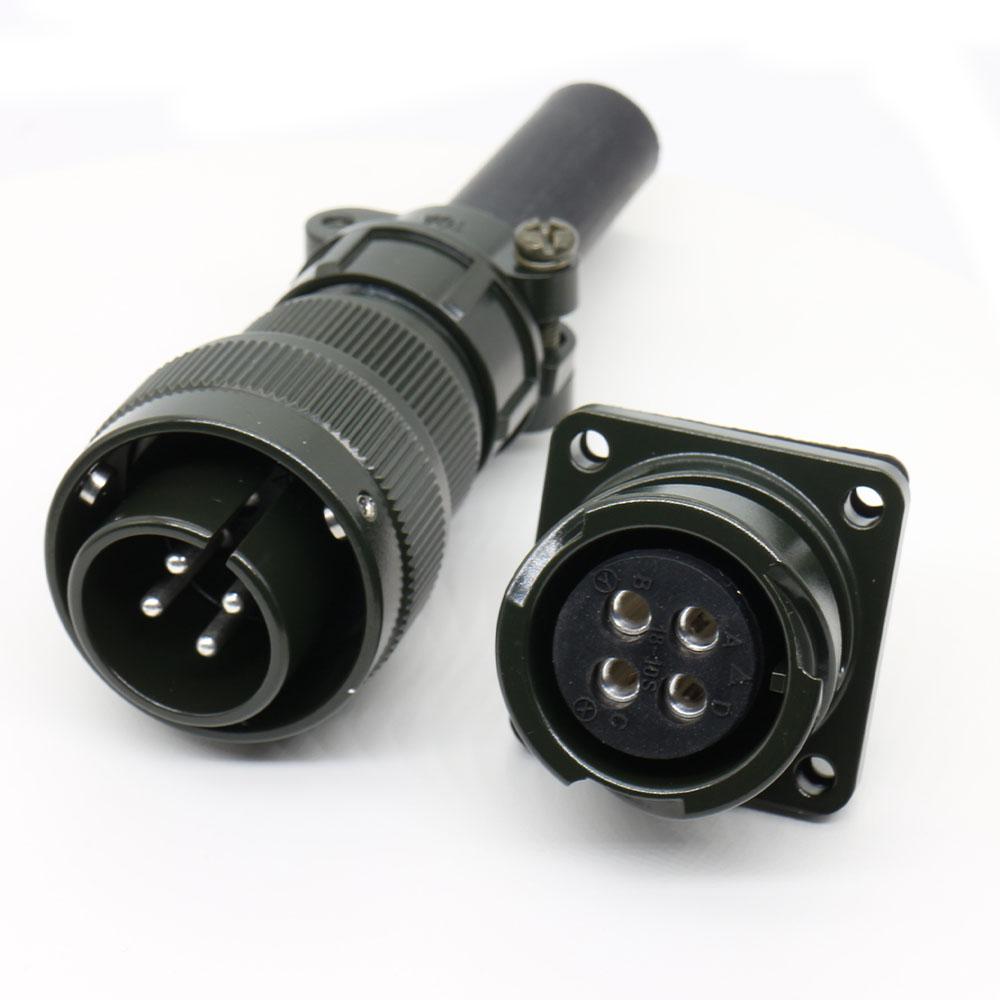

Vehicle-Borne/Airborne Radar: J599/D38999 connectors (military-grade) resist vibration/impact, with J599 connectos for quick wiring and D38999 connectors for extreme stability. M16/M23 connectors integrate power/signal transmission; LD/FD connectors withstand start-stop current fluctuations for power distribution.

High-Frequency Communication Radar: GX16/GX20 realize synchronous radar-communication signal transmission. RF series connectors (BNC/SMA/N-type) enhance anti-interference; Russian GOST Connectors ensure reliability in harsh environments with strong corrosion/high-temperature resistance.

2. Professional Design Features for Communication Radar

High-Frequency Locking: J599/D38999 and Russian GOST Connectors use bayonet-locks (low signal reflection); M/GX/RF series connectors adopt screw-locks for easy maintenance.

Environment & Vibration Resistance: -50℃~+150℃ temperature tolerance, IP67+ protection, and anti-vibration structures fit mobile/Outdoor radar scenarios.

Signal Stability: 360° EMI/RFI shielding for RF/SP/SD series connectors; high-precision conductors minimize signal loss, ensuring radar detection accuracy.

Long-Term Reliability: Wear/anti-aging alloys, high-temperature PTFE insulators, and gold-plated terminals support 24/7 continuous operation.

3. Core Advantages & Certification

Material Compliance: High-frequency compatible materials meet J599, MIL-DTL-38999, GJB599, and GOST 16596-77 standards, optimized for GOST and RF series connectors.

High-Frequency Reliability: Minimizes signal loss/interference, ensures detection accuracy, and adapts to start-stop current fluctuations.

Customization: Scenario-tailored for high-frequency transmission, vibration resistance, and weather resistance.

KMYD’s solution integrates full-series models, meeting various radar systems’ high-reliability, high-frequency transmission needs in complex environments.
