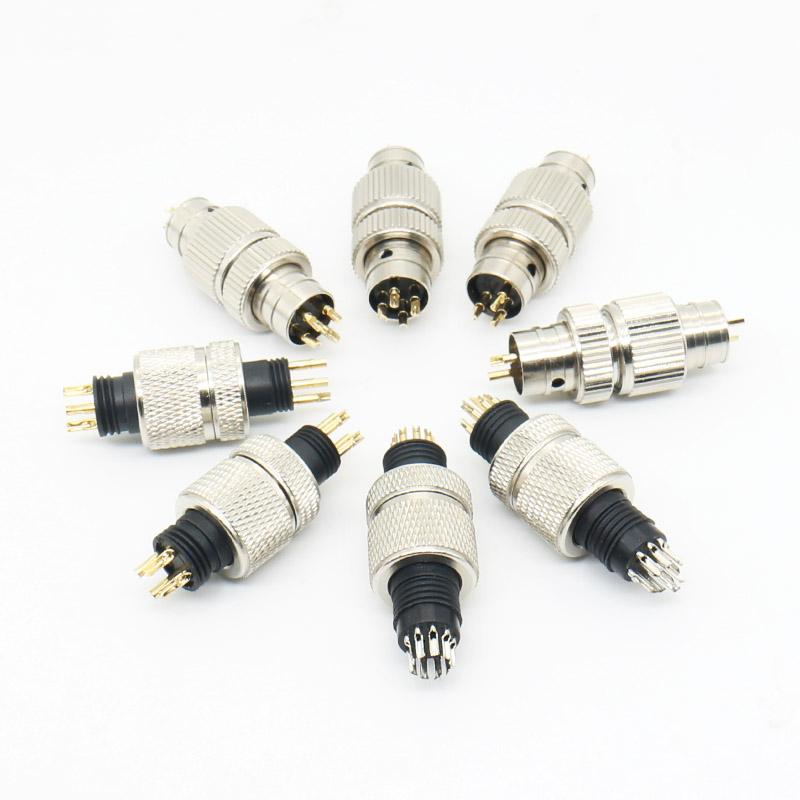

IP68 M Series Connectors for Harsh Environments

PC Series Circular Connector Types and Specifications

Why M Series Connectors Are Built for Harsh Environments

Industrial equipment operating outdoors or on high-vibration production lines faces a common challenge: connectivity failures caused by dust, moisture, oil, and mechanical stress. The M series circular connectors are engineered to address these failure points with a combination of environmental sealing, material strength, and verified endurance testing.

This guide explains the key performance characteristics of the M series, helping you assess whether these connectors meet the demands of your specific application.

Key Performance Features

• IP68 Protection: The entire series is rated IP68, capable of continuous operation for 24 hours at depths up to 5 meters—exceeding the common IP67 standard for temporary immersion.
• Durable Housing Material: High-strength, flame-retardant PA66 housing with a precision sealing design effectively resists dust, oil, and other contaminants.
• Wide Temperature Range: Operating range from -40°C to 125°C, suitable for extreme thermal environments.
• Verified Reliability: Tested through 1000 high-low temperature cycles and 20G shock resistance, confirming performance under thermal cycling and mechanical vibration.

Understanding the Ratings

The IP68 rating and temperature range indicate the connector's capability under specific test conditions. For applications involving continuous submersion beyond 5 meters or exposure to aggressive chemicals, additional validation may be required. Similarly, the 20G shock resistance is a tested value; actual vibration profiles in your equipment should be compared against this specification to ensure a proper match.

Application Fit

These connectors are particularly suited for outdoor equipment, high-vibration production lines, and other settings where environmental contaminants or mechanical stress commonly cause connectivity failures. If your application involves frequent mating cycles or requires specific pin configurations, verify the connector series details to confirm compatibility.

Next Steps

To determine if the M series connectors fit your project, review your application's environmental and mechanical requirements against the specifications above. For detailed technical data or to discuss your specific needs, please use the inquiry form or contact us via WhatsApp.
