M12 Connectors
< >

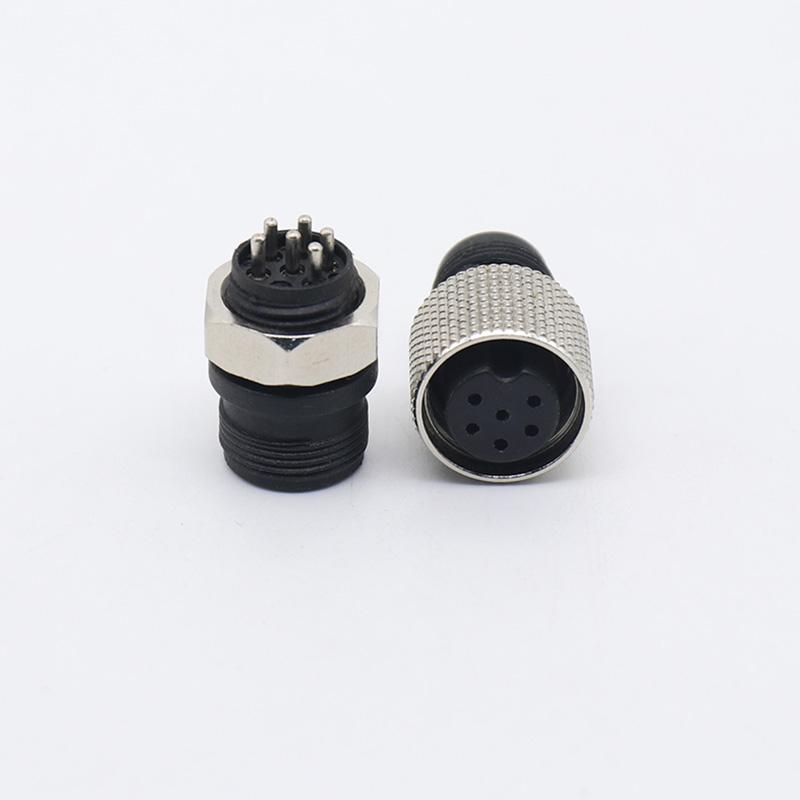

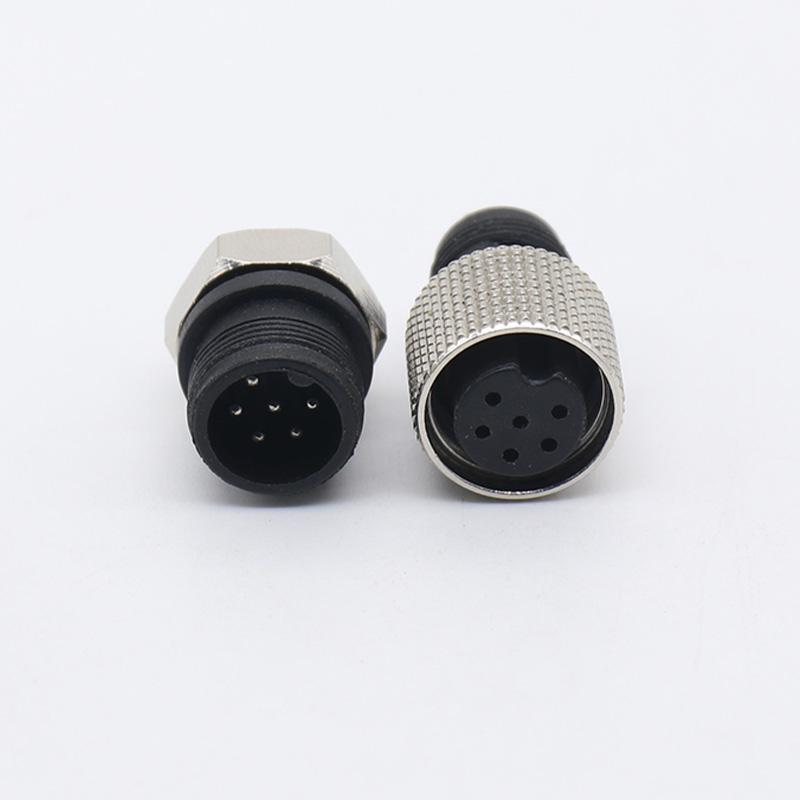

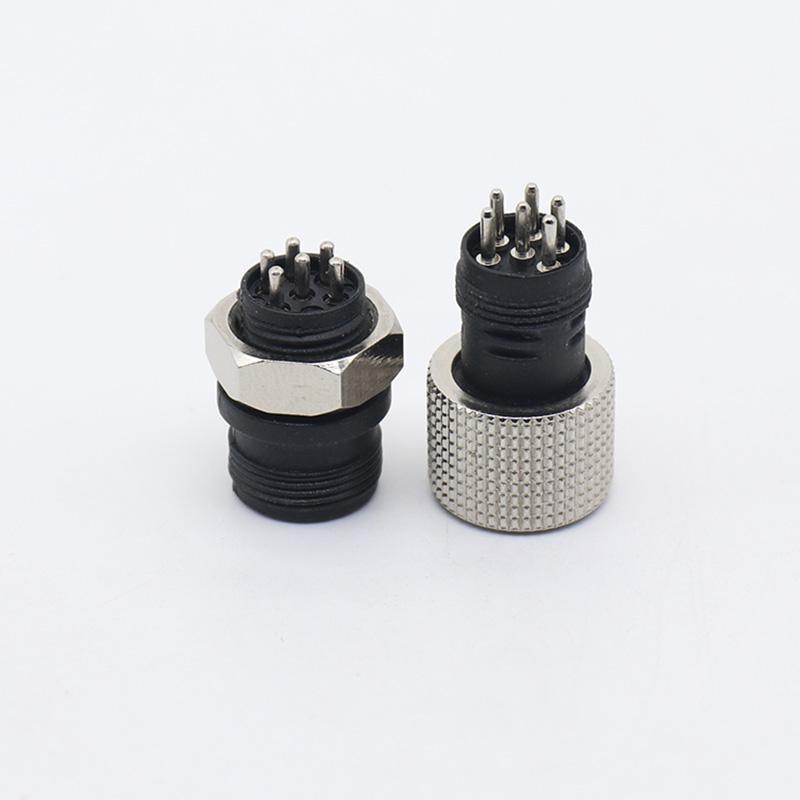

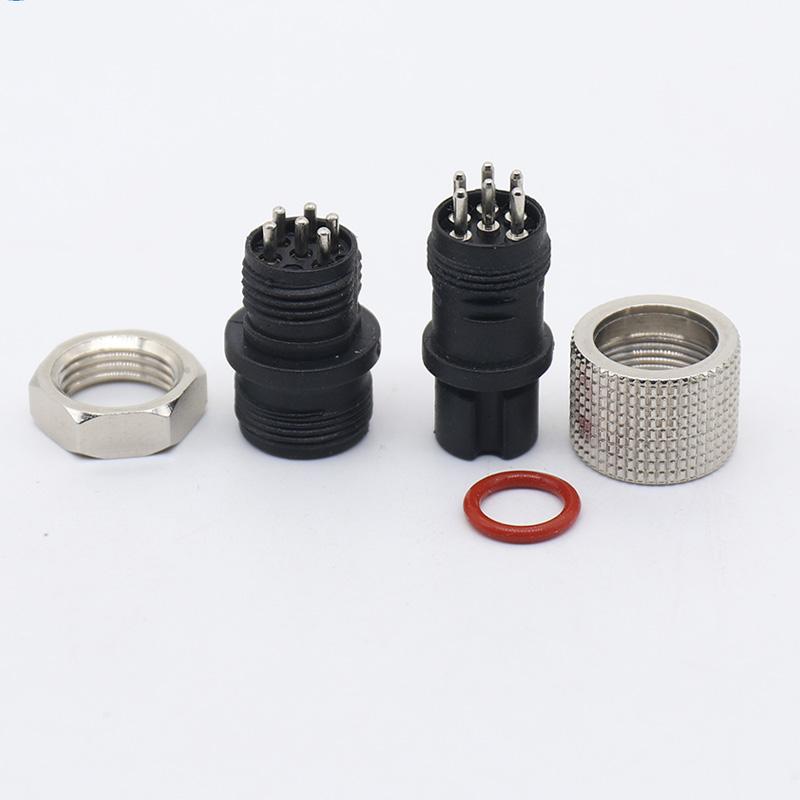

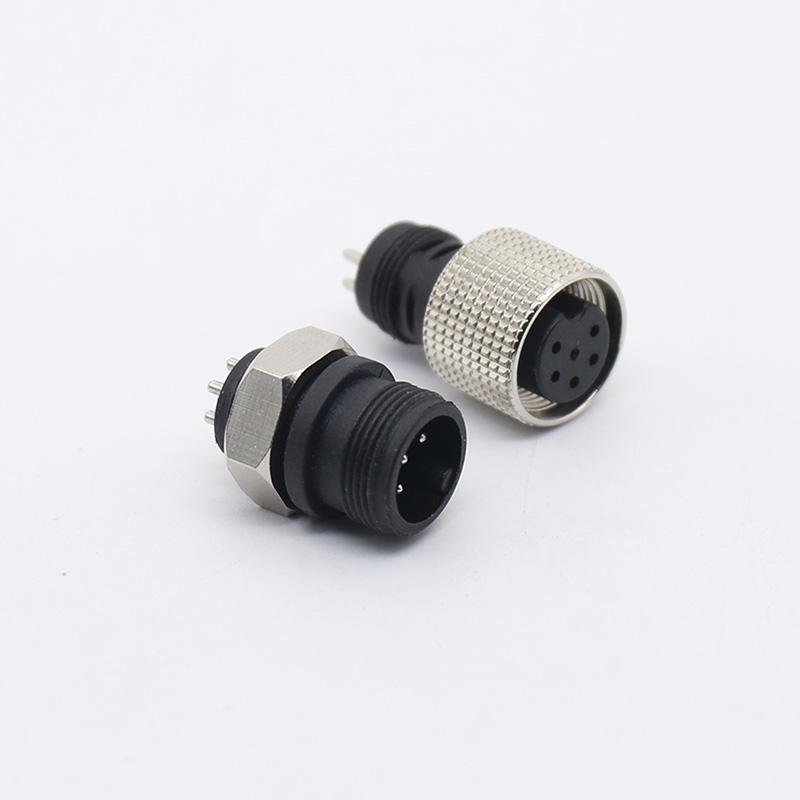

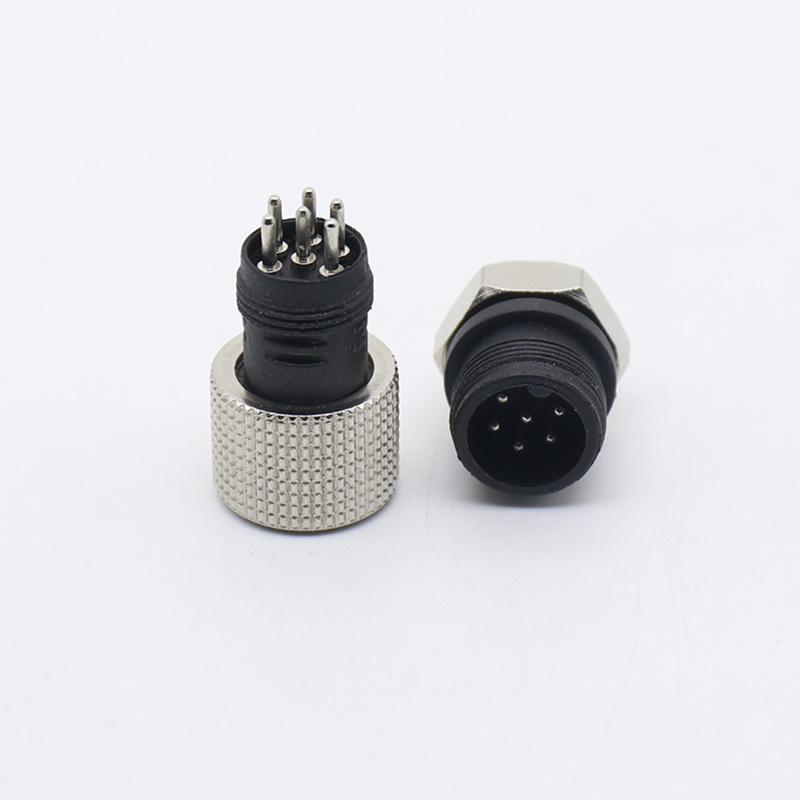

M12 Straight Industrial 6 Pin Cable Connector IP67 Waterproof

>Number Of CoresNumber Of Cores 2-17Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

M12 Straight Industrial 6-Pin Cable Connector - IP67 Waterproof, Heavy-Duty Reliability
The M12 Straight Industrial 6-Pin Cable Connector (IP67 Waterproof) is designed for robust industrial and automation applications where reliable power and signal transmission are critical. Its straight design enables direct cable routing, providing a compact and efficient connection solution for machinery, sensors, control systems, and industrial automation devices.
Connector
Unlike standard M12 connectors, this model is built with industrial-grade materials, precision contacts, and IP67 sealing, ensuring stable operation in dusty, wet, or high-vibration environments.

Engineered for Demanding Industrial Environments
Industrial equipment often operates in harsh conditions that require connectors to be durable, waterproof, and mechanically stable. This M12 connector provides:
IP67-rated protection against dust and water immersion
Reliable electrical contact under vibration and mechanical stress
Straight cable exit for efficient wiring and space-saving installation

Versatility for both power and signal transmission

Connector

Its 6-pin configuration is ideal for mixed signal and power applications, making it suitable for a wide range of industrial devices.

Key Product Features
Straight Cable Design
Provides direct cable routing for easier installation and organized wiring.

Industrial-Grade IP67 Protection
Sealed housing protects against dust, water, and harsh environmental conditions.

6-Pin Versatility
Supports combined power and signal transmission for complex industrial systems.

Durable Construction
Reinforced metal or high-strength plastic housing resists impact, vibration, and industrial stress.

Precision Contacts
High-quality contacts ensure stable conductivity and long-term reliability.

Factory Strength and Manufacturing Capability

We are a professional connector manufacturer with over 15 years of experience in producing M12 and industrial waterproof connectors.


Our in-house capabilities include:
Mold and tooling development
CNC machining and precision housing fabrication
Injection molding for insulation and structural components
Cable assembly and connector integration

Comprehensive functional and environmental testing

Connector

This full in-house production ensures consistent quality, reliable delivery, and flexible OEM/ODM customization.

Strict Quality Control
Each M12 Straight 6-Pin Connector undergoes rigorous testing:
Electrical continuity and contact resistance
Waterproof and dustproof verification (IP67)
Mechanical vibration and impact resistance
Plugging cycle durability

Dimensional and structural accuracy

Connector

All products meet ISO9001, CE, and RoHS standards, providing global industrial reliability.
Connector
Customization Options
We provide tailored solutions to meet industrial requirements:
Custom cable lengths and wire specifications
Housing and material modifications
Shielded and anti-interference cable options
Pin configuration adjustments for specific applications
OEM branding and packaging
Our engineering team supports projects from prototype design to full-scale production.

Application Areas
Industrial automation systems
Robotics and motion control equipment
Sensor and actuator networks
PLC and control panel wiring
Smart manufacturing devices
Outdoor industrial machinery and monitoring equipment
Reliable Industrial Connectivity
The M12 Straight Industrial 6-Pin Cable Connector (IP67 Waterproof) combines durable construction, waterproof protection, and flexible 6-pin connectivity, delivering a high-performance solution for modern industrial and automation systems.

Contact Us
We provide samples, technical support, and custom production services.
Contact us today for factory-direct M12 cable connector solutions and competitive quotations.

 Item

 Parameters

 Number of Cores

 2-17Pin

 Gender

 Male/Female

 Housing Material

 PA66/Nickel Plated Brass

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃~+85℃

 Rated Current (A)

 1A

 Rated Voltage (AC.V)

 125V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
