M12 Assembly Connectors
< >

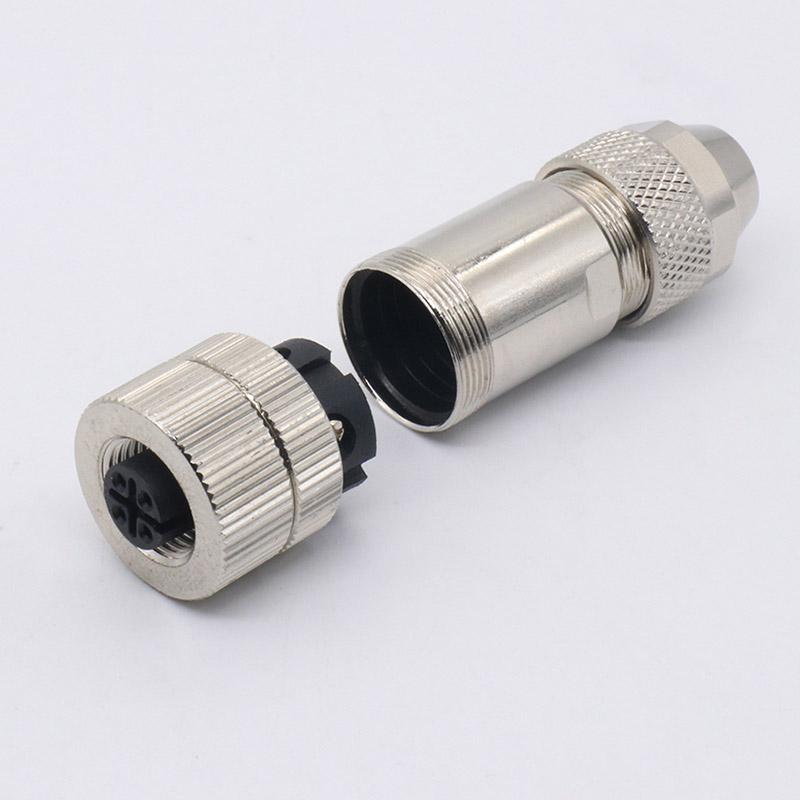

M12 Waterproof Straight Metal Assembly Connector IP67

>Number Of CoresNumber Of Cores 2-17Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

M12 Waterproof Straight Metal Assembly Connector IP67 - Industrial High-Reliability Field Wiring Solution

The M12 Waterproof Straight Metal Assembly Connector IP67 is designed for industrial systems that require a rugged, stable, and field-assembled connection interface. With its full metal housing and straight-type structure, this connector provides excellent mechanical strength while ensuring reliable signal and power transmission in demanding environments.

Connector

It is widely used in automation equipment, sensor systems, industrial control devices, and outdoor electrical applications where durability and consistent performance are essential.

Built for Harsh Industrial Environments
Industrial connectivity is often exposed to vibration, dust, moisture, and continuous operation. This M12 metal assembly connector is engineered to maintain stable performance under these conditions by combining:
Strong metal housing protection
Secure straight assembly structure
Stable electrical transmission

Reliable environmental sealing

Connector

Its rugged construction makes it suitable for long-term use in both indoor industrial systems and outdoor equipment.

Straight Type Assembly Design
The straight configuration provides a direct cable exit, making it ideal for applications where wiring direction is aligned with the equipment layout. It helps achieve:
Simple cable routing
Reduced installation complexity
Cleaner equipment wiring structure
Easier field assembly and maintenance
As an assembly-type connector, it also supports flexible on-site cable termination, improving adaptability during installation.

Key Product Advantages
Full Metal Housing Protection
The metal shell provides enhanced mechanical strength, improving resistance to impact, vibration, and industrial stress.
IP67 Waterproof Rating
Reliable sealing structure protects against dust and temporary water immersion, ensuring stable operation in harsh environments.
M12 Standard Industrial Interface
Widely recognized connector standard for industrial automation, ensuring strong compatibility with global equipment systems.
Field Assembly Structure
Allows flexible cable assembly in the field, reducing wiring constraints and improving installation efficiency.
Stable Electrical Performance
Precision contact design ensures consistent conductivity for signal and power applications.

Manufacturing Strength Behind Reliable Performance

We are a professional connector manufacturer with more than 15 years of experience in waterproof connectors and cable assembly solutions.

Connector

Our factory operates a fully integrated production system, including:
Mold and tooling development
CNC precision machining
Metal housing processing
Injection molding

Connector assembly and cable integration

Connector

This vertical manufacturing capability allows us to ensure:
Stable product quality
Consistent production control
Fast delivery capability
Flexible customization support

Strict Quality Control System
Each M12 connector is tested before shipment to ensure industrial reliability:
IP67 waterproof sealing test
Electrical conductivity and continuity testing

Plugging cycle durability testing
Mechanical strength and vibration resistance testing
Connector
Dimensional accuracy inspection
All products are manufactured under ISO9001 quality management standards and comply with CE and RoHS international requirements.

Connector


Customization Support
We provide OEM/ODM customization services for different industrial applications:
Cable length and wire specification customization
Pin configuration options
Shielded cable solutions
Housing material and structure optimization
Application-specific connector design
Our engineering team supports customers from prototype development to mass production.

Application Areas
Industrial automation systems
Sensor and actuator networks
PLC and control equipment

Smart manufacturing systems

Outdoor industrial devices

Communication and monitoring systems

A Rugged Industrial Connection Solution
The M12 waterproof straight metal assembly connector IP67 is designed to provide a durable, stable, and field-friendly connection solution for modern industrial equipment.

Contact Us
We provide samples, technical support, and customized production services.
Contact us today for professional connector solutions and competitive quotations.

 Item

 Parameters

 Number of Cores

 2-17Pin

 Gender

 Male/Female

 Housing Material

 PA66/Nickel Plated Brass

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 Phenolics

 Locking System

 Screw Locking

 Temperature Range

 -40℃~+85℃

 Rated Current (A)

 1A

 Rated Voltage (AC.V)

 125V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
