M12 Waterproof Circular Connectors with Customized Cable

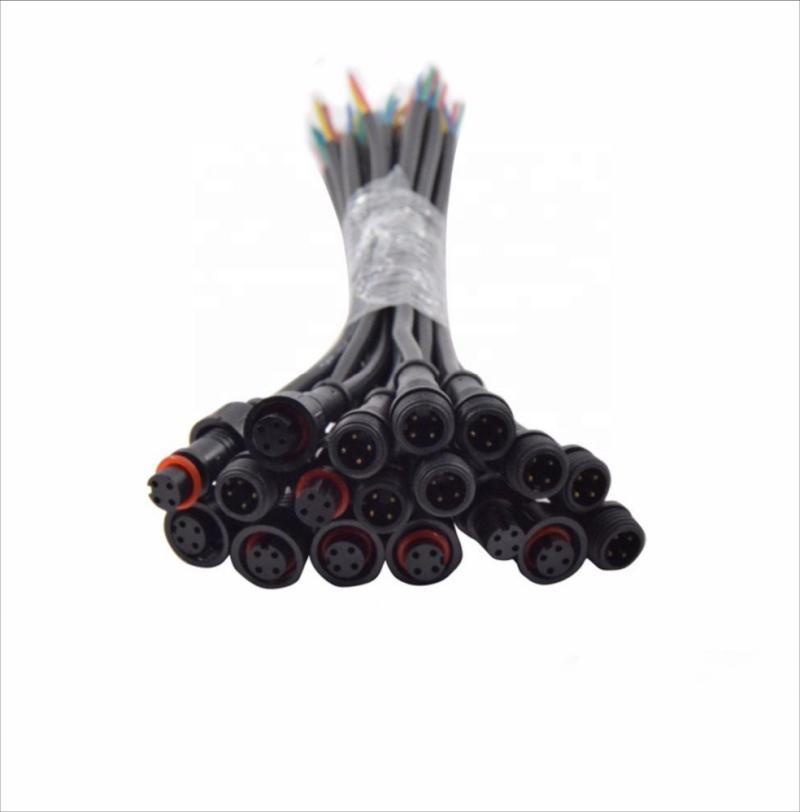

This solution combines M12 waterproof circular connectors with project-specific cable assemblies, creating a complete industrial connection system for automation and smart equipment. Instead of sourcing connectors and cables separately, buyers receive a factory-integrated assembly designed to simplify installation and support stable field operation.

M12 connectors are widely used in sensor and actuator applications due to their compact structure, threaded locking performance, and environmental protection. Adding a customized cable extends this reliability to the full wiring path between equipment and control systems.

Customized Cable Options for Project-Specific Wiring

Standard cables do not always match the installation environment, equipment layout, or electrical requirements of a specific project. Customization allows the cable assembly to fit the actual application rather than forcing the application to adapt to a generic product.

Supported customization options include:

• Different cable lengths
• Shielded or unshielded cable options
• Various wire gauges and conductor materials
• Customized pin assignments
• Overmolding and strain relief structures
• Application-specific wiring configurations

This flexibility helps optimize both electrical performance and installation efficiency for each project.

Environmental Protection for Demanding Operating Conditions

The M12 waterproof structure is intended for environments where connectors may be exposed to moisture, dust, vibration, outdoor conditions, or continuous industrial operation. The threaded locking mechanism helps maintain a secure connection in these demanding applications.

When selecting a connector for a harsh environment, confirm the specific IP rating required for your application, as the level of protection needed varies with the installation location and exposure conditions.

Typical Applications for M12 Cable Assemblies

M12 customized cable connectors are commonly used in the following systems:

• Industrial automation systems
• Sensor and actuator connections
• Robotics and motion control equipment
• Industrial Ethernet and communication systems
• Smart manufacturing equipment
• Control cabinets and machinery systems
• Outdoor industrial devices

The combination of waterproof protection and customized cable integration makes these assemblies suitable for modern automation infrastructure.

Selection Considerations for Your Project

Before ordering an M12 cable assembly, verify the following points to ensure the solution matches your equipment:

• Confirm the mating connector type and gender required on the equipment side
• Specify the number of cores and pin assignment needed for your signal or power layout
• Determine the cable length, shielding requirement, and conductor gauge based on the installation path
• Check the environmental rating needed for the actual operating location
• Provide a wiring diagram or pinout drawing when available to avoid mismatches

For related connector options, see 12G Series Circular Connectors or review PC Series Circular Connector Types and Specifications.

Factory-Integrated Assembly and Quality Control

Each M12 cable assembly is completed and electrically verified before shipment, which helps reduce field installation errors. The integrated production system supports quality consistency from connector production through final cable assembly.

Quality checks on each assembly include electrical continuity testing, waterproof sealing verification, pin mapping inspection, pull-force testing, mechanical durability testing, and final appearance inspection.

OEM and ODM Customization Support

Customization options for OEM and ODM projects include cable length and wire specification changes, shielded cable solutions, connector coding and pin configuration adjustment, logo printing and labeling, and packaging customization. Support is available from prototype sampling through large-scale production.

Inquiry Checklist

To receive an accurate quotation and engineering recommendation, please provide the following information:

• Required pin count and pinout or wiring diagram
• Cable length, conductor size, and shielding requirement
• Mating connector type and gender on the equipment side
• Electrical load (current and voltage)
• Environmental conditions, including IP rating needed
• Order quantity and target delivery schedule

Contact us for M12 waterproof circular connector solutions with customized cable assemblies for your industrial automation and smart equipment applications.
