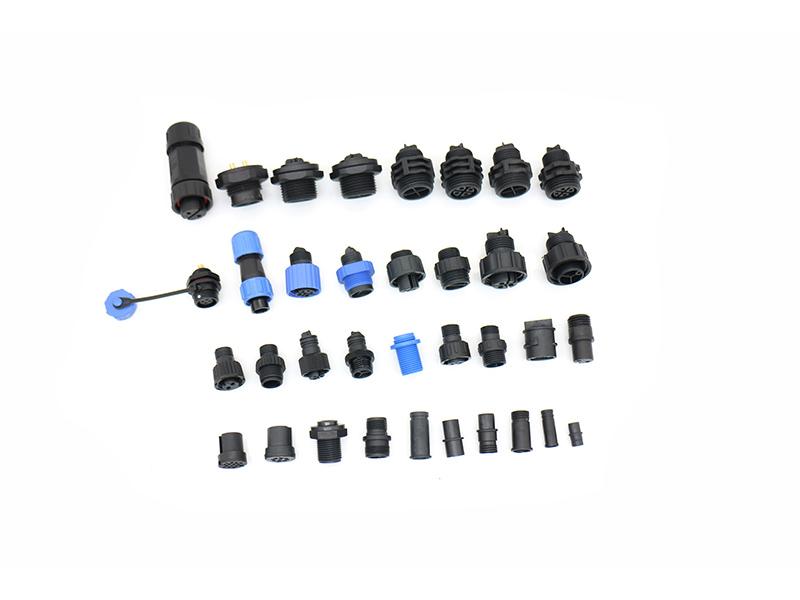

Connector Plastic Shells for Standard Industrial Environments

GOST OHS Circular Connector with Multiple Core Count Options

Why Connector Plastic Shells Matter in Industrial Design

Plastic shells are a common choice for connector housings where weight, insulation, and cost are primary concerns. Unlike metal alternatives, they offer a lightweight structure that still provides dependable protection for internal contacts and wiring. For engineers and procurement teams, selecting the right shell material and design is a practical decision that affects assembly, environmental resistance, and long-term reliability.

This guide explains the key benefits of plastic shells, where they fit best, and what to consider before specifying them for your next project.

Key Advantages of Plastic Connector Shells

• Good insulation performance: Plastic naturally resists electrical conduction, reducing the risk of short circuits in standard operating conditions.
• Controllable cost: Compared to metal housings, plastic shells are generally more economical for high-volume production and standard applications.
• Flexible molding options: Plastic can be molded into complex shapes, allowing for custom designs that fit specific connector layouts and mounting requirements.
• Lightweight construction: A lower overall weight simplifies handling and installation, especially in equipment where every gram counts.

Typical Applications for Plastic Shells

Plastic shells are best suited for connectors used in standard, non-extreme environments. Common examples include consumer electronics and general industrial control systems, where the shell provides basic mechanical support and protection for internal components without the need for heavy-duty shielding or extreme temperature resistance.

If your application involves high temperatures, heavy vibration, or exposure to harsh chemicals, a metal shell or a specialized plastic grade may be more appropriate. Always verify the operating environment against the shell material's rated limits.

What to Check Before Choosing a Plastic Shell

Before finalizing a plastic shell for your connector, consider the following points:

• Operating temperature range: Confirm the plastic grade can withstand the maximum and minimum temperatures of your application.
• Mechanical strength: Ensure the shell can handle the physical stresses of mating, unmating, and cable strain during normal use.
• Environmental exposure: Check whether the shell is rated for moisture, dust, or chemical contact, and whether an IP rating is required.
• Mating compatibility: Verify that the shell design matches the plug, socket, and locking mechanism of your chosen connector series.

When Plastic Shells Are Not the Right Fit

Plastic shells are not recommended for applications requiring high electromagnetic shielding, extreme heat resistance, or repeated exposure to aggressive solvents. In such cases, metal shells or specialized engineering plastics should be considered. If you are unsure whether a plastic shell meets your requirements, consult the manufacturer with your specific application details.

Next Steps for Your Connector Project

To get a suitable plastic shell recommendation, prepare the following information before contacting us:

• Connector series and pin count you are using
• Required shell dimensions and mounting style
• Operating temperature and environmental conditions
• Any specific material or color requirements

For more details on connector options, you can review our aviation plug connectors or explore related waterproof industrial connectors. If you have a specific application in mind, send us your drawings or pinout details, and we will help you confirm the right shell choice.
