M12 Connectors in Engine Control Units for Agricultural Machinery

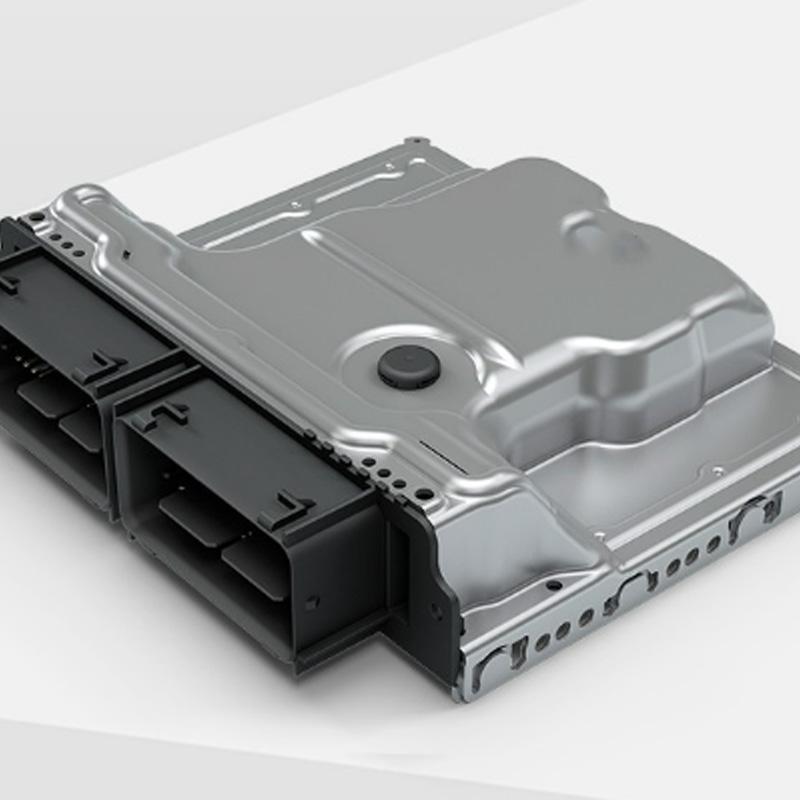

In modern agricultural machinery, the engine control unit (ECU) is critical for regulating engine performance, fuel efficiency, and emissions. M12 connectors are commonly used to connect the ECU with sensors, actuators, and other electronic modules, ensuring stable power supply and accurate signal transmission under demanding conditions.

Project Background and Operating Environment

Agricultural engines operate in environments with high vibration, dust, moisture, and temperature fluctuations. These conditions place strict demands on the electrical interface between the ECU and peripheral components. The connector system must maintain signal integrity and power continuity despite continuous mechanical stress and exposure to contaminants.

Interface and Environmental Requirements

For ECU applications in agricultural equipment, the following parameters typically define the connector selection:

• Electrical load: Signal-level circuits for sensors and moderate current paths for actuators such as fuel injectors and throttle controls.
• Environmental rating: Sealed construction to resist dust and moisture ingress, with a rugged housing suited to high-vibration mounting points.
• Mating security: Threaded coupling to prevent accidental disconnection during operation.
• Temperature range: Compatibility with under-hood temperature variations without degradation of contact performance.

Connector Solution and Configuration

M12 connectors, with their rugged housings and secure threaded locking mechanisms, maintain reliable connections even during continuous operation. Their resistance to corrosion and mechanical stress ensures that engine sensors and actuators remain fully functional, preventing downtime and performance loss. The circular interface and standardized pin arrangement support straightforward wiring for multiple sensor and actuator channels.

Commissioning and Maintenance Considerations

During commissioning, the threaded coupling should be torqued to the manufacturer's specification to achieve the rated seal and vibration resistance. Cable strain relief must be verified to avoid transmitting mechanical load to the contact interface. When components such as throttle sensors, fuel injectors, or temperature monitors require servicing or replacement, the connectors allow fast and secure reconnection, simplifying maintenance and system upgrades.

Verified Outcome and Application Fit

By providing dependable connectivity, M12 connectors help improve engine reliability, operational efficiency, and overall performance in modern agricultural machinery. For engineers evaluating this interface, the key decision factors are the required pin count, current rating per contact, ingress protection level, and the vibration profile of the specific mounting location.
