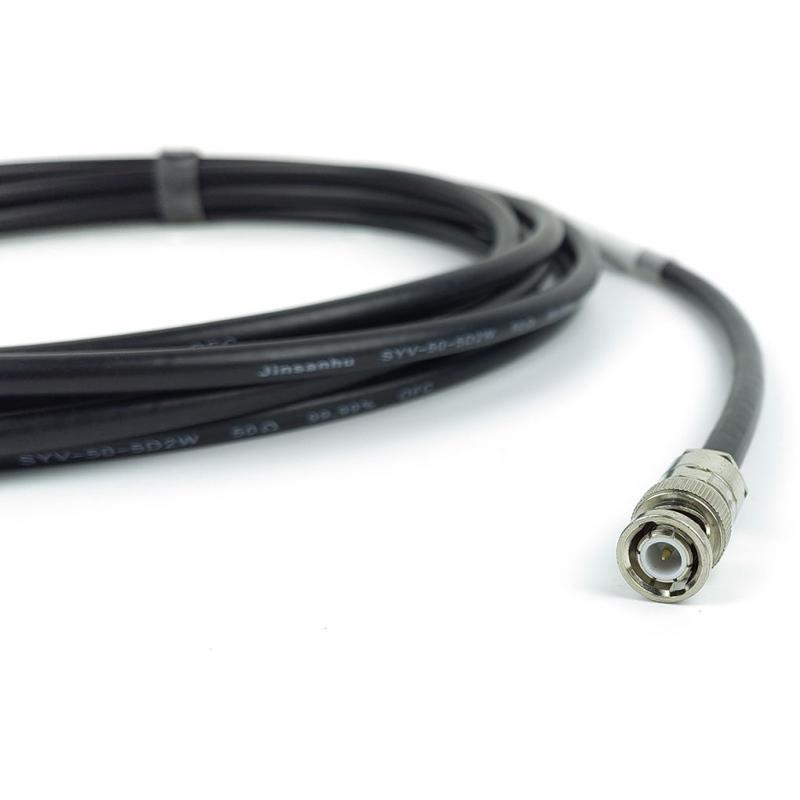

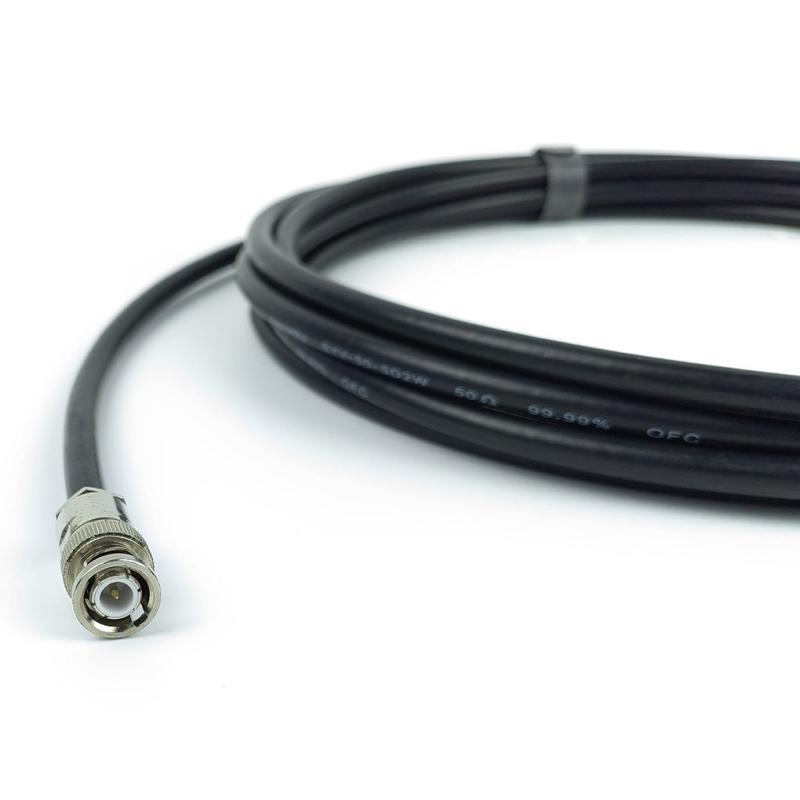

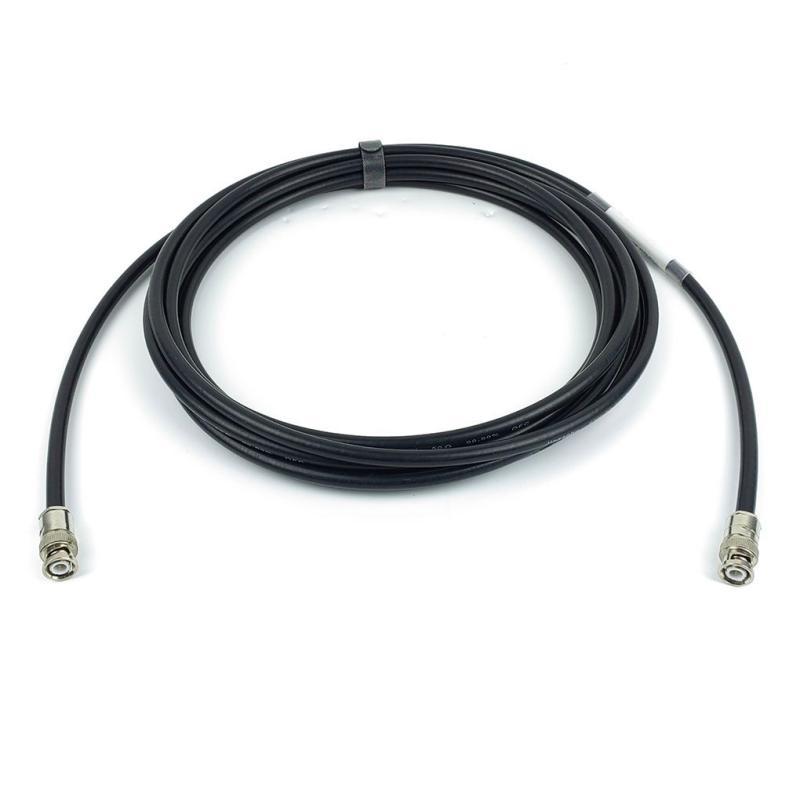

12G BNC Pre-Wired Connector with Coaxial Cable for High-Speed SDI Video

In professional video and broadcast systems, signal integrity is paramount. The 12G BNC pre-wired connector with coaxial cable provides a reliable, ready-to-use solution for high-speed SDI video transmission. Designed to handle UHD 4K 60Hz signals, this connector and cable assembly ensures stable performance in demanding environments.

Key Features of 12G BNC Cable Connectors

• Pre-Wired for Convenience – The connector comes with an attached coaxial cable, eliminating assembly time and wiring errors.
• High-Speed UHD 4K 60Hz Support – Compatible with 12G-SDI systems, ensuring crisp, high-resolution video transmission.
• Durable PVC Cable Jacket – Protects against bending, abrasion, and environmental exposure, increasing the cable's lifespan.
• Precision BNC Connector – Provides secure, low-loss signal connections, ideal for professional video setups.
• Versatile Applications – Suitable for CCTV systems, broadcast studios, live streaming, and video production setups.

Advantages of Pre-Wired BNC Connectors

• Time-Saving Installation – Ready-to-use cables reduce setup time for installers and technicians.
• Reliable Signal Quality – Factory-terminated cables ensure consistent high-speed data transmission.
• Durability and Longevity – Robust PVC jacket and connector construction withstand repeated use.
• Flexible Length Options – Available in various cable lengths to meet different installation needs.

Applications of 12G BNC Pre-Wired Cable Assemblies

• CCTV Surveillance Systems – High-quality video transmission for commercial and residential security setups.
• Broadcast & Live Events – Professional-grade connectors support high-resolution live video feeds.
• Video Production Studios – Ensures reliable signal integrity for cameras, switchers, and recorders.
• Outdoor Installations – PVC-jacketed cables protect against moisture and physical damage, ideal for long runs.

Installation Tips

• Ensure connectors are securely attached to video equipment for optimal signal transfer.
• Avoid excessive cable bending to prevent internal damage.
• Use appropriate cable lengths to minimize signal attenuation and interference.

Factory Capability – Precision Cable Assembly Manufacturing

We are a professional connector and cable assembly manufacturer with over 15 years of experience in industrial and signal transmission solutions.

Unlike standard suppliers, we provide fully integrated production control, ensuring consistent quality across both connector and coaxial cable manufacturing.

Complete In-House Production System

Our factory includes:

• Precision connector machining and assembly
• Coaxial cable processing and cutting
• Shielding and impedance-controlled cable preparation
• Soldering and crimping assembly processes
• Overmolding and strain relief production
• 100% electrical and signal testing

This ensures stable performance across every production batch.

Strict Quality Control for High-Frequency Applications

Each 12G BNC pre-wired assembly is tested for:

• Signal continuity and integrity
• Impedance consistency verification
• Insertion and return loss stability
• Cable pull-force and mechanical durability
• Shielding effectiveness testing
• Final appearance and assembly inspection

OEM & ODM Customization Support

We support customized solutions for professional applications, including:

• Coaxial cable type selection
• Cable length customization
• Impedance control requirements (e.g., 50Ω / 75Ω)
• Connector plating and housing customization
• Branding and labeling
• Packaging customization for OEM projects

Selection Guidance for Your Application

When selecting a 12G BNC pre-wired connector, consider the following decision points:

• Impedance matching – Confirm whether your system requires 50Ω or 75Ω coaxial cable to maintain signal integrity.
• Cable length – Choose a length that minimizes signal attenuation while avoiding excessive slack or tight routing.
• Environmental exposure – For outdoor or industrial runs, verify that the PVC jacket and connector sealing meet your moisture and abrasion requirements.
• Mating compatibility – Ensure the BNC connector gender and locking style match your existing video equipment ports.

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please provide the following details:

• Required cable length and coaxial cable type
• Impedance requirement (50Ω or 75Ω)
• Connector gender (male or female) and any plating preference
• Application environment (indoor, outdoor, broadcast, CCTV, etc.)
• Order quantity and target delivery schedule

For related pre-wired connector solutions, see our 12G Series Circular Connectors or review SD13/SP13 Waterproof Cable Connector with Pre-Wired Assembly for additional configuration ideas.

Contact Us

We provide:

• Sample support
• Technical consultation
• Custom coaxial cable design
• OEM/ODM manufacturing
• Fast production and global delivery
• Factory-direct pricing

Contact us today for professional 12G BNC Pre-Wired Connector with Coaxial Cable solutions.
