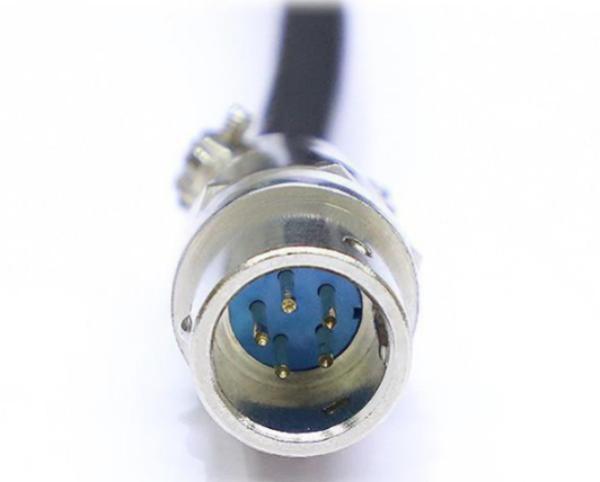

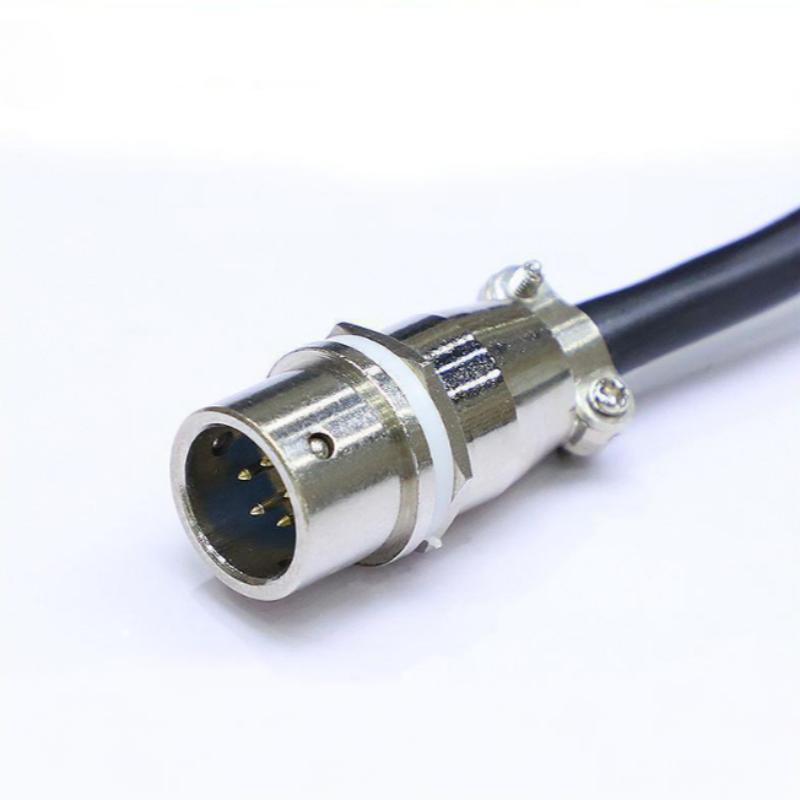

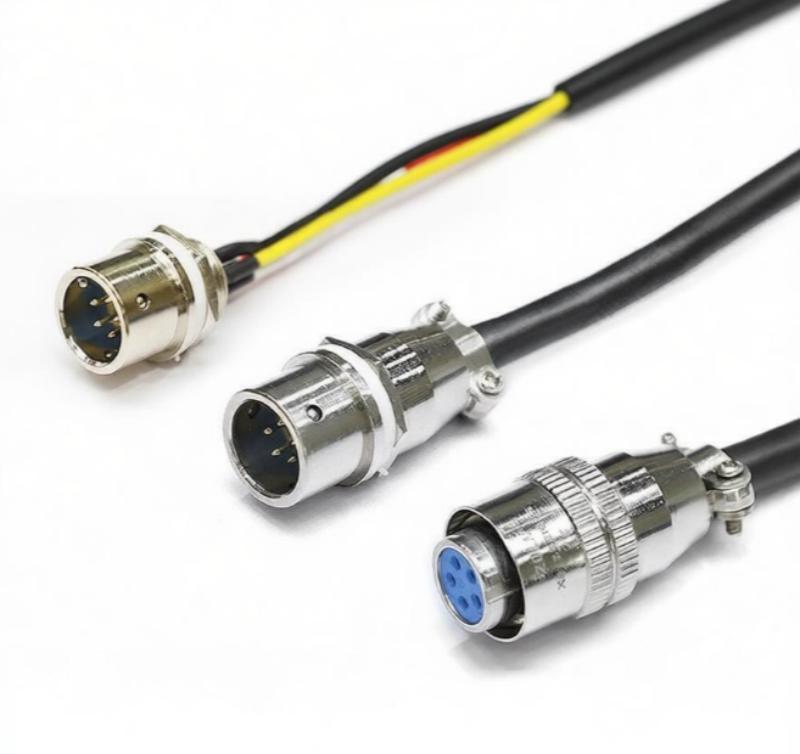

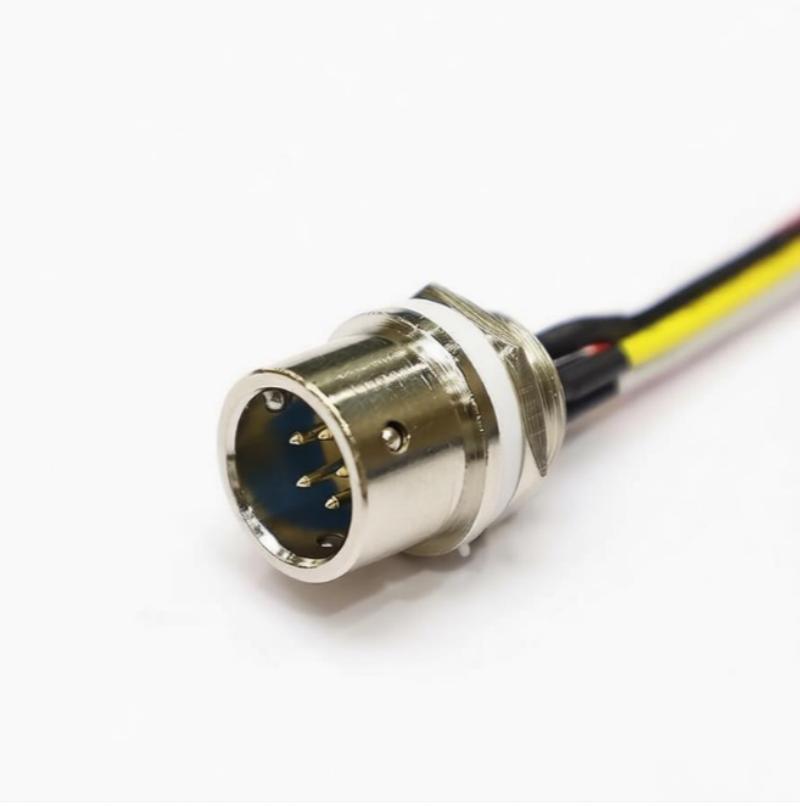

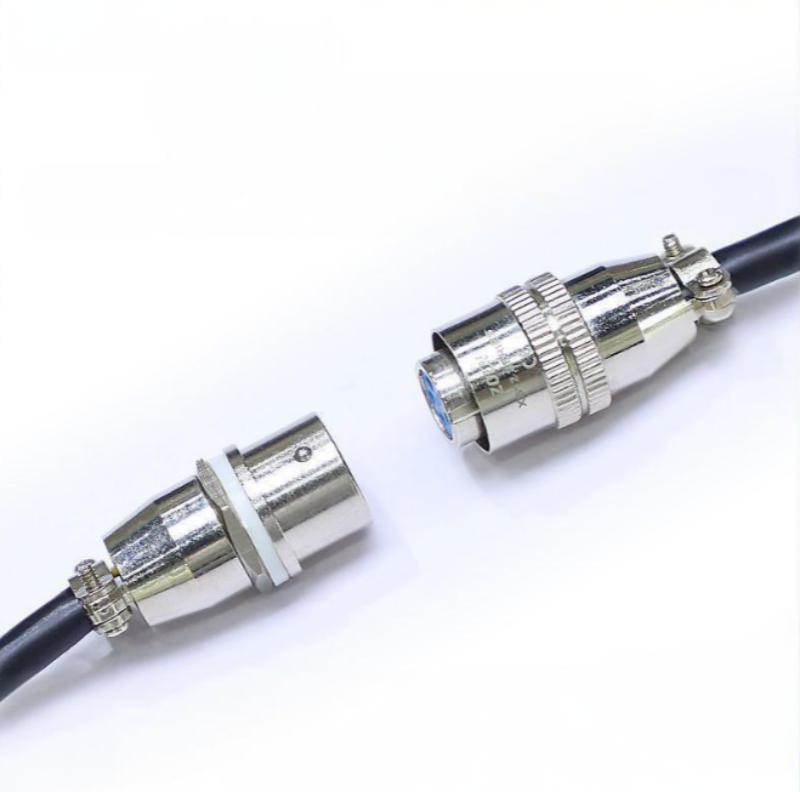

XS9 Pre-Wired Aviation Connector – Compact 4-Core Solution for Industrial Equipment

The XS9 Pre-Wired Aviation Connector is a compact circular connector designed for industrial systems that need a stable, ready-to-integrate multi-wire interface. Its 4-core configuration and pre-wired construction reduce on-site wiring work, making it a practical choice for space-constrained equipment where installation consistency and long-term reliability matter.

By combining the circular connector body with a factory-terminated cable, this solution removes the need for separate connector selection and manual wire matching. The result is a more predictable assembly process with fewer wiring errors.

Where the XS9 4-Core Connector Fits Best

The 4-pin layout suits systems that transmit a small number of signals or combined power-and-signal lines within a compact envelope. Typical uses include:

• Power and signal combined transmission
• Sensor input and output channels
• Basic control signal wiring
• Compact device interconnection

This connector is especially suitable for miniature industrial devices and tightly integrated electronic systems where space is limited but connection stability cannot be compromised.

Construction and Mechanical Reliability

Despite its compact size, the XS9 maintains industrial-grade performance through several design features:

• Secure circular locking mechanism
• Stable contact alignment for repeated mating cycles
• Resistance to vibration and mechanical movement
• Consistent electrical conductivity under long-term operation

These characteristics help maintain stable performance in dynamic industrial environments where connectors are subject to movement and mechanical stress.

Pre-Wired Design Advantages for OEM Production

Compared with loose connector systems, the pre-wired structure offers clearer integration control:

• Factory-matched 4-core wiring layout
• Reduced risk of wiring mismatch during installation
• Simpler installation and replacement in the field
• Better consistency across production batches
• Faster assembly for equipment manufacturers

This makes the XS9 a strong candidate for OEM production environments where repeatability and assembly speed are critical.

Application Scope

The XS9 4-core aviation connector is commonly applied in:

• Compact industrial automation systems
• Sensor and monitoring devices
• Small machinery control units
• Robotics auxiliary modules
• Communication signal systems
• Embedded industrial electronics
• Precision electronic equipment

It is a practical connectivity answer for compact industrial equipment that needs stable, simplified multi-core wiring.

Selection Considerations and Boundaries

Before specifying the XS9, confirm that your application fits within its intended scope:

• Suitable: Compact devices, sensor systems, control wiring, and OEM assemblies where 4 cores are sufficient.
• Not suitable: High pin-count applications, high-current power distribution, or environments requiring a higher IP rating than the connector provides. Confirm the exact IP rating and electrical limits in the Technical Specifications before finalizing your design.

If your system requires more cores, higher current capacity, or a different cable type, discuss your requirements with our engineering team to identify the correct connector family.

Factory Capability and Quality Assurance

We are a professional industrial connector manufacturer with over 15 years of experience in circular connectors and customized cable assembly solutions. Our focus is on delivering stable, production-ready connectivity systems, not just individual components.

Integrated In-House Production

Our factory supports full in-house manufacturing:

• Connector mold design and development
• CNC machining for precision metal parts
• Injection molding for insulation components
• Terminal stamping and plating control
• Cable cutting and wire processing
• Connector assembly and integration
• Electrical testing and validation

This vertical integration ensures consistent quality between connector and cable integration.

Quality Checks for Pre-Wired Products

Each XS9 4-core pre-wired connector is tested for:

• Continuity and correct pin-to-wire mapping
• Cable pull strength and mechanical durability
• Contact resistance stability
• Locking and mating reliability
• Final visual and structural inspection

Customization Options

We support flexible OEM and ODM customization, including:

• Cable length adjustment
• Wire gauge and material selection
• Shielded or unshielded cable options
• Connector orientation customization
• Branding and labeling services
• Packaging customization for OEM customers

From sample development to mass production, we support full project execution.

Information to Include in Your Inquiry

To help us match the correct XS9 configuration, please provide:

• Required cable length and wire gauge
• Mating connector type (plug or socket) and gender
• Pinout or wiring diagram if a specific assignment is needed
• Operating environment (temperature, moisture, vibration level)
• Electrical load (current and voltage per pin)
• Estimated order quantity

Contact us today for professional XS9 4-core aviation connector solutions for your compact industrial applications. We offer sample support, technical consultation, OEM/ODM customization, and factory-direct pricing.
