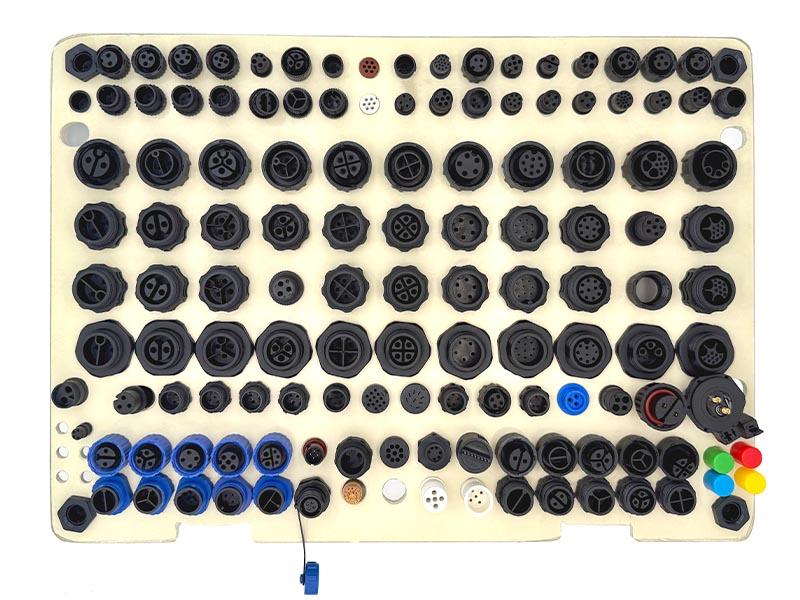

Connector Insulating Inserts with PTFE High-Temperature Option

RF Connector Types, Materials, and Electrical Specs

What Are Connector Insulating Inserts?

Connector insulating inserts are the internal components that hold contact pins or sockets in precise alignment while providing electrical insulation between them. They are a critical part of any circular or rectangular connector, determining both the mechanical stability of the contact arrangement and the dielectric strength of the connection. This page covers standard plastic inserts and custom Teflon (PTFE) inserts, helping you choose the right material for your application's electrical, thermal, and chemical requirements.

Standard Plastic Inserts vs. Custom Teflon (PTFE) Inserts

Choosing between a standard plastic insert and a custom PTFE insert depends on the operating environment and the electrical demands of your system. The table below summarizes the key differences to guide your selection.

• Standard Plastic Inserts: A cost-effective solution for general-purpose applications with moderate temperature ranges and benign chemical exposure. They provide reliable contact fixation and adequate insulation for most industrial environments.
• Custom Teflon (PTFE) Inserts: Engineered for demanding conditions. PTFE offers superior high-temperature resistance and excellent chemical corrosion resistance, ensuring precise contact fixation and stable electrical insulation even in aggressive environments.

Key Selection Criteria for Insulating Inserts

When specifying an insulating insert, consider the following decision points to ensure compatibility and long-term reliability:

• Temperature Range: Verify the continuous operating temperature of the insert material against your application's ambient and heat-generating conditions. PTFE is typically rated for continuous use up to 260°C, while standard plastics have lower limits.
• Chemical Exposure: Assess the presence of solvents, fuels, acids, or cleaning agents. PTFE is virtually inert to most chemicals, whereas standard plastics may degrade or swell.
• Contact Arrangement: The insert must precisely match the pin count, contact diameter, and layout of your chosen connector series. Custom PTFE inserts can be machined to accommodate non-standard configurations.
• Dielectric Requirements: Confirm the insulation resistance and voltage rating needed for your circuit. The insert material and its thickness between contacts directly affect these values.

Application Boundaries and Suitability

Insulating inserts are suitable for a wide range of industrial, instrumentation, and harsh-environment applications. However, it is important to understand their limitations:

• Suitable For: High-temperature processing equipment, chemical plants, oil and gas instrumentation, and any system requiring reliable insulation in corrosive atmospheres.
• Not Suitable For: Applications requiring extreme mechanical strength or impact resistance beyond the insert's material properties, or environments with radiation exposure unless the specific PTFE grade is verified for that use.

Information Needed for Custom Insert Matching

To ensure accurate fabrication and mating compatibility, please provide the following details when inquiring about custom Teflon inserts:

• Connector series and shell size
• Pin count and contact diameter
• Contact layout drawing or pinout diagram
• Required temperature and chemical exposure limits
• Any specific dielectric or insulation resistance targets

For related guidance on connector selection in demanding environments, you may also review our wide-temperature connector FAQ.

Next Steps for Your Connector Project

If you are evaluating insulating inserts for a new or existing connector design, send us your application details and contact arrangement. Our team can confirm material suitability and provide a custom PTFE insert solution that meets your exact specifications.
