M12 Connector
< >

M12 8 Pin Male Waterproof Connector Cable Assembly with Gold Plated Brass C

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 2-17 Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 125V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+8619924482730

LD20/SP20 Industrial Flange Connector

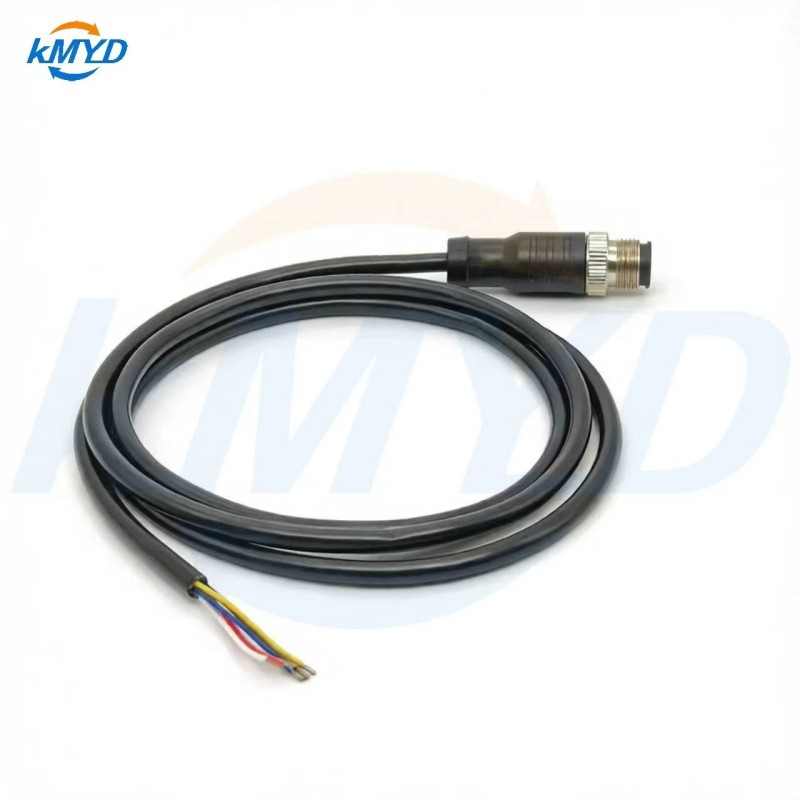

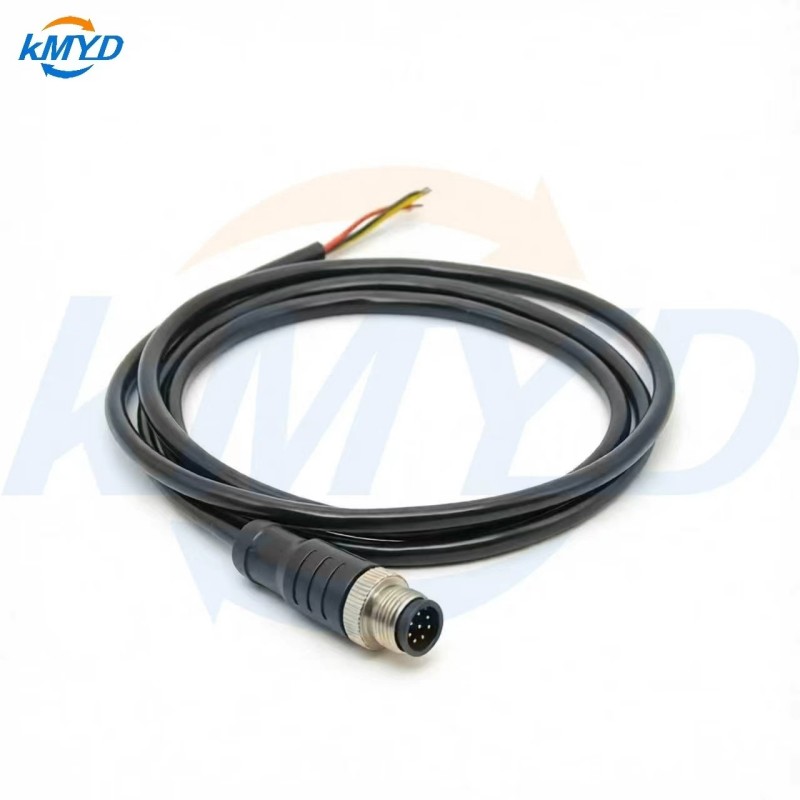

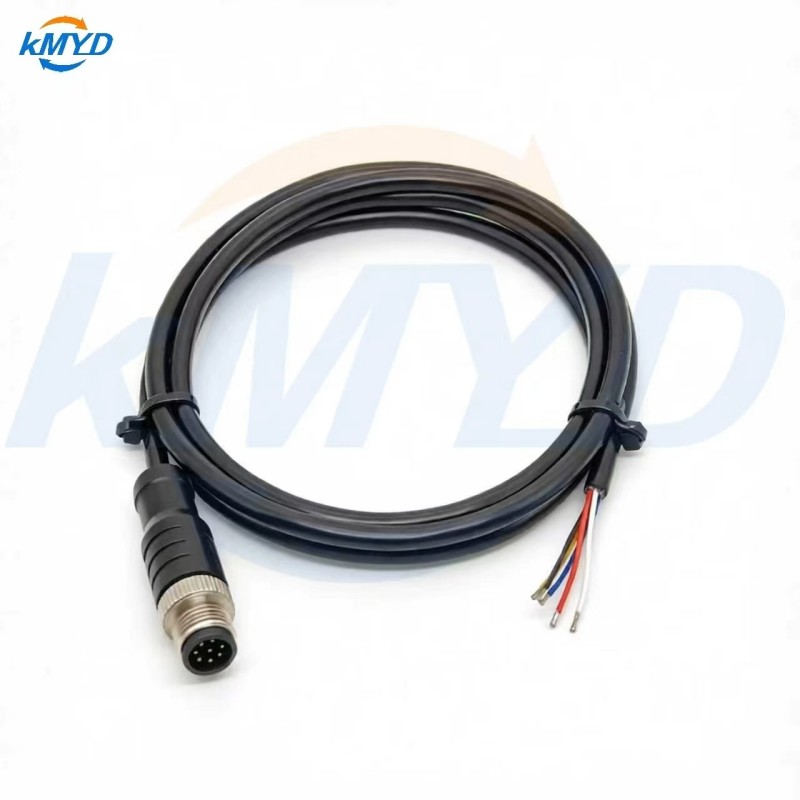

M12 8 Pin Male Waterproof Connector Molded Cable Assembly with Gold Plated Brass Contacts
This M12 8-pin male waterproof connector cable assembly is engineered for industrial applications that demand reliable signal transmission, secure mating, and long-term durability. The assembly integrates an 8-pin M12 male connector with gold-plated brass contacts, delivering consistent electrical performance and stable connection quality for demanding equipment.

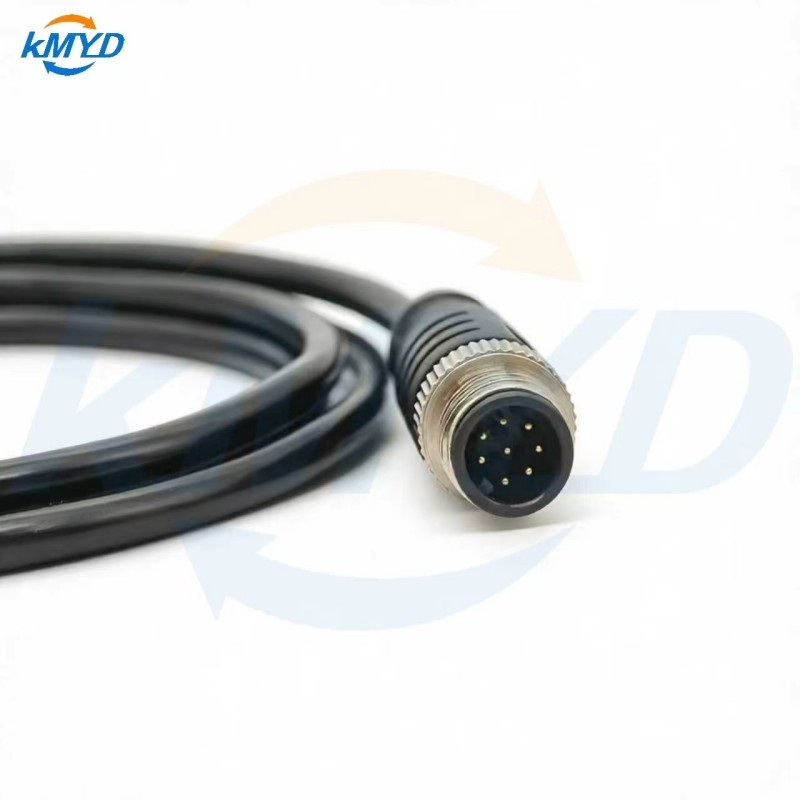

M12 8 Pin Male Waterproof Connector Cable Assembly
The gold-plated brass contacts enhance conductivity and corrosion resistance, helping to maintain stable performance during extended operation. The molded cable construction reinforces the junction between the connector and cable, reducing stress from bending, vibration, and routine handling.

With its compact M12 interface and waterproof design, this cable assembly suits automation equipment, sensors, control systems, and other industrial devices operating in challenging environments.

Product Features

M12 8-pin male connector – provides accurate and reliable equipment connection.
Gold-plated brass contacts – ensure excellent conductivity and corrosion resistance.
Molded cable construction – improves mechanical strength and service life.
Waterproof protection – suitable for industrial environments with moisture or dust.
Stable signal transmission – supports reliable multi-pin connection applications.

Custom cable assembly – cable length, wire specifications, and connector options can be customized.

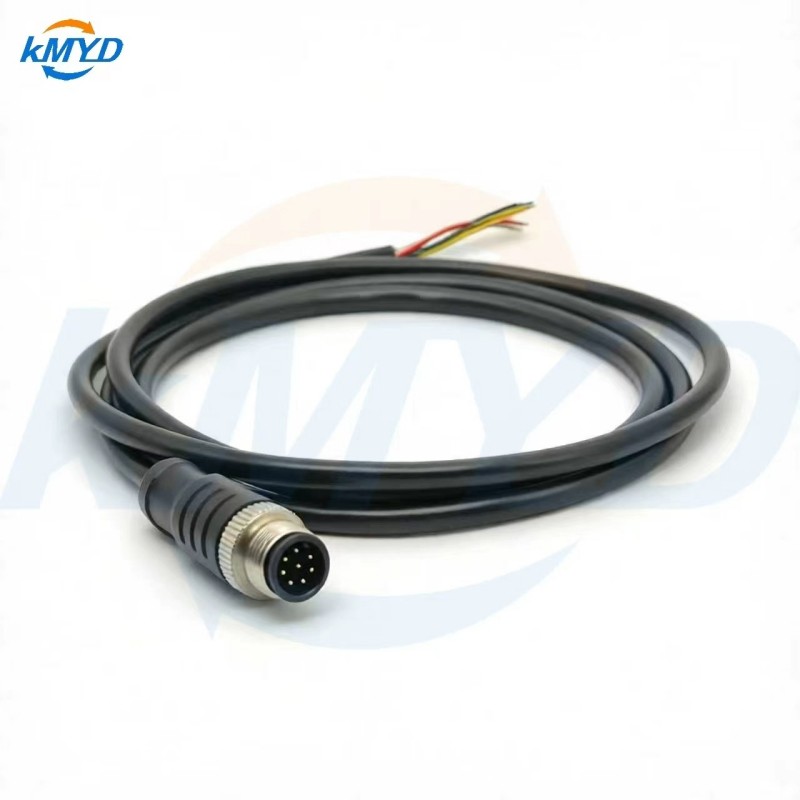

M12 8 Pin Male Connector

Applications

Industrial automation equipment
Sensors and control systems
Robotics equipment
Machine building
Industrial instrumentation

Outdoor electronic devices


Factory Strength

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer with more than 15 years of industry experience.
Connector Manufacturing Facility
Meiyadi focuses on the development and production of M-series connectors, waterproof connectors, industrial cable assemblies, and customized wiring solutions. The factory integrates R&D, mold development, precision machining, injection molding, cable assembly, and quality inspection to provide complete manufacturing capabilities.

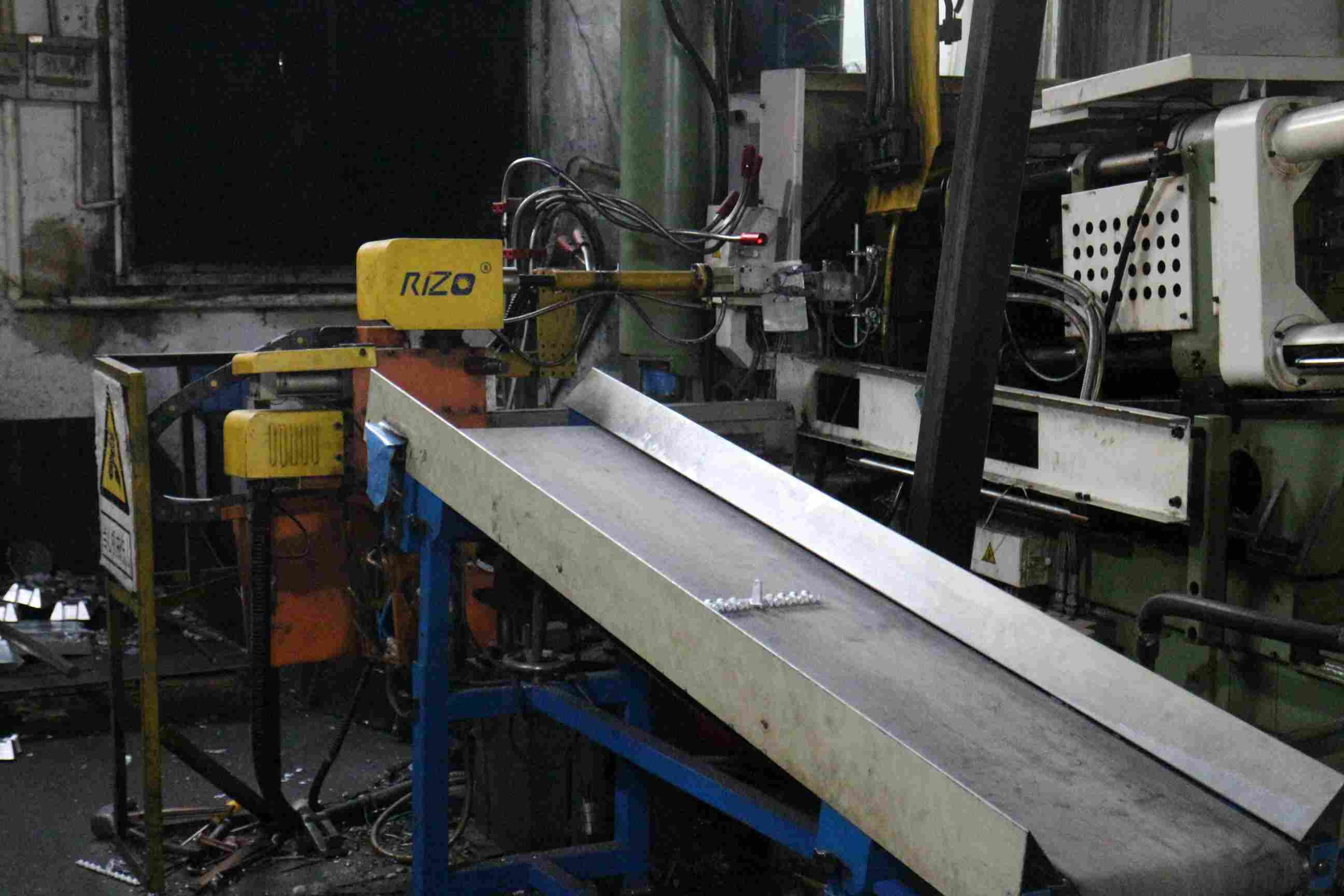

Connector Quality Testing Equipment
With advanced testing equipment and a strict quality management system, Meiyadi ensures every product meets requirements for electrical performance, mechanical reliability, and environmental protection.
Industrial Connector Production Line
Through flexible OEM/ODM services, professional engineering support, and strong production capacity, Meiyadi provides dependable connection solutions for industrial automation, electronics, communication, and specialized equipment applications.

For detailed technical specifications, including pin count, contact diameter, rated current, voltage, IP rating, and cable range, please refer to the Technical Specifications section. When ordering, please provide your mating-side requirement, pinout or drawing, cable outside diameter, conductor size, electrical load, and operating environment to ensure correct configuration. For related industrial connector options, see the Waterproof Connectors catalog or review the M12 8-Pin Railway Sensor Connector case study.

SP Waterproof Connector

Item

Parameters

Number of Cores

2–17 Pin

Gender

Male / Female

Housing Material

PA66 / Nickel-Plated Brass

Contact Material

Brass, Silver- or Gold-Plated

Insulator Material

Phenolic

Locking System

Screw Locking

Temperature Range

-40°C to +85°C

Rated Current (A)

1 A

Rated Voltage (AC V)

125 V

Test Voltage (AC V, 1 min)

1000 V

Insulation Resistance (MΩ)

1500 MΩ

Contact Resistance (MΩ)

≤10 MΩ

Termination

Solder
