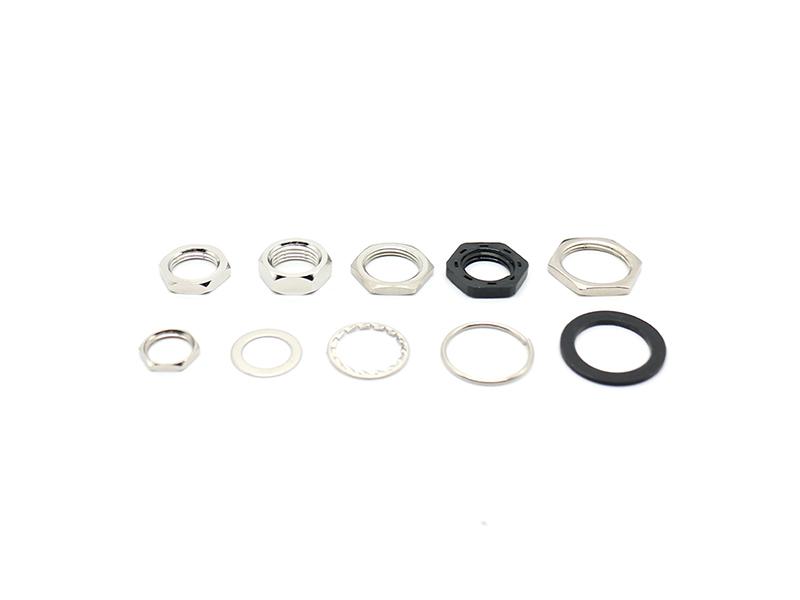

Connector Conductive and Insulating Washers for Housings

SF Series Aviation Connectors Specifications and Performance Data

Connector Conductive and Insulating Washers: Purpose and Selection

Conductive and insulating washers are small but essential components used with connector housings and bodies. They play a direct role in the electrical and mechanical integrity of an assembly. Conductive washers are used to enhance grounding effectiveness by improving electrical continuity between mating metal parts. Insulating washers, by contrast, isolate metal components from one another, helping to prevent unintended electrical contact and improving overall insulation performance.

When selecting washers for a connector application, the key question is what the washer must accomplish electrically. If the goal is to establish a reliable ground path across a panel or between connector shells, a conductive washer is the appropriate choice. If the goal is to prevent current leakage or avoid galvanic interaction between dissimilar metals, an insulating washer is required. The material choice should be based on the electrical requirements of the system, not on appearance or generic compatibility.

Key Decision Points for Washer Selection

• Electrical function: Determine whether the washer must conduct current for grounding or block current for isolation.
• Material compatibility: Verify that the washer material is compatible with the connector housing, plating, and the operating environment.
• Mechanical fit: Confirm the washer's inner and outer diameter, thickness, and hole size match the connector hardware and mounting requirements.
• Environmental exposure: Consider temperature range, humidity, and potential chemical exposure when choosing between conductive and insulating materials.

Application Boundaries

Conductive washers are suitable for applications where improved grounding or shielding continuity is needed, such as in metal-shell connector assemblies. Insulating washers are suitable where electrical separation between components is required, such as when mounting a connector to a grounded panel or isolating a metallic body from a circuit path. They are not interchangeable; using the wrong type can compromise grounding integrity or create an unintended electrical path.

For applications involving high-vibration environments or repeated mating cycles, confirm that the washer material and thickness are appropriate for the mechanical stress. For humid or corrosive environments, verify that the material will not degrade or introduce contamination into the connector interface.

Information to Provide for Matching

To receive accurate guidance on washer selection, provide the connector series or model, the housing and body material, the mounting configuration, and the electrical requirement (grounding or isolation). Include the operating temperature range and any relevant environmental conditions. This information allows a supplier to recommend the correct washer type and material for your specific assembly.

If you are unsure whether your application requires a conductive or insulating washer, contact our team with your connector details and application description. We can help you determine the correct component for your assembly.
