M8 Connectors in Lawn Mowers: Ensuring Reliable Electrical Performance

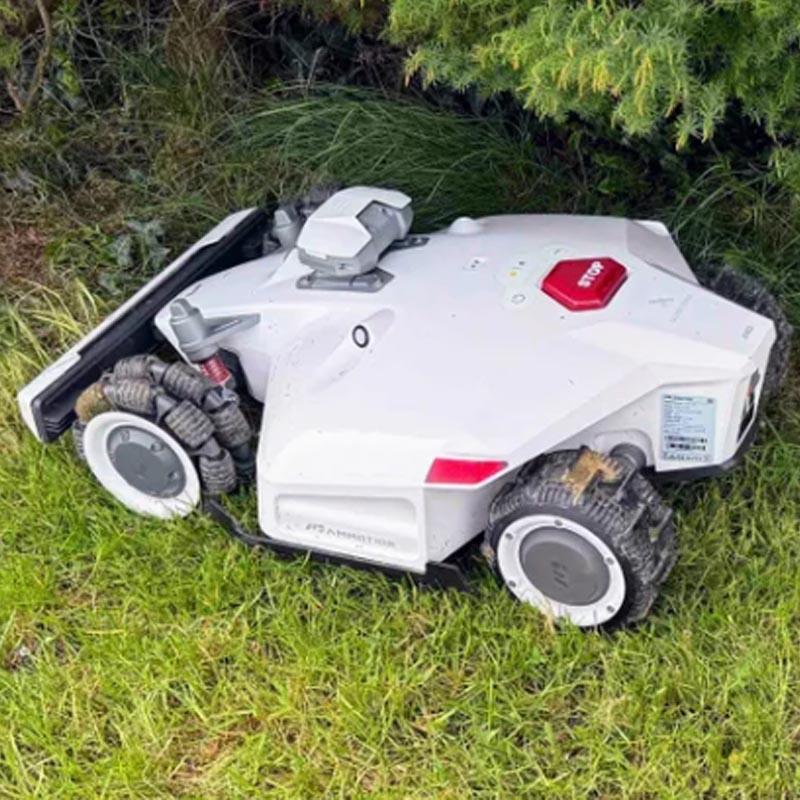

Modern lawn mowers depend on stable electrical connections between the engine, cutting blades, and onboard sensors. M8 circular connectors are engineered to maintain accurate monitoring of engine temperature, blade rotation speed, and fuel efficiency, even under continuous vibration, dust exposure, and moisture from wet grass. Their compact, threaded design supports quick replacement and maintenance, helping to minimize downtime during peak mowing seasons. By delivering secure, waterproof connections, M8 connectors contribute to operational safety and precise cutting performance in both residential and commercial mowing equipment.

Project Background and Industry Context

In the outdoor power equipment industry, lawn mowers are increasingly equipped with electronic control units (ECUs) and sensor networks that require dependable signal and power transmission. The operating environment—characterized by high vibration, grass debris, and water splash—demands connector solutions that can withstand harsh conditions without compromising signal integrity. M8 connectors are commonly specified for these applications due to their small footprint, robust coupling mechanism, and IP-rated sealing.

Interface and Environmental Requirements

For lawn mower applications, the M8 connector interface typically supports 3 to 4 pins for sensor signals and low-current power. The electrical load is generally limited to low voltage (e.g., 24V DC) and currents up to 3A per contact, depending on the specific pin configuration. Environmental requirements include protection against water ingress and dust, with IP67-rated sealing being a common specification for connectors mounted in exposed locations. The threaded coupling ensures resistance to vibration-induced loosening, while the cable range and mating cycles must align with the mower's assembly and maintenance schedule.

Connector Solution and Configuration

The selected M8 connector configuration includes a male plug with a straight cable exit, mating with a female panel-mount socket. The contact layout is arranged for signal and power lines, with gold-plated contacts to ensure low contact resistance and corrosion resistance. The housing is made of nickel-plated brass or stainless steel, providing mechanical strength and environmental sealing. For field wiring, screw-terminal versions allow for quick termination, while pre-molded cable assemblies offer a factory-sealed solution for high-volume production.

Verification and Delivery Process

Before deployment, sample connectors were subjected to validation testing, including mating cycle tests, vibration resistance checks, and IP67 water immersion verification. The configuration was confirmed against the mower's wiring diagram and mechanical envelope. During trial installation, the connectors were checked for ease of mating and secure locking. After successful commissioning, the connectors were delivered with documentation of test results and installation guidelines. Field feedback confirmed stable operation under continuous use in wet and dusty conditions.

Verified Results and Application Fit

The M8 connectors maintained reliable connectivity throughout the testing period, with no signal loss or intermittent failures reported. The waterproof sealing prevented moisture ingress, and the threaded coupling remained secure under vibration. The compact design allowed for integration into the mower's existing harness without additional space requirements. For engineers evaluating connector options, the M8 series offers a balanced combination of size, sealing performance, and mechanical robustness suitable for outdoor power equipment.

For related connector solutions, see the Waterproof Connectors catalog or review the M8 4-Pin Connector for Solar Farm Monitoring Systems in Brazil case for another application example.

If you are selecting a connector for a lawn mower or similar outdoor equipment, contact our engineering team with your electrical load, cable diameter, and mounting requirements to confirm the appropriate M8 configuration.
