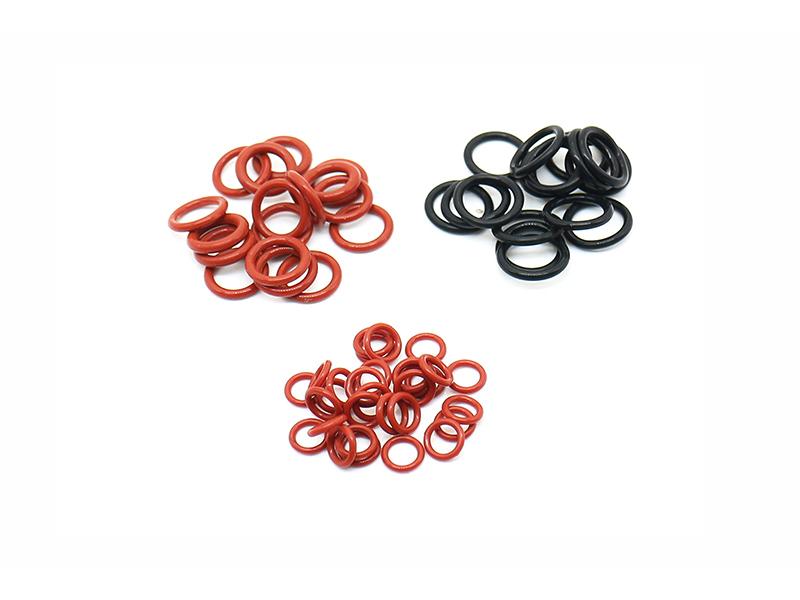

Connector Waterproof Rings with Double-Sealing Structure

LD32/SP32 Electrical Panel Mount Connector Dimensions and Specs

What Are Connector Waterproof Rings?

Connector waterproof rings are sealing components used with waterproof plugs and cables. They are designed to prevent moisture, dust, and other contaminants from entering the connection point, which is critical for maintaining electrical safety and long-term reliability in demanding environments.

These rings are commonly found in applications where equipment is exposed to outdoor conditions or frequent cleaning, such as medical devices, outdoor communication systems, and industrial machinery. By forming a secure barrier around the connector interface, they help protect sensitive electronics from corrosion, short circuits, and performance degradation caused by water ingress.

Key Features and Design

The primary function of a connector waterproof ring is to provide a reliable seal. A notable design feature is the double-sealing structure, which offers an additional layer of protection compared to standard single-seal designs. This redundancy is especially valuable in applications where a single point of failure could lead to costly downtime or safety risks.

• Double-sealing structure: Provides enhanced protection against moisture and dust ingress.
• Material durability: Engineered to withstand environmental stress, including temperature variations and exposure to humidity.
• Compatibility: Designed to work with standard waterproof plugs and cables, simplifying integration into existing systems.

Common Applications

Waterproof rings are essential in any setting where electrical connections must remain operational despite exposure to water or high humidity. Typical use cases include:

• Medical devices that require strict hygiene and safety standards.
• Outdoor communication equipment, such as base stations and antennas.
• Industrial control systems located in washdown or high-moisture areas.

When selecting a waterproof ring, it is important to verify the specific dimensions and sealing requirements of your connector to ensure a proper fit and optimal performance.

Selection Considerations

Choosing the right waterproof ring involves more than just matching the connector size. Consider the following factors to ensure reliable sealing in your application:

• Environmental exposure: Assess the level of moisture, dust, and temperature fluctuation the connection will face.
• Mating cycles: Frequent plugging and unplugging can wear down seals; confirm the ring's durability for your expected usage.
• Material compatibility: Ensure the ring material is suitable for any chemicals or cleaning agents used in your environment.

If you are unsure about the correct ring for your connector, consulting the connector manufacturer's specifications or seeking guidance from a technical specialist is recommended.

Next Steps for Your Application

To ensure you select the appropriate waterproof ring for your connector, it is helpful to have the following information ready when consulting a supplier:

• Connector series and model number.
• Pin count and contact layout.
• Cable diameter and termination type.
• Specific environmental conditions (e.g., IP rating required, temperature range).

For more detailed guidance on selecting the right waterproof connector for your equipment, you may find it useful to review our waterproof connector selection resources. If you have specific questions about your application, please contact our team via the inquiry form or WhatsApp for personalized assistance.
