SP13 Waterproof Connectors in Infusion Pumps: Project Background

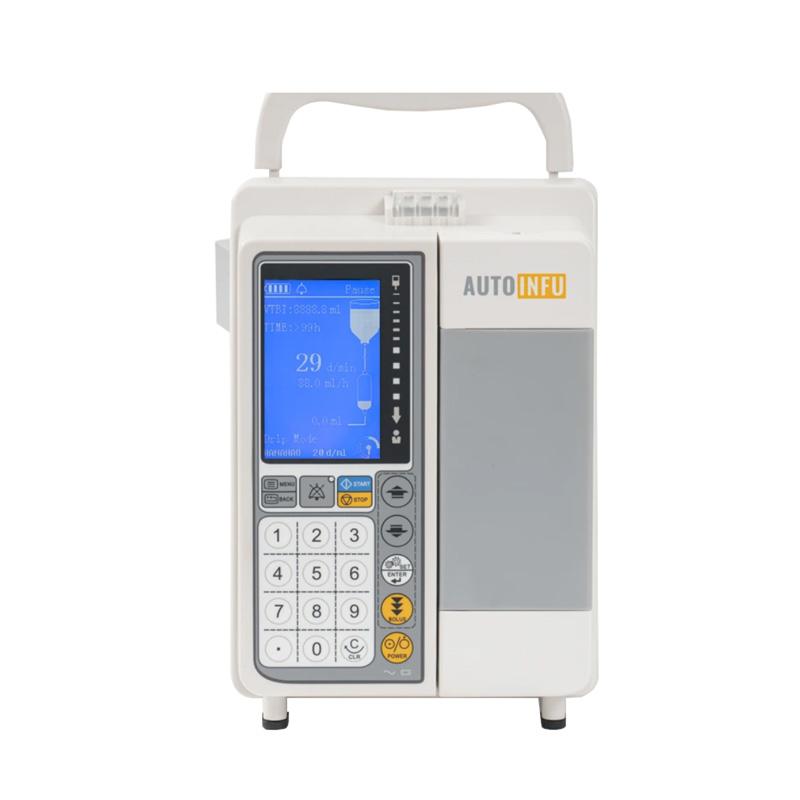

Infusion pumps are critical medical devices that deliver fluids, medications, and nutrients to patients with high precision. In these systems, the electrical connection between the control module, sensors, and power supply must remain stable to ensure accurate dosing and patient safety. The compact design of modern infusion pumps places strict demands on the connectors used, requiring both miniaturization and high reliability.

SP13 waterproof connectors are selected for these applications because they provide a secure, sealed interface that withstands the demanding conditions of clinical environments. Their small form factor enables integration into portable and bedside pump designs, while their robust construction supports long-term operational life.

Application Requirements for Infusion Pump Connectors

Infusion pumps are frequently exposed to moisture, cleaning agents, and physical handling during routine clinical use. The electrical interface must therefore meet several key requirements:

• Environmental protection: The connector must resist ingress of water and cleaning fluids to prevent short circuits and corrosion.
• Mechanical stability: A secure locking mechanism is required to prevent accidental disconnection during patient transport or pump movement.
• Signal integrity: Stable contact resistance is essential for accurate sensor readings and precise motor control.
• Compact dimensions: The connector must fit within the limited internal space of portable infusion pump housings.

SP13 connectors address these needs with their IP68-rated waterproof design, durable housing materials, and reliable contact geometry. The mating cycle performance supports repeated connection and disconnection during maintenance and component replacement.

Solution: SP13 Connector Configuration for Medical Devices

The SP13 series provides a 3-pin configuration suitable for power and signal transmission in infusion pump subsystems. The connector's waterproof sealing is achieved through precision-molded gaskets and a threaded or bayonet locking mechanism, depending on the specific variant selected.

For infusion pump applications, the connector is typically specified with:

• Rated voltage and current suitable for the pump's motor and control electronics
• IP68 protection rating for protection against immersion and cleaning procedures
• Compact shell size for space-constrained PCB and panel mounting
• Secure locking to withstand vibration and handling

When integrating SP13 connectors into an infusion pump design, engineers should verify the cable diameter range, termination method (solder or crimp), and mating force requirements against the specific pump assembly process.

Commissioning and Maintenance Considerations

During pump assembly and servicing, SP13 connectors enable fast and reliable reconnection of sensors, control boards, and power modules. The connector's design supports repeated mating cycles, which is important for devices that undergo periodic calibration and preventive maintenance.

For field service technicians, the visual and tactile feedback of a fully mated connection helps confirm proper assembly. The waterproof seal should be inspected during routine maintenance to ensure the gasket remains intact and free from debris.

Result: Reliable Connectivity for Patient Safety

By using SP13 waterproof connectors, infusion pump manufacturers achieve dependable electrical connectivity that supports accurate drug delivery and continuous monitoring. The connectors' resistance to moisture and cleaning agents reduces the risk of intermittent faults, while their compact size preserves design flexibility for portable and wearable pump platforms.

For engineers evaluating connector options for infusion pumps or similar medical devices, the SP13 series offers a balanced combination of environmental protection, electrical performance, and mechanical durability. Related connector solutions for medical equipment include the SP17 waterproof connectors used in portable ultrasound equipment and the SP21 series applied in patient monitors.

To discuss your specific infusion pump connector requirements, including pin configuration, cable assembly, or custom locking options, please contact our engineering team through the inquiry form or WhatsApp. We can provide detailed specifications and application support for your medical device project.
