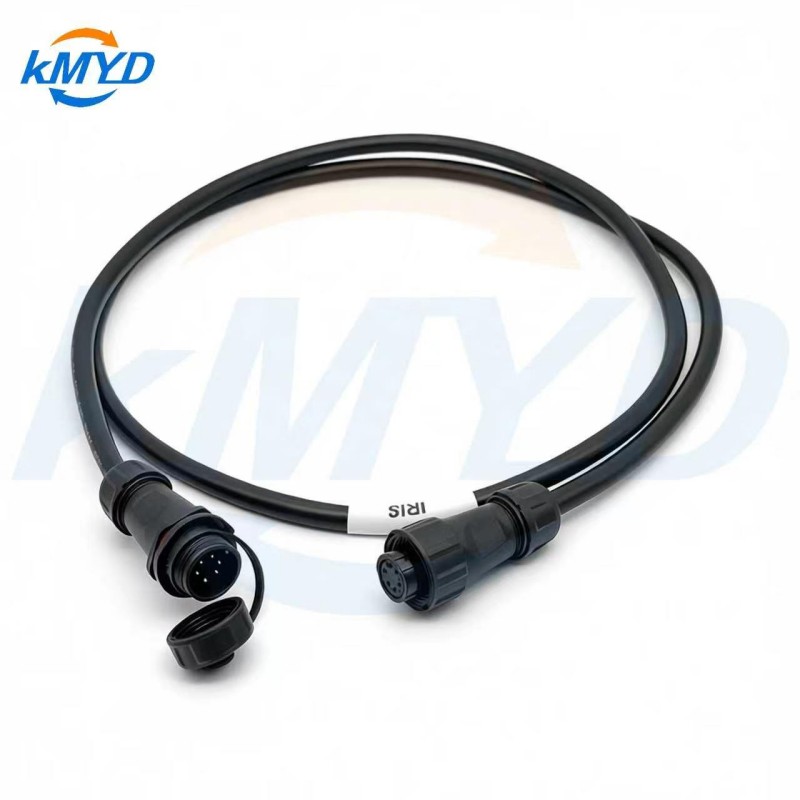

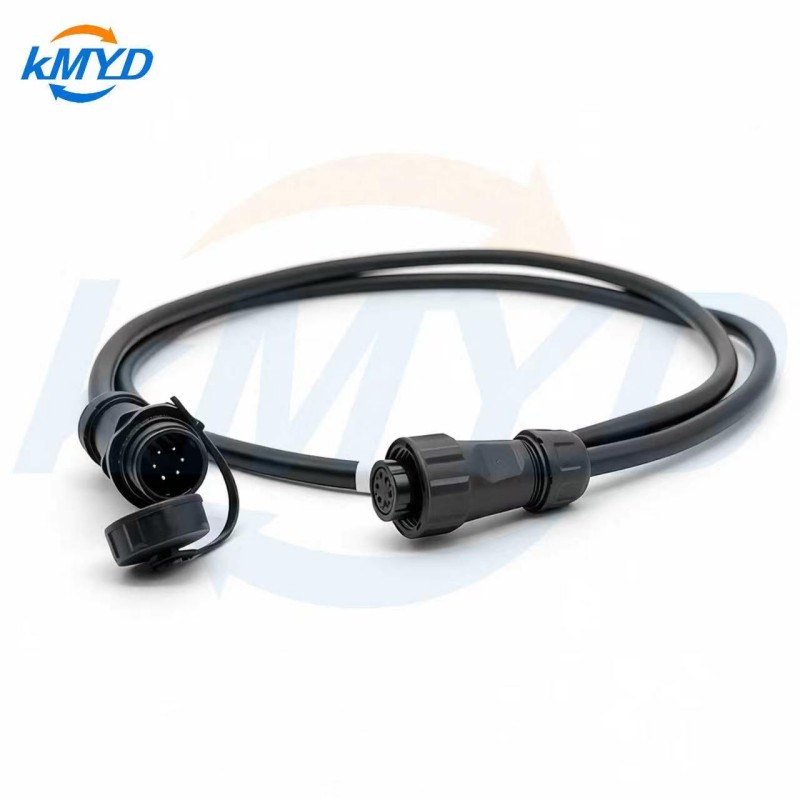

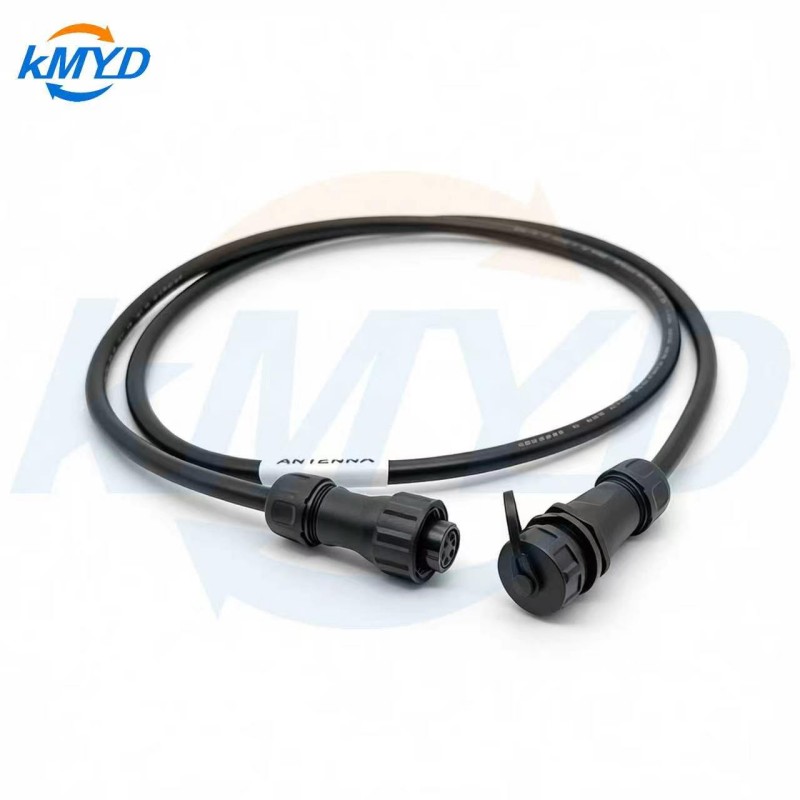

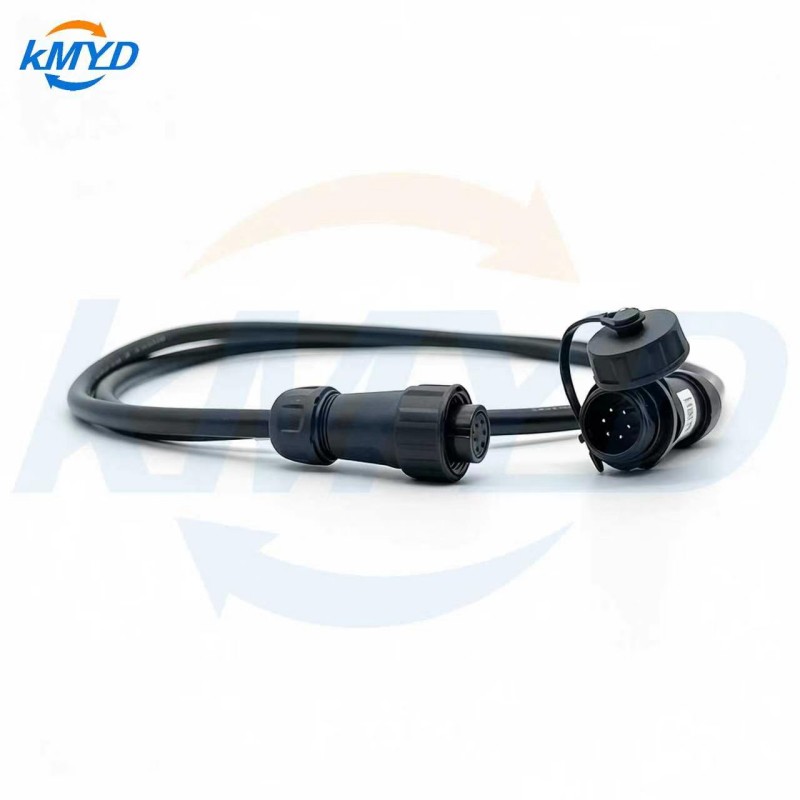

SP13 6 Pin Female Plug to Male Socket IP68 Waterproof Cable Assembly

SP13 6 Pin Black Female Plug to Male Socket IP68 Waterproof Cable Assembly

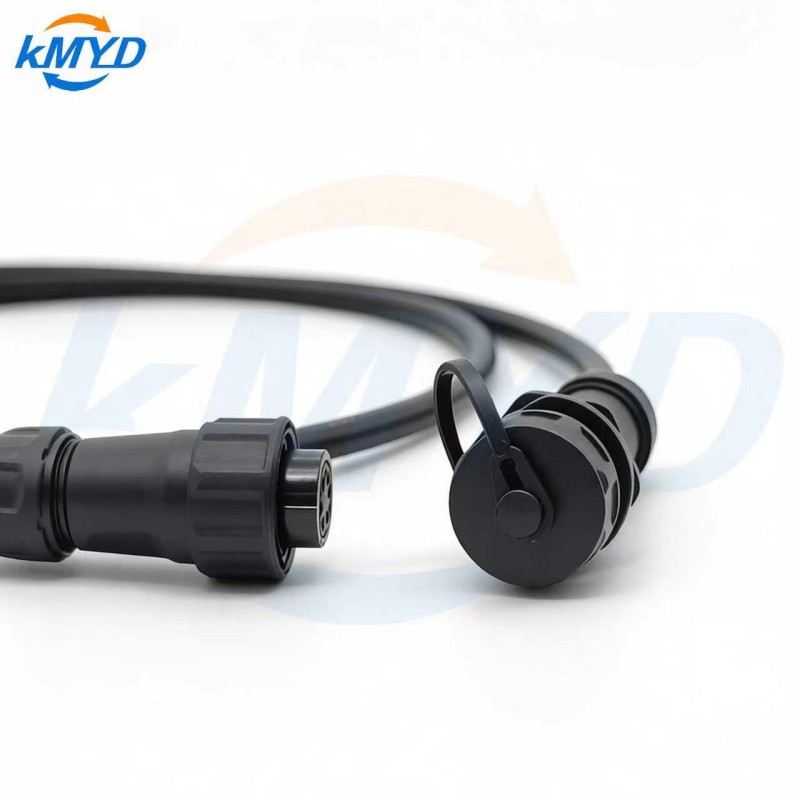

The SP13 6 Pin Black Female Plug to Male Socket Cable Assembly provides a secure and reliable connection for industrial equipment, automation systems, and outdoor electronic applications. Its female plug to male socket configuration offers flexible options for equipment extension and system integration, while the IP68 rating ensures dependable performance in demanding environments.

Key Selection Considerations

When evaluating this SP13 cable assembly for your project, focus on these decision points:

• Pin Configuration: The 6-pin layout supports both power and signal transmission, but verify your required pinout against the assembly's wiring diagram before ordering.
• Environmental Protection: The IP68 rating suits outdoor and washdown applications, yet confirm the specific immersion depth and duration requirements for your installation.
• Connection Security: The threaded locking mechanism resists vibration-induced disconnection, making it suitable for moving equipment and high-vibration environments.
• Customization Needs: Cable length, pin configuration, and wiring can be tailored through OEM/ODM services, but confirm minimum order quantities and lead times with the manufacturer.

Application Fit and Boundaries

This assembly is well-suited for industrial automation, outdoor control systems, sensors, instrumentation, LED lighting, and communication devices. Its robust construction and IP68 protection make it a practical choice for installations exposed to moisture, dust, or mechanical stress.

However, it is not intended for high-temperature environments beyond the rated operating range, nor for applications requiring frequent mating cycles where a different connector series might offer better durability. For underwater use, confirm the specific depth and duration ratings with the manufacturer, as IP68 performance varies by test conditions.

Construction and Material Quality

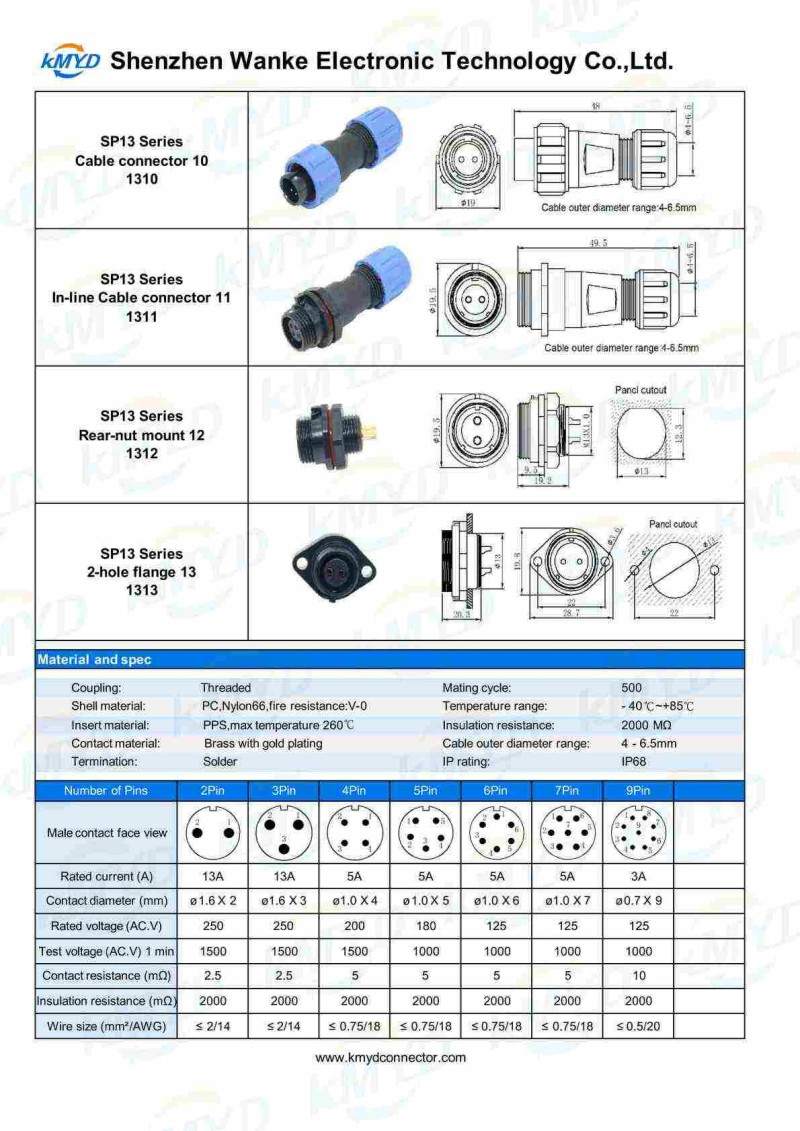

The assembly uses a PC or Nylon66 housing with PPS insulators and gold-plated brass contacts, providing corrosion resistance and stable electrical performance. The durable cable construction supports continuous operation in harsh conditions, while the threaded coupling ensures a secure, repeatable connection.

Factory Capabilities and Quality Assurance

Shenzhen Meiyadi Technology Co., Ltd. brings over 15 years of experience in connector and cable assembly manufacturing. The factory integrates R&D, mold development, precision machining, injection molding, cable assembly, and quality inspection, offering complete services from design to mass production. Advanced testing equipment and strict quality control procedures ensure each assembly meets standards for waterproof performance, electrical reliability, and mechanical durability.

Customization and OEM/ODM Support

Custom cable solutions are available, including adjustments to cable length, pin configuration, and wiring requirements. The factory supports OEM/ODM projects with professional engineering assistance and stable production capacity, serving industries such as industrial automation, automotive electronics, and medical equipment.

Inquiry Checklist for Accurate Quoting

To receive an accurate quotation and ensure the assembly meets your needs, provide the following details:

• Required cable length and conductor size (AWG)
• Pinout or wiring diagram for your application
• Electrical load (current and voltage) and operating environment
• Mating-side connector requirement (if not using the supplied plug/socket)
• Order quantity and target delivery date

For further assistance, contact our engineering team with your specifications. You may also explore related solutions such as the SP13 4 Pin Yellow Male Connector with Cap IP68 Waterproof Cable Assembly or review the Waterproof Connectors catalog for additional options.
