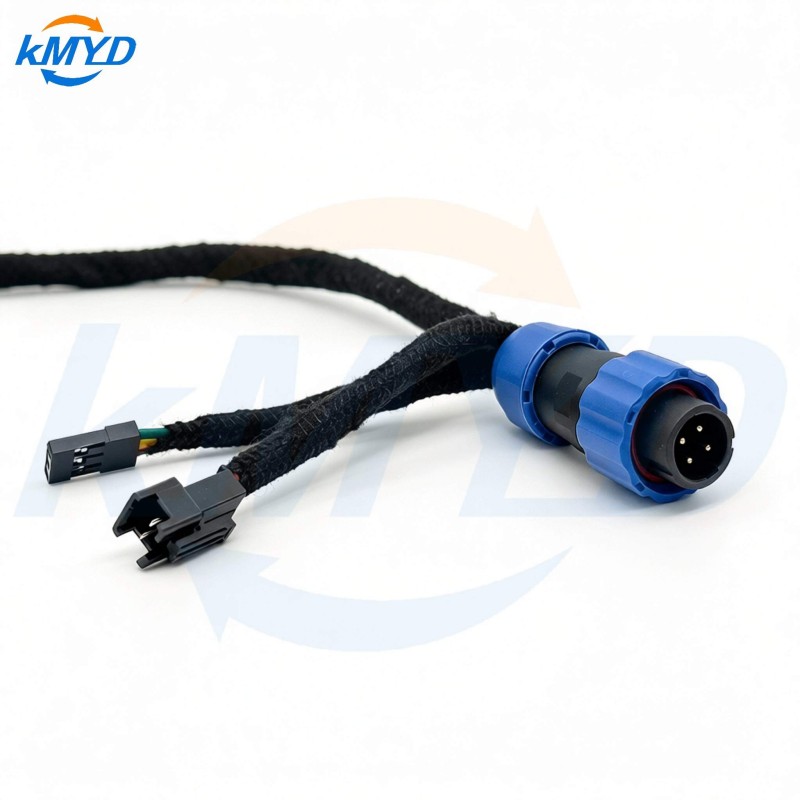

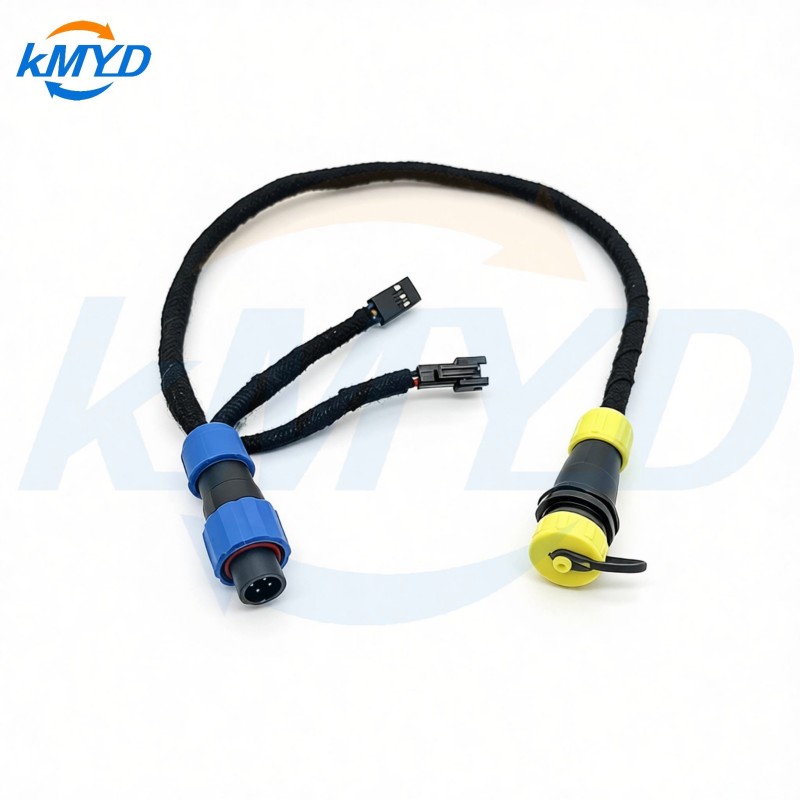

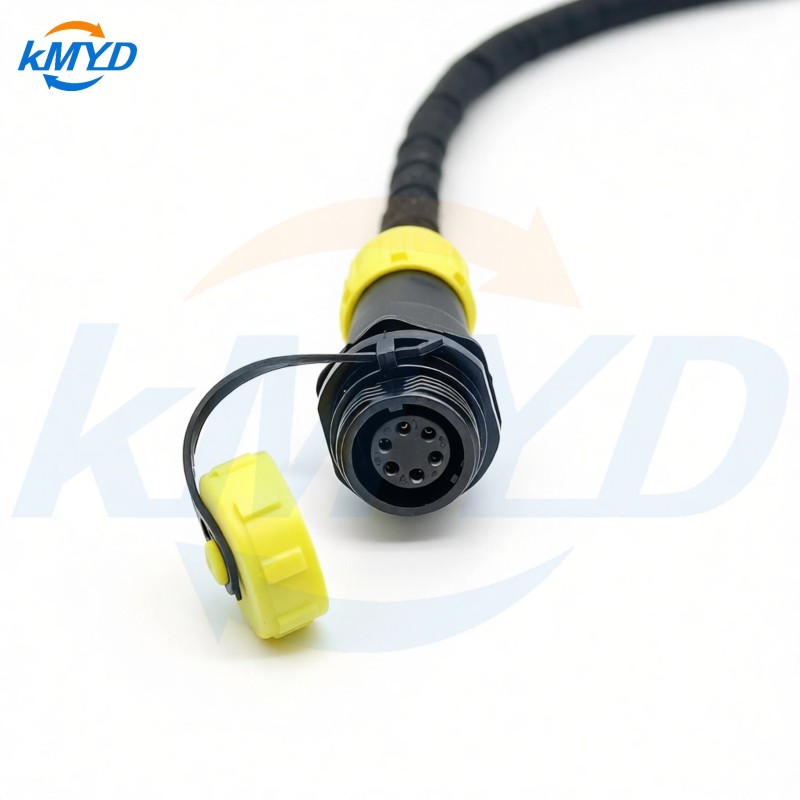

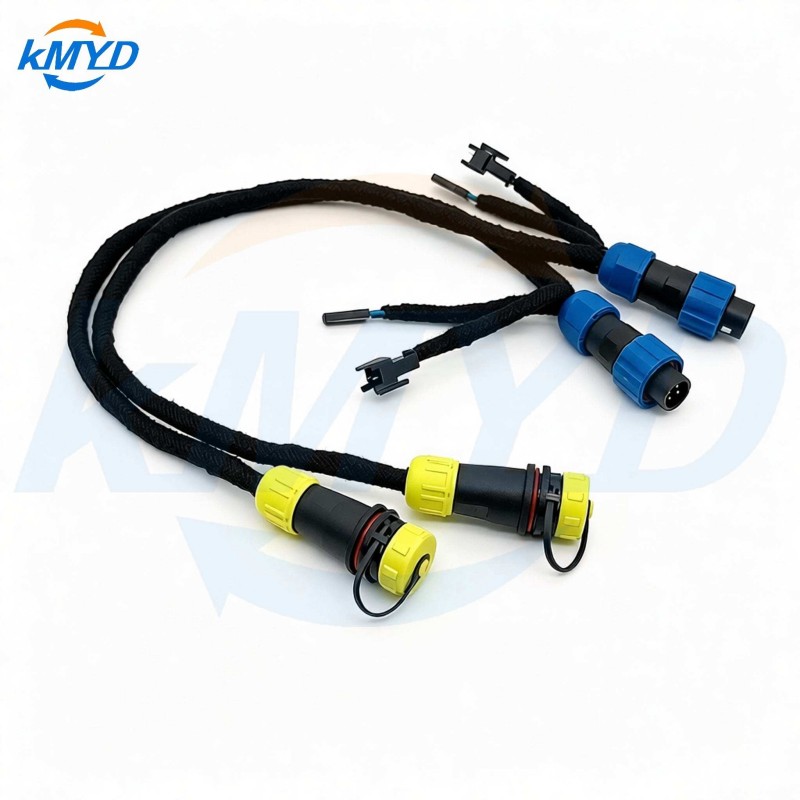

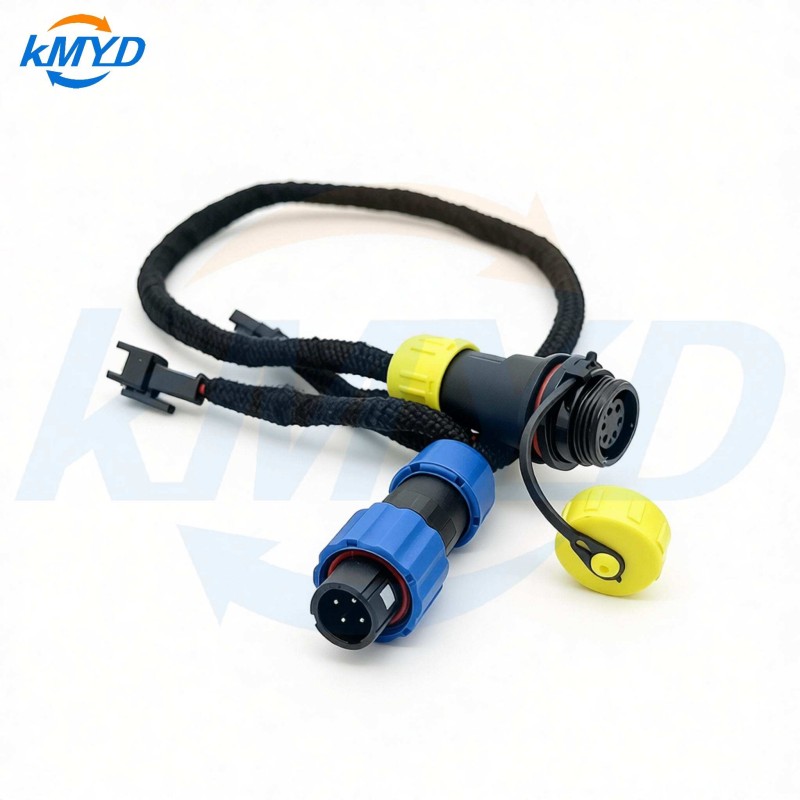

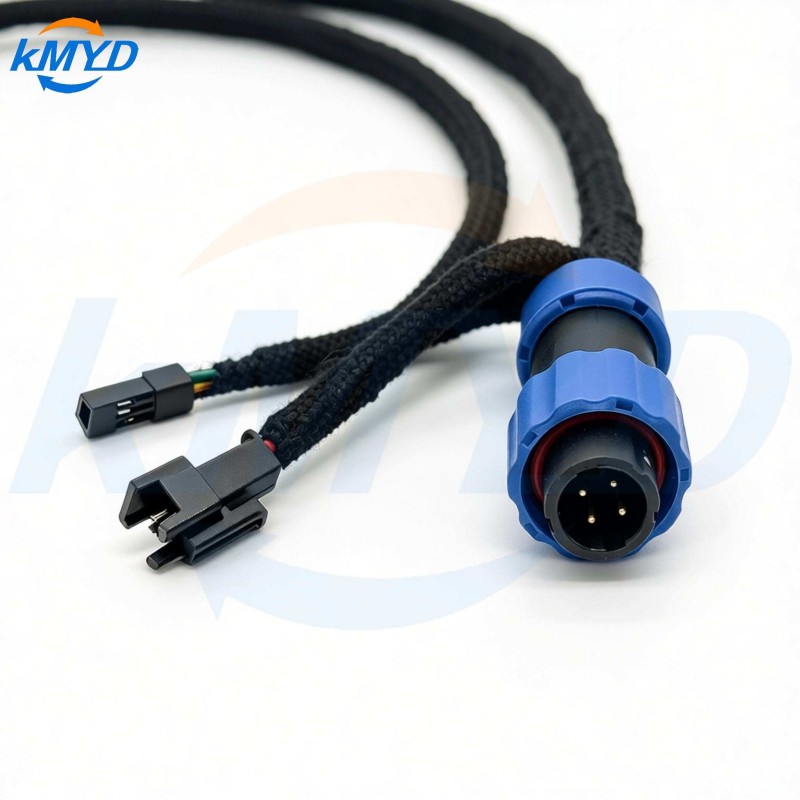

SP13 6 Pin Female to 4 Pin Male Cable Connector Overview

The SP13 6 Pin Female to 4 Pin Male Cable Connector provides a reliable connection solution for industrial and outdoor applications. This compact circular connector assembly uses a secure screw-locking mechanism to maintain stable signal transmission in demanding environments. The 6-pin female to 4-pin male configuration supports connection conversion between devices with different pin requirements.

The waterproof SP13 connector design protects against dust and moisture ingress, making it suitable for industrial automation, sensors, control systems, LED equipment, and related electronic applications. This ready-to-use cable assembly simplifies integration without requiring field wiring.

Key Selection Considerations

• Pin Configuration: 6-pin female to 4-pin male conversion enables connection between devices with different pin counts.
• Locking Mechanism: Screw-locking circular design provides secure mating and vibration resistance.
• Environmental Protection: Waterproof construction supports outdoor and industrial installation environments.
• Signal Integrity: Consistent electrical performance reduces connection failure risk.
• Installation Readiness: Pre-assembled cable design eliminates field termination requirements.

Application Scope

This SP13 cable connector suits the following equipment categories:

• Industrial automation equipment
• Sensors and control systems
• Outdoor electrical equipment
• LED lighting systems
• Security and communication devices
• Machinery and electronic instruments

Customization Options

OEM/ODM customization is available for cable lengths, pin configurations, and application-specific requirements. When requesting a custom solution, specify the mating connector type, required cable length, conductor size, and environmental conditions.

Manufacturing and Quality Assurance

Shenzhen Meiyadi Technology Co., Ltd. specializes in waterproof connectors, industrial connectors, and cable assemblies. The factory integrates R&D, mold development, precision manufacturing, assembly, and quality inspection under one roof.

In-house capabilities include mold making, die casting, stamping, CNC machining, injection molding, and cable assembly. Quality control equipment covers salt spray testing, waterproof and air tightness testing, insertion force testing, and voltage resistance testing.

The company reports compliance with ISO9001, UL, CE, RoHS, and BSCI standards. For application-specific certification requirements, confirm the relevant standard with the manufacturer before ordering.

Ordering Information

To ensure correct connector selection, provide the following details when inquiring:

• Mating connector series and pin configuration
• Required cable length and conductor size
• Electrical load (current and voltage)
• Operating environment (indoor, outdoor, temperature range)
• Order quantity and target delivery schedule

For related connector options, review the Aviation Plug Connectors range or consult the LD20/SP20 Industrial Flange Connector Dimensions and Specs for alternative mounting configurations.
