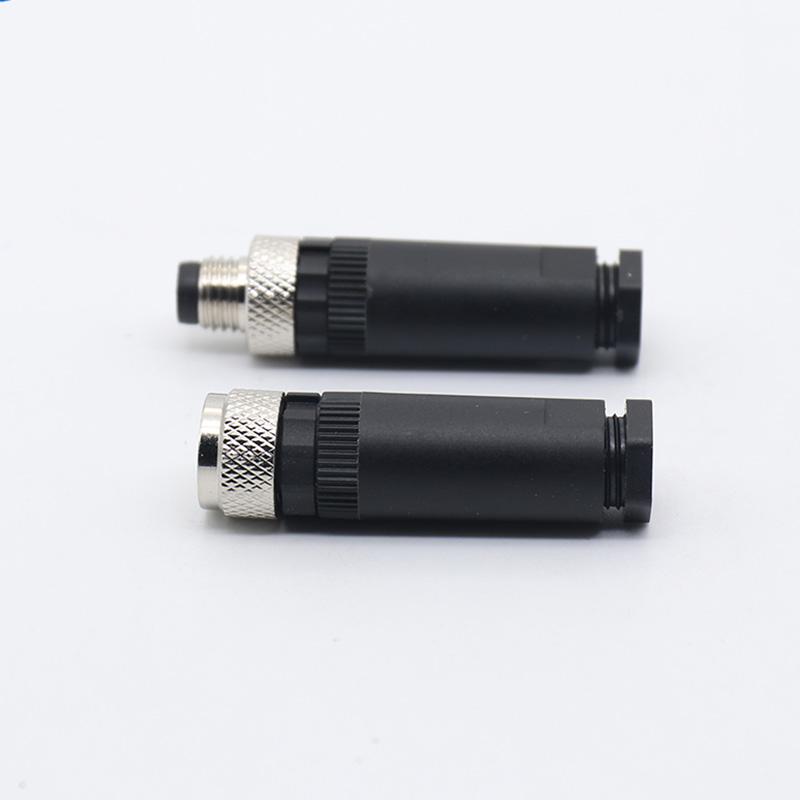

Connector for Industrial Sensor Networks

< >

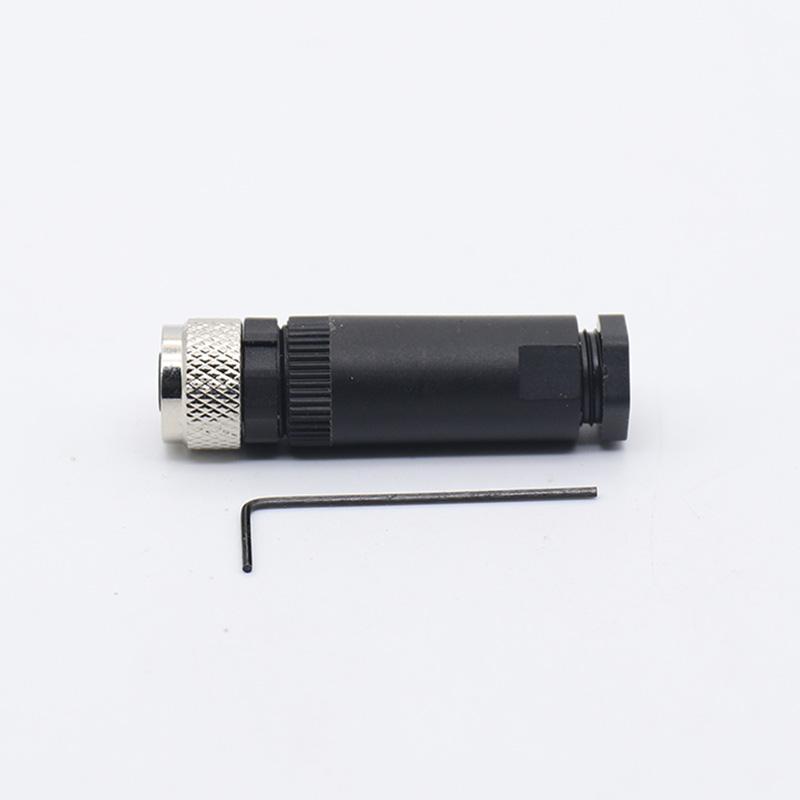

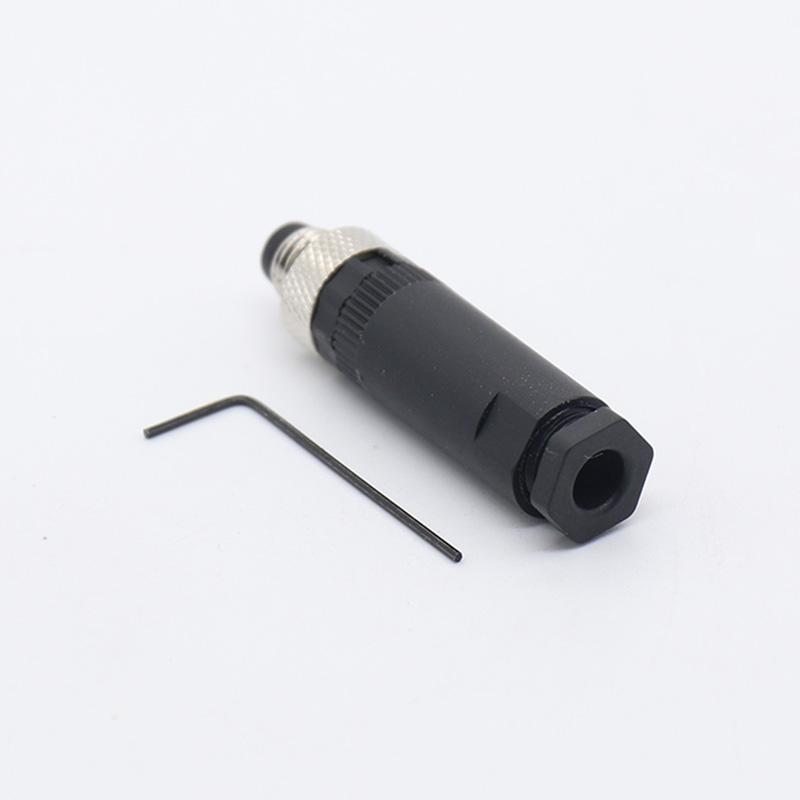

M8 Waterproof 5 Pin Cable Connector IP67

Name: M8 Waterproof 5 Pin Cable Connector IP67
Brand: KMYD
SKU: 2-8 Pin
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (9 reviews)

Number Of Cores	2-8 Pin
Contact Diameter(mm)	1.0mm/0.72mm/0.6mm
IP Rating	IP67
Shell Material	PA66/Nickel Plated Brass
Temperature Range	-25℃ ~ +85℃
Termination	Solder
Rated Current(A)	3A/1A
Rated Voltage(Ac.V)	180V
Test Voltage(Ac.V)1Min	1000V
Insulation Resistance (MΩ)	1500MΩ
Contact Resistance (MΩ)	≤10MΩ
Certification	CE,ISO9001, RoHS

Get Quote

+86-19924482730

M8 Waterproof 5 Pin Cable Connector IP67 – Reliable Compact Wiring Solution

The M8 Waterproof 5 Pin Cable Connector IP67 is designed for compact industrial equipment and intelligent electronic systems that require stable multi-signal transmission and dependable environmental protection. With its 5-pin configuration and IP67-rated sealing structure, this connector provides a practical balance between compact size, reliable connectivity, and installation flexibility.

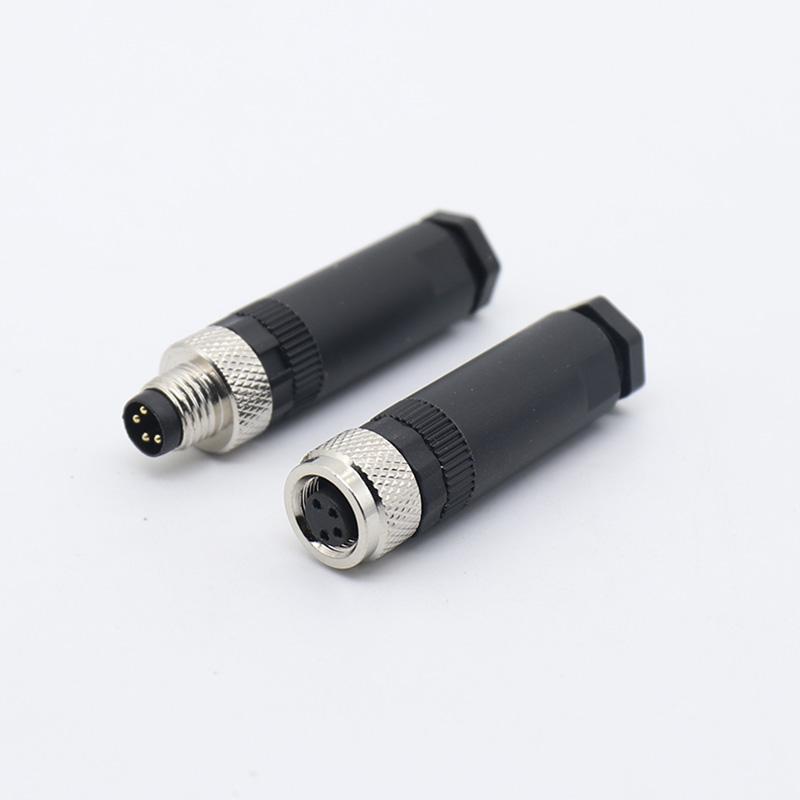

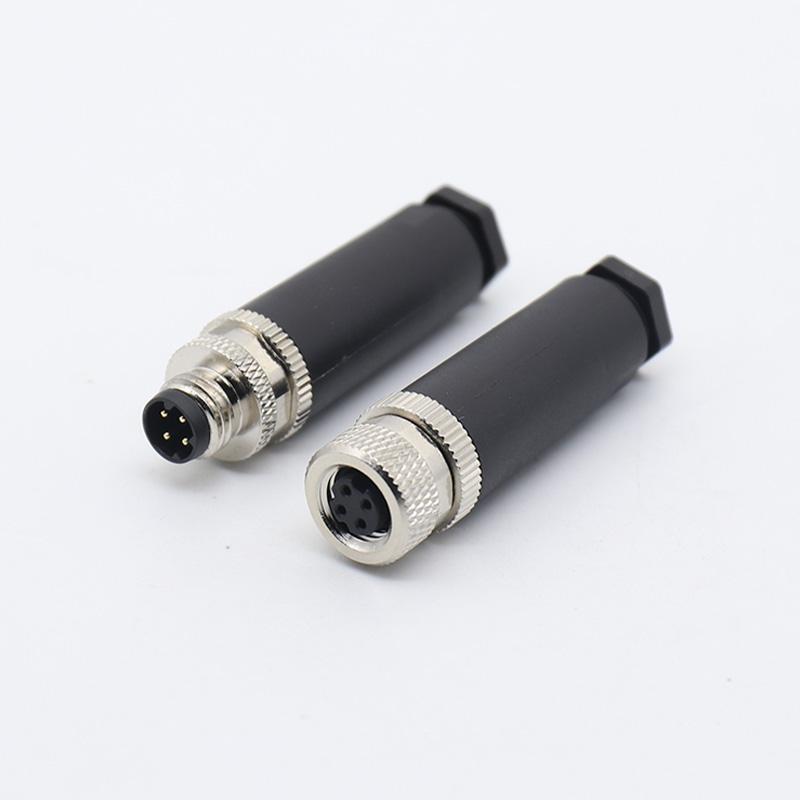

Connector

Its cable connector design makes it especially suitable for applications where direct cable integration and efficient field wiring are important.

Compact Connector for Modern Industrial Systems

As automation equipment and smart devices continue to become smaller and more integrated, connectors must provide reliable performance without occupying excessive installation space.

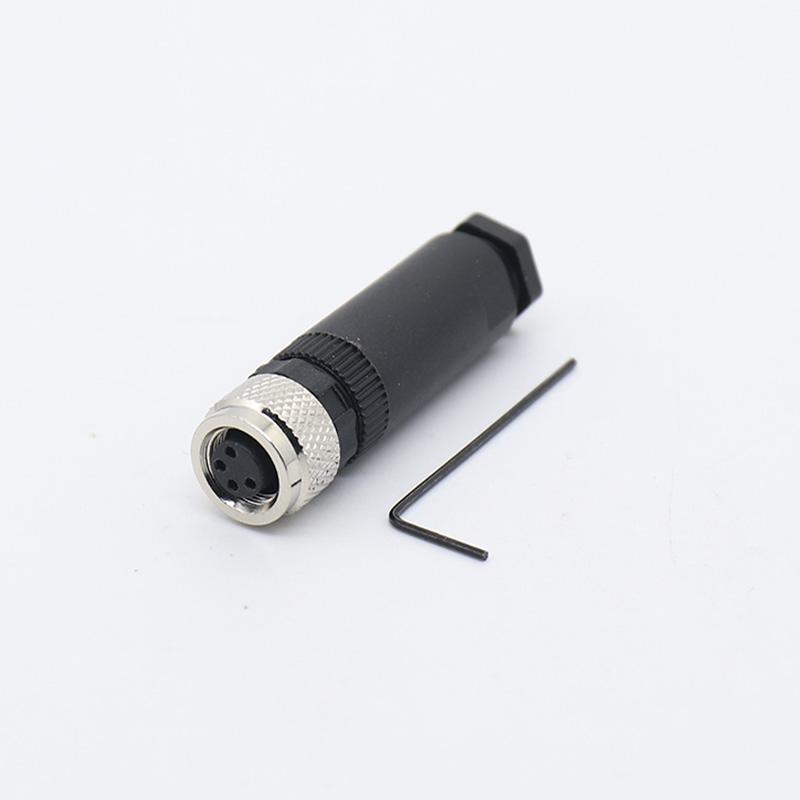

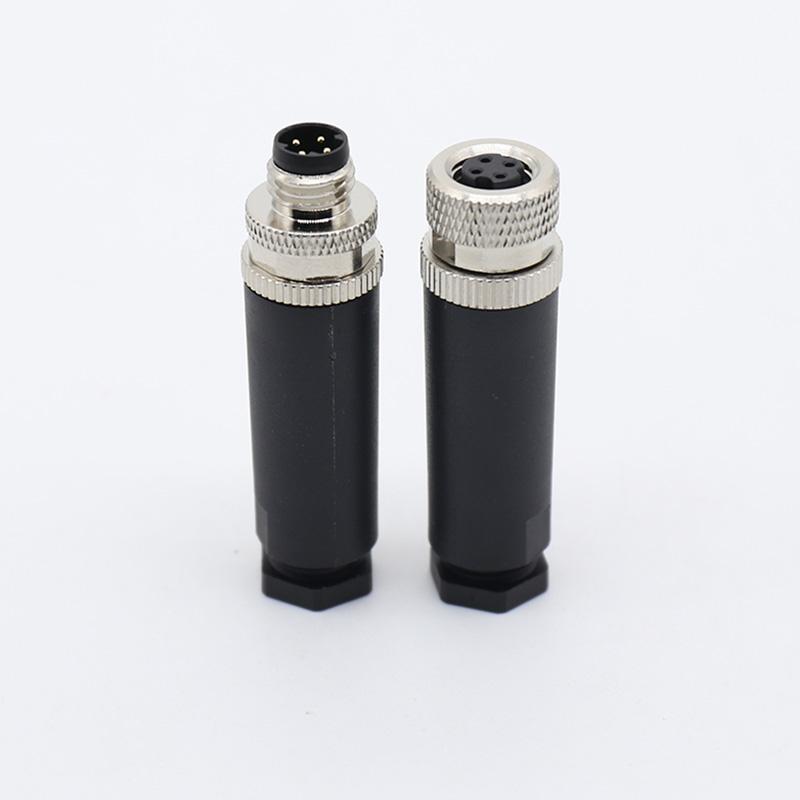

Connector

The M8 5-pin connector is developed to support:
Compact equipment architecture
Stable signal and power transmission
Flexible cable routing
Efficient installation and maintenance
Its circular structure also helps improve cable organization and connection stability in dynamic working environments.

5 Pin Configuration for Balanced Functionality
The 5-pin layout is widely used in systems requiring both power supply and signal communication within a single compact interface.
It is suitable for:
Sensor and control systems
Signal transmission applications
Compact automation equipment
Smart monitoring devices
This configuration helps reduce wiring complexity while improving overall system integration efficiency.

Key Product Features
IP67 Waterproof Protection
The sealed structure helps protect the connector against water splashes, dust, and industrial environmental exposure.
Cable Connector Structure
Supports flexible cable integration and convenient field wiring for industrial applications.
Compact M8 Circular Design
Ideal for space-limited equipment and precision electronic systems.
Reliable Electrical Performance
Precision contacts ensure stable conductivity and consistent signal transmission.
Durable Industrial Construction
Designed for repeated plugging cycles and long-term industrial operation.

Factory Manufacturing Strength

We are a professional connector manufacturer with more than 15 years of experience in waterproof connectors and cable assembly production.

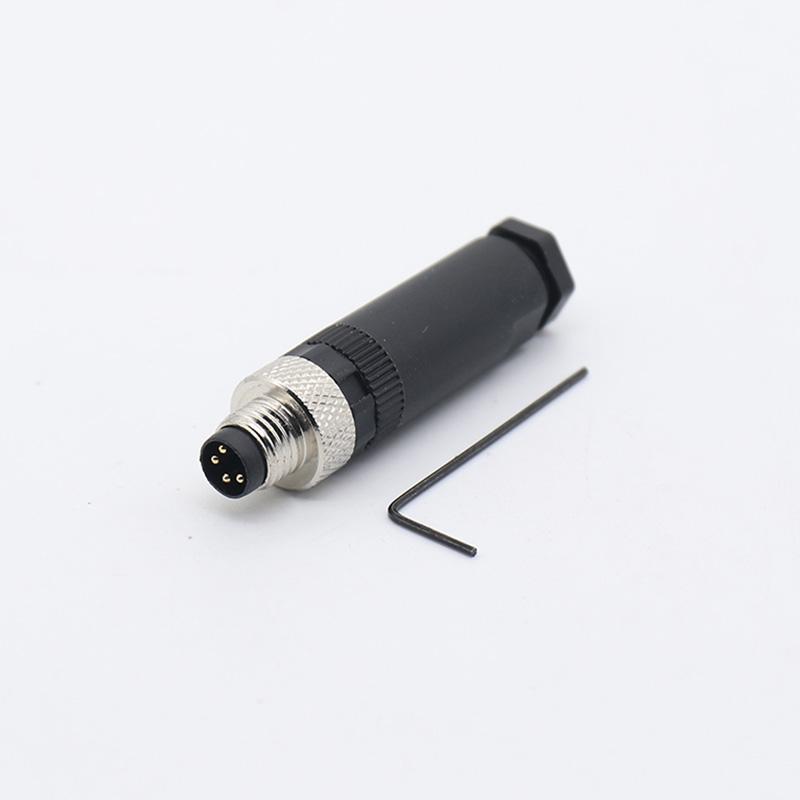

Connector

Our factory integrates a complete manufacturing system including:
Mold and tooling development
CNC precision machining
Injection molding
Connector assembly and testing
Cable processing and integration

This integrated production capability enables us to maintain stable quality, efficient delivery, and reliable support for OEM/ODM projects.

Strict Quality Control Procedures
Each M8 waterproof connector undergoes comprehensive testing before shipment:
Waterproof sealing verification
Electrical conductivity testing
Plugging cycle durability testing
Mechanical stability inspection

Dimensional accuracy checks

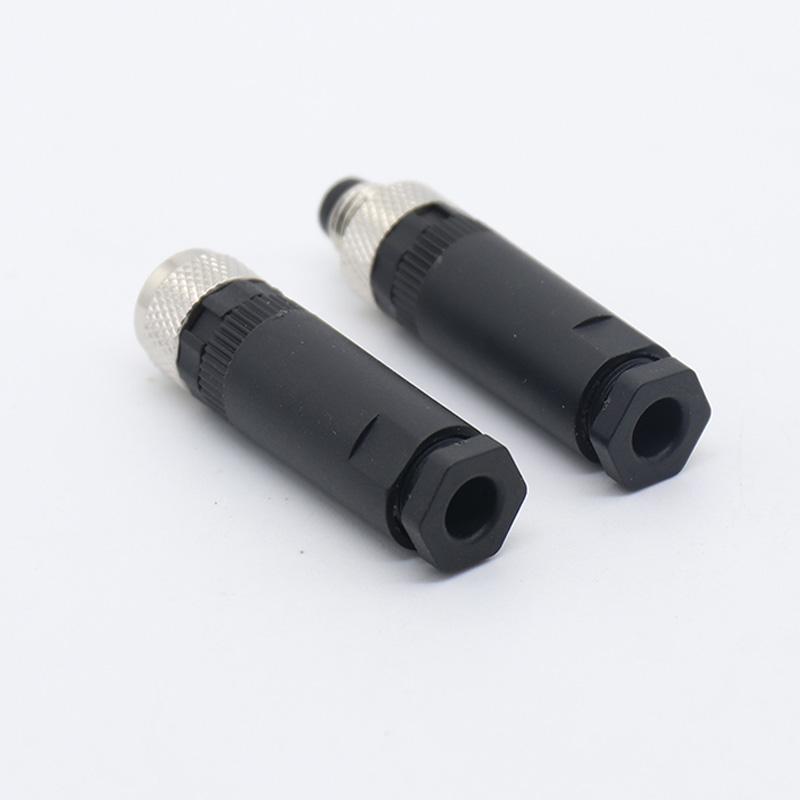

Connector

Our products are manufactured under ISO9001 quality management standards and comply with international standards such as CE and RoHS.
Connector

Customization Support
We support flexible customization services according to project requirements:
Cable length and wire specification customization
Pin configuration options
Shielded cable solutions
Structural and material optimization
Packaging and branding customization
Our engineering team can support projects from sample development to mass production.

Application Areas
Industrial automation systems
Sensors and actuators
Smart monitoring devices
Communication equipment
Compact control systems
Data acquisition equipment

Professional Connectivity for Compact Equipment
The M8 waterproof 5-pin cable connector IP67 is designed to provide stable, compact, and reliable connection performance for modern industrial and smart electronic systems.

Contact Us
We provide samples, technical support, and customized production services.
Contact us today for professional connector solutions and competitive quotations.

Item	Parameters
Number of Cores	2-8Pin
Gender	Male/Female
Housing Material	Nickel Plated Brass
Cores Material	Gold Plated Brass
Insulator Material	PA66
Locking System	Screw Locking
Temperature Range	-30℃, +85℃
Rated Current (A)	3A(2-5Pin)/ 1A(6-8Pin)
Rated Voltage (AC.V)	180v
Test Voltage (AV.C)1Min	1000V
Insulation Resistance (㏁)	1500㏁
Contact Resistance (㏁)	≤10㏁
Termination	Solder
