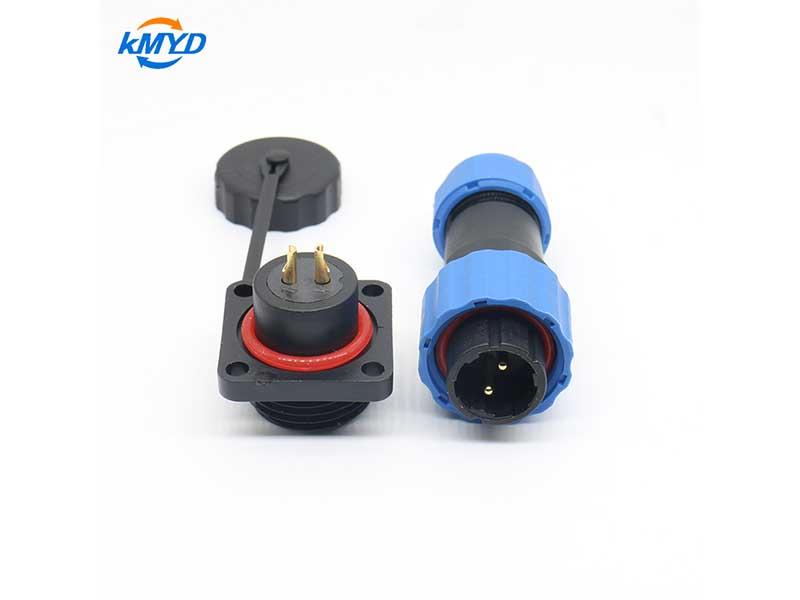

SD16 Connector Overview: A Durable Waterproof Circular Connector

The SD16 connector is a circular waterproof connector built for industrial and outdoor environments where reliability under stress is non-negotiable. Its PA66 plastic housing provides a strong defense against corrosion and physical impact, making it a practical choice for installations exposed to moisture, chemicals, or mechanical wear.

At the core of the SD16 series is a gold-plated copper contact system. This plating choice is not cosmetic; it directly reduces contact resistance, which helps maintain stable signal integrity over the connector's service life. For engineers evaluating long-term performance, this translates into fewer signal drops and less maintenance in the field.

Electrical and Environmental Performance

The SD16 connector is specified to operate across a wide temperature range from -40°C to +100°C. This tolerance allows the connector to function consistently in both freezing outdoor conditions and high-heat industrial settings. When selecting a connector for your project, verify that your application's ambient temperature, including any heat generated by nearby equipment, stays within this operating window.

While the PA66 housing and sealing design provide a waterproof connection, always confirm the specific IP rating for your chosen configuration. The degree of protection can vary depending on whether the connector is mated, panel-mounted, or used with a specific cable gland. Do not assume a single IP rating applies to all SD16 variants without checking the datasheet for your exact part number.

Key Selection Criteria for the SD16 Series

Before specifying the SD16 connector, evaluate these core decision points against your project requirements:

• Contact Configuration: Confirm the pin count and layout match your circuit design. The gold-plated contacts are suited for signal transmission, but verify the current rating per contact for your load.
• Temperature Limits: Ensure your operating environment, including transient heat spikes, remains within the -40°C to +100°C range.
• Environmental Exposure: The PA66 housing offers corrosion and impact resistance, but check the connector's IP rating for your specific mated and unmated conditions.
• Application Fit: The SD16 is commonly used in outdoor lighting, industrial equipment, marine systems, and solar energy projects. Match the connector's sealing and material properties to the specific contaminants and moisture levels in your installation.

Application Suitability and Boundaries

The SD16 connector is well-suited for applications that demand a secure, waterproof connection in a compact circular form factor. Its material properties make it a strong candidate for outdoor lighting arrays, solar panel junction boxes, marine electronics, and general industrial machinery where vibration and moisture are present.

However, this connector is not a universal solution. If your application requires extremely high current carrying capacity, frequent mating cycles under load, or exposure to aggressive solvents that may degrade PA66, you should evaluate alternative connector series. Always verify the mechanical locking mechanism and cable entry range against your specific cable diameter to ensure a proper seal.

Installation and Project Preparation

Proper installation is critical to achieving the SD16's rated performance. When preparing your project, consider the following:

• Confirm the cable outer diameter is within the connector's specified clamping range to maintain the waterproof seal.
• Follow the manufacturer's torque specifications for the coupling nut to avoid over-tightening, which can damage the O-ring or housing.
• For panel-mount versions, verify the panel cutout dimensions and mounting hardware are compatible with your enclosure.

For a broader view of compatible circular connector options, you may also review the waterproof connector range to compare series with different pin counts and current ratings.

Next Step: Verify Your Connector Specification

To move forward with the SD16 connector, prepare a short checklist of your requirements: pin count, current per contact, cable diameter, mounting style (cable-to-cable or panel mount), and the specific IP rating needed for your environment. Having these details ready will help you confirm the correct part number and ensure the connector meets your application's electrical and mechanical demands.
