Y2M Circular Connector Overview

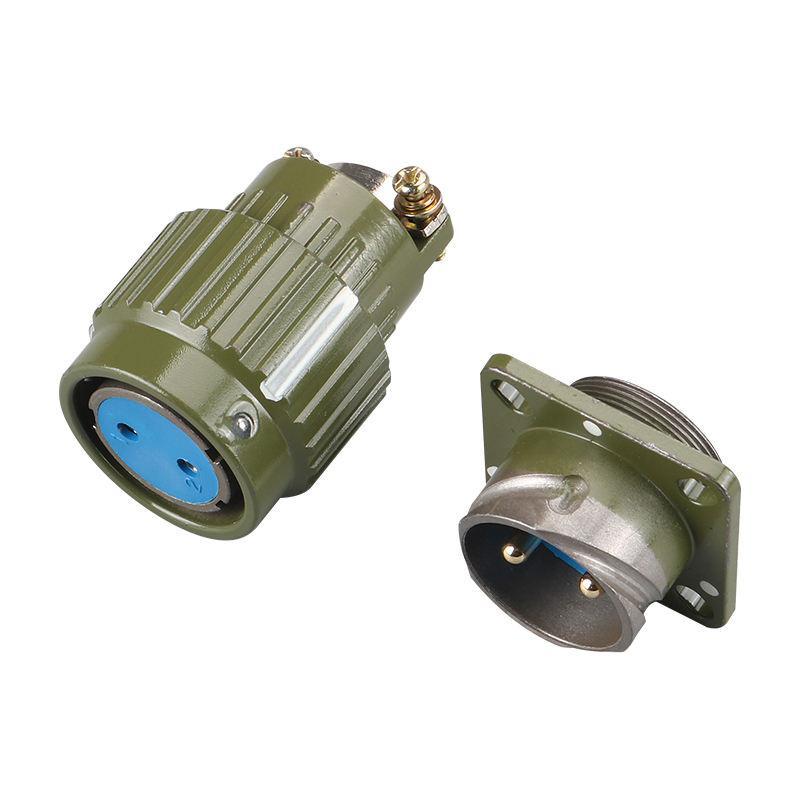

The Y2M circular connector is engineered for reliable power and signal transmission in demanding industrial environments. Its compact structure and durable construction deliver stable performance where secure connectivity is essential for equipment uptime and process integrity.

Waterproof and Environmental Protection

With an IP67 protection rating, the Y2M connector resists dust ingress and temporary water immersion, making it suitable for washdown areas, outdoor installations, and humid production floors. The secure locking mechanism maintains connection stability under vibration and mechanical stress, reducing the risk of accidental disconnection.

Materials and Electrical Performance

Manufactured from high-quality materials, the Y2M connector provides consistent electrical conductivity and extended service life. It supports flexible integration into various cable assembly configurations and industrial systems, helping simplify installation and maintenance planning.

Selection Considerations

• Confirm the required pin count and contact layout for your power and signal circuits.
• Verify the operating voltage and current ratings against your application's derating conditions.
• Check the cable diameter range and termination method compatibility with your existing wiring.
• Assess the mating cycle and vibration resistance requirements for your specific equipment.

Application Boundaries

The Y2M connector is intended for industrial environments where IP67 protection and secure mating are required. It is not designed for submersion beyond the IP67 test conditions or for applications requiring continuous underwater operation. For higher ingress protection or specialized mating interfaces, consult the relevant connector series documentation.

Installation and Maintenance Notes

Proper cable preparation and torque application during assembly are critical to maintaining the IP67 seal and locking integrity. Periodically inspect the connector for signs of wear, contamination, or seal degradation, especially in high-vibration or chemically aggressive environments.

For detailed dimensional data, pinout configurations, or application-specific guidance, refer to the 12G Series Circular Connectors catalog or contact our engineering team with your project requirements.
