The M8 5 Pin Waterproof Cable Connector (Industrial Grade) is designed for equipment that requires a stable, compact, and durable wiring connection in demanding industrial environments. With its 5-pin configuration and rugged cable-mounted structure, it provides reliable transmission for both power and signal lines while maintaining consistent performance under long-term operation.

This model focuses on practical industrial usability – easy wiring, stable contact, and dependable sealing – making it a widely used interface in automation and smart equipment systems.

Built for Real Industrial Wiring Conditions

In industrial applications, connectors are often exposed to vibration, movement, and continuous operation. This cable connector is developed to ensure stable performance in such environments by offering:

• Secure cable-to-device connection
• Flexible wiring and installation
• Stable signal and power transmission
• Reliable operation under vibration and field conditions

Its compact circular structure also helps reduce wiring clutter and improves system organization.

5 Pin Balanced Configuration

The 5-pin layout is widely used in industrial systems where multiple functions must be integrated into a single interface:

• Power supply lines
• Control signals
• Sensor or communication channels

This balance helps simplify system design while maintaining functional flexibility. Before selecting a pin configuration, confirm your device pinout and wiring requirements to ensure correct mating compatibility.

Industrial Grade Performance Features

Waterproof Protection for Harsh Environments

Sealed structure helps protect internal contacts from water, dust, and oil exposure commonly found in industrial sites.

Cable Mount Flexibility

Direct cable integration supports flexible installation and easy field wiring.

Stable Electrical Contact System

Precision contact design ensures reliable conductivity and consistent signal transmission.

Durable Mechanical Structure

Designed to withstand repeated plugging cycles, vibration, and long-term industrial use.

Compact M8 Size

Suitable for space-limited equipment while maintaining strong mechanical performance.

Selection Considerations for Your Application

When evaluating this M8 5 pin cable connector for your system, consider the following decision points:

• Mating interface: Confirm the mating connector type (male or female) and locking style to ensure compatibility with your existing equipment.
• Electrical load: Verify that the rated current and voltage meet your power and signal requirements – refer to the Technical Specifications for confirmed values.
• Cable preparation: Check the cable outside diameter and conductor size against the connector's cable range before field wiring.
• Environmental exposure: Assess the IP rating against your actual operating conditions, including dust, moisture, and temperature extremes.
• Installation access: Consider whether the screw locking system and cable mount configuration suit your installation space and maintenance needs.

Manufacturing Strength Behind Industrial Reliability

We are a professional connector manufacturer with over 15 years of experience in waterproof connectors and cable assembly solutions for industrial automation, smart equipment, energy systems, and communication devices.

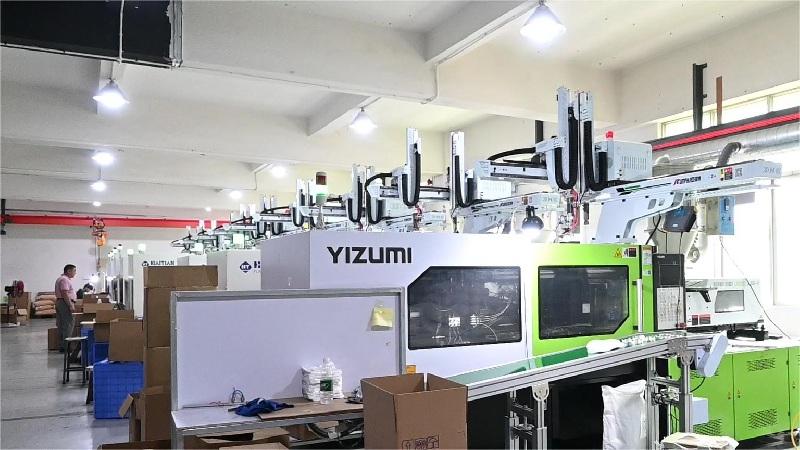

Our factory operates a fully integrated production system, including:

• Mold design and tooling development
• Zinc alloy die-casting
• CNC precision machining
• Injection molding
• Cable processing and connector assembly

This in-house manufacturing capability ensures:

• Stable product quality
• Efficient production control
• Fast delivery capability
• Strong customization support

Quality Control and Testing

Each M8 industrial connector is tested before shipment:

• Waterproof sealing verification
• Electrical conductivity and continuity testing
• Plugging cycle durability testing
• Mechanical vibration resistance testing
• Dimensional accuracy inspection

All products are manufactured under ISO9001 quality management standards and comply with CE and RoHS international requirements.

Customization Support

We provide OEM/ODM services based on different industrial needs:

• Cable length and wire specification customization
• Pin configuration optimization
• Shielded cable and anti-interference solutions
• Connector structure and material adjustments
• Application-specific design support

Our engineering team supports customers from sample development to mass production. For related M8 options, see the M8 2-8 Pin Circular Connector for Compact Industrial Systems.

Application Areas

• Industrial automation systems
• Sensors and control equipment
• Smart manufacturing devices
• Communication systems
• Monitoring equipment
• Compact industrial electronics

Reliable Industrial Connectivity Solution

The M8 5 pin waterproof cable connector is designed to deliver stable performance, flexible installation, and long-term durability for modern industrial applications. For a broader range of options, review the Waterproof Connectors catalog.

Contact Us

We provide samples, technical support, and customized production services. To receive an accurate quotation and matching recommendation, please send us your mating connector specification, pinout or wiring drawing, cable outside diameter and conductor size, electrical load requirements, operating environment details, and estimated order quantity.
