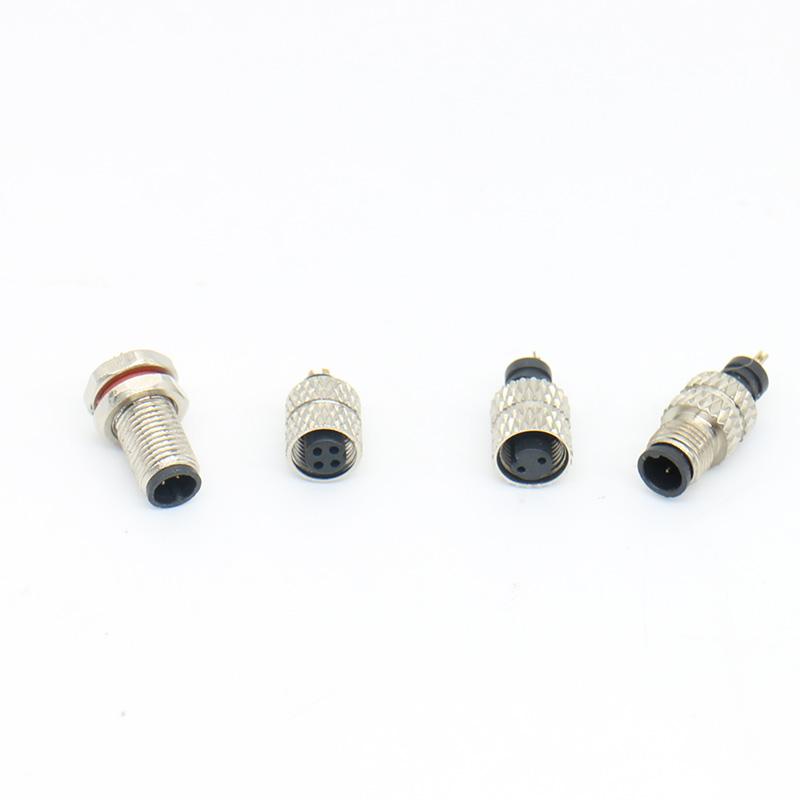

M5 Circular Connector

>Number Of CoresNumber Of Cores 2-4Pin
Contact DiameterContact Diameter(mm) 0.5mm
IP RatingIP Rating IP67
Shell MaterialShell Material Brass with Plated-Nickel
Temperature RangeTemperature Range -20℃~+95℃
TerminationTermination Solder/Panel Mount
Rated CurrentRated Current(A) 2A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 800V
Insulation ResistanceInsulation Resistance (MΩ) ≥100MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote

M5 Series Waterproof Circular Connectors-Compact Reliability for Industrial & Sensor Applications

Meet the M5 series connector — the ultra-compact, rugged solution designed to redefine reliable connectivity in space-constrained environments. As the smallest and lightest in the M-series lineup, it delivers uncompromised performance for industrial automation, sensors, robotics, and miniature electronic systems worldwide.

Connector


Core Performance of M5 Connectors: Engineered for Stability & Durability Electrical Specifications

IP67 Waterproof & Dustproof: Screw-lock fastening ensures a tight seal when mated, protecting against water immersion and dust ingress — ideal for harsh industrial floors, outdoor sensors, and agricultural machinery.

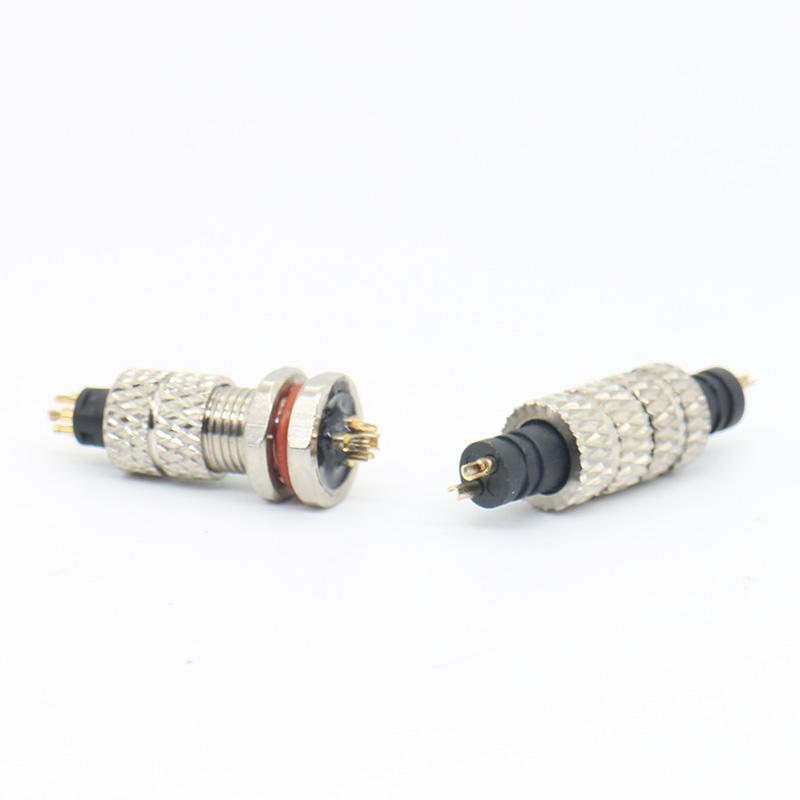

M Connector


Long-Lasting Construction: Gold-plated brass contacts resist corrosion and wear, supporting over 100 mating cycles (up to 10,000 cycles for premium models) and a wide operating temperature range of -20°C to +95°C (extended to -40°C to +105°C for high-grade variants).

M5 Circular Connector


Premium Materials: Housings made of PUR or PA plastic (metal options available) offer excellent impact and vibration resistance (up to 10G), while halogen-free cable sheaths comply with RoHS and REACH standards.

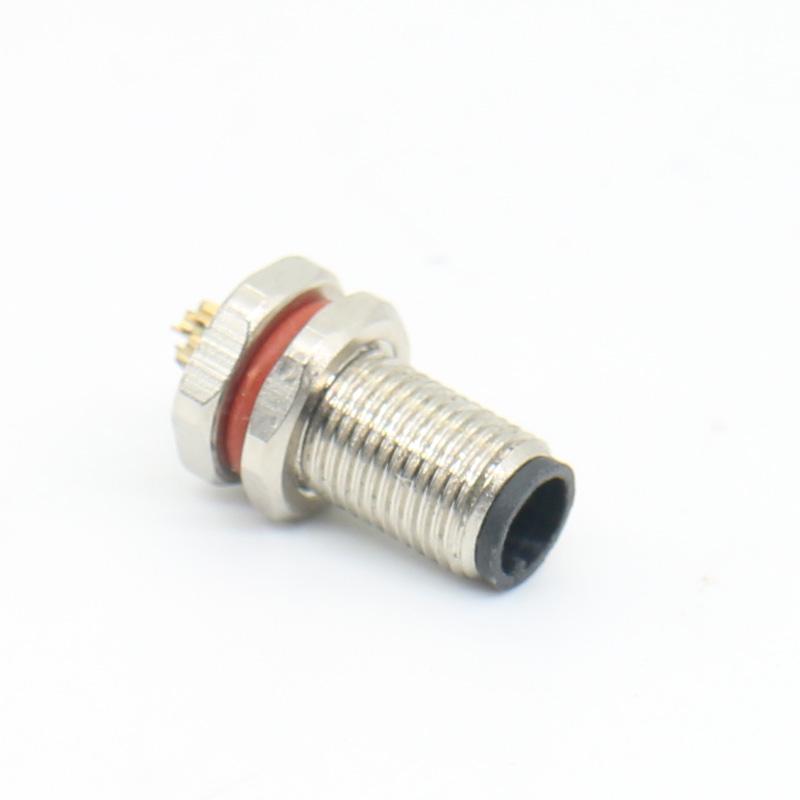

Male Connector


Versatile Configurations for Every Need

Our M5 series covers all application scenarios with flexible options:

Pin Counts: 2-pin to 4-pin standard configurations, with ultra-high density (UHD) upgrades available on request.

Installation Types: Straight and 90° angled cable connectors (pre-molded or field-wireable), PCB mount receptacles (front/rear fastened), and panel mount solutions.

Cable Customization: Choose PVC or PUR cables in lengths from 0.2m to 10m (custom lengths available), with wire gauges ranging from 0.14mm² (AWG 26) to 0.25mm² (AWG 24).

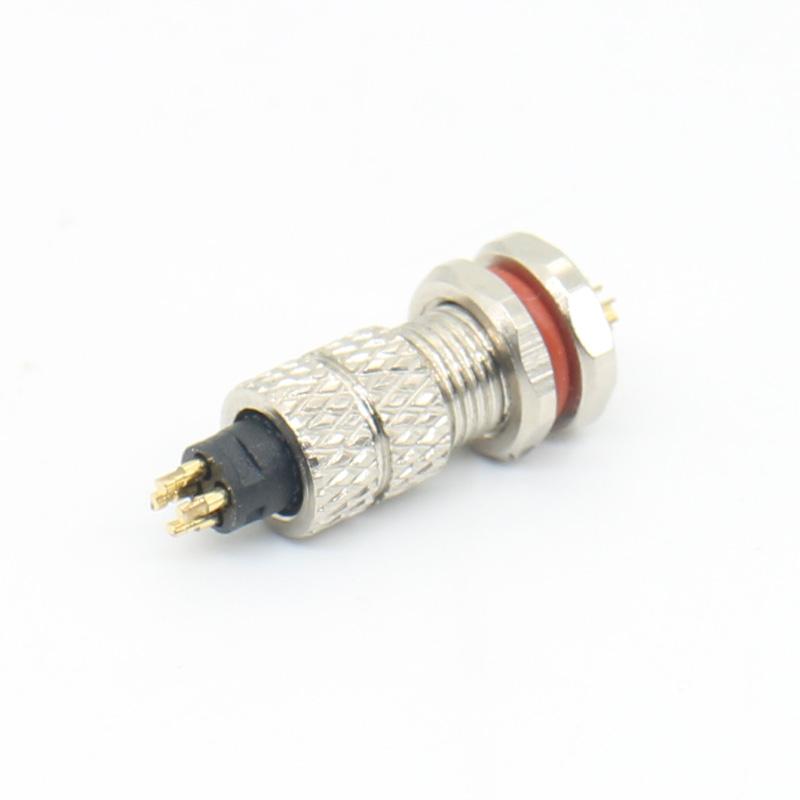

M5 Electrical Connector


Why Choose Our M5 Connectors?

Space-Saving Design: 5mm outer diameter reduces size by 30% compared to larger circular connectors, perfect for dense PCB layouts and tight mechanical spaces like robot joints or drones .

Broad Application Fit: Seamlessly integrates with sensors, actuators, medical devices, 5G base stations, and smart home equipment — elevating performance in automation, transportation, and communication systems .


Whether you need a standard off-the-shelf model or a custom-engineered solution, our M5 series delivers the compact power, rugged protection, and consistent performance your project demands.

Item

Parameters

Number of Cores

2-4Pin

Gender

Male/Female

Housing Material

Brass with Nickel Plated

Cores Material

Brass Plated with Gold

Insulator Material

PA66

Locking System

Screw Locking

Temperature Range

-20℃, +95℃

Rated Current (A)

2A

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

800V

Insulation Resistance ()

≥1000

Insulation Resistance ()

≤5

Termination

Solder/Panel Mount
