M18 Circular Connectors

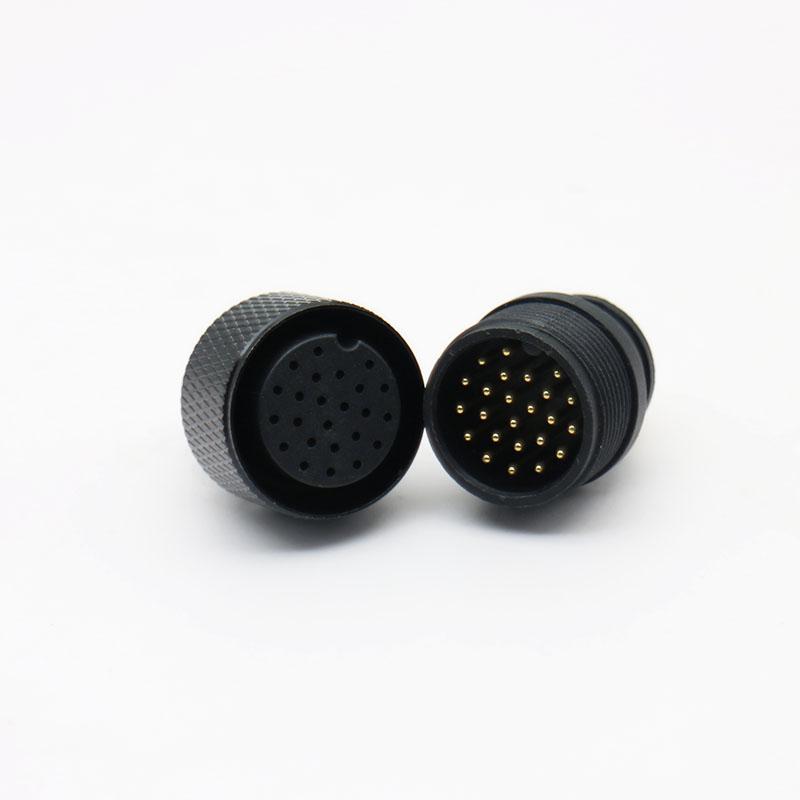

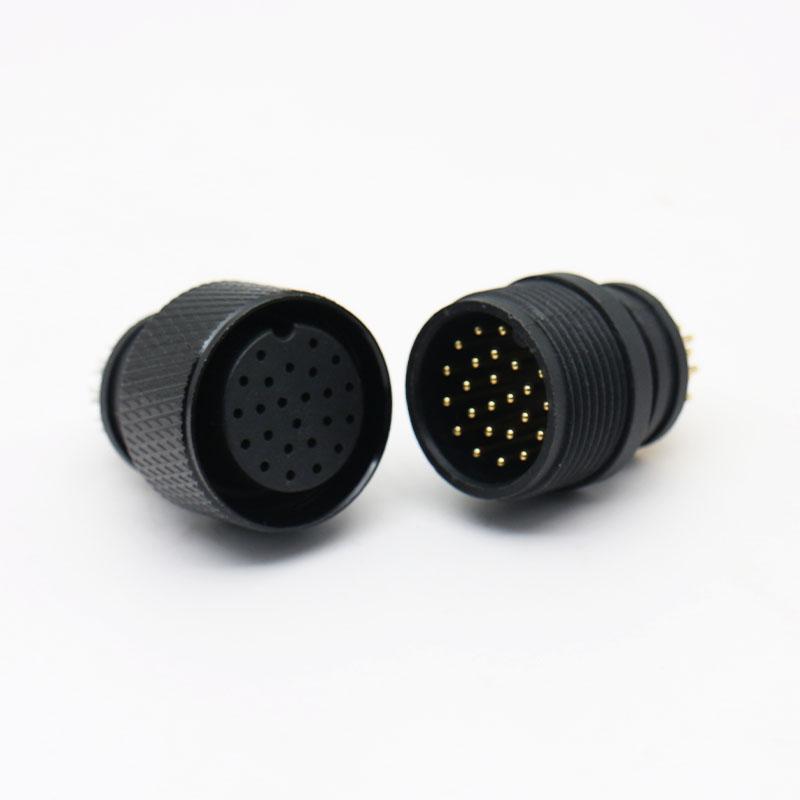

M18 Circular Connector: Built for Rugged Industrial Environments

The M18 connector is a heavy-duty circular interface engineered for industrial and outdoor systems that require dependable, long-lasting electrical connections. Its threaded M18 locking mechanism delivers a secure, vibration-resistant mate, even in wet, dusty, or high-temperature conditions.

Supporting both power and signal transmission, the M18 series offers multiple pin configurations (2–8 pins) to match diverse application needs. Verified electrical performance includes high dielectric strength up to 1,500V, low contact resistance (≤ 40 mΩ), and superior insulation resistance (≥ 5,000 MΩ), ensuring stable and safe operation.

Available with robust PA66 nylon or metal housings, this connector provides corrosion resistance, mechanical durability, and protection against environmental stress. It is suited for industrial automation, outdoor LED lighting, renewable energy systems, robotics, and marine applications.

How to Select the Right M18 Connector

Choosing the correct M18 connector requires matching its electrical and mechanical ratings to your specific installation. Consider these factors:

• Pin Configuration: Determine the exact contact count (2–8 pins) based on your power and signal needs. Avoid oversizing to reduce cost and space, but do not undersize without verifying future compatibility.
• Housing Material: PA66 nylon offers cost-effective corrosion resistance for most industrial settings. Metal housings provide higher mechanical strength, enhanced EMI shielding, and better performance in extreme temperatures.
• Environmental Rating: Verify the IP rating matches your installation conditions. The threaded locking mechanism provides vibration resistance, but confirm the specific ingress protection for wet or dusty locations.
• Electrical Load: Match the rated current and voltage to your actual load. The 1,500V dielectric strength and ≤ 40 mΩ contact resistance support demanding power applications, but derate for continuous high-temperature operation.

Application Fit and Installation Requirements

The M18 connector excels in applications requiring a secure, weatherproof connection. Common use cases include industrial automation control panels, outdoor LED lighting systems, renewable energy inverters, robotics, and marine equipment. For each installation, verify that the cable outside diameter fits the connector's clamping range and that the termination method (solder, crimp, or screw) matches your assembly capabilities.

Before installation, confirm the mating-side connector type and pinout arrangement. The M18 series uses a standardized thread pitch, but pin assignments vary by manufacturer. Always request the mating connector's datasheet or drawing to ensure correct pin-to-pin correspondence and avoid wiring errors.

Understanding Key Performance Parameters

The M18 connector's electrical specifications directly impact system reliability. The high dielectric strength (1,500V) ensures insulation integrity under transient voltage spikes, while low contact resistance (≤ 40 mΩ) minimizes power loss and heat generation at connection points. Superior insulation resistance (≥ 5,000 MΩ) prevents leakage currents in humid or contaminated environments, maintaining signal integrity over extended periods.

Mechanically, the threaded coupling provides a positive lock that withstands vibration and shock. The PA66 or metal housing materials offer different trade-offs: PA66 provides excellent chemical resistance and electrical insulation at lower cost, while metal offers superior heat dissipation and mechanical robustness for heavy-duty industrial use.

Suitable and Unsuitable Applications

Suitable: The M18 connector is well-suited for outdoor LED lighting, industrial automation sensors and actuators, renewable energy systems, robotics, and marine applications where moisture, dust, or vibration are present. Its robust construction and reliable locking mechanism make it a dependable choice for permanent or semi-permanent installations.

Unsuitable: Do not use the M18 connector for high-frequency signal transmission (above a few MHz) where specialized coaxial or data connectors are required. It is also not recommended for applications requiring frequent mating/unmating cycles (over 500 cycles) without inspection, or for submersion beyond the rated IP depth. For high-current applications above the rated capacity, consider a larger heavy-duty square connector instead.

Inquiry Checklist for Accurate Matching

To receive the correct M18 connector for your project, please provide the following information when contacting us:

• Required pin count and pinout arrangement or wiring diagram
• Cable outside diameter and conductor size (AWG/mm²)
• Operating voltage and current per contact
• Environmental conditions: temperature range, humidity, IP rating needed
• Housing material preference (PA66 nylon or metal)
• Termination type: solder, crimp, or screw terminal
• Order quantity and target delivery timeline

For related heavy-duty connection solutions, explore the LD20/SP20 Heavy-Duty Square Connector for higher current applications, or review the 12G Series Circular Connectors for alternative pin configurations and mounting styles.
