FAKRA Automotive RF Coaxial Connector for High-Speed Signal Transmission

The FAKRA automotive RF coaxial connector is engineered for high-speed and reliable signal transmission in modern vehicle systems. It is widely adopted in automotive electronics where stable connectivity and signal integrity are critical for performance and safety.

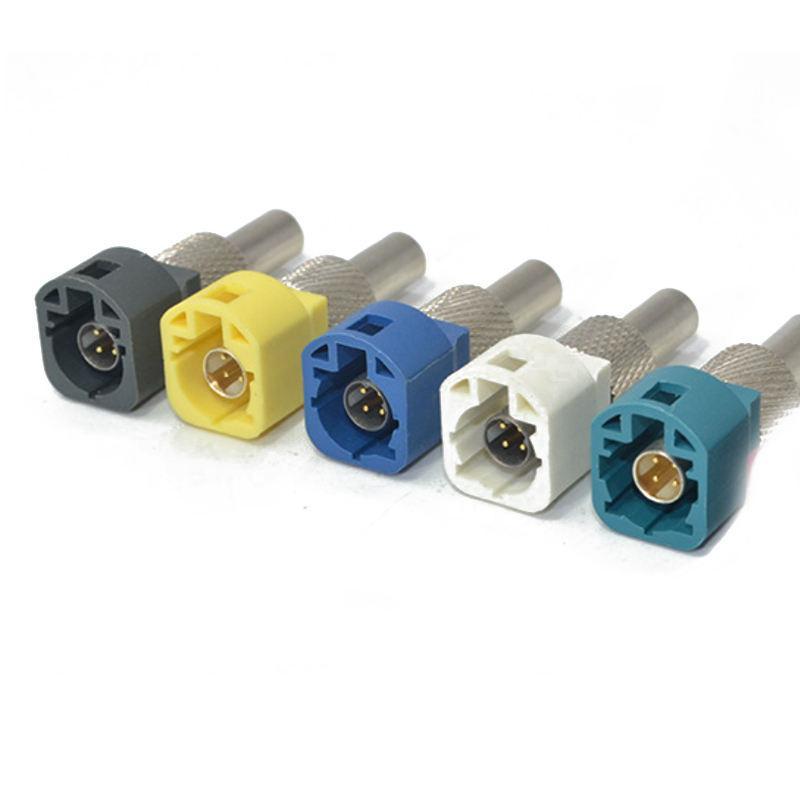

Color-Coded Housing for Error-Free Assembly

Featuring a standardized color-coded housing system, the connector enables quick identification and accurate installation. This design reduces wiring errors and improves assembly efficiency on the production line. Its secure locking structure ensures stable connections even under vibration and movement, which are common in automotive environments.

Shielding Performance for Stable High-Frequency Transmission

With excellent shielding performance, the FAKRA connector minimizes signal interference and maintains high-frequency transmission stability. It is suitable for various automotive RF applications that require consistent and reliable performance, including antenna systems, telematics, and infotainment modules.

When selecting a FAKRA connector for your application, consider the specific frequency range, cable type, and mating cycle requirements to ensure optimal signal integrity. For related high-reliability interconnection solutions, explore our aviation plug connectors or review the SD20/SP20 square flange connector design and installation guide for additional mounting and sealing insights.
