DIN Connectors 3 14 Pin Male and Female for Industrial Automation

Din Circular Connector

DIN Connector Video Overview: Pin Configurations and Industrial Applications

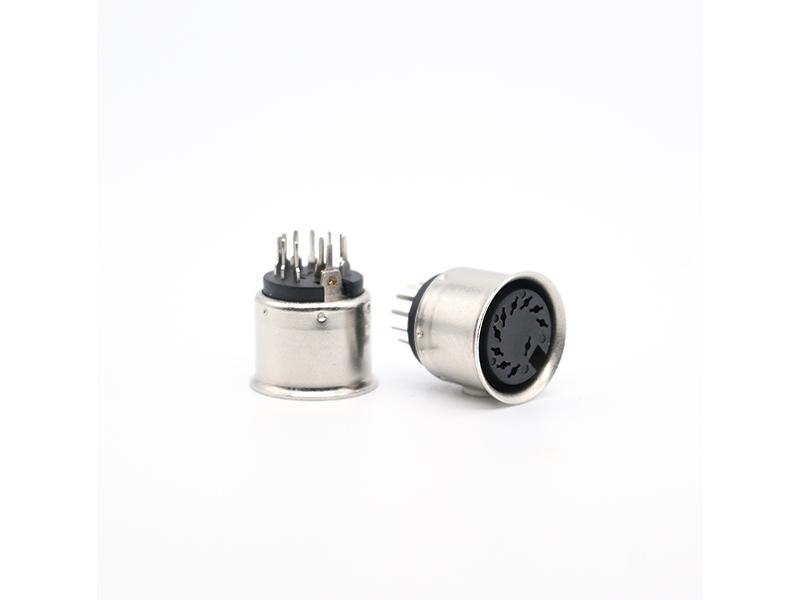

This video provides a practical look at DIN connectors available in 3 to 14 pin configurations, designed to address a wide range of industrial connectivity needs. Whether you are specifying components for a new control system or replacing parts in existing equipment, understanding the available options is key to ensuring a proper fit and reliable performance.

Flexible Pin Options for Custom Requirements

The range includes multiple pin configurations that can be tailored to meet specific electrical and mechanical specifications. This flexibility supports seamless integration into various systems, allowing engineers to match the connector to the exact signal or power requirements of their application rather than adapting the design around a fixed component.

Male and Female Connector Designs

The video showcases both male and female connector variants, emphasizing secure mating interfaces and stable signal transmission. Proper gender matching and locking mechanisms are critical for maintaining connection integrity in environments subject to vibration or frequent coupling and uncoupling cycles.

Typical Use Cases in Industrial Environments

DIN connectors of this type are widely employed in industrial automation, control systems, instrumentation, and electronic equipment. Their robust construction and adaptable design make them suitable for demanding environments where reliable connectivity is essential for operational uptime.

Selecting the Right DIN Connector

When choosing a DIN connector for your project, consider the following factors to ensure compatibility and performance:

• Pin count: Match the number of contacts to your circuit's signal and power requirements.
• Gender: Determine whether a male or female connector is needed for your cable and panel mounting setup.
• Mounting style: Verify if the connector is designed for cable assembly, panel mounting, or PCB termination.
• Environmental rating: Confirm the connector's protection level against dust, moisture, and temperature extremes for your specific operating conditions.

For a deeper understanding of how these connectors fit into broader system designs, review our guide on DIN circular connector options or explore a practical example of a pre-wired DIN 13 pin connector assembly for power and signal distribution.
