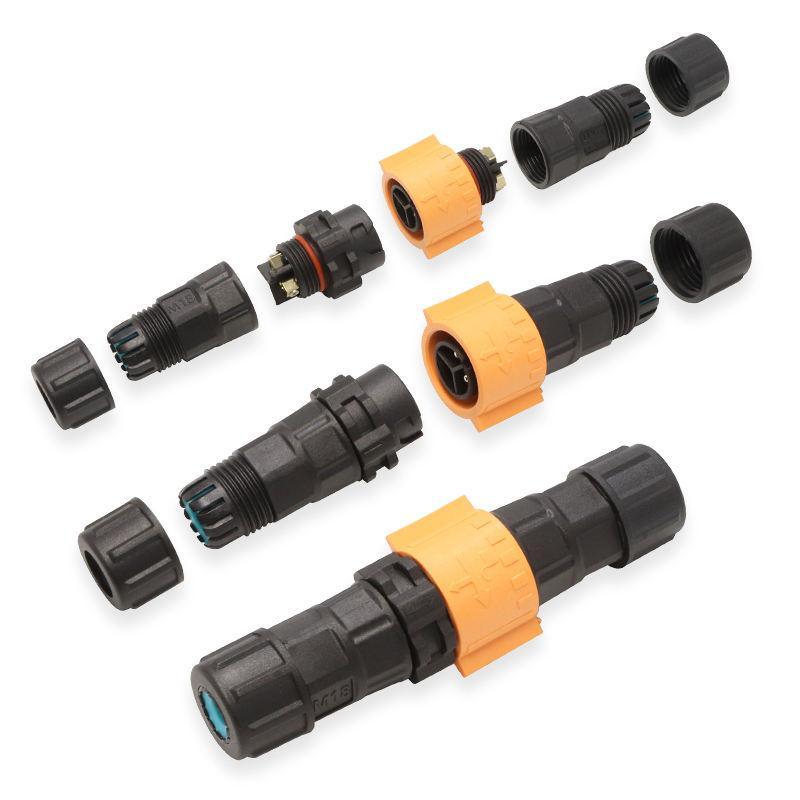

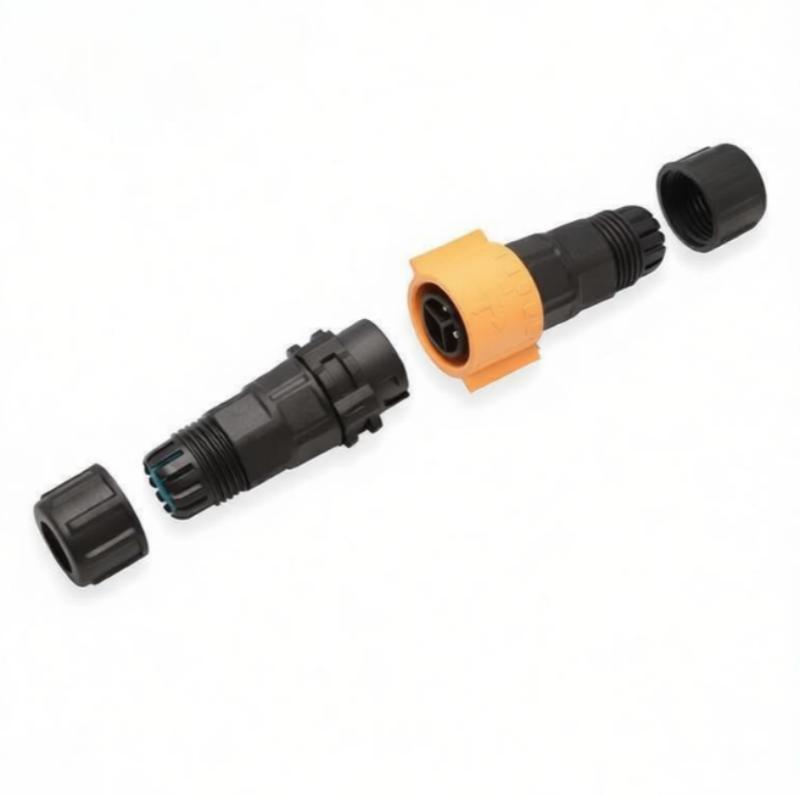

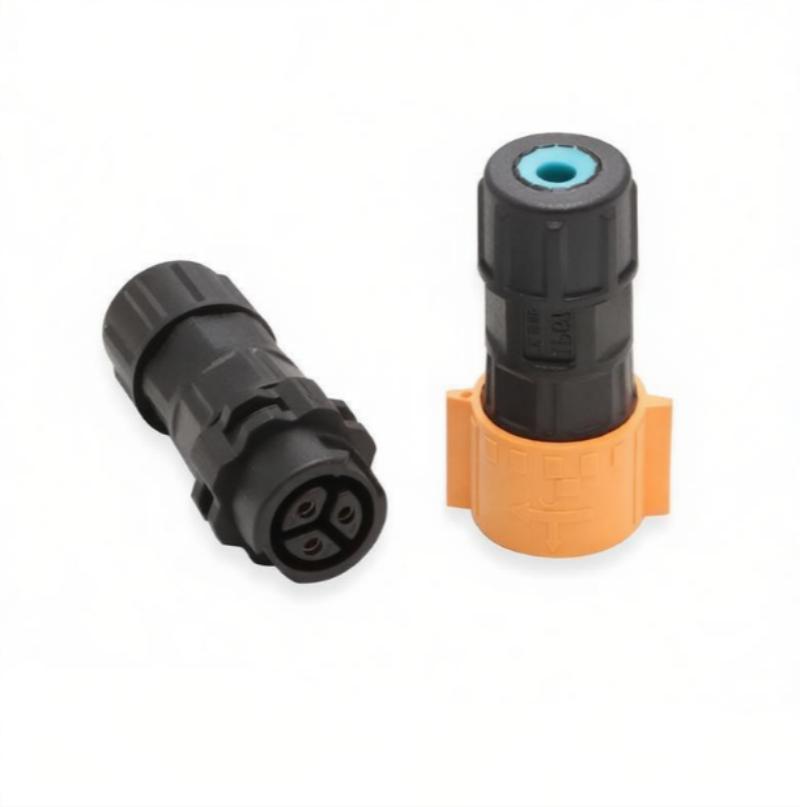

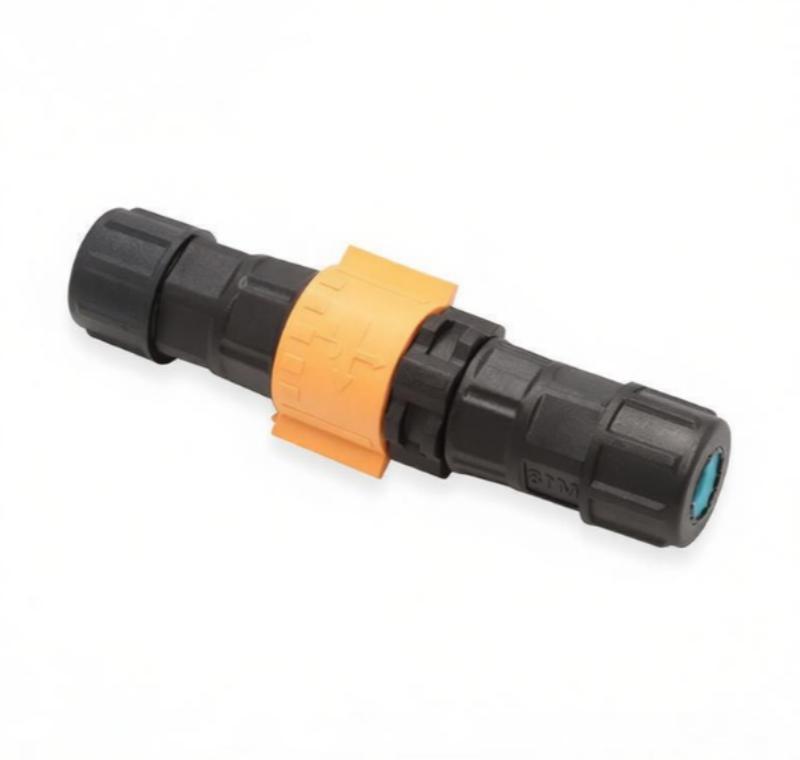

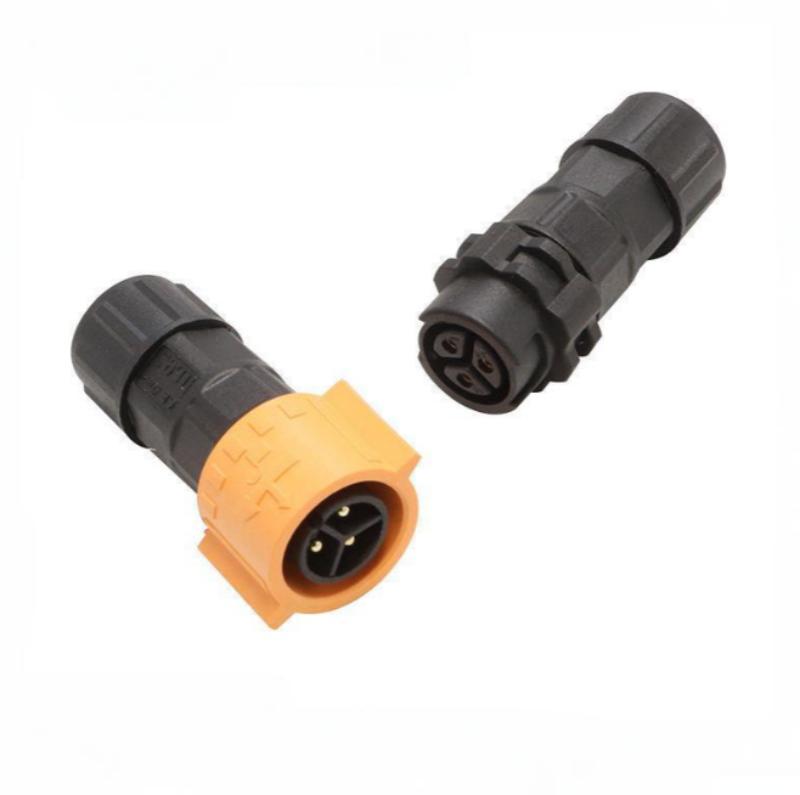

M18 Quick Lock 2 Pin Waterproof Connector Overview

The M18 Quick Lock 2 Pin Connector is a waterproof circular connector designed for fast power wiring in LED lighting systems and outdoor electrical assemblies. This model features a PA66 nylon housing, quick locking structure, and screwless pressure wire terminal, allowing installers to complete wiring without soldering.

Compared with traditional circular connectors that require soldering or crimping, the quick lock pressure terminal design simplifies installation and maintenance.

Quick Lock Structure for Fast Installation

A distinctive feature of this M18 connector is its quick lock coupling system. Instead of traditional threaded locking, the connector uses a mechanical snap locking structure that allows fast connection and disconnection.

Advantages include:

• Reduced installation time
• Tool-free assembly
• Secure anti-vibration locking
• Easy maintenance in field environments

This makes the connector especially suitable for electrical systems that require frequent replacement or modular installation.

Screwless Pressure Wire Terminal Design

The internal wiring structure uses a pressure wire terminal rather than solder or crimp termination. Installers simply insert the stripped wire into the terminal block and secure it using the internal clamping mechanism.

Key benefits include:

• No soldering required
• Consistent electrical contact pressure
• Faster cable assembly
• Reduced installation errors

This design is widely used in LED driver connections and power distribution modules where efficiency is important.

PA66 Nylon Housing for Outdoor Durability

The connector housing is manufactured from PA66 engineering nylon, offering performance in demanding environments:

• High impact resistance
• Good electrical insulation
• Resistance to corrosion and humidity
• Lightweight but durable structure
• Stable performance under temperature changes

PA66 housing also prevents rust problems that can occur with untreated metal connectors.

Waterproof Protection for Lighting Systems

When properly assembled, this M18 connector can achieve IP67 waterproof protection. This level of protection ensures:

• Dust-tight sealing
• Resistance to rain and temporary water immersion
• Reliable operation in outdoor environments

Because of this sealing capability, the connector is widely used in outdoor lighting systems and landscape lighting installations.

Typical Application Scenarios

The M18 Quick Lock Connector is commonly used in electrical systems where quick installation and waterproof performance are required. Typical applications include:

• Outdoor LED lighting systems
• Landscape lighting installations
• LED power driver connections
• Garden lighting equipment
• Modular electrical assemblies

Its quick installation structure makes it especially suitable for projects involving large numbers of lighting fixtures.

Selection Considerations and Inquiry Checklist

When evaluating this connector for your project, confirm the following details with your supplier:

• Mating connector type and gender configuration required
• Cable outside diameter and conductor size for terminal compatibility
• Electrical load (current and voltage) of the LED driver or power supply
• Environmental exposure conditions, including humidity and temperature range
• Order quantity and preferred packaging

For related circular connector options, see the 12G Series Circular Connectors or review the SD20/SP20 Square Flange Connector Design and Installation Guide for alternative mounting configurations.

Conclusion

The M18 Quick Lock 2 Pin Waterproof Connector with PA66 housing is designed for efficient LED power wiring and outdoor electrical systems. Its quick lock coupling system and screwless pressure wire terminal allow fast installation while maintaining reliable electrical performance. Combined with IP67 waterproof protection and durable nylon housing, it provides a practical solution for modern lighting and power distribution applications.
