YOUR POSITION：HOME > Connectors > Waterproof Connectors > LD Series Connectors >
LD32 Connectors
< >

LD32/SP32 2-9 Pin Electrical Panel Mount Connector

>Number Of CoresNumber Of Cores 2-9 Pin
Contact DiameterContact Diameter(mm) 1.2mm - 3.2mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA6(Flame Retardant)
Temperature RangeTemperature Range -25°C to +85°C
TerminationTermination Screw Crimping
Rated CurrentRated Current(A) 5A - 45A
Rated VoltageRated Voltage(Ac.V) 280V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 1 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

LD32 / SP32 2 - 9 Pin Electrical Panel Mount Connector - Standardized Interface for Equipment Integration
The LD32 / SP32 2 - 9 Pin Electrical Panel Mount Connector is designed as a fixed interface solution for industrial equipment, enabling stable and organized electrical connections between internal systems and external components.
Connector
Instead of focusing on temporary connections, this connector is engineered to become a permanent part of the equipment structure, providing a reliable entry and exit point for power and signal transmission.

Designed for Equipment Interface Standardization
In modern equipment design, a clear and stable panel interface is essential for system reliability and maintenance efficiency. This connector series helps establish a standardized connection point, allowing equipment to achieve:
Clear separation between internal wiring and external connections
Simplified installation and maintenance processes
Improved system safety and structural integrity
The LD32/SP32 size offers enhanced mechanical strength, making it suitable for equipment that requires a more robust panel interface.

Flexible Pin Range for Different Electrical Functions
With support for 2 to 9 pins, this series adapts to different levels of system complexity:
2 - 3 Pins → Dedicated power input/output
4 - 6 Pins → Combined power and control signals
7 - 9 Pins → Multi-channel control and communication interfaces
This flexibility allows engineers to design cleaner systems with fewer connection points.

Application-Oriented Design
The connector is widely used in equipment that requires a reliable and fixed panel connection, such as:
Industrial control cabinets
Power distribution units
Machinery and automation equipment
Energy and electrical systems

Outdoor control enclosures


Manufacturing Strength That Ensures Consistency
This product is developed and manufactured by a factory with over 15 years of experience in connector production and cable assembly solutions.
IP68 Waterproof Connector
We operate a fully integrated production system, including mold design, die-casting, CNC machining, injection molding, and assembly. This allows us to control every stage of production and ensure consistent quality across large-volume orders.
Waterproof Connector
To meet industrial application requirements, each connector is tested through:
Electrical performance verification
Mechanical strength and durability testing
Waterproof and environmental resistance checks

Dimensional and assembly accuracy inspection

Connector

Our products comply with CE, RoHS, and ISO9001 standards, ensuring reliability and acceptance in global markets.
SP17 Connector

Customization for Equipment Manufacturers

We understand that panel interfaces often require project-specific adjustments. We provide:
Customized pin configurations
Housing and mounting adaptations
Cable integration solutions
Application-based design support
Our engineering team can assist in optimizing the connector to match your equipment structure and usage environment.

A Reliable Interface for Industrial Systems
This connector is not just a component—it serves as a critical interface between your system and the outside world, ensuring stable performance, easy maintenance, and long-term reliability.

Get in Touch
We support sample evaluation, drawing confirmation, and customized production.
If you are developing equipment that requires a robust and standardized panel mount connection, contact us for technical support and quotation.

 Item

 Parameters

 Number of Cores

 2 - 9Pin

 Gender

 Male/Female

 Housing Material

 Thermoplastic PA6(Flame Retardant)

 Cores Material

 Brass Plated with Gold

 Insulator Material

 Thermoplastics

 Locking System

 Threaded Connection

 Temperature Range

 -25℃, +85℃

 Rated Current (A)

 5A - 45A

 Rated Voltage (AC.V)

 380V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤1㏁

 Termination

 Screw Crimping


Related Products

More》

Related Resource

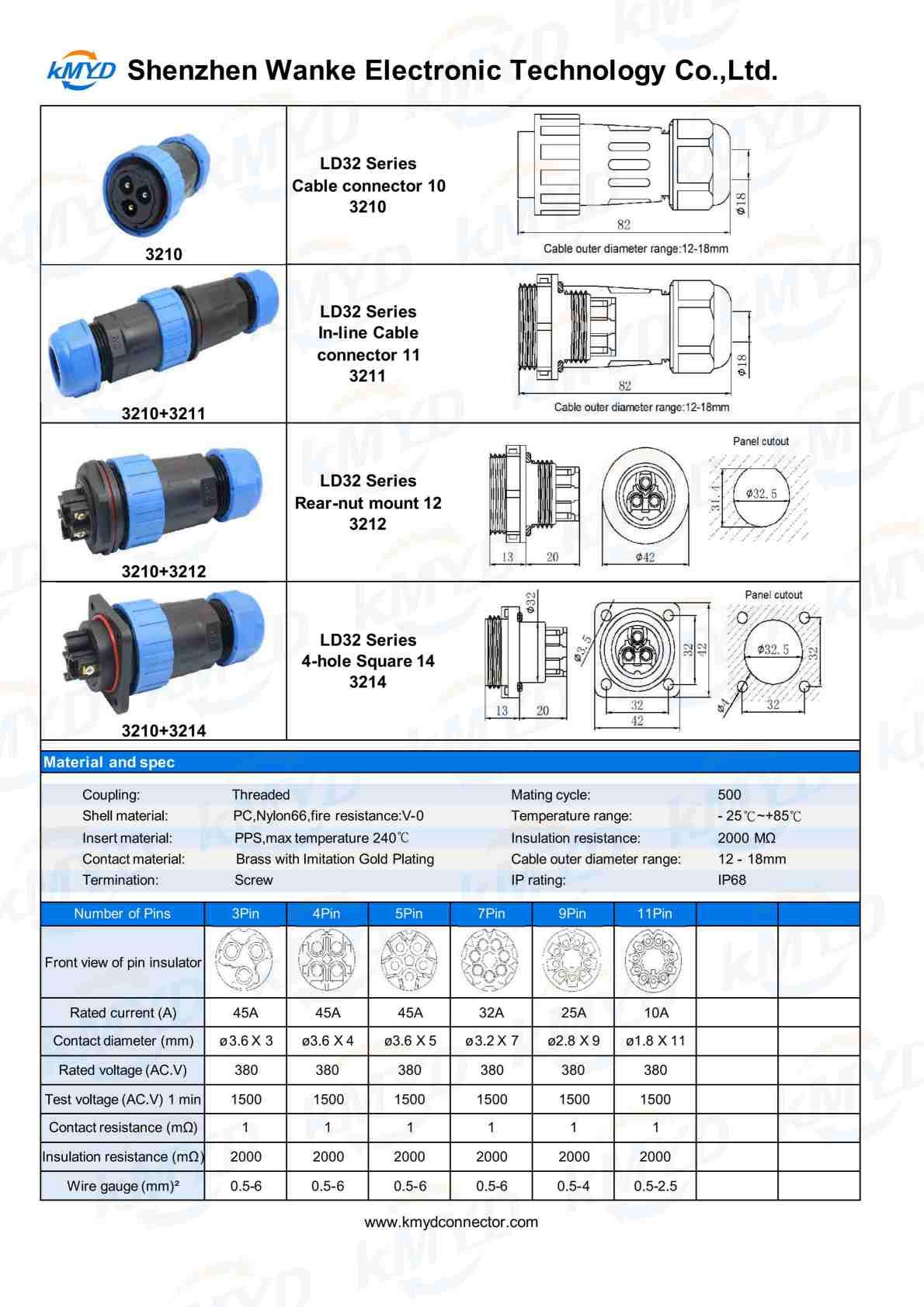

LD32/SP32 Electrical Panel Mount Connector
