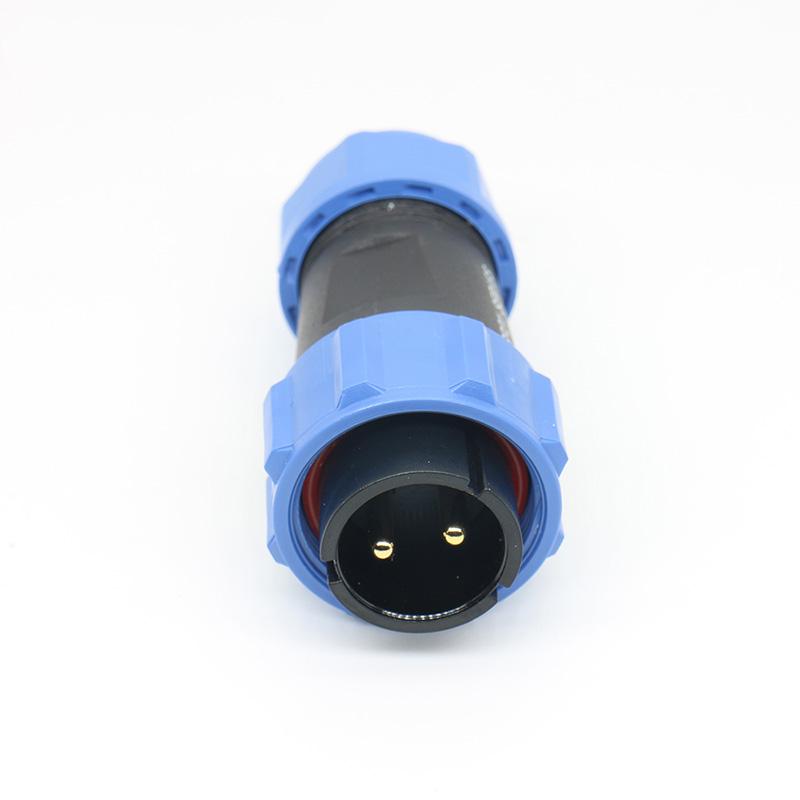

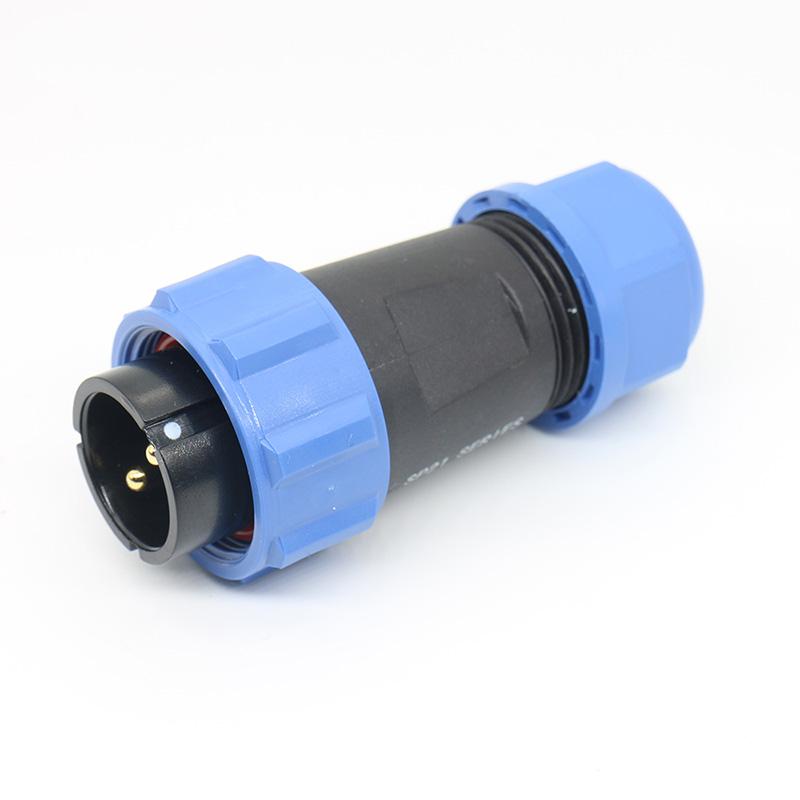

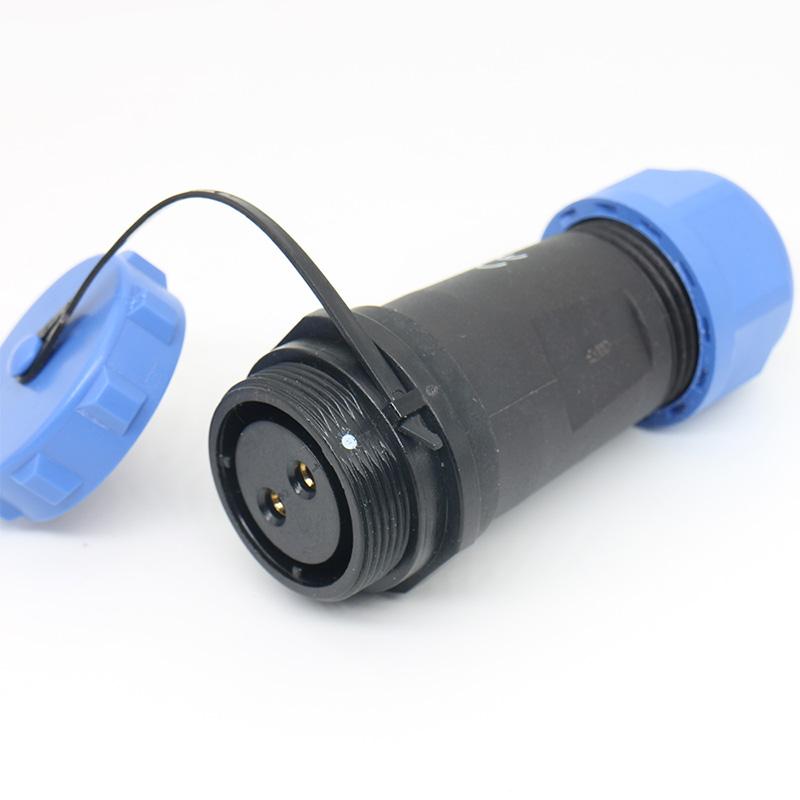

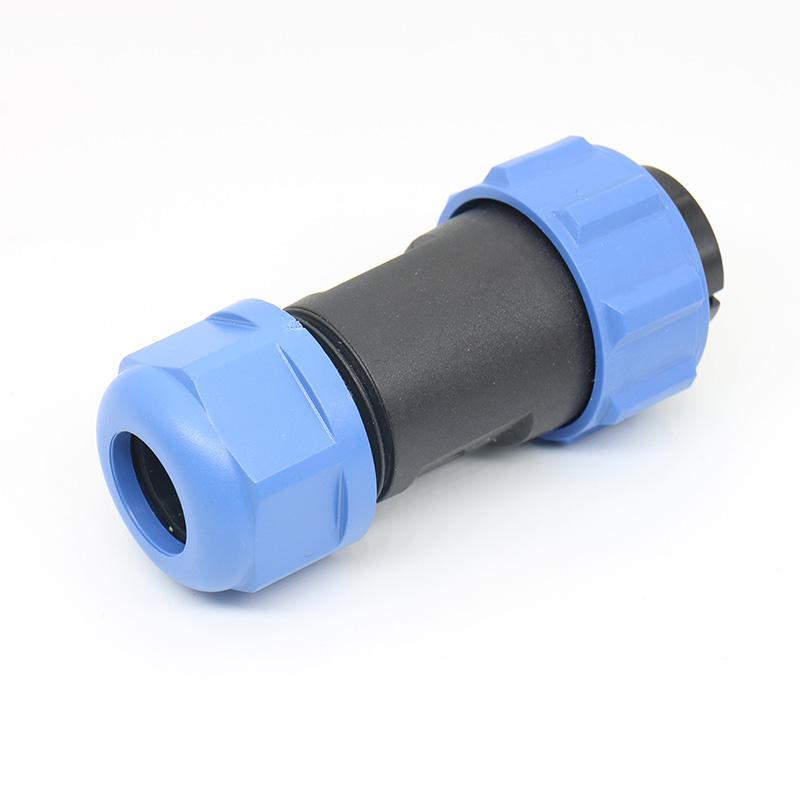

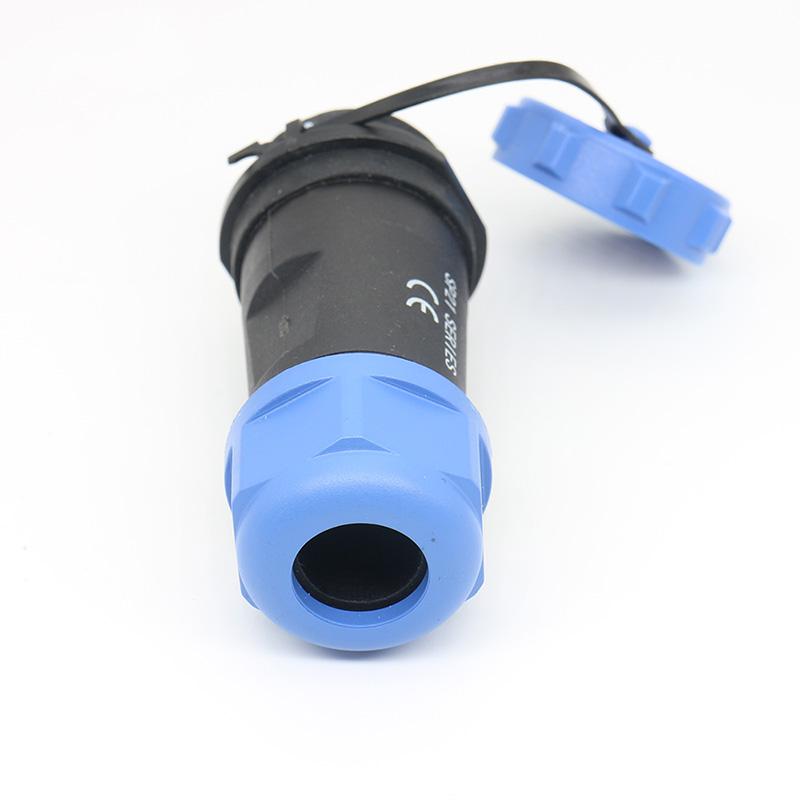

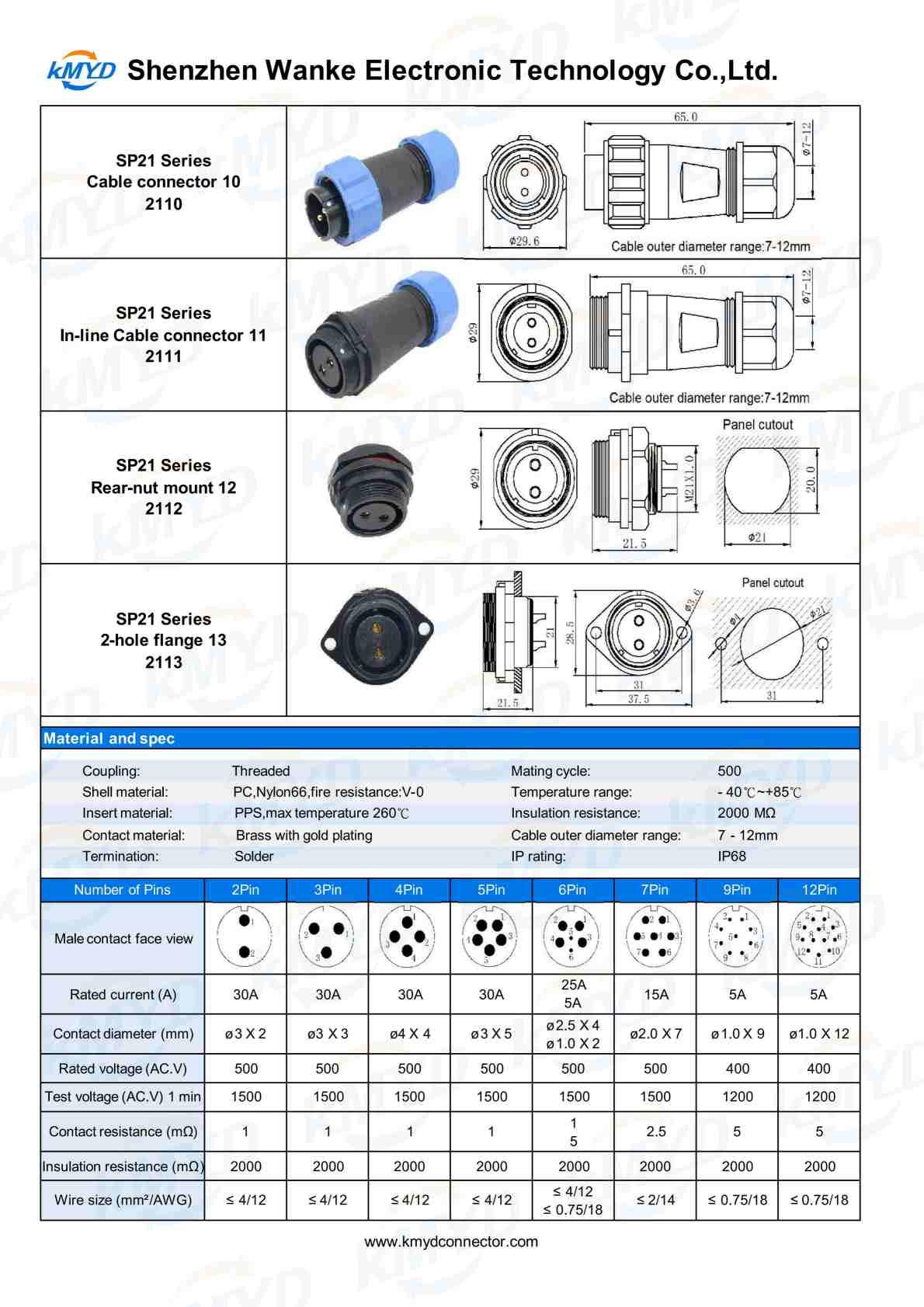

IP68 Waterproof SP21 Docking Connector Overview

The IP68 waterproof SP21 docking connector is a heavy-duty circular connector engineered for secure power and signal transmission in demanding industrial and outdoor environments. Supporting 2 to 12 pin configurations, it offers flexible connectivity options while maintaining strong sealing performance and mechanical stability. Its docking-style connection structure enables fast, accurate mating between equipment modules, making it well suited for applications requiring frequent connection, stable alignment, and environmental protection.

Docking Connection Design for Stable Mating

Unlike standard inline connectors, the SP21 docking connector is built to support stable panel-to-panel or device-to-device connections. Its reinforced housing and sealing system help maintain consistent electrical contact under vibration, moisture, and long-term operation.

Key functional characteristics include:

• IP68 waterproof and dustproof protection
• Secure docking structure for reliable alignment
• High mechanical strength for industrial use
• Stable transmission for power and signal circuits
• Suitable for repeated connection cycles

Configuration Options and Selection Considerations

To match different system requirements, the SP21 docking connector supports multiple configuration choices:

• Pin count: 2 / 3 / 4 / 5 / 6 / 7 / 9 / 12 pins
• Panel mount or cable connection types
• Solder or crimp termination options
• Straight or customized cable assembly versions
• Optional shielding and sealing solutions
• OEM marking and branding support

When selecting a configuration, confirm the mating-side interface, required pinout, and cable outside diameter to ensure proper fit. For applications with high mating frequency, verify that the locking mechanism and sealing components match your cycle expectations.

Typical Application Environments

The SP21 docking connector is commonly used where strong environmental protection and reliable electrical connection are required:

• Industrial machinery and automation systems
• Outdoor electrical equipment
• Power distribution devices
• LED lighting and display systems
• Marine and transportation equipment
• Renewable energy and energy storage systems

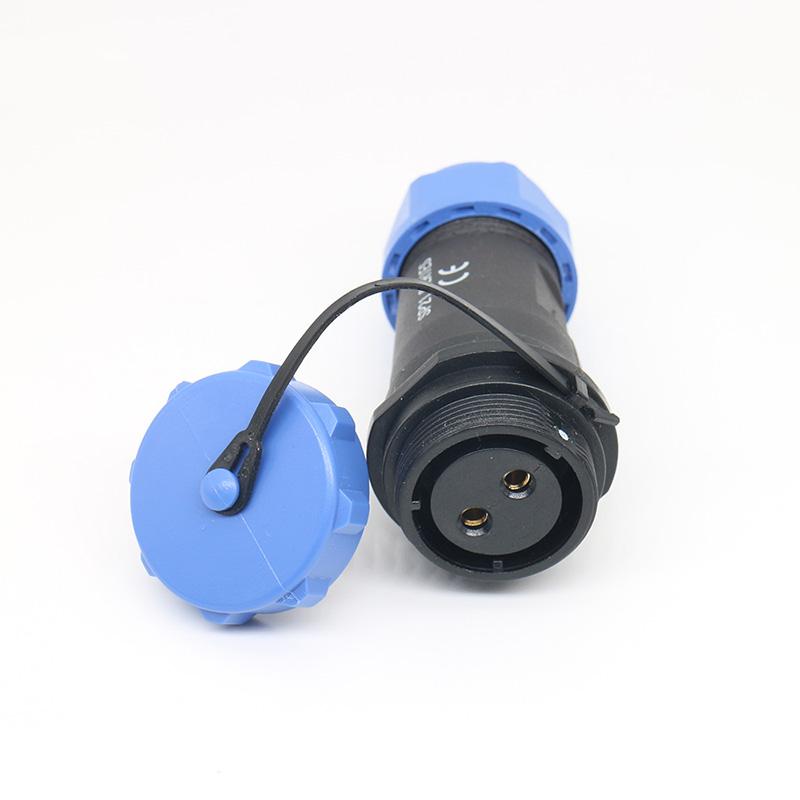

For outdoor LED displays and similar installations, the IP68 rating supports reliable operation in wet or dusty conditions. Confirm that the unmated connector halves are protected or capped when not connected, as IP68 performance applies to the mated condition.

Manufacturing and Quality Verification

For SP21 series connectors, production focuses on structural strength and sealing consistency, which are critical for large-size waterproof connectors. The manufacturing process emphasizes precise machining of the locking mechanism and strict control of sealing components to ensure stable mating performance across repeated use.

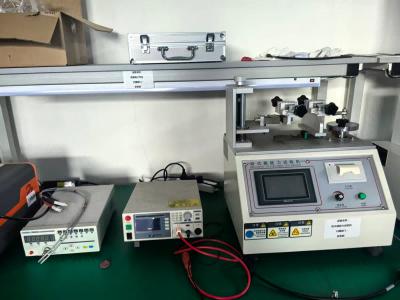

Each connector undergoes verification procedures including:

• Waterproof sealing integrity testing
• Mechanical connection strength testing
• Electrical conductivity inspection
• Assembly consistency verification

These checks help ensure dependable performance in real operating conditions. For applications with specific environmental or mechanical requirements, provide your test criteria during inquiry so the appropriate configuration can be confirmed.

Application Boundaries and Inquiry Checklist

The IP68 SP21 docking connector (2–12 pins) is designed for stable operation in environments where reliability and durability are essential. It is not intended for high-frequency signal transmission requiring impedance-controlled interfaces, nor for applications demanding continuous submersion beyond the rated IP68 conditions without proper cable sealing.

To receive an accurate quotation and configuration recommendation, please provide the following details:

• Required pin count and pinout or wiring diagram
• Mating-side connector type (panel mount, cable, or device)
• Cable outside diameter and conductor size
• Electrical load (current and voltage per pin)
• Operating environment (temperature, moisture, chemical exposure)
• Expected mating cycles and installation method
• Order quantity and any OEM marking requirements
