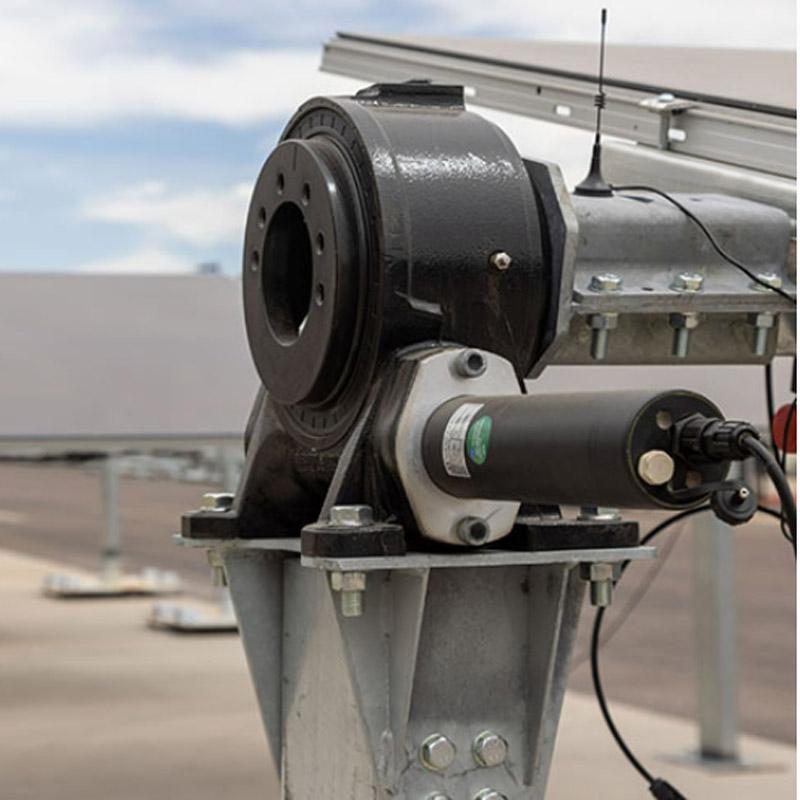

GX16 Connectors in Solar Tracker Motors: Project Background

Solar tracking systems depend on precise electrical connections to maintain accurate panel positioning and continuous energy generation. In this application, GX16 connectors serve as the interface between tracker motors, position sensors, control units, and power supply lines. Their role is to deliver stable power and signal transmission, which is fundamental for the correct sun-tracking operation of the equipment.

Environmental and Electrical Requirements for Tracker Motors

Solar tracker motors are typically installed outdoors, where they face dust, moisture, vibration, and wide temperature swings. The GX16 connector series addresses these conditions with a durable metal housing and a secure threaded locking mechanism. This design prevents loosening and signal interruption, even during the frequent motor movements that occur throughout a daily tracking cycle.

Solution: GX16 Connector Configuration and Mating

For this installation, the GX16 connectors were selected based on the motor's electrical load and the need for a reliable, vibration-resistant connection. The threaded coupling ensures a firm mate between the plug and socket, reducing the risk of accidental disconnection. The connector's construction supports repeated mating cycles, which is important for maintenance access in confined solar array layouts.

Commissioning and Maintenance Considerations

During commissioning, the connectors allowed for quick verification of power and signal lines before the tracker was fully energized. When motors or control components require servicing, the GX16 interface enables fast disconnection and reconnection, minimizing system downtime. This ease of access supports routine inspection and replacement without specialized tooling.

Result and Operational Impact

By maintaining a stable electrical path under environmental stress, the GX16 connectors contribute to tracking accuracy and operational reliability. The secure locking design reduces the likelihood of field failures caused by vibration or moisture ingress. For engineers evaluating connector options for solar tracker motors, the GX16 series offers a practical balance of mechanical robustness and electrical performance.
