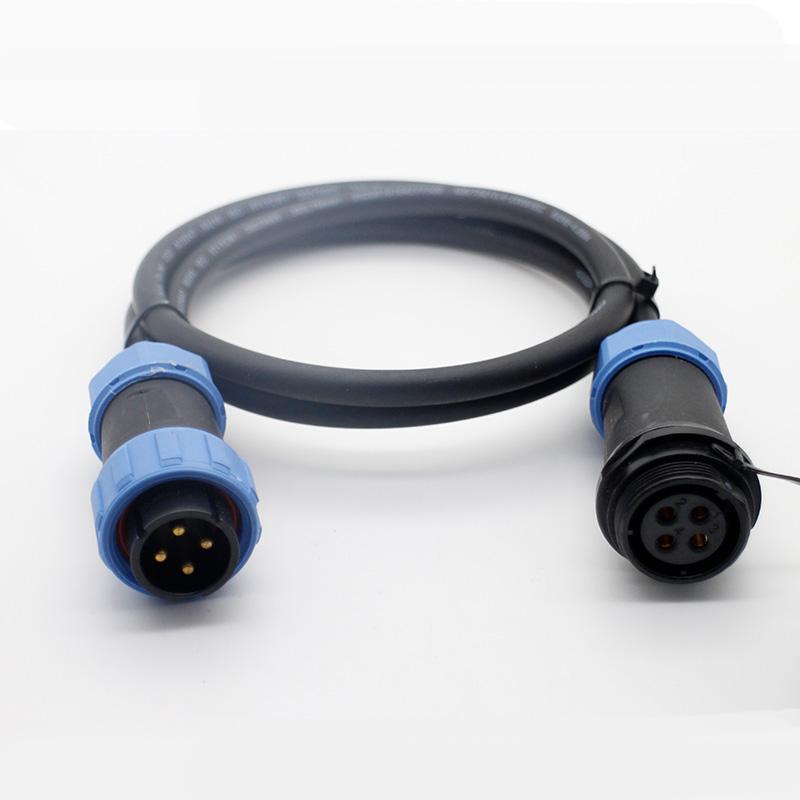

SP28 Connector
< >

5 Pin SD28 / SP28 Waterproof Cable Connector with Wire

MOQMOQ >200
>Number Of CoresNumber Of Cores 2-26 Pin
Contact DiameterContact Diameter(mm) 2.8mm/3.6mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC,Nylon66
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 25A/45A
Rated VoltageRated Voltage(Ac.V) 250V/380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

SD28 Waterproof Connector with Wire
The SD28 Waterproof Connector with Wire is a heavy-duty circular connector series designed for reliable power and signal transmission in industrial and outdoor environments. Built with a reinforced structure and dependable sealing system, the SD28 series ensures stable performance in applications exposed to vibration, dust, moisture, and long-term mechanical stress.
SP20 Connector
Rather than a single model, SD28 is a complete connector platform, offering 2 to 26 pin configurations to support everything from simple power connections to complex multi-circuit systems. Delivered as a pre-wired cable assembly, it helps equipment manufacturers standardize installation and improve operational reliability.

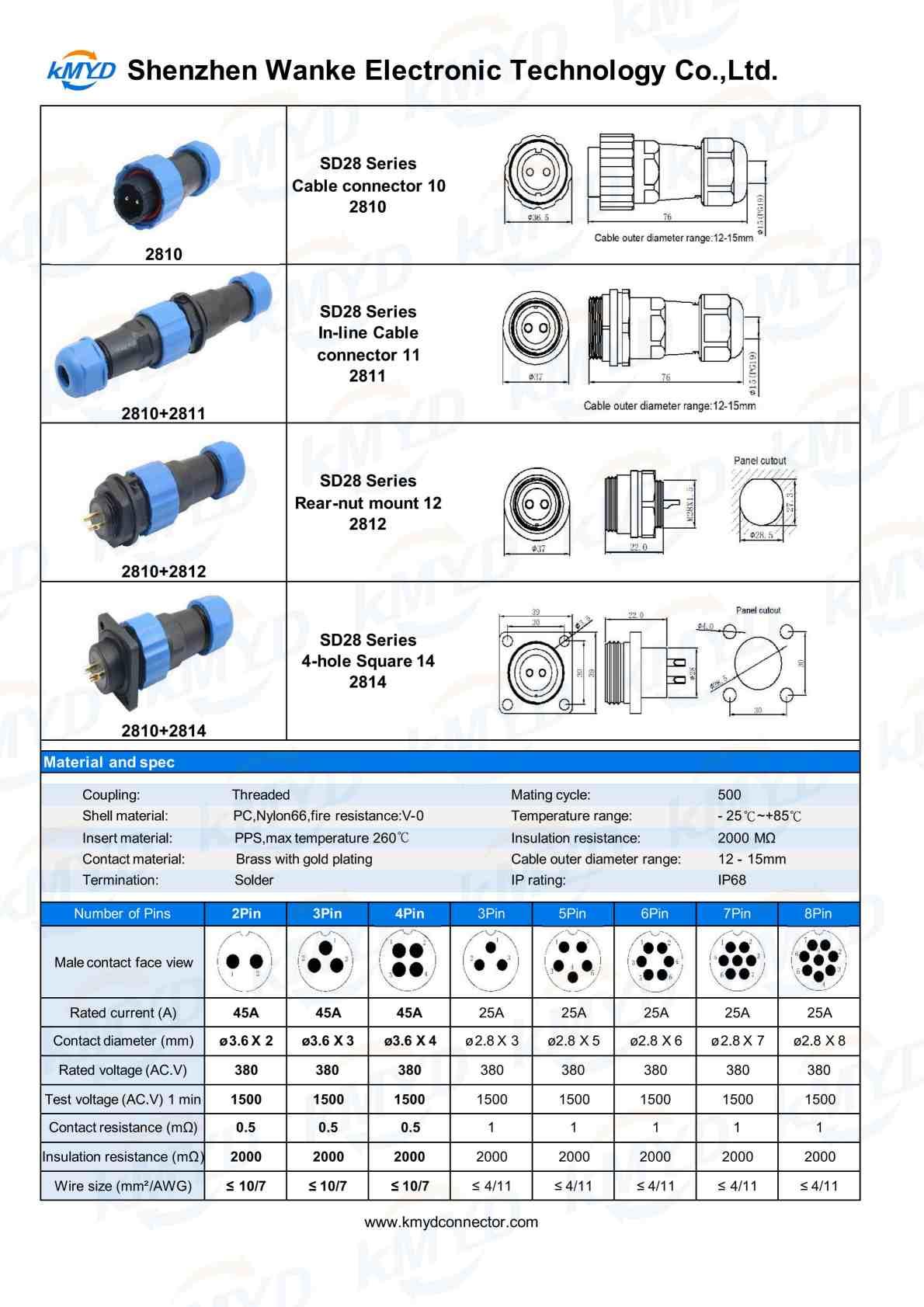

SD28 Connector
One Connector Series, Multiple Electrical Solutions
The biggest advantage of the SD28 series is its flexibility. Engineers can select the appropriate pin configuration without changing the connector family, simplifying equipment design, maintenance, and spare part management.
Available configurations:
2 - 26 Pin options for power, signal, or hybrid circuits
Support for low to medium and higher current applications
Compatible with industrial control and power distribution systems

Suitable for both indoor and outdoor installations

Connector

Core product advantages:
Waterproof and dust-resistant design for harsh environments
Strong mechanical housing for heavy-duty applications
Secure locking structure to prevent accidental disconnection
Stable electrical contact for continuous operation

Long service life under industrial conditions


Engineered Cable Assembly for Real Equipment Use
We focus on delivering ready-to-install connection solutions, not just connector components. Every SD28 cable assembly is produced according to practical installation and electrical requirements.
Customization capabilities include:
Custom cable length based on equipment layout
Selection of wire cross-section according to current load
Industrial-grade cable materials (PVC / rubber / PUR)
Shielded cable options for signal stability
Straight or right-angle cable outlet structures
Multi-branch cable harness solutions
OEM and private-label production
Waterproof Connector
This approach reduces installation risk and improves production efficiency for equipment manufacturers.

Typical Applications for SD28 Connector
The SD28 waterproof connector with wire is widely used in systems where reliability and environmental protection are essential:
Industrial machinery and automation equipment
Outdoor power and control systems
LED lighting and display installations
Construction and mining machinery
Renewable energy and energy storage equipment

Marine and transportation electrical systems


Manufacturing Strength - Built for Long-Term Supply, Not One-Time Orders
Industrial customers often worry about consistency, delivery stability, and supplier reliability more than the connector itself. Our factory is structured to address exactly these concerns.
We operate a fully integrated manufacturing system covering connector production, cable processing, assembly, and quality inspection. This allows us to maintain strict control over performance and ensure repeatable results across large production batches.
Why customers trust our factory:
15+ years specialized in circular connectors and cable assemblies
Stable production capacity supporting continuous orders
Standardized manufacturing processes for batch consistency
Dedicated quality control team for every production stage
Strong experience supporting OEM equipment manufacturers
Reliable delivery planning for long-term projects
Export experience serving customers in multiple industrial markets
Connector
In short, we are not just supplying connectors - we are supporting stable equipment production.

Quality Control Focused on Field Reliability
Every SD28 connector assembly is tested with real application conditions in mind, ensuring dependable performance after installation.
Quality assurance includes:
Waterproof sealing performance testing
Electrical continuity and load testing
Mechanical durability and vibration resistance testing
Cable pull and strain resistance testing

Final functional inspection before shipment

Waterproof Connector


Certifications That Support Global Projects
Our production system complies with internationally recognized standards, helping customers meet regulatory and quality requirements in global markets:
ISO9001 Quality Management System
CE Certification
RoHS Environmental Compliance

IP-rated waterproof performance verification

IP68 Connector


A Connector Series Designed for Scalable Industrial Systems

The SD28 Waterproof Connector with Wire (2 - 26 Pin) provides a flexible, durable, and reliable connection solution for modern industrial equipment. Backed by strong manufacturing capability and stable production control, it supports customers who require consistent quality and dependable long-term supply.

 Item

 Parameters

 Number of Cores

 2-26 Pin

 Gender

 Male/Female

 Housing Material

 PC,Nylon66

 Cores Material

 Brass Plated with Gold

 Insulator Material

 PPS

 Locking System

 Threaded Connection

 Temperature Range

 -25℃, +85℃

 Rated Current (A)

 25A/45A

 Rated Voltage (AC.V)

 250V/380V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Welding
