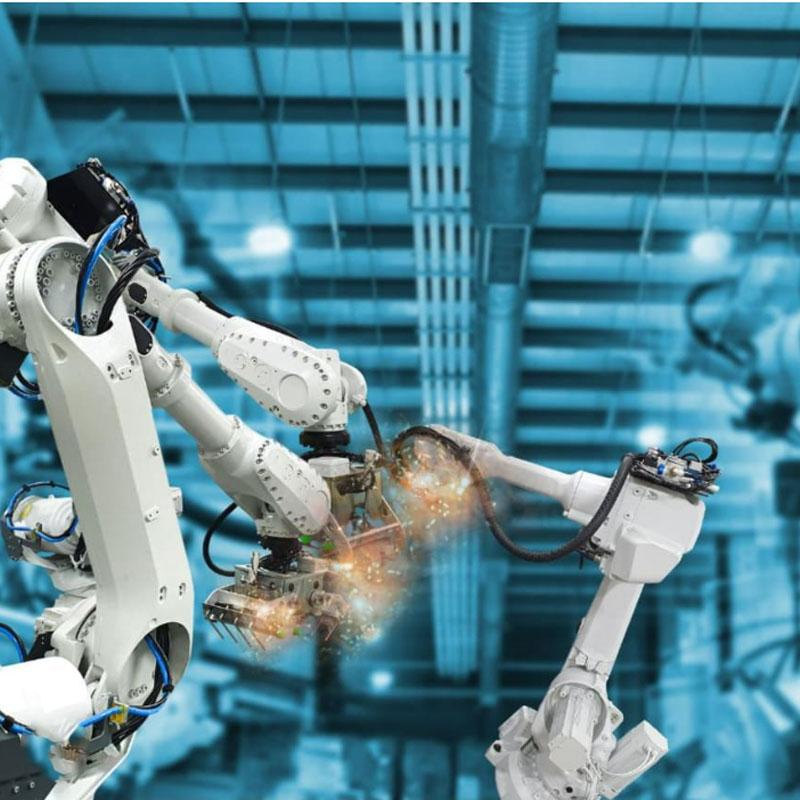

M12 Connectors in Robotic Arm Control Systems: Project Background

In robotic arm control systems, reliable electrical connections are essential for ensuring precise motion control, accurate positioning, and coordinated operation of robotic components. M12 connectors are widely used to connect controllers, servo drives, sensors, and communication modules, providing stable signal and power transmission throughout the robotic system.

Robotic arms typically operate in environments with continuous movement, vibration, and exposure to dust or industrial contaminants. M12 connectors, with their robust metal housings and secure threaded locking mechanisms, maintain dependable connections under these demanding conditions. Their standardized design also supports industrial communication protocols, making them suitable for modern automated production lines and smart manufacturing systems.

Application Requirements and Environmental Conditions

When selecting M12 connectors for robotic arm control systems, engineers must evaluate the specific electrical load, signal integrity, and environmental protection requirements. The connectors must withstand repeated mating cycles, cable strain from articulated motion, and potential exposure to coolants, oils, or washdown chemicals depending on the production environment.

Key decision points for M12 connector selection in this application include:

• Pin count and coding: Determine the number of signal or power contacts required and the appropriate keying (A, B, D, or X-coded) to prevent mismating.
• Protection rating: Verify the IP rating needed for the specific robotic cell, considering whether connectors are mounted in enclosed cabinets or exposed on the arm.
• Cable and termination: Choose between field-wireable, pre-wired, or PCB mount versions based on installation access and maintenance strategy.
• Mechanical durability: Confirm the mating cycle rating and vibration resistance for continuous robotic motion.

Solution and Installation Considerations

For robotic arm control systems, M12 connectors simplify installation and maintenance. When system components require replacement, calibration, or upgrades, these connectors allow quick and secure reconnection, minimizing downtime. The threaded coupling mechanism provides a positive lock that resists loosening from vibration, while the compact form factor suits space-constrained joints and end-effector assemblies.

Engineers should verify the connector's current-carrying capacity against the servo drive or sensor load, confirm the shielding and grounding approach for communication lines, and check the cable bend radius for continuous flexing applications. For robotic arms with high-speed motion, additional strain relief and cable management may be required to protect the connector termination point.

Delivery and Commissioning Results

By providing reliable connectivity, M12 connectors help enhance control accuracy, system stability, and overall efficiency in advanced robotic arm control applications. The standardized interface reduces spare parts inventory and simplifies field service, as technicians can quickly identify and replace a faulty cable or connector without specialized tooling.
