SP21 Waterproof Connector for Fishing Light Lighting in the United States

Project Background

A Florida-based yacht manufacturer specializing in vessels over 65 feet integrated SP21 waterproof connectors into their LED fishing light systems. Traditional connectors in marine environments often fail due to high humidity, saltwater corrosion, and tight installation spaces. By deploying SP21 connectors, compliant with ABYC C-5 and UL 508 standards, system failure rates dropped from 12% to 0.3%, installation time per lamp was halved, and full compliance with USCG marine lighting safety regulations was achieved. This project demonstrates SP21’s reliability, compact design, and adaptability for demanding marine lighting applications.

Background: Challenges in US Marine LED Lighting

LED fishing lights on large commercial yachts face three major connection challenges:

1. Harsh Environmental Conditions
   Traditional connectors cannot withstand high humidity, salt fog, and vibration. Monthly failure rates reached 8%, causing frequent LED disconnections and violating USCG navigation safety requirements.

2. Limited Installation Space
   Rear lamp compartments often measure just 3×5 cm. Oversized connectors require housing modifications, increasing installation time to over 20 minutes per lamp.

3. Insufficient Current Capacity
   High-power LED lamps (up to 25W) often overload standard connectors rated for only 10A, leading to overheating and potential fire hazards.

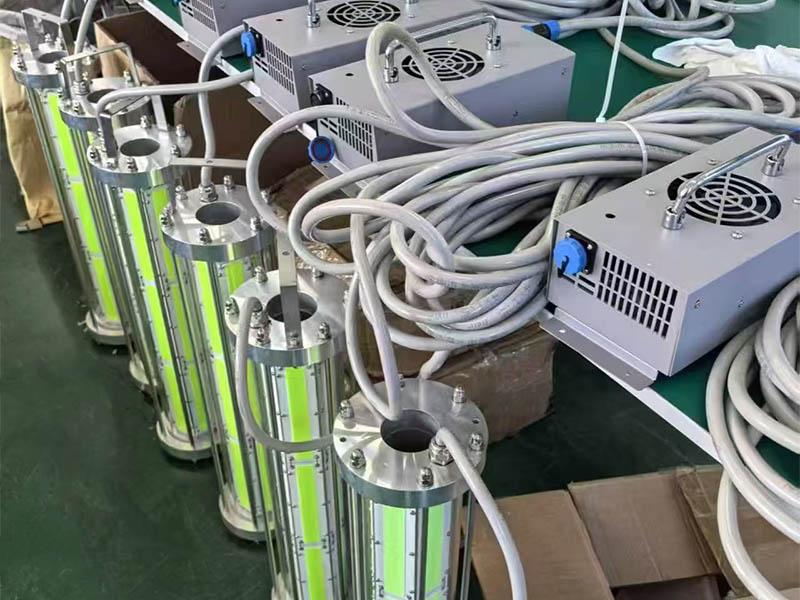

Solution: SP21 Connector Adaptation for Marine Fishing Lights

SP21 waterproof connectors were implemented to meet marine requirements, offering three key advantages:

1. Superior Environmental Durability
   SP21 features IP68 protection, brass nickel-plated contacts, and fluororubber seals. Tested according to ABYC C-5, they resist salt fog and humidity for over 500 hours without corrosion, ensuring reliable marine operation.

2. Compact Design for Tight Spaces
   With a diameter of 21mm and length of 36mm, SP21 fits directly into rear lamp compartments without housing modifications, reducing installation time per lamp to 10 minutes.

3. High Current Capacity and Safety Compliance
   Rated for 30A, SP21 supports 5–25W LED fishing lights. Compliance with UL 508 standards and verification by USCG-approved labs ensures both safety and reliability in marine environments.

Results: Efficiency, Reliability, and Cost Savings

1. Enhanced System Reliability
   LED fishing light failure rates dropped from 12% to 0.3%, with zero signal loss, passing USCG marine safety inspections.

2. Improved Installation Efficiency
   Installing 30 LED lamps on a single yacht now takes 5 hours instead of 10, shortening project delivery by 2 days.

3. Cost and Maintenance Benefits
   No housing modifications were needed, reducing per-yacht material costs by 15%. The SP21 replacement cycle extended from 3 months to 24 months, lowering annual maintenance costs by 80%.

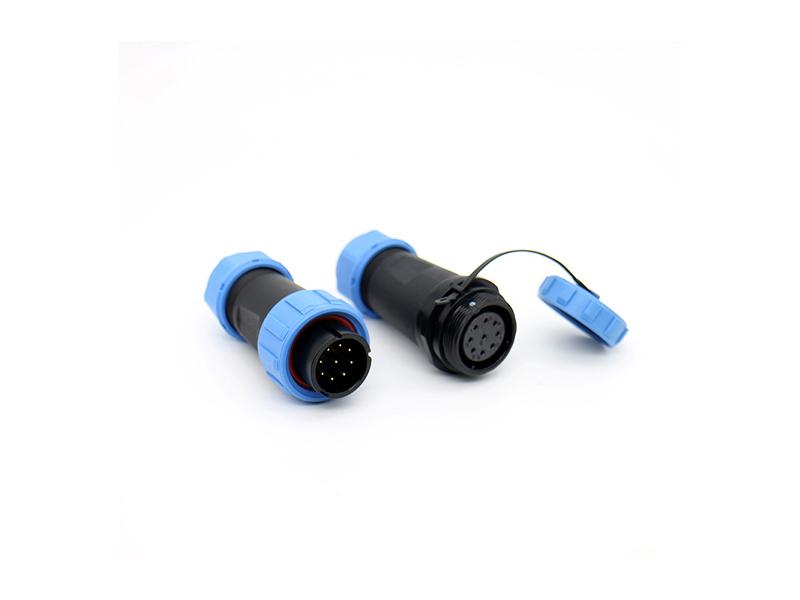

Product Specifications & Compliance

• Standards: ABYC C-5, UL 508, IEC 61076

• Rated Current: 5–30A (suitable for 5–25W LED fishing lights)

• Protection Level: IP68, salt fog resistance ≥500 hours

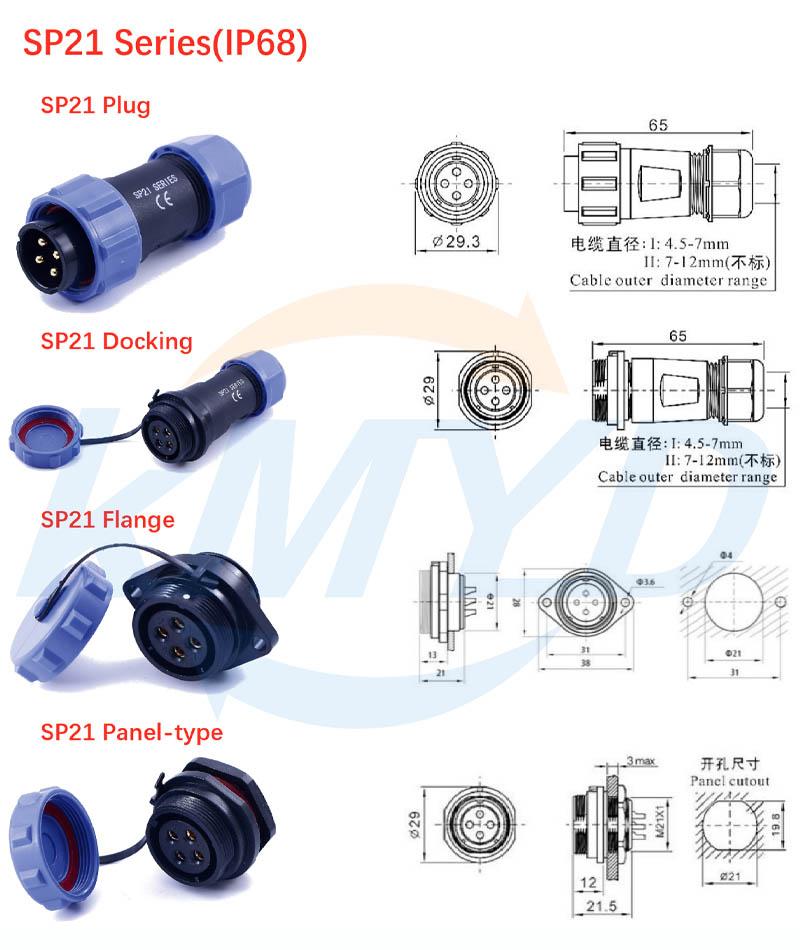

• Dimensions: Ø21mm × L36mm, fits embedded rear lamp installation

• Contact Material: Brass, nickel-plated

• Seal: Fluororubber O-ring for high humidity and corrosion resistance
