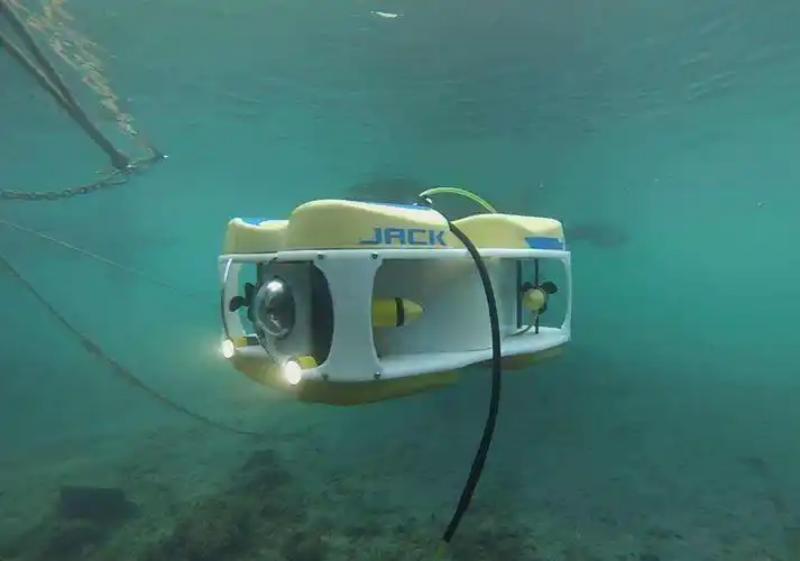

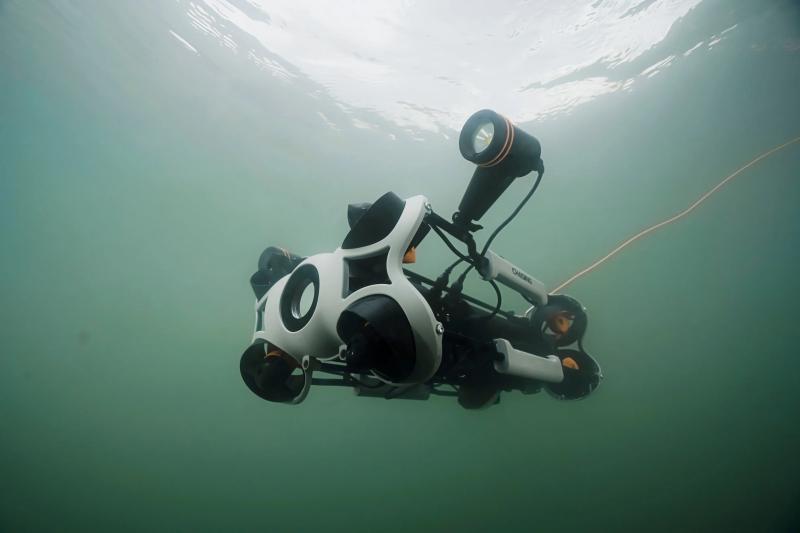

Offshore operations in Norway, particularly in the oil and gas sector, rely heavily on underwater inspection systems for routine maintenance of subsea structures. These systems often include remotely operated vehicles (ROVs) equipped with cameras and lighting modules. Inspection equipment must be assembled, deployed, and maintained efficiently, often within limited time windows.

Project Background and Equipment Interface

In this Norwegian offshore application, the inspection system comprises topside control consoles, camera interface modules, and detachable monitor units. The electrical interface requires reliable signal-level connections for video and control data transmission between these components. The environment is characterized by frequent connect-disconnect cycles during equipment setup and maintenance, with limited space in control rooms and onboard vessels.

Connector Requirement and Selection

Push-pull connectors were selected for this application based on the following verified requirements:

• Mating mechanism: Push-pull locking for quick engagement without rotation, suitable for confined spaces
• Keying: Keyed designs to prevent incorrect connections between similar interfaces
• Signal integrity: Stable transmission for video and control signals when paired with appropriate cable assemblies
• Mounting: Panel-mount and cable-mount configurations for control consoles and interface modules

These connectors are used in topside control units and camera interface modules rather than in direct subsea exposure. They are typically found in:

• Control consoles connecting to camera modules
• Detachable monitor and recording units
• Auxiliary signal interfaces for inspection systems

Operational Considerations and Installation

Operators frequently connect and disconnect camera systems during setup and maintenance. The push-pull locking mechanism allows quick engagement without rotation, which is useful in control rooms or onboard vessels where space may be limited. Keyed designs help prevent incorrect connections between similar interfaces. During commissioning, the connectors are installed within protected enclosures, and the mating process is verified for correct alignment and secure locking before system deployment.

Performance in Practice

In normal operation, connectors are used in relatively controlled environments such as equipment racks or operator stations. They provide stable signal transmission for video and control signals when paired with appropriate cable assemblies. Their ease of use helps streamline equipment setup before deployment. For applications requiring higher power or more demanding topside conditions, the LD20/SP20 Heavy-Duty Square Connector offers an alternative for power and signal distribution.

Result and Suitability

In offshore inspection workflows, push-pull connectors serve as a practical interface solution for topside equipment, supporting efficient handling and reliable signal connections. The selection is appropriate for controlled environments with frequent mating cycles. For direct subsea exposure or high-power applications, a different connector series with appropriate IP ratings and power handling would be required.
