LD13 IP68 2-Hole Flange Mount Connector 2 Pin 5A 250V

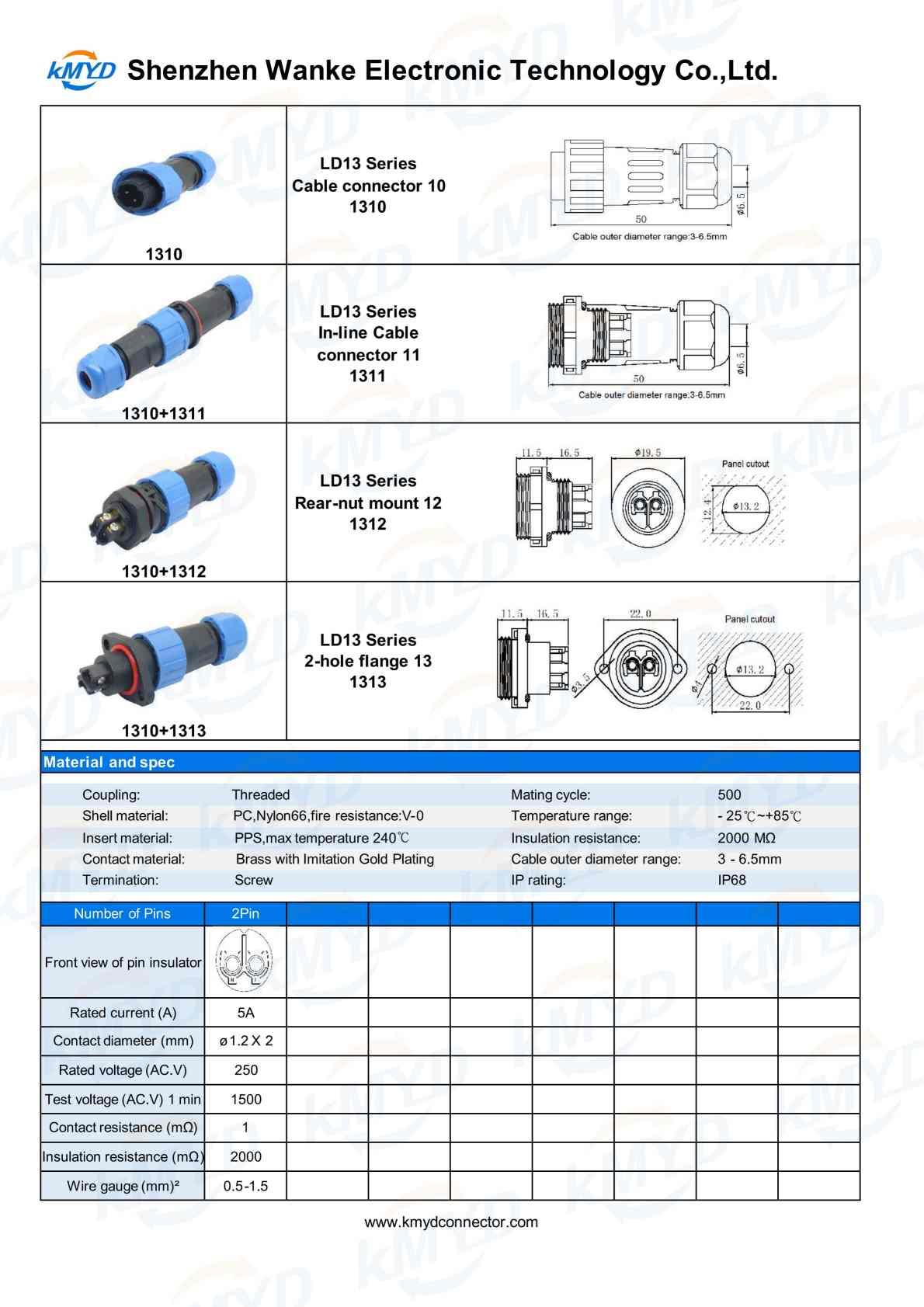

LD13 IP68 Flange Connectors Dimensions and Materials

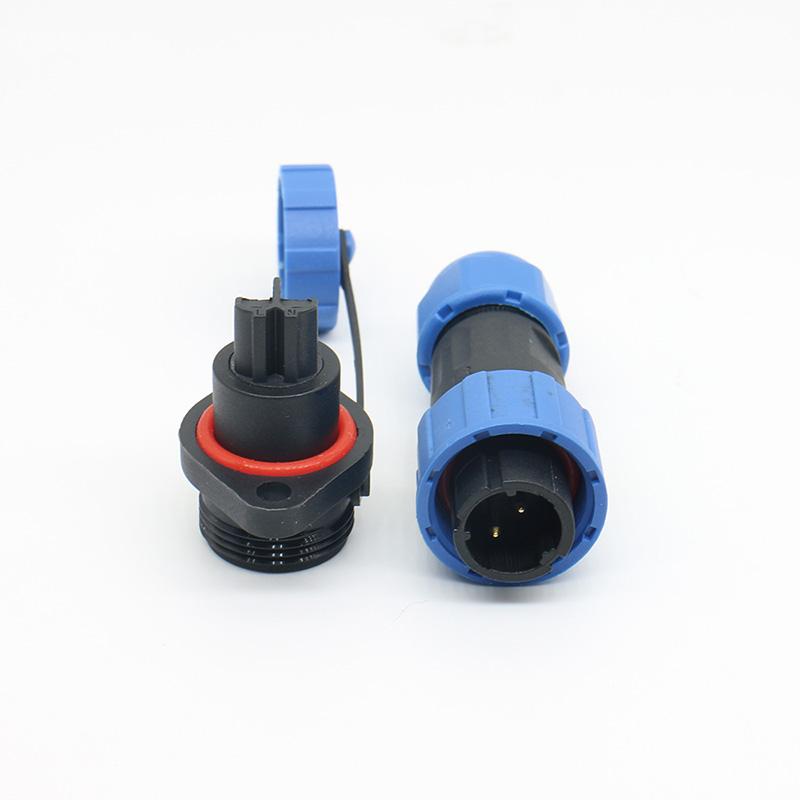

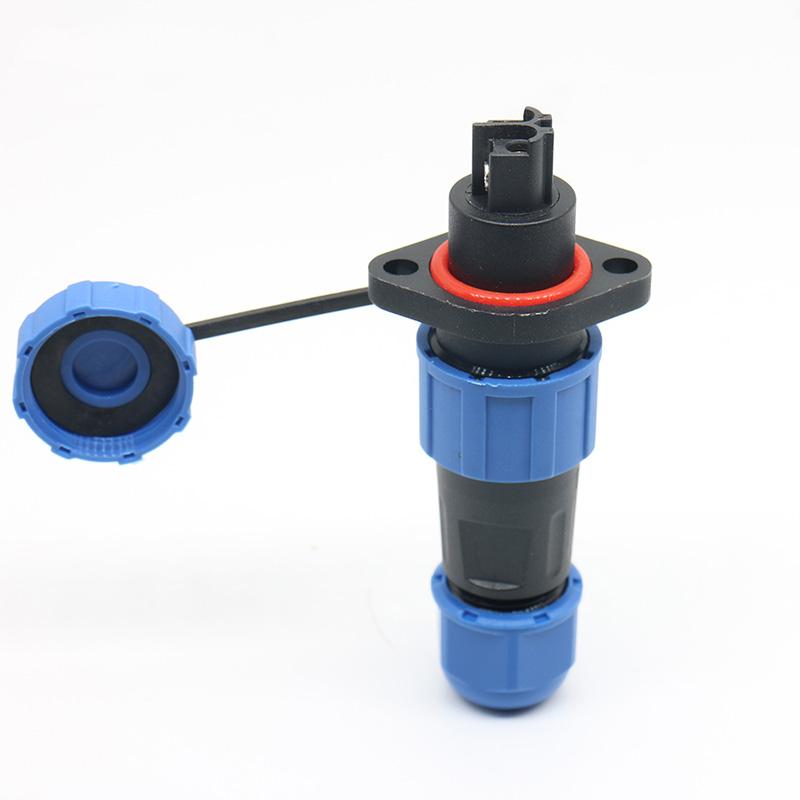

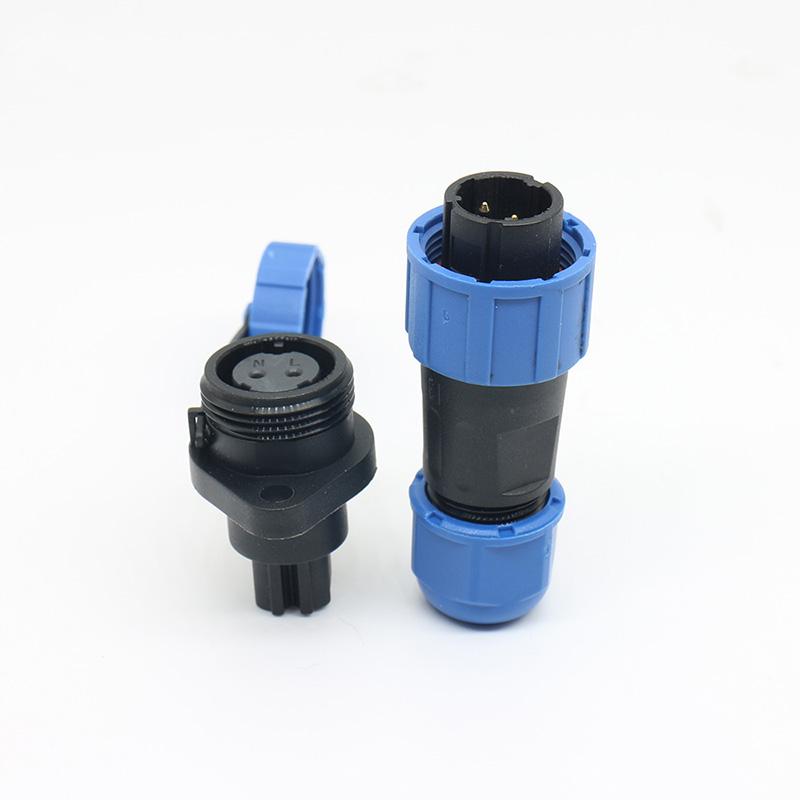

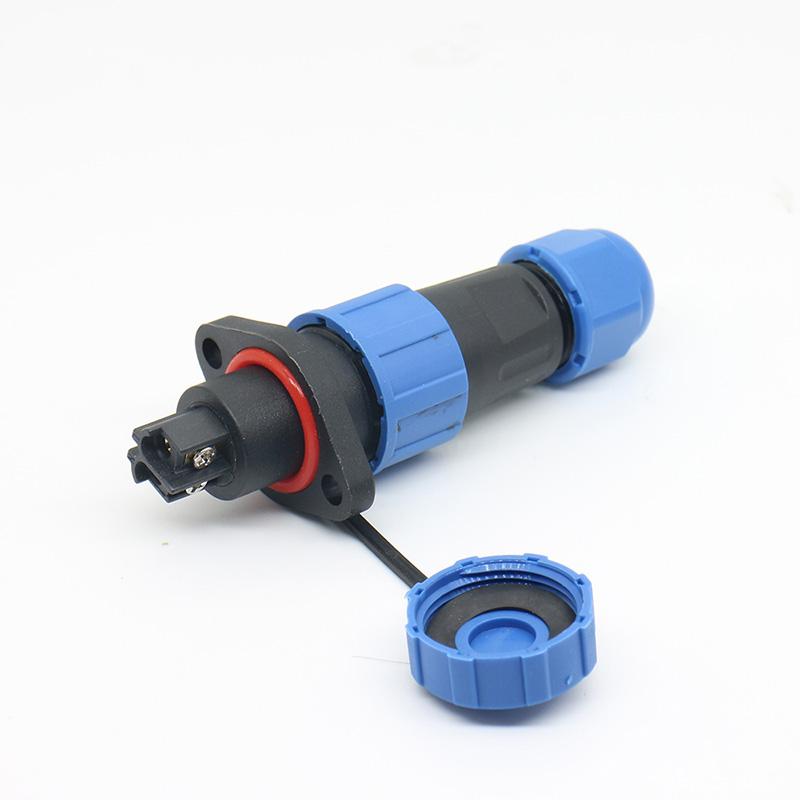

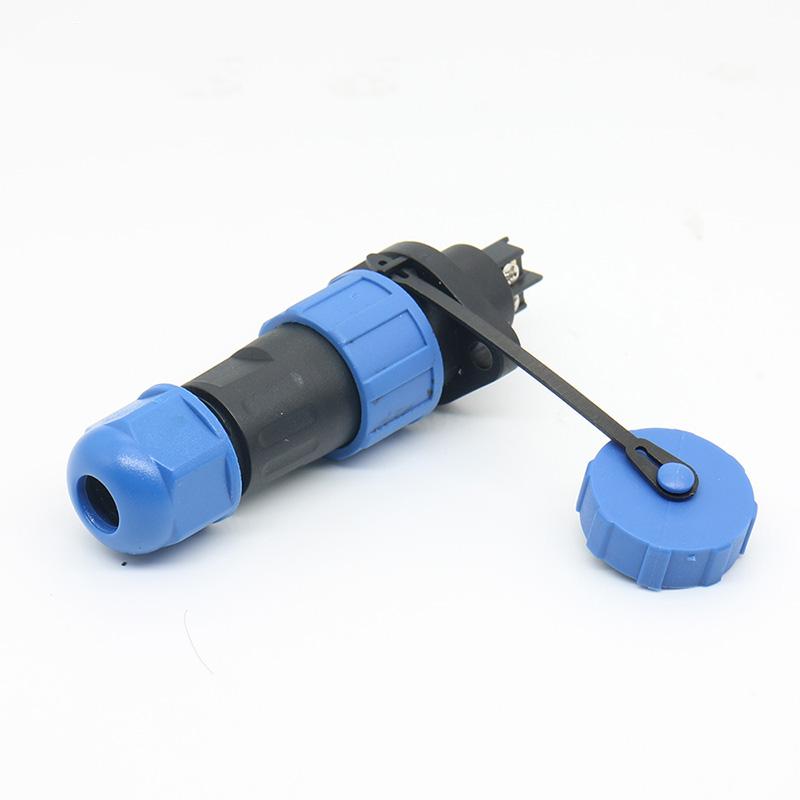

LD13 IP68 2-Hole Flange Mount Connector 2 Pin

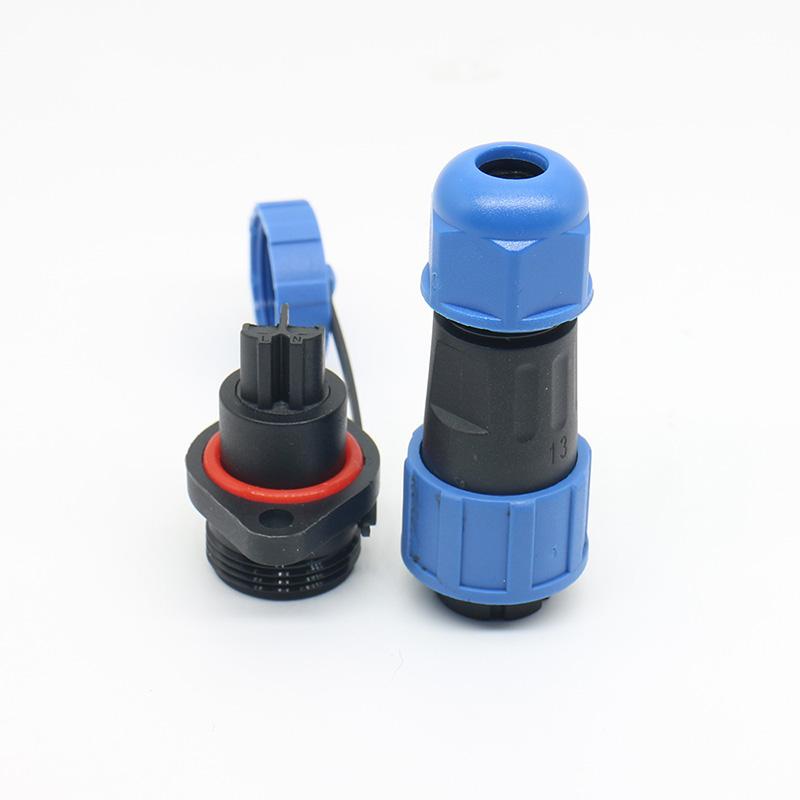

The LD13 IP68 2-Hole Flange Mount Connector is a compact waterproof panel connector designed for stable fixed installation on small equipment, control boxes, outdoor lamps, and electrical enclosures. Its 2-hole flange structure allows the connector to be mounted securely with screws, making it suitable for applications that require a stronger and more visible mounting method than rear nut installation.

Mounting and Mating Design

This 2 pin waterproof connector is suitable for simple power connection or signal transmission in compact electrical systems. With IP68 sealing protection, it helps prevent water, dust, and moisture from entering the connection area, making it reliable for outdoor and industrial environments where long-term stability is important.
The LD13 flange connector supports 0.5-1.5mm² cable wiring and fits 3-6.5mm cable outer diameter when matched with the cable connector side. Its threaded locking design allows the mating connector to be tightened firmly, helping maintain a secure connection under vibration, movement, or repeated maintenance operations.

Construction and Materials

Made with flame-retardant PC/Nylon66 housing, PPS insulation, and plated brass contacts, the connector provides reliable insulation, stable conductivity, and durable performance. The screw termination structure makes wiring straightforward during production, equipment installation, or after-sales maintenance.

Key Advantages

• 2-hole flange mount design for firm panel fixing
• Compact LD13 size for small equipment and limited-space installation
• IP68 waterproof and dustproof protection
• 2 pin layout for power or basic signal connection
• Suitable for 0.5-1.5mm² cable wiring
• Threaded locking structure for stable mating
• Screw termination for easy wiring and replacement
• Flame-retardant housing for safer operation

Typical Applications

The LD13 2-hole flange mount waterproof connector can be used in LED outdoor lighting, compact electrical enclosures, sensor equipment, small automation devices, security systems, communication equipment, measuring instruments, and other low-current waterproof wiring applications. For related flange connector options, see the LD13 IP68 Flange Connectors Dimensions and Materials.

Quality Assurance and Customization

Our factory is equipped with waterproof testing equipment, airtightness testers, insertion and withdrawal force testers, salt spray testers, voltage withstand testers, insulation resistance testers, precision measuring instruments, and electrical performance testing equipment. These inspection processes help ensure sealing performance, conductivity, insulation safety, corrosion resistance, dimensional accuracy, and long-term product reliability.

Our products can support international market requirements such as ISO9001, CE, RoHS, UL, BSCI, and national high-tech enterprise certification. We also provide OEM and ODM customization for cable length, connector color, pin layout, mounting style, molded cable assemblies, packaging, and application-specific connector solutions. For a broader selection, browse the Waterproof Connectors range.

Selection Guidance

When selecting this connector, confirm the mating connector type, required pinout, cable outer diameter, conductor size, and the electrical load of your application. Verify that the panel hole spacing matches the 2-hole flange dimensions and that the operating environment aligns with the IP68 rating. For assistance with configuration, contact our engineering team with your application details.
