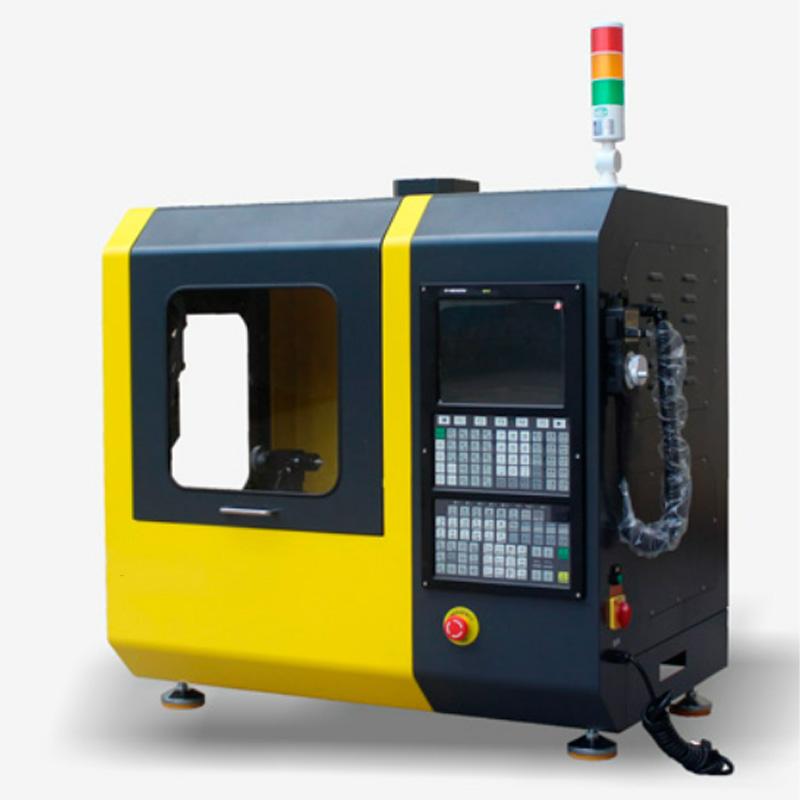

M12 Connectors in CNC Machine Automation Systems

In CNC machine automation systems, reliable electrical connections are critical for ensuring precise motion control, stable communication, and consistent machining performance. M12 connectors are widely used to connect servo motors, position sensors, control units, and feedback devices, providing secure power and signal transmission throughout the machining process.

CNC machines operate in environments with continuous vibration, metal dust, coolant exposure, and temperature fluctuations. M12 connectors, with their rugged metal housings and secure threaded locking mechanisms, maintain stable connections even under demanding operating conditions. Their resistance to mechanical stress and industrial contaminants helps prevent signal interruptions that could affect machining accuracy or production efficiency.

Additionally, M12 connectors support efficient installation and maintenance in automated manufacturing systems. When machine components such as sensors or motor drives require servicing or replacement, these connectors allow quick and reliable reconnection, minimizing downtime. By providing dependable connectivity, M12 connectors help improve machining precision, system reliability, and overall productivity in modern CNC automation environments.

Project Background and Industry Context

This application overview addresses the needs of CNC machine builders and maintenance engineers operating in industrial manufacturing sectors, including metalworking, automotive component production, and precision machining. The focus is on the electrical interface requirements for servo drives, encoders, proximity sensors, and I/O modules commonly found on CNC equipment.

Electrical and Environmental Requirements

Typical CNC automation systems require connectors that can handle control voltages up to 30V AC/DC and signal currents in the range of 4A per contact, depending on the specific pin configuration. The operating environment demands protection against coolant splash, metal chips, and vibration. M12 connectors with an IP67 rating provide the necessary sealing against dust and temporary water immersion, while their threaded coupling resists loosening under continuous machine vibration.

Solution and Installation Considerations

When selecting M12 connectors for CNC applications, engineers should verify the following parameters:

• Pin count and coding (A-coded for sensors, B-coded for fieldbus, D-coded for Ethernet) to match the device interface.
• Cable diameter range supported by the connector's clamping range, typically 4-8 mm for standard field-wireable versions.
• Mating cycles, usually rated at 100 or more, to confirm durability for maintenance operations.
• Operating temperature range, commonly -25°C to +85°C, to suit the machine environment.

For installation, confirm whether the application requires a straight or angled version, and whether a field-wireable or molded cable assembly is more appropriate for the production setup. Proper torque application during mating ensures the IP seal is maintained.
