LD13 IP68 Flange Connectors Dimensions and Materials

LD28/SP28 Square Flange Connector Dimensions and Materials

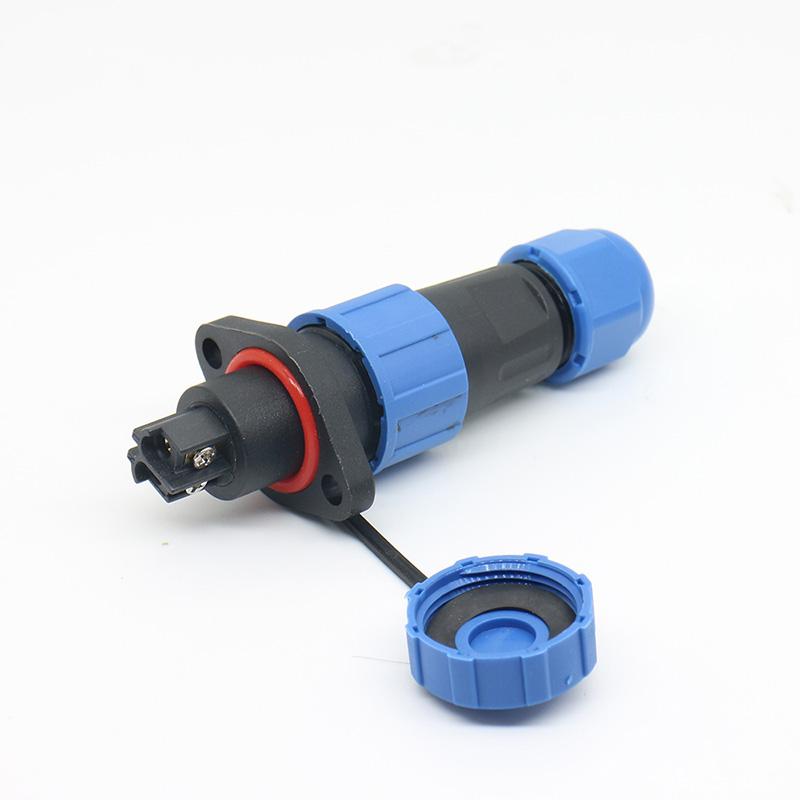

LD13 IP68 Flange Connector Overview

This page provides the verified dimensions, specifications, and materials of the LD13 flange connector. It is intended for engineers and buyers who need to confirm mechanical fit, electrical ratings, and environmental protection before integrating this connector into a panel or enclosure design.

Key Selection Criteria for the LD13 Flange Connector

When evaluating the LD13 for your application, focus on the following decision points:

• Mounting interface: Confirm the flange hole pattern, panel cutout dimensions, and fixing method against your enclosure design.
• Environmental protection: The IP68 rating indicates protection against dust ingress and prolonged immersion under specified conditions. Verify the mating and unmated states, as well as the cable entry, against your actual installation.
• Electrical limits: Review the rated current and voltage, and apply appropriate derating for ambient temperature, altitude, or continuous load conditions.
• Termination and cable range: Check the accepted conductor size and cable outer diameter to ensure compatibility with your wiring harness.
• Material compatibility: Confirm the housing, insert, and contact materials against your operating environment, including chemical exposure and temperature extremes.

Dimensions and Mechanical Fit

The dimensional drawing supplied with this product defines the critical mounting and mating envelope. Verify the following before ordering:

• Overall flange dimensions and mounting hole spacing.
• Panel cutout diameter and recommended panel thickness.
• Mating face profile and locking mechanism.
• Overall length and projection beyond the panel surface.

If a specific dimension is not visible in the drawing or is uncertain, contact our engineering team with your panel layout to confirm fit before prototyping.

Electrical and Environmental Specifications

The LD13 series is designed for reliable performance in demanding environments. Use the rated values as a starting point and apply application-specific derating where required. The IP68 classification supports use in washdown, outdoor, and submersion-prone installations, provided the connector is correctly mated and the cable entry is properly sealed.

Materials and Construction

Material selection affects corrosion resistance, temperature range, and mechanical durability. Confirm that the housing, contact plating, and sealing elements are suitable for your media and cleaning agents. For marine or offshore installations, review the material compatibility against saltwater exposure and consider additional protection if needed.

Related Flange Connector Options

If the LD13 does not match your required pin count or panel cutout, review the other flange connector series in this catalog:

• SD13/SP13 Durable Flange Connector Dimensions and Materials
• LD16/SP16 Flange Connector Dimensions and Materials

Next Step: Confirm Your Application Fit

Before placing an order, prepare the following details to speed up the selection process:

• Required pin count and contact arrangement.
• Panel thickness and cutout diameter.
• Cable outer diameter and conductor size.
• Operating temperature range and environmental exposure.
• Mating frequency and locking preference.

Submit these details through the inquiry form or contact our sales team directly to receive a fit confirmation and availability update for the LD13 flange connector.
