Project Background: Electrical Connectivity in Industrial CNC Milling

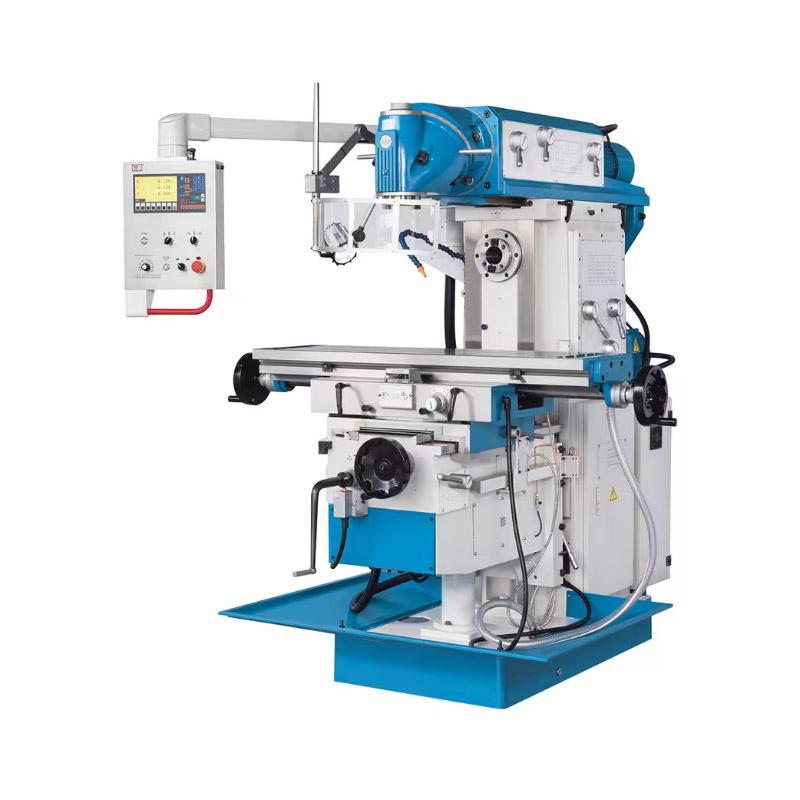

In industrial CNC milling machines, reliable electrical connections are crucial for precise motion control, spindle operation, and accurate data feedback. GX20 connectors are widely used to connect servo motors, position sensors, spindle drives, and control units, ensuring stable power and signal transmission throughout the machining process.

CNC milling machines operate in environments with constant vibration, metal dust, coolant exposure, and temperature fluctuations. GX20 connectors, with their rugged metal housings, secure threaded locking mechanisms, and high protection ratings, maintain dependable connectivity under these harsh conditions. Their durability and robust design help prevent signal interruptions and power loss, ensuring consistent machining accuracy.

Interface and Environmental Requirements

For a CNC milling application, the electrical interface typically involves a multi-pin circular connector capable of handling both power and signal lines. The environmental requirements include resistance to cutting fluids, metal particulate ingress, and mechanical shock. The GX20 series meets these demands through its IP-rated sealing and vibration-resistant coupling, making it suitable for direct mounting on motors, drives, and junction boxes along the machine axis.

Connector Solution and Installation

The selected GX20 configuration supports a defined pin count and contact layout for the servo drive and encoder feedback loop. Its threaded locking mechanism provides a secure mating force that resists loosening from machine vibration. The connector's cable outlet and panel mounting options allow for straightforward integration into existing control cabinets and motor terminal boxes, facilitating both original assembly and field replacement.

Commissioning and Delivery Process

During commissioning, each connection point is verified for correct pin assignment and torque specification to ensure a proper seal. The installation process is designed to minimize downtime; when motors, sensors, or control modules require servicing or upgrades, these connectors allow quick and secure reconnection. This modularity supports efficient maintenance schedules and reduces the time required for component swaps.

Verified Results and Operational Benefits

By providing reliable connectivity, GX20 connectors help enhance machining precision, system reliability, and overall productivity in modern industrial CNC milling systems. The robust design contributes to a lower incidence of connection-related faults, supporting consistent machine uptime and repeatable part quality. For engineers evaluating connector options, the GX20 series offers a balance of mechanical strength and electrical performance suited for demanding machine tool environments.
