GX20 Connectors for Automated Packaging Control Systems

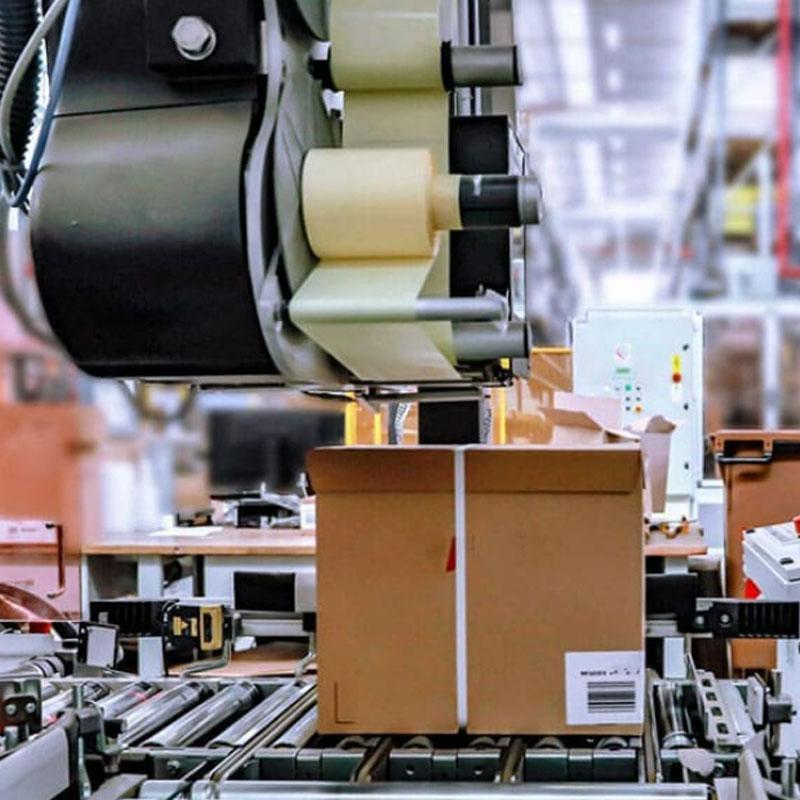

Automated packaging lines depend on synchronized motion, accurate sensor feedback, and uninterrupted power delivery. GX20 circular connectors provide a field-proven interface for motors, control units, sensors, and power distribution modules in these environments. Their threaded coupling and robust metal shell maintain a stable connection despite constant vibration and mechanical cycling.

Project Background and Operating Environment

Packaging machinery operates in fast-paced industrial settings where dust, packaging residue, and continuous movement are common. Control cabinets and junction points must withstand these conditions while preserving signal integrity and power continuity. GX20 connectors are selected for such applications because of their rugged construction and secure locking mechanism, which resist loosening under shock and vibration.

Electrical and Mechanical Requirements

The connector series supports high current capacity, making it suitable for motor power feeds and control signal circuits within the same assembly. The threaded coupling provides a positive mechanical lock, reducing the risk of accidental disconnection during line operation. This combination of electrical and mechanical performance is critical for maintaining uptime in automated packaging systems.

Installation and Maintenance Considerations

When packaging equipment requires servicing or component replacement, GX20 connectors simplify the process. Their design allows quick disconnection and secure reconnection, minimizing downtime during maintenance windows. This is particularly valuable in control panels where multiple circuits must be managed efficiently.

Application Fit and Selection Notes

Before specifying GX20 connectors, verify the following parameters against your system requirements:

• Current rating and voltage rating for motor and control circuits
• Number of contacts and pin arrangement for your cable and panel layout
• IP rating and temperature range for the installation environment
• Cable diameter range and termination method (solder, crimp, or screw)
• Mating cycles and locking mechanism suitability for frequent maintenance access

For related circular connector options used in industrial control and motor applications, see the Aviation Plug Connectors range. For guidance on connector selection criteria, refer to RF Connector Types, Materials, and Electrical Specs.

Inquiry and Next Steps

To confirm whether GX20 connectors match your packaging line requirements, provide your operating voltage, current load, cable type, and environmental conditions. Contact our engineering team through the inquiry form or WhatsApp to discuss your specific application.
