BNC Connectors for Surveillance Video Transmission

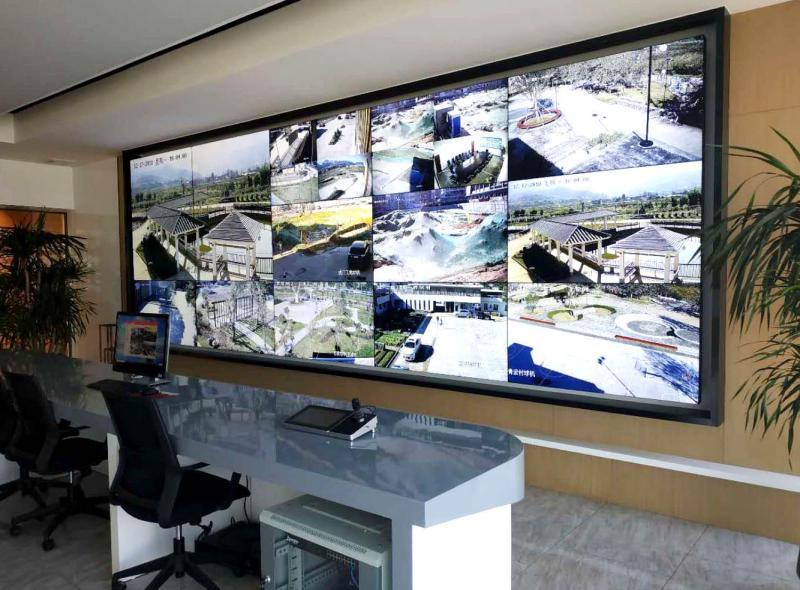

BNC connectors are widely used to transmit live video from security cameras to recording devices and monitors in residential and commercial surveillance setups. Their bayonet locking mechanism ensures a stable, secure connection, supporting continuous video feed without signal loss or interference.

Project Background

In modern security monitoring systems, reliable video transmission is critical for both residential and commercial applications. BNC connectors provide a proven interface for connecting cameras to DVRs, NVRs, and monitors, ensuring clear and uninterrupted video signals.

Interface and Environmental Requirements

These connectors are designed to meet the electrical and mechanical demands of standard surveillance equipment. They support coaxial cables commonly used in CCTV installations and are suitable for indoor and outdoor environments where stable signal integrity is required.

Connector Solution

The BNC connector series features a bayonet coupling design that locks securely, preventing accidental disconnection. This ensures a reliable connection for continuous video monitoring, even in environments with vibration or movement.

Verification and Delivery Process

Each connector is tested to confirm consistent signal transmission and mechanical durability. The delivery process includes proper packaging to protect the connectors during transit, ensuring they arrive ready for installation.

Verified Results

Field use confirms that BNC connectors maintain stable video transmission over typical surveillance cable runs, with minimal signal degradation. Their robust locking mechanism reduces downtime caused by loose connections.

For more information on related connector solutions, see the Aviation Plug Connectors or explore the Audio Video category. If you have specific requirements, please contact us via the inquiry form or WhatsApp for assistance.
