SP13 3 Pin Real Nut Female Socket IP68 Waterproof Panel Mount Connector

LD32/SP32 Electrical Panel Mount Connector

Key Selection Criteria for the SP13 Female Socket

When evaluating this connector for your project, consider the following decision points:

• Pin Configuration: This model is a 3-pin female socket. Confirm your circuit's core count and pinout requirements before ordering.
• Mounting Style: The real nut panel mount design offers a secure fit. Verify your panel thickness and cutout dimensions to ensure compatibility.
• Environmental Protection: The IP68 rating indicates protection against dust ingress and prolonged immersion. Confirm this matches your installation environment's exposure level.
• Termination Method: Options include solder termination or cable connection. Choose based on your assembly process and field serviceability needs.
• Mating Side: This is a female socket; ensure your mating plug is a compatible SP13 male connector with the same pin count and keying.

Application Fit and Installation Notes

The SP13 female socket is designed for equipment requiring a fixed connection point on an enclosure or panel. Typical applications include:

• Industrial control systems and automation equipment
• LED outdoor lighting and signage
• Monitoring and detection devices
• Electrical cabinets and junction boxes
• Communication and signal equipment

For installation, confirm the panel cutout size and the available space behind the panel for the nut and cable routing. The connector's compact structure is intended for limited installation spaces, but verify the rear clearance before finalizing your design.

Understanding the Technical Specifications

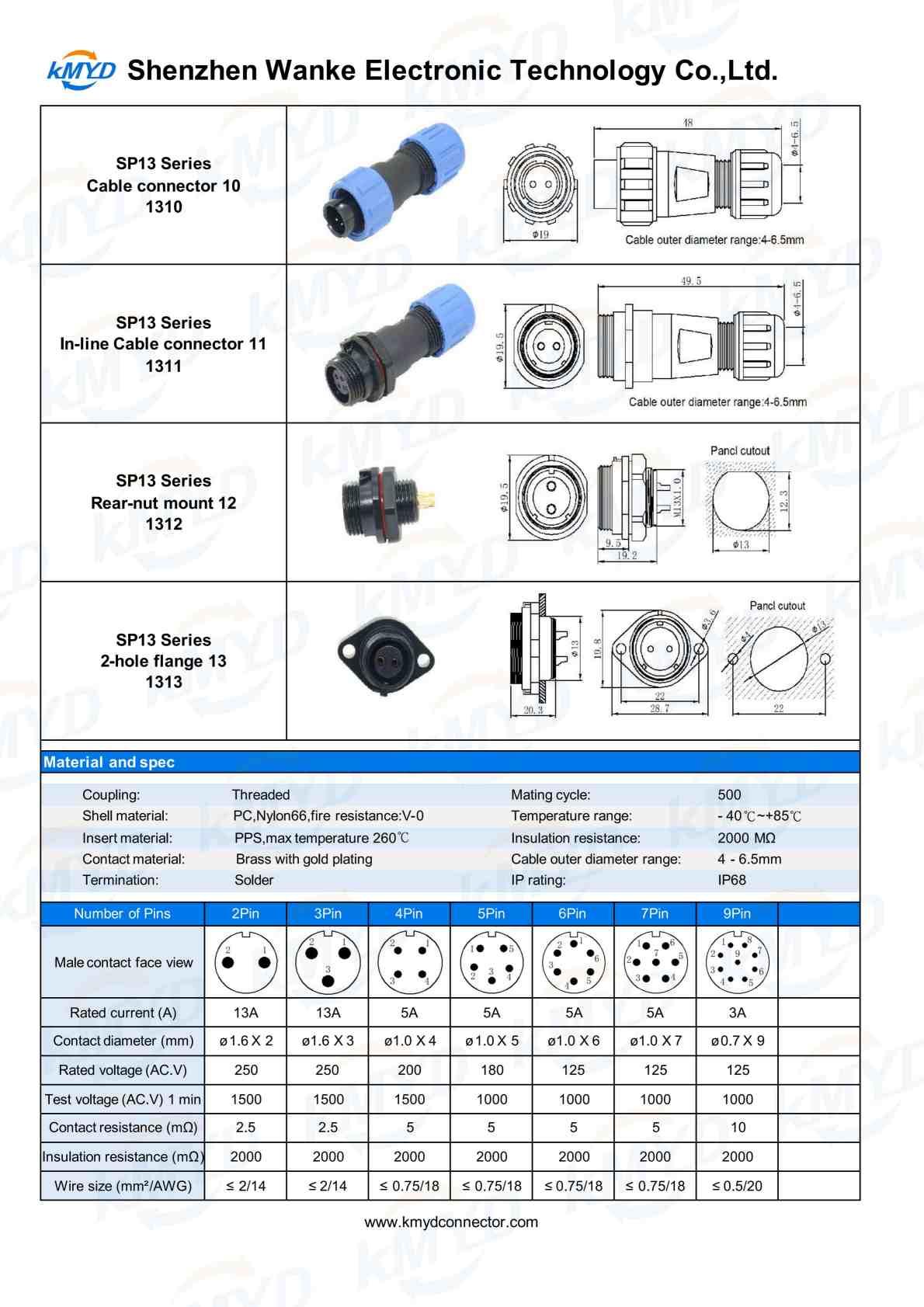

While the full parameter list is available in the Technical Specifications field, here is the interpretation of key values relevant to your selection:

• Housing Material (PC, Nylon66): Provides a balance of mechanical strength and dimensional stability for demanding environments.
• Contact Material (Brass Plated with Gold): Ensures reliable conductivity and corrosion resistance for consistent signal or power transmission.
• Insulator Material (PPS): Offers high thermal and chemical resistance, supporting long-term operational stability.

For the exact rated current, voltage, and cable range, please refer to the Technical Specifications table. Final configuration should be confirmed with your sales engineer based on your specific load and wiring.

Suitable and Unsuitable Use Cases

Suitable for:

• Fixed installations where a panel-mounted, waterproof connection point is required.
• Applications with repeated connection and disconnection cycles.
• Environments exposed to dust, moisture, or temporary immersion.

Unsuitable for:

• Applications requiring continuous submersion beyond the IP68 test conditions.
• High-vibration environments without additional strain relief or mechanical support.
• Direct replacement for other connector series without verifying the mating interface and pinout.

Customization and Order Inquiry Checklist

To ensure the correct configuration for your project, please provide the following information when making an inquiry:

• Required pin count and pinout or wiring diagram
• Mating connector type (male plug, cable assembly, etc.)
• Cable outside diameter and conductor size
• Panel thickness and mounting hole dimensions
• Electrical load (current and voltage)
• Environmental requirements (IP rating, temperature range)
• Order quantity and target delivery schedule

Customization services such as cable length, connector configuration, and labeling are available upon request. For related panel mount options, see the LD32/SP32 Electrical Panel Mount Connector. For a broader range of sealing solutions, review the Waterproof Connectors catalog.

Quality Assurance and Support

SP13 connectors are produced under controlled assembly processes to ensure consistent quality. Each unit is checked during production to verify proper assembly and functionality before packaging. Documentation, drawings, and technical assistance can be provided to support product selection and project implementation.

Products are packed using protective materials to ensure safe transportation and storage. Our logistics coordination ensures steady delivery performance for customers requiring reliable supply and predictable lead times.
