M12 4 Pin A-Code Female Connector Shielded Waterproof Cable Assembly IP68 PVC/PUR Jacket

Name: M12 4 Pin A-Code Female Connector Shielded Waterproof Cable Assembly IP68 PVC/PUR Jacket
Brand: KMYD
SKU: 2-17 Pin
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (11 reviews)

MOQ	>200
Price
Number Of Cores	2-17 Pin
Contact Diameter(mm)	0.6mm
IP Rating	IP67
Shell Material	PA66/Nickel Plated Brass
Temperature Range	-40℃ ~ +85℃
Termination	Solder
Rated Current(A)	1A
Rated Voltage(Ac.V)	125V
Test Voltage(Ac.V)1Min	1000V
Insulation Resistance (MΩ)	1500MΩ
Contact Resistance (MΩ)	≤10MΩ
Certification	CE,ISO9001, RoHS

Get Quote

+8619924482730

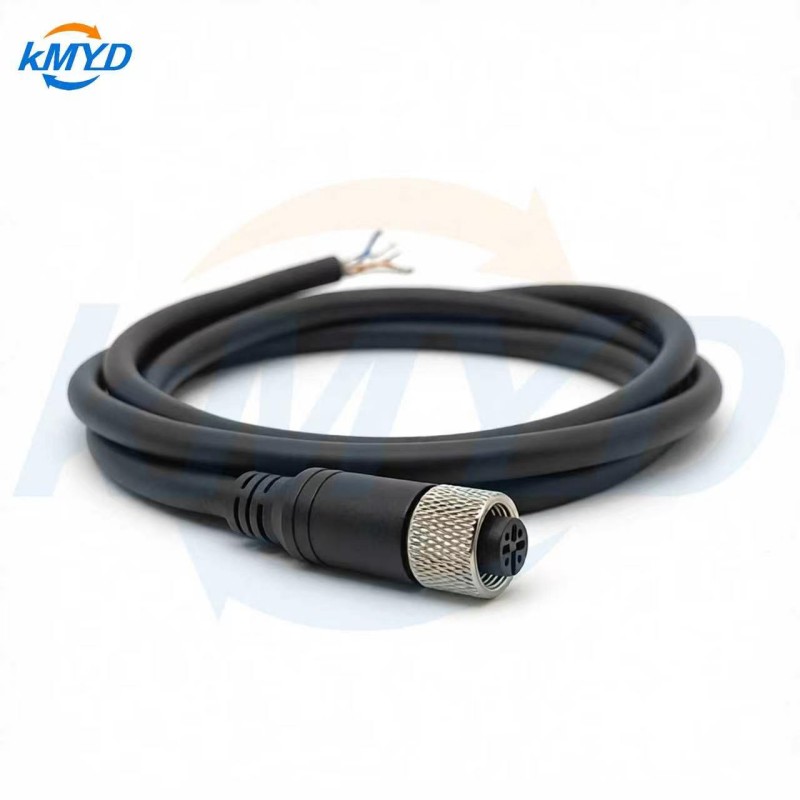

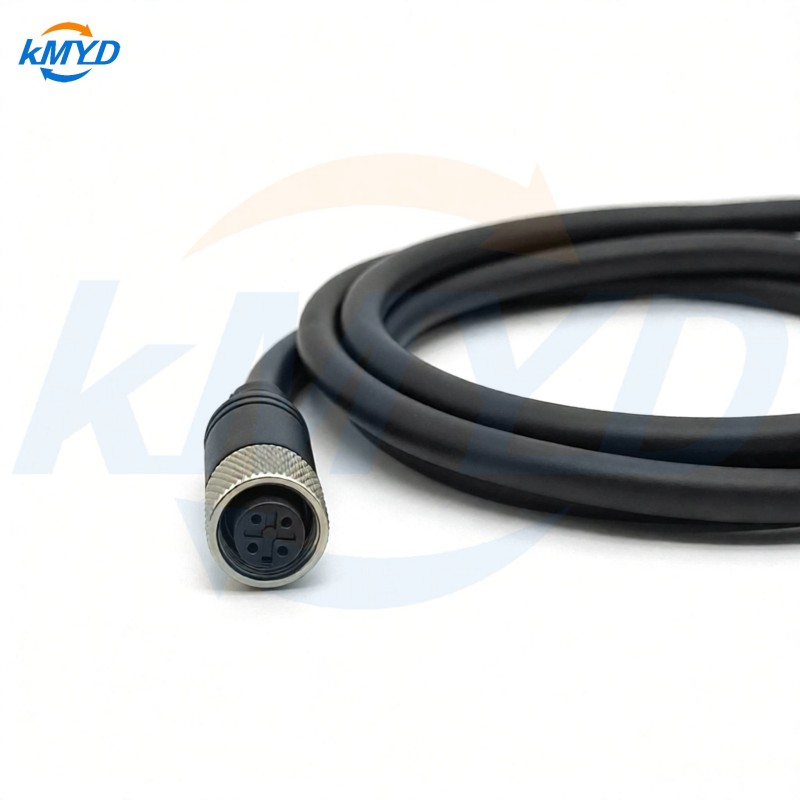

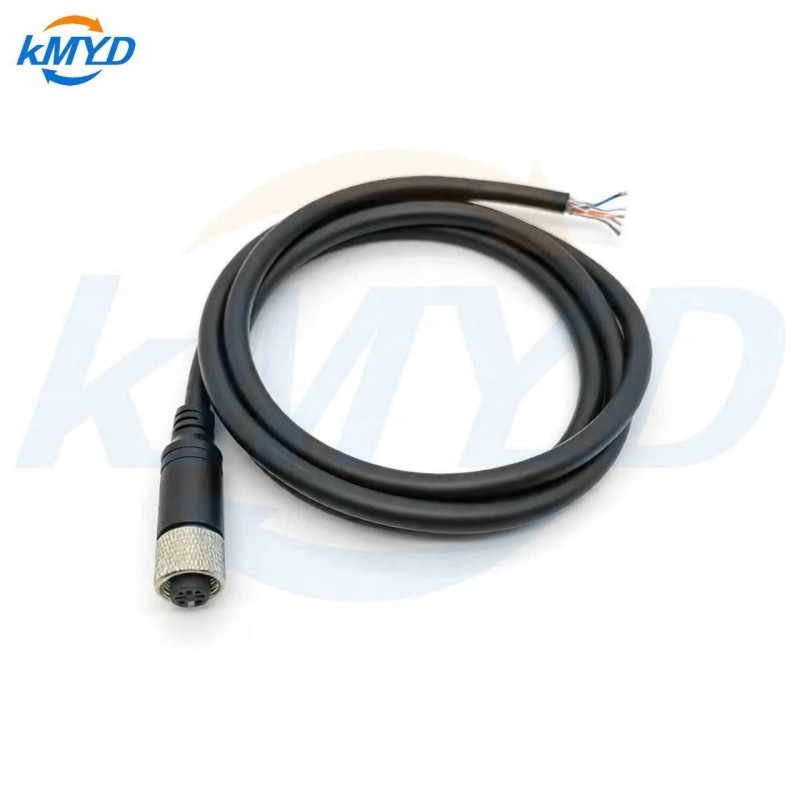

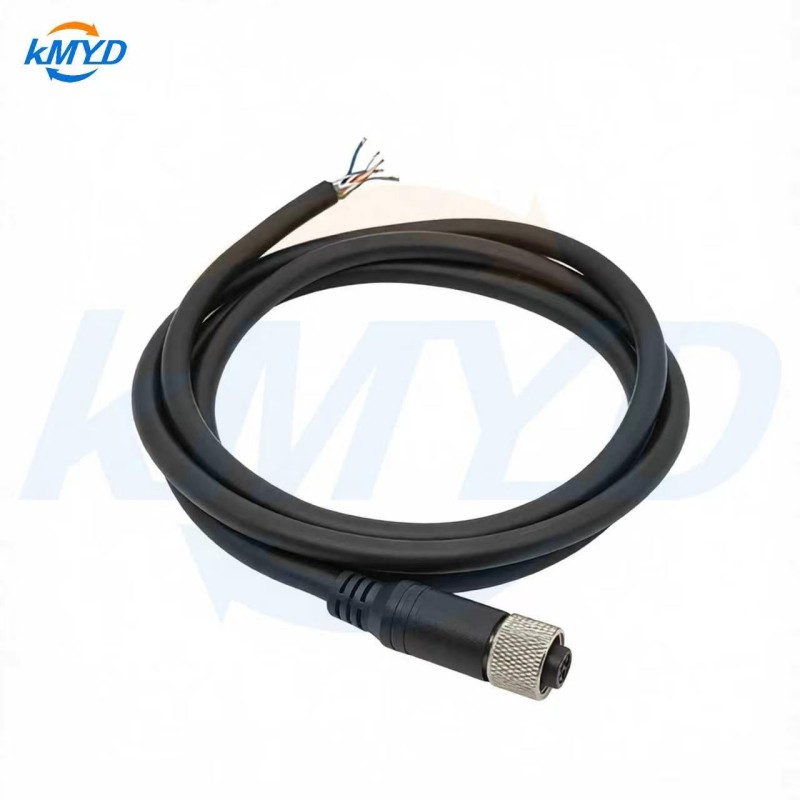

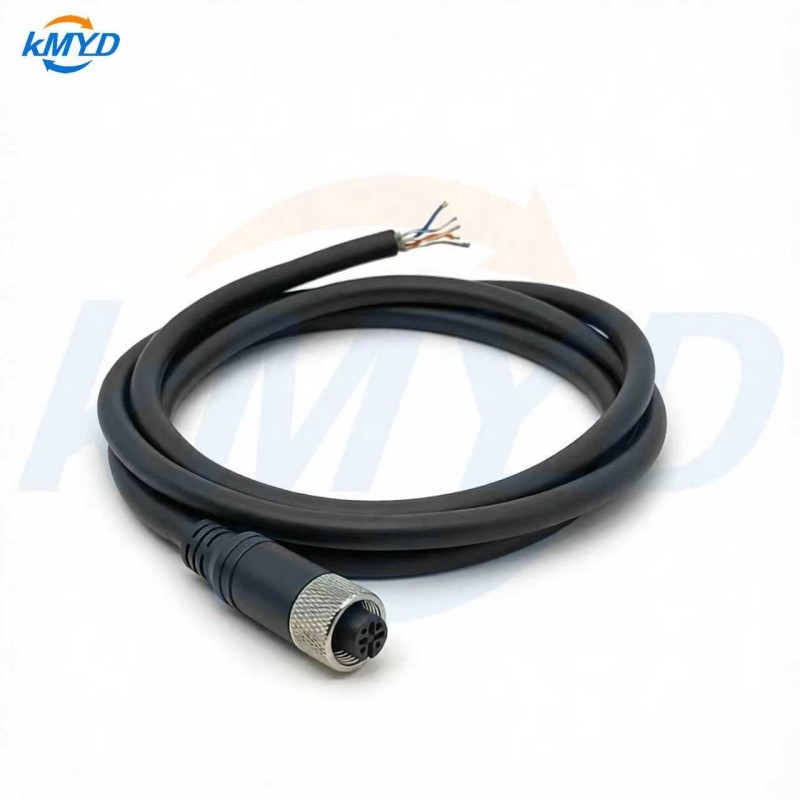

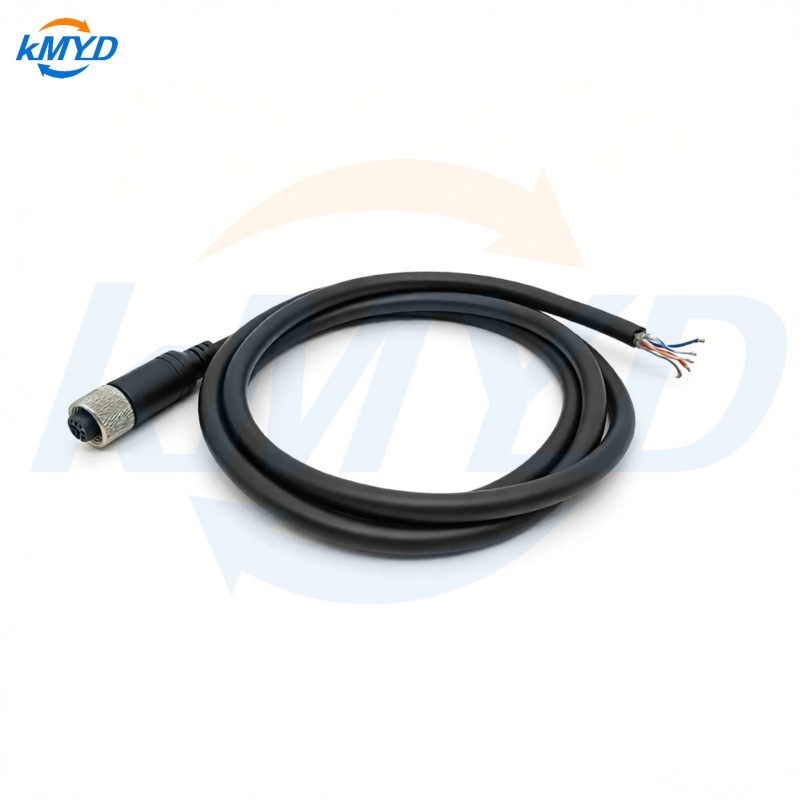

M12 4 Pin Female A-Code Shielded IP68 Waterproof Molded Cable with PVC/PUR Jacket
The M12 4 Pin Female A-Code Shielded Waterproof Cable is designed for seamless integration with industrial sensors, controllers, and automation equipment. Featuring a female M12 interface with A-Code configuration, this cable provides a dependable connection point for signal transmission and device communication.
M12 Connector

Built with a fully molded structure, the cable assembly offers excellent protection at the connector-to-cable junction, reducing the risk of damage caused by repeated bending, vibration, and mechanical stress. The shielded design helps maintain signal quality by minimizing interference from surrounding electrical equipment, making it suitable for precision industrial environments.

The cable is available with PVC or PUR outer jacket options to meet different application demands. PVC provides a practical and flexible solution for general industrial use, while PUR offers enhanced resistance against abrasion, oil, and mechanical wear for more demanding working conditions.

Designed with an IP68 waterproof protection rating, this M12 cable assembly ensures dependable operation in environments exposed to moisture, dust, and outdoor conditions.

Product Features
M12 4 Pin Female A-Code Interface – Provides reliable device-side connection for industrial applications.
EMI Shielded Structure – Improves signal stability in electrically noisy environments.
IP68 Sealing Performance – Supports reliable operation in harsh conditions.
PVC/PUR Jacket Options – Available for different flexibility and durability requirements.
Integrated Molded Design – Protects cable joints and extends service life.

Flexible Customization – Supports customized cable length, wiring, jacket material, and connector specifications.

M12 Connector

Applications
Industrial Sensors
Automation Control Equipment
Robotics Systems
Machine Vision Equipment
Factory Monitoring Systems

Industrial Instrumentation

Factory Strength

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional manufacturer specializing in industrial connectors and customized cable assemblies.

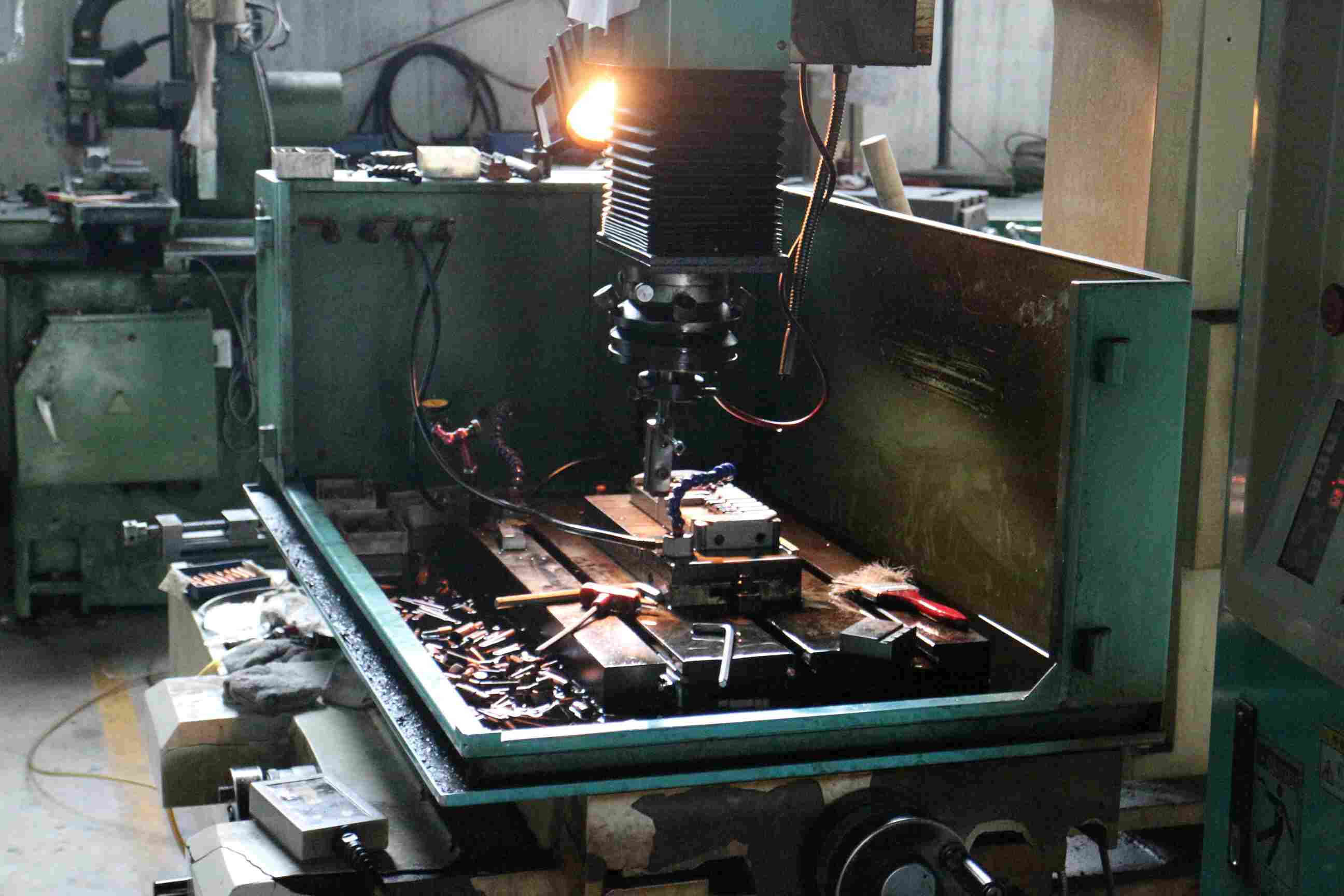

With over 15 years of experience, Meiyadi has developed complete manufacturing capabilities covering connector development, mold production, precision processing, injection molding, cable assembly, and quality testing. This integrated production system enables efficient delivery from product design to large-scale manufacturing.

The company is equipped with professional inspection facilities, including waterproof testing, electrical performance testing, mechanical testing, and dimensional inspection, ensuring stable quality for every batch of products.

Through strong R&D capability, flexible OEM/ODM services, and strict quality management, Meiyadi provides reliable connection solutions for global customers in automation, electronics, communication, and industrial equipment fields.

Item	Parameters
Number of Cores	2-17Pin
Gender	Male/Female
Housing Material	PA66/Nickel Plated Brass
Cores Material	Brass Plated with Silver/Gold
Insulator Material	Phenolics
Locking System	Screw Locking
Temperature Range	-40℃~+85℃
Rated Current (A)	1A
Rated Voltage (AC.V)	125V
Test Voltage (AV.C)1Min	1000V
Insulation Resistance (㏁)	1500㏁
Contact Resistance (㏁)	≤10㏁
Termination	Solder
